ASUS

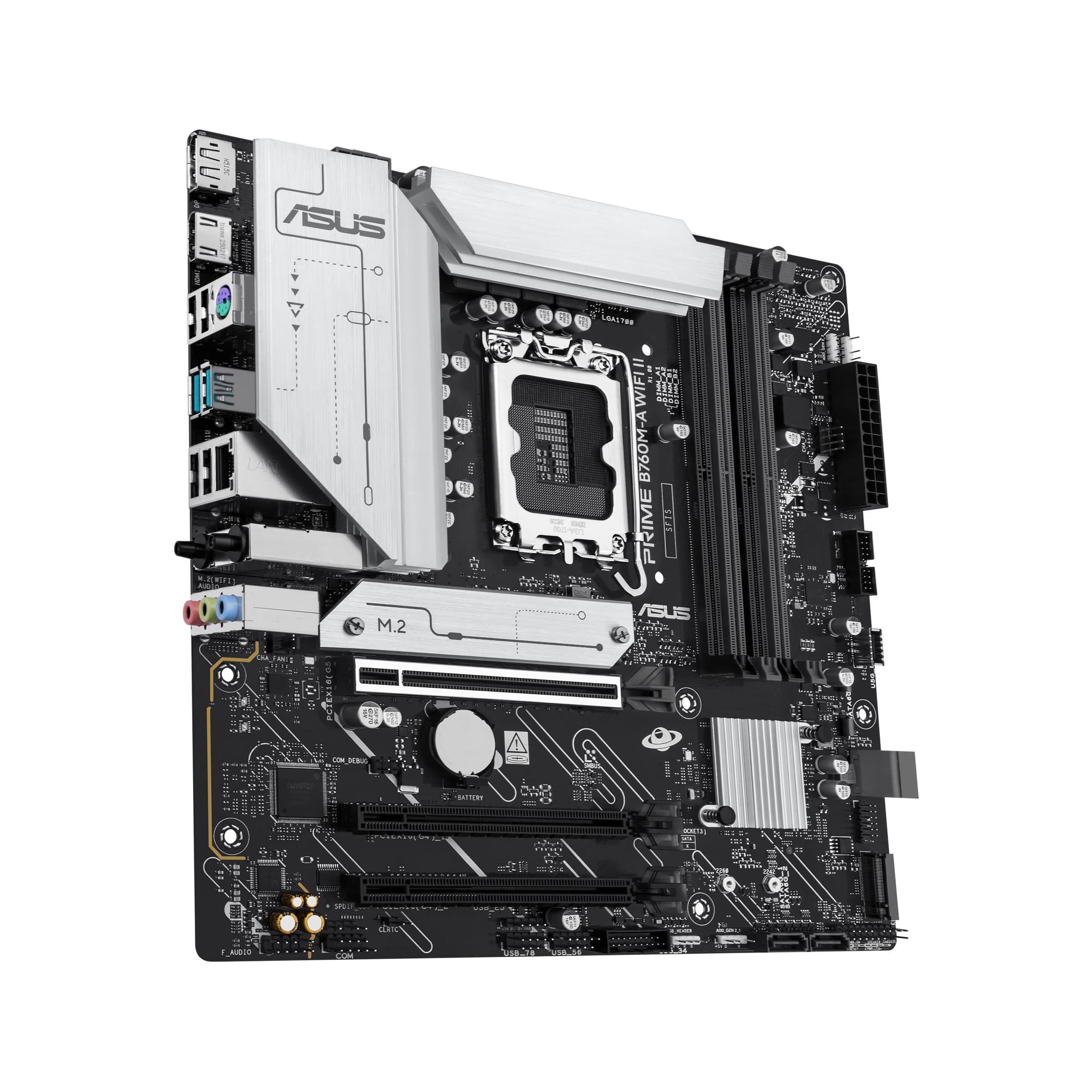

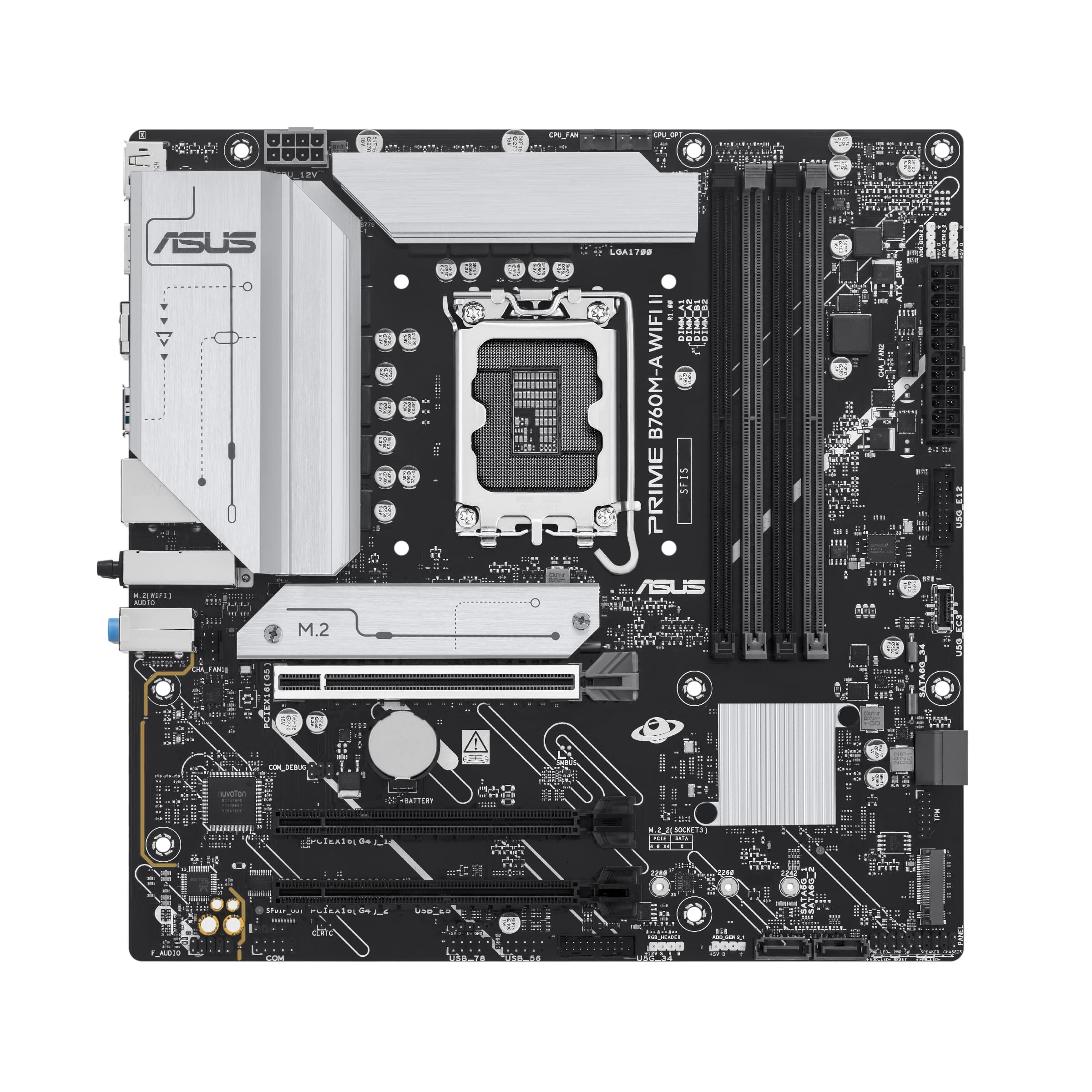

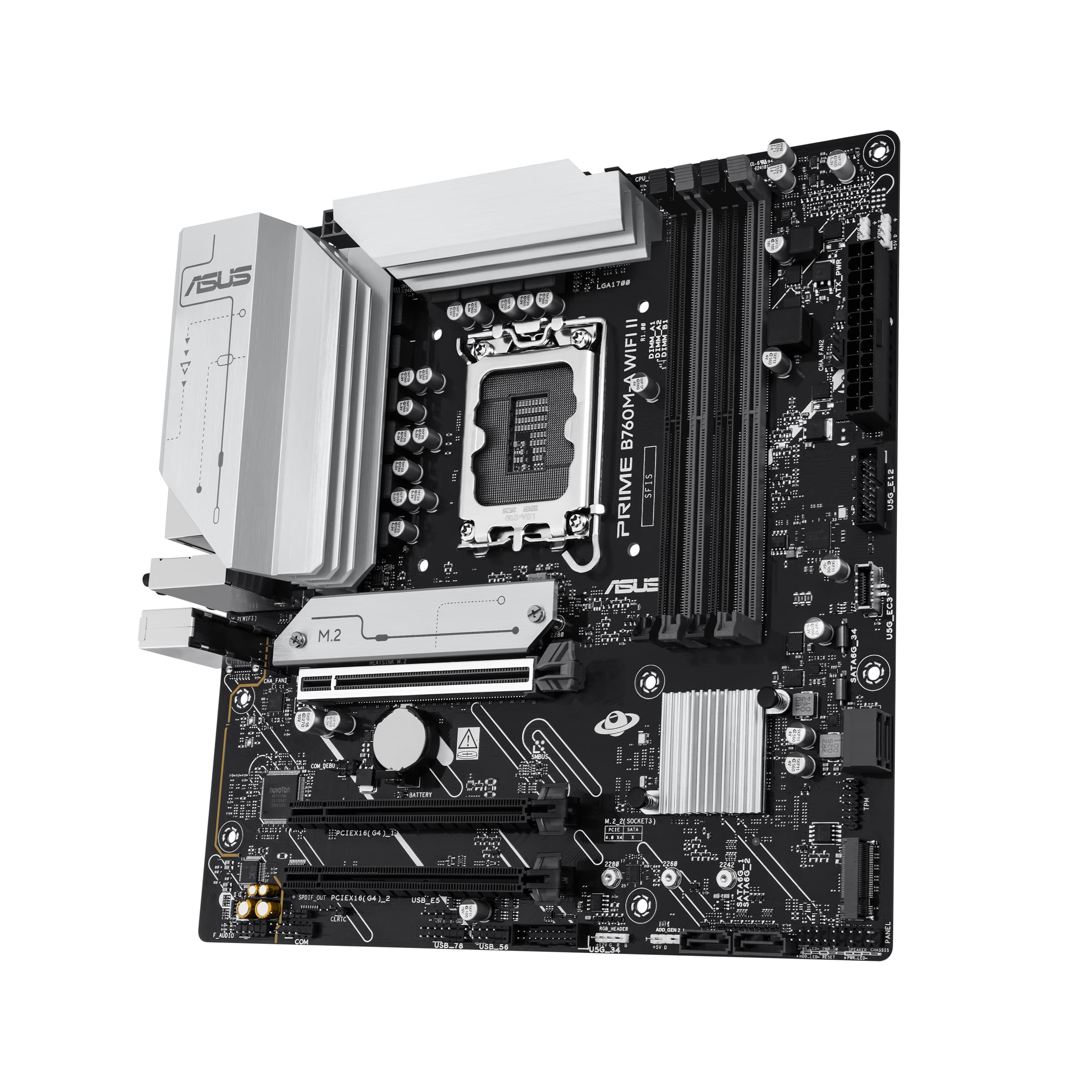

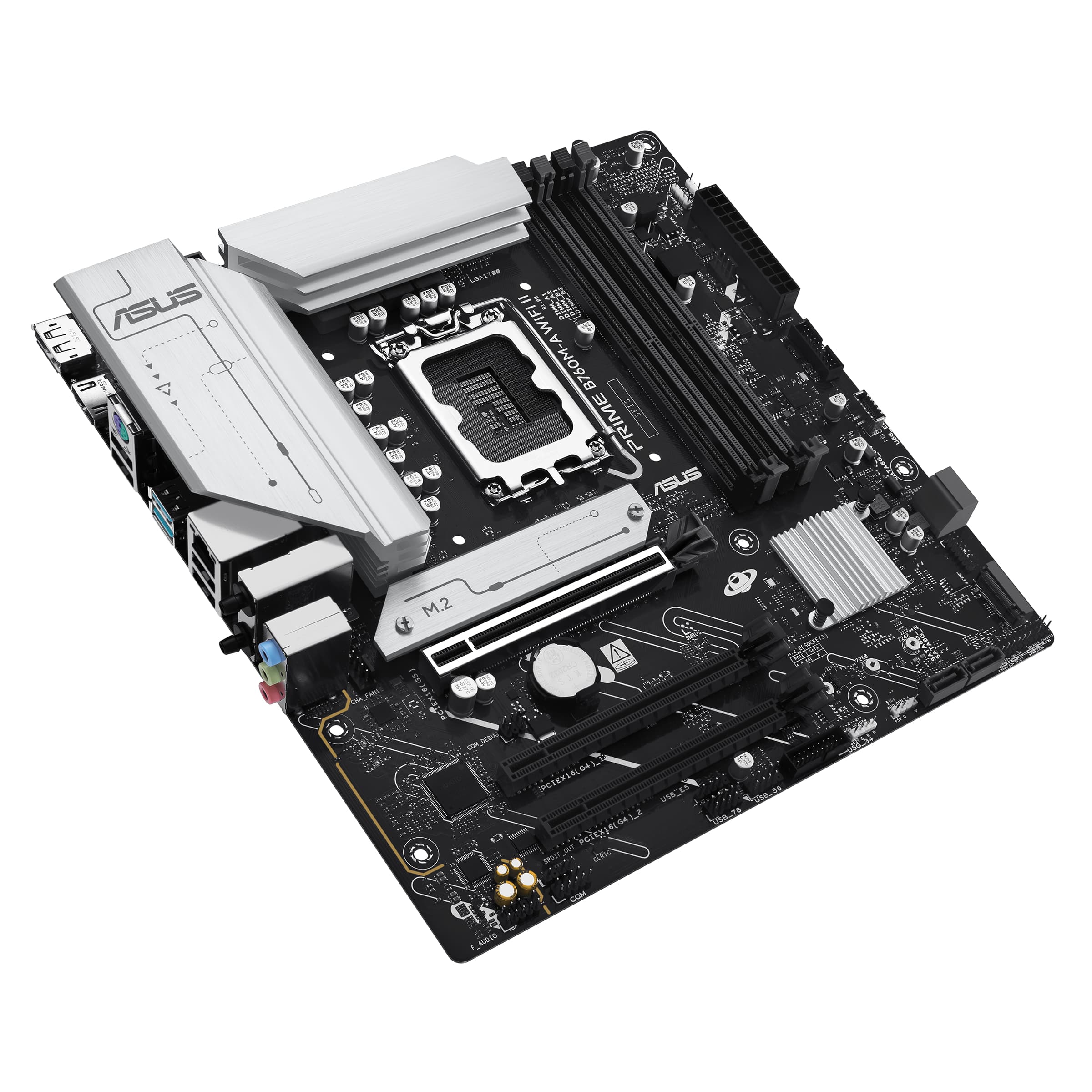

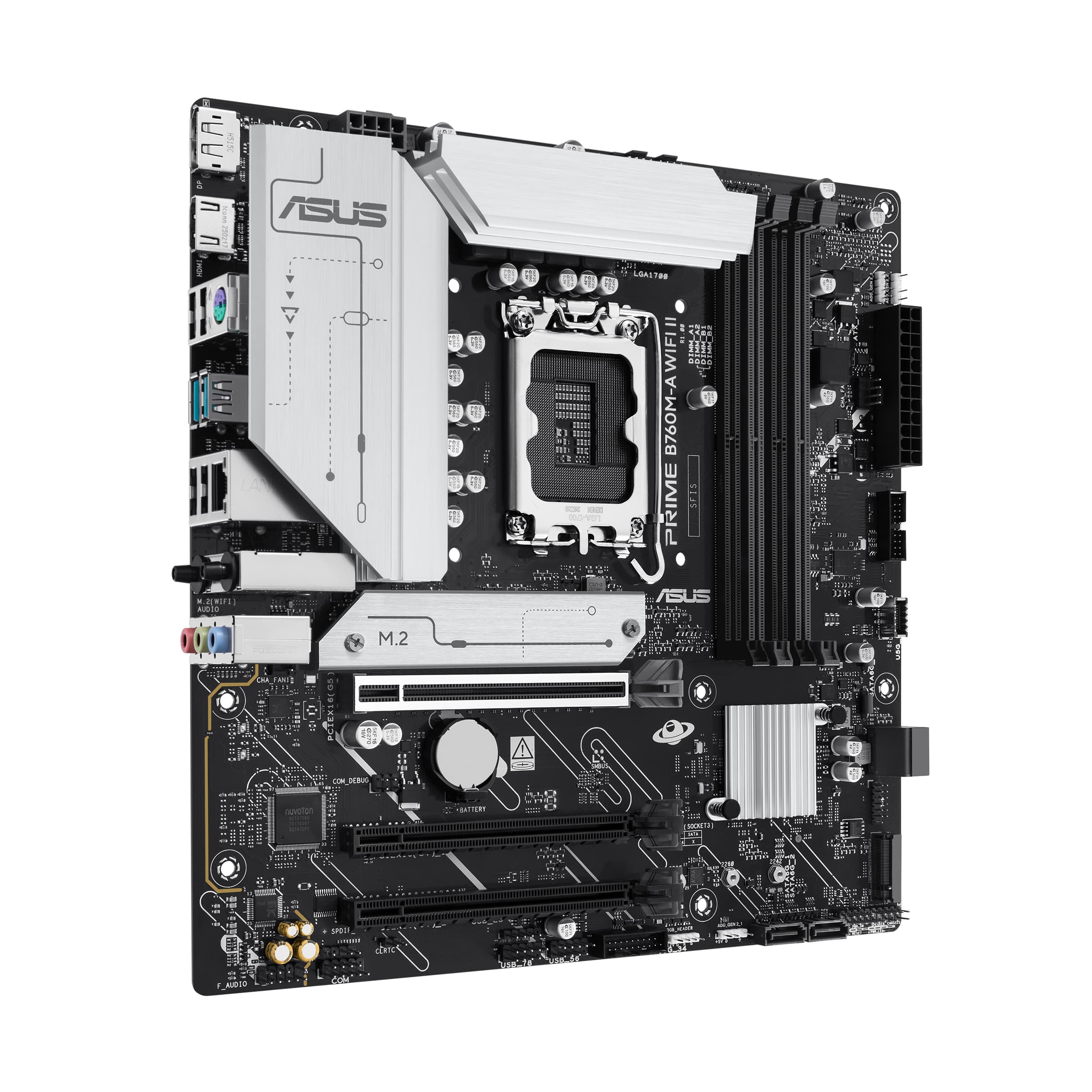

ASUS Mainboard PRIME B760M-A WIFI II
1/9- Artikelnummer
- 2024574
- Hersteller-Nr.
- 90MB1NF0-M0EAY0
- EAN
- 4711636275439
ASUS PRIME B760M-A WIFI II, mATX
| Arbeitsspeicher-Typ | DDR5 |
|---|---|
| Prozessorsockel | LGA 1700 |
| Chipsatz | B760 |
| Mainboard Formfaktor | Micro-ATX |
| WLAN | Ja |
| Prozessorhersteller | Intel |
| Kompatible Prozessoren | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Beschreibung
ASUS Mainboard PRIME B760M-A WIFI II
LGA1700, 4x DDR4, PCIe 5.0, WiFi 6E
Dokumente
Technische Daten
| Arbeitsspeicher-Typ | DDR5 |
|---|---|
| Prozessorsockel | LGA 1700 |
| Chipsatz | B760 |
| Mainboard Formfaktor | Micro-ATX |
| WLAN | Ja |
Prozessor
| Prozessorhersteller | Intel |
|---|---|
| Kompatible Prozessoren | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
|---|---|
| Anzahl der Speichersteckplätze | 4 |
| RAM-Speicher maximal | 256 GB |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Unterstützte Speichertaktrate (max.) | 7200 MHz |
| Unbuffered Speicher | Ja |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
|---|---|
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| RAID-Unterstützung | Ja |
| RAID Level | 0,1,5,10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
|---|
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 0 |
| SATA III Anschlüsse | 4 |
| S/PDIF aus Stecker | Ja |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Zahl der Chassisventilatorstecker | 2 |
| EPS Stromstecker (8-pin) | Ja |
| Zahl der COM Stecker | 1 |
| TPM-Anschluss | Ja |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |

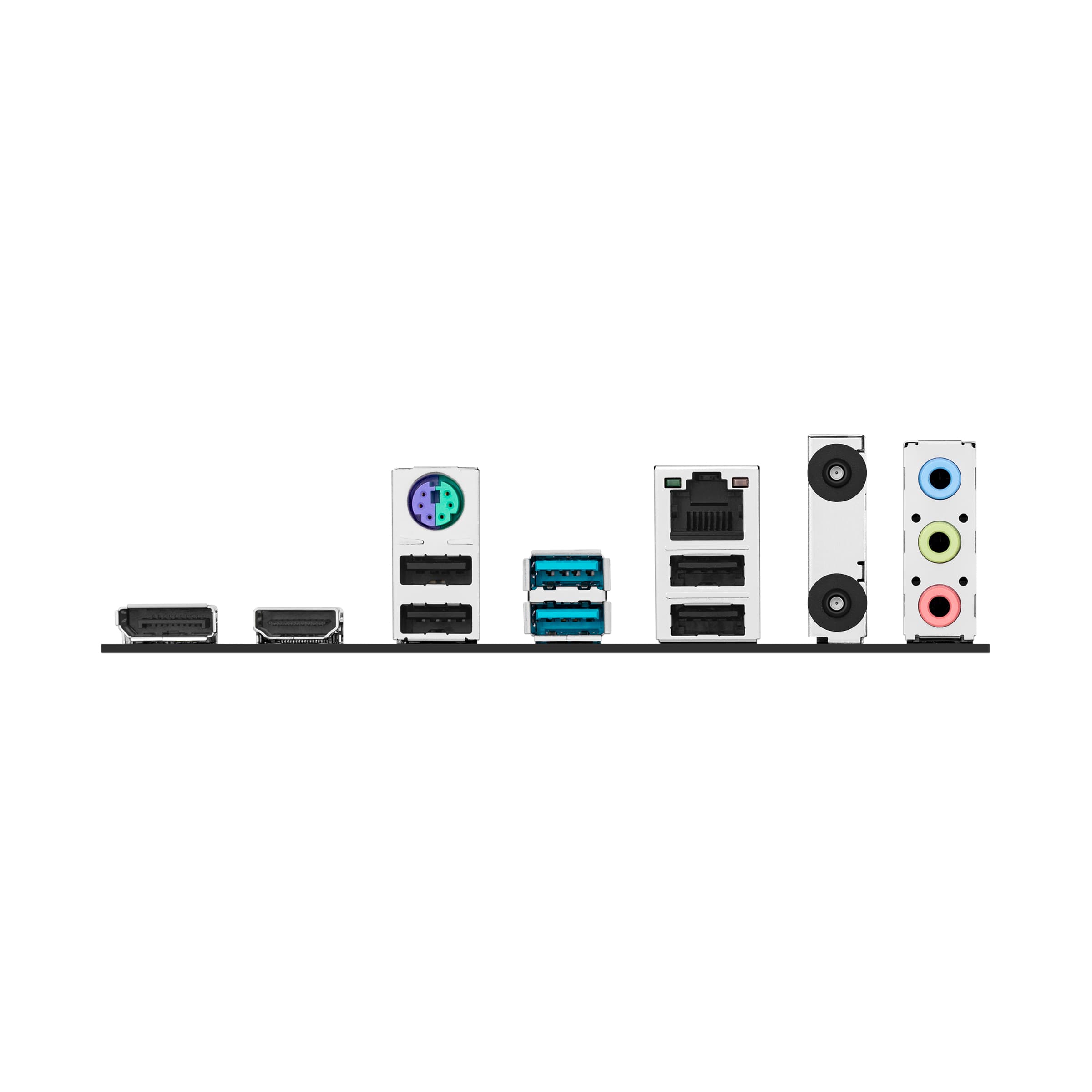

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 0 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 0 |
| Anzahl PS/2 Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| WiFi-AP-Antennenbuchse | 1 |
Netzwerk
| Ethernet/LAN | Ja |
|---|---|
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
| WLAN-Standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-Version | 5.4 |
Merkmale
| Komponente für | PC |
|---|---|
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Motherboard Chipsatz | Intel B760 |
| Audio Kanäle | 7.1 Kanäle |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 |
Erweiterungssteckplätze
| PCI Express x16-Steckplätze (Gen 4.x) | 2 |
|---|---|
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 grösste Schlüsselgrösse | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| 2. M.2 grösste Schlüsselgrösse | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| 3. M.2 höchste PCI Express-Generation | 3.0 |
BIOS
| BIOS-Typ | UEFI AMI |
|---|---|
| BIOS-Speichergrösse | 128 Mbit |
Verpackungsdaten
| Verpackungsbreite | 275 mm |
|---|---|
| Verpackungstiefe | 275 mm |
| Verpackungshöhe | 67,5 mm |
| Paketgewicht | 1,4 kg |
Gewicht und Abmessungen
| Breite | 244 mm |
|---|---|
| Tiefe | 244 mm |
Lieferumfang
| Mitgelieferte Kabel | SATA |
|---|---|

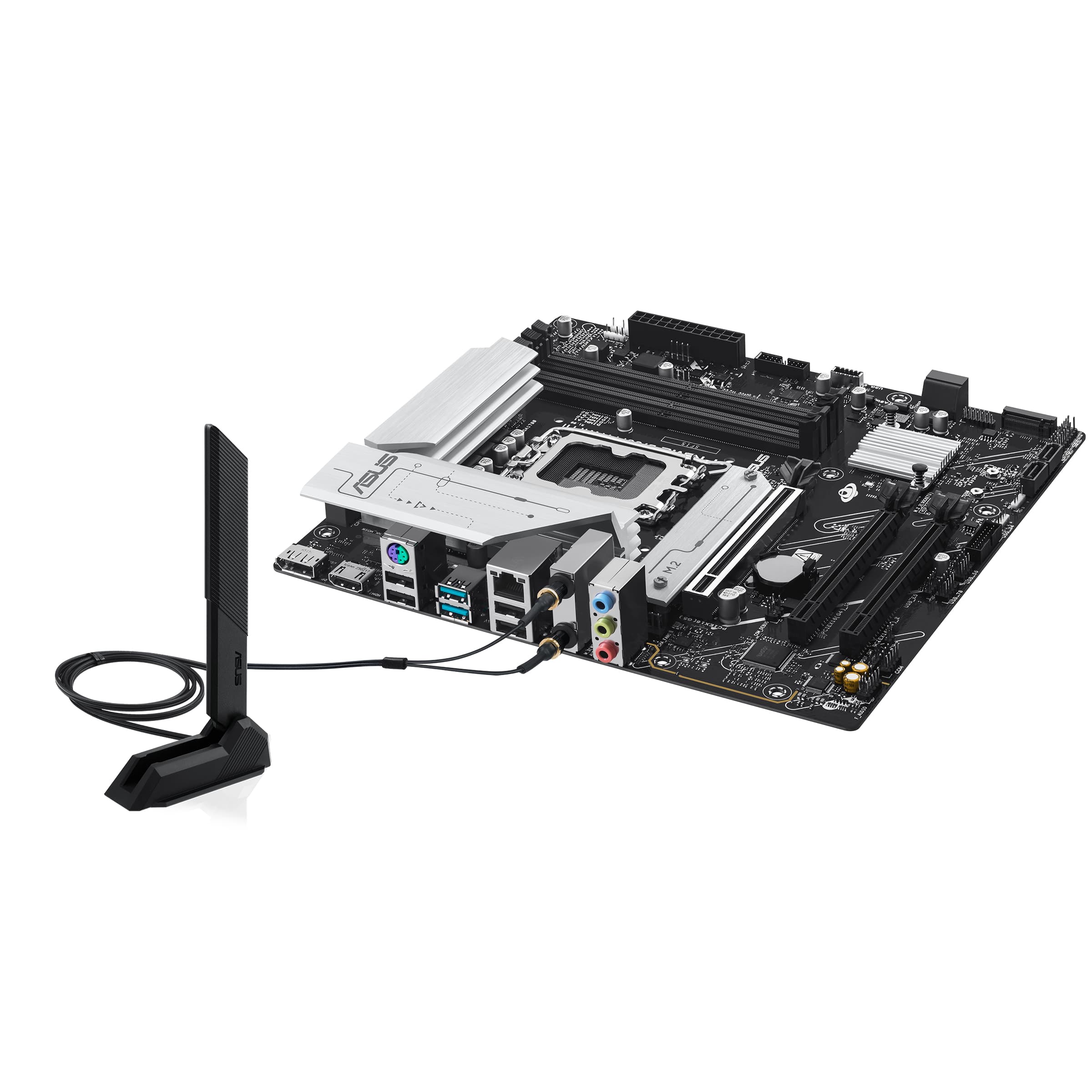

| Antenne enthalten | Ja |
| Schrauben enthalten | Ja |
| Gewicht | 1.42 kg |
