ASUS
ASUS Mainboard Prime B760M-R D4
1/9- Artikelnummer
- 1650875
- Hersteller-Nr.
- 90MB1HA0-M0EAY0
- EAN
- 4711387423769
ASUS B760M-R D4, mATX
| Arbeitsspeicher-Typ | DDR4 |
|---|---|
| Prozessorsockel | LGA 1700 |
| Chipsatz | B760 |
| Mainboard Formfaktor | Micro-ATX |
| WLAN | Nein |
| Prozessorhersteller | Intel |
| Kompatible Prozessoren | Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Beschreibung

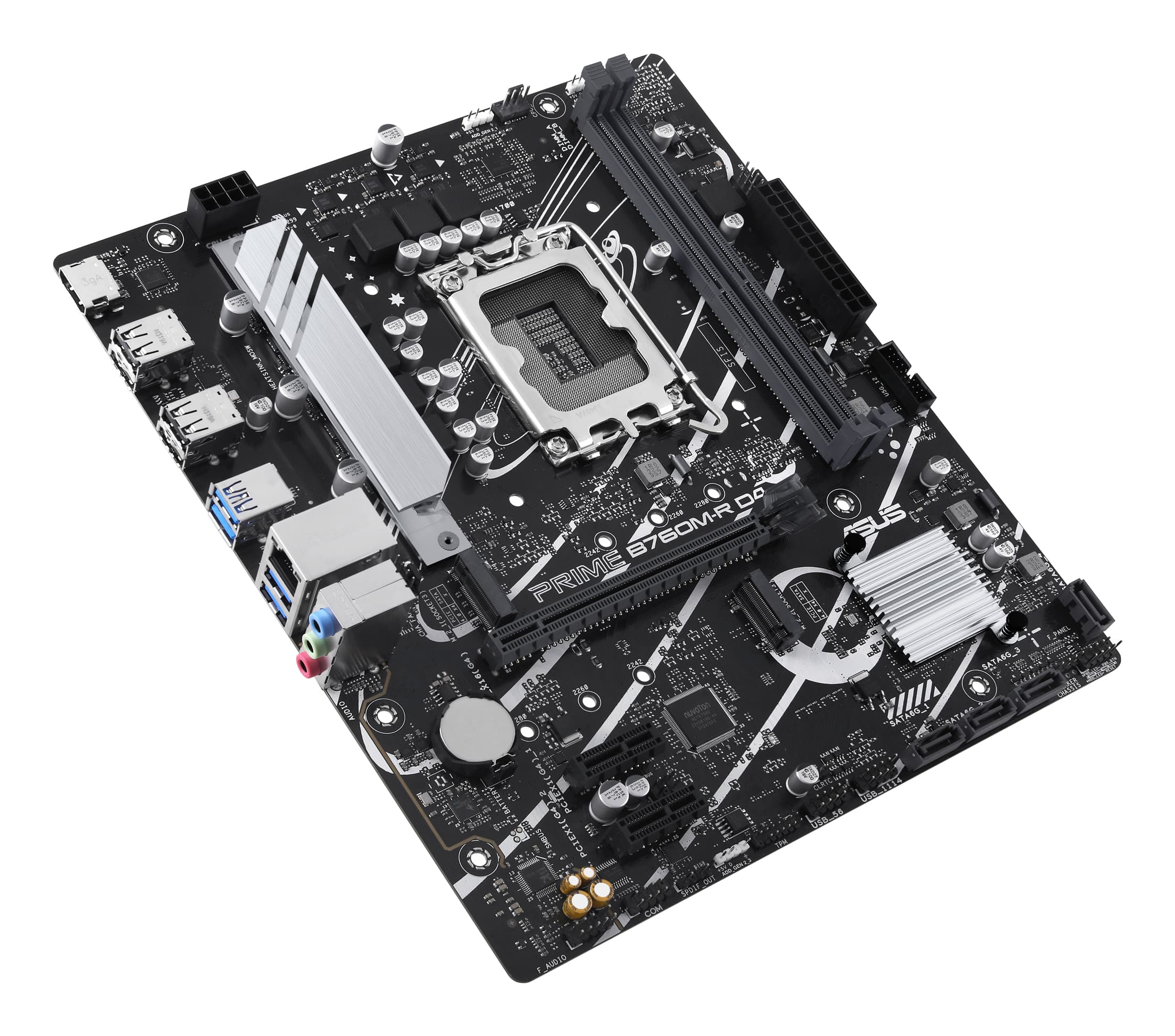

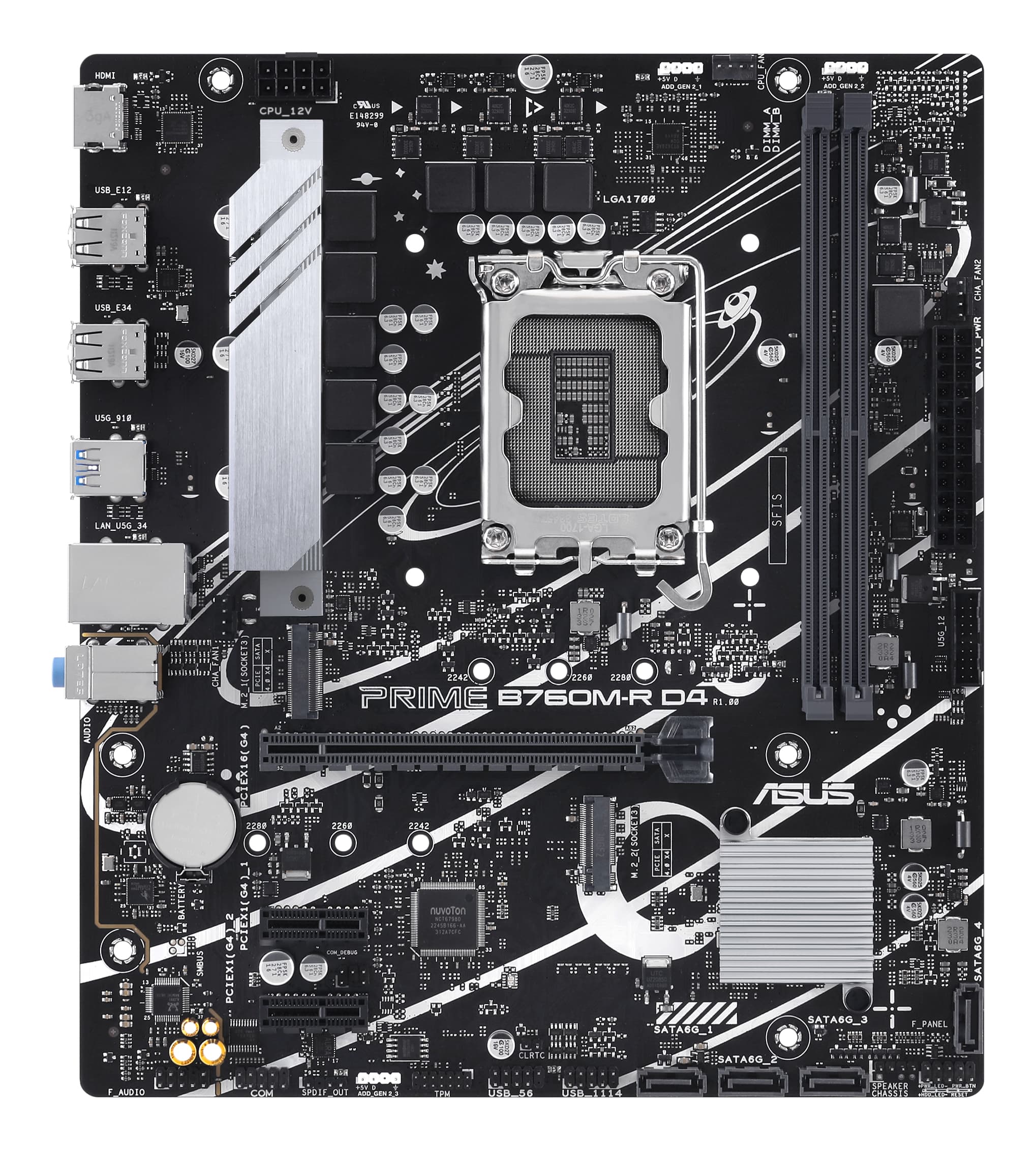

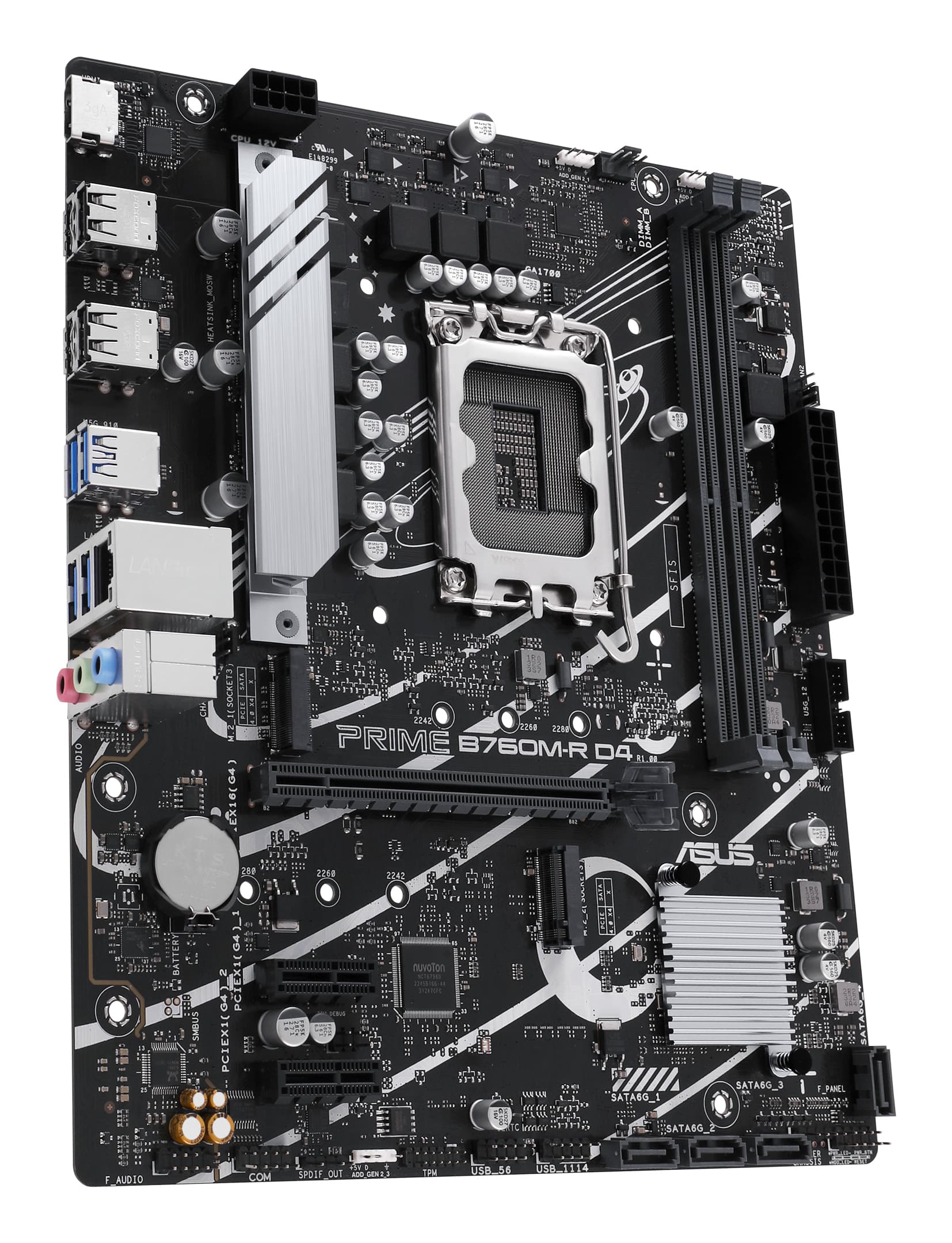

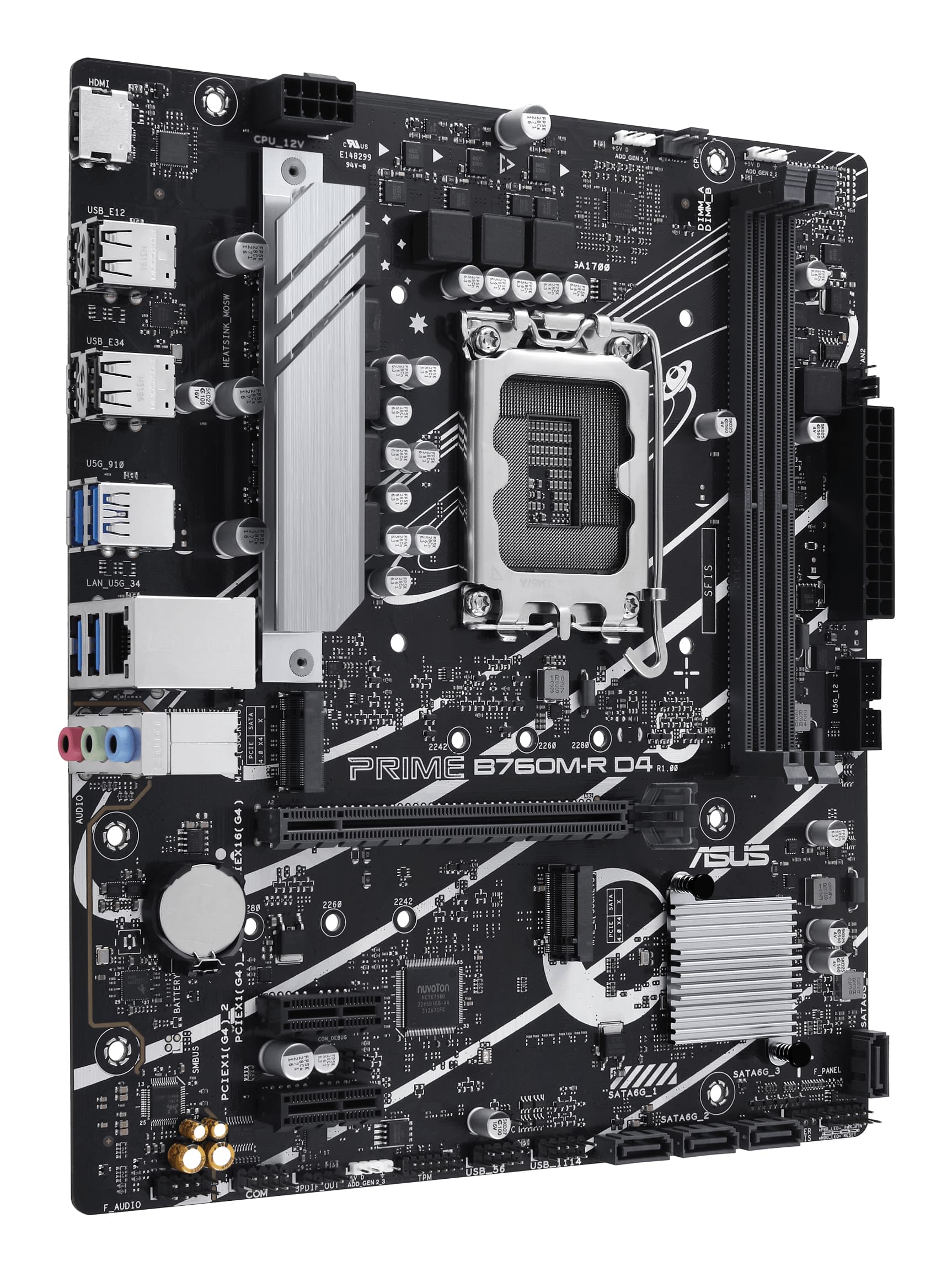

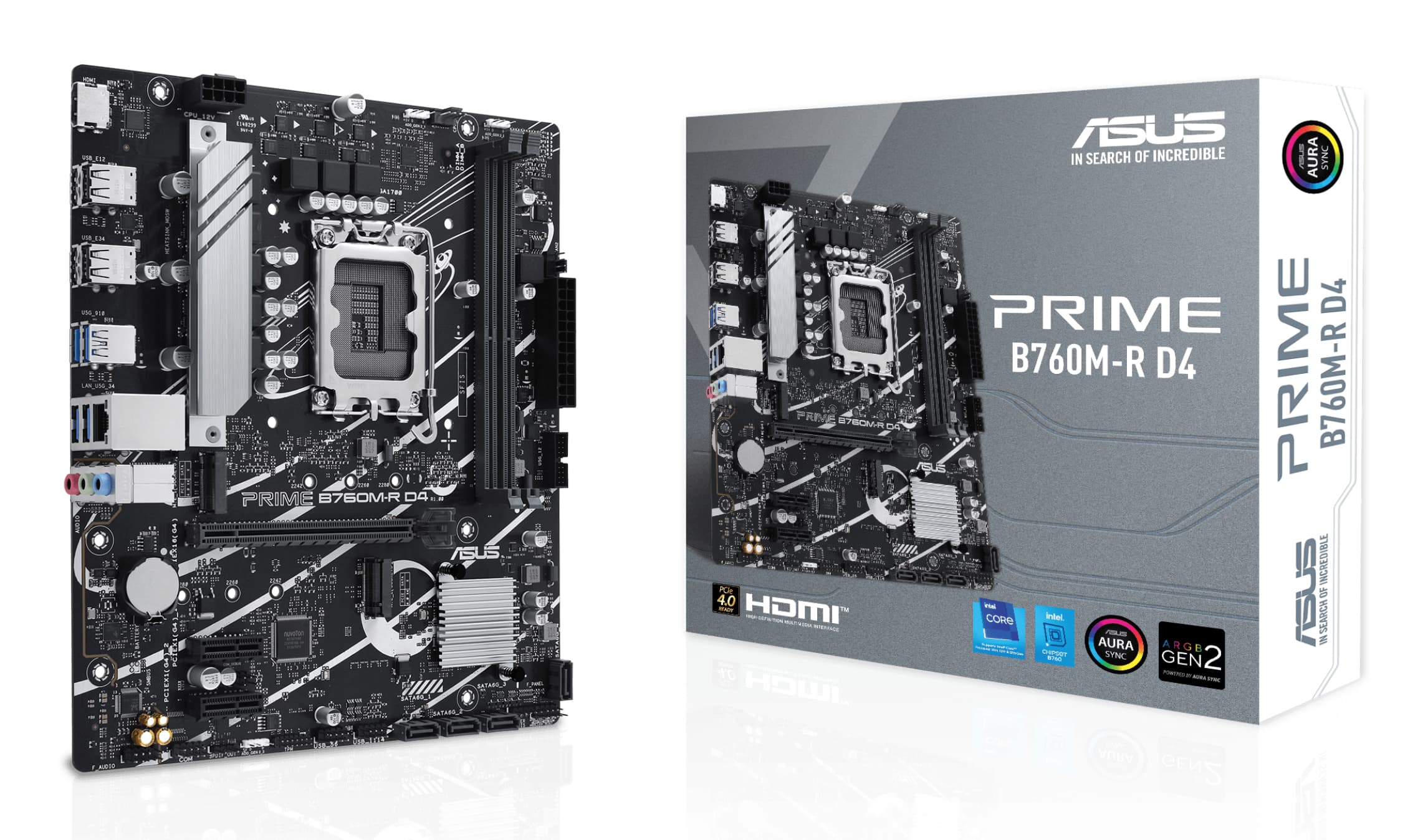

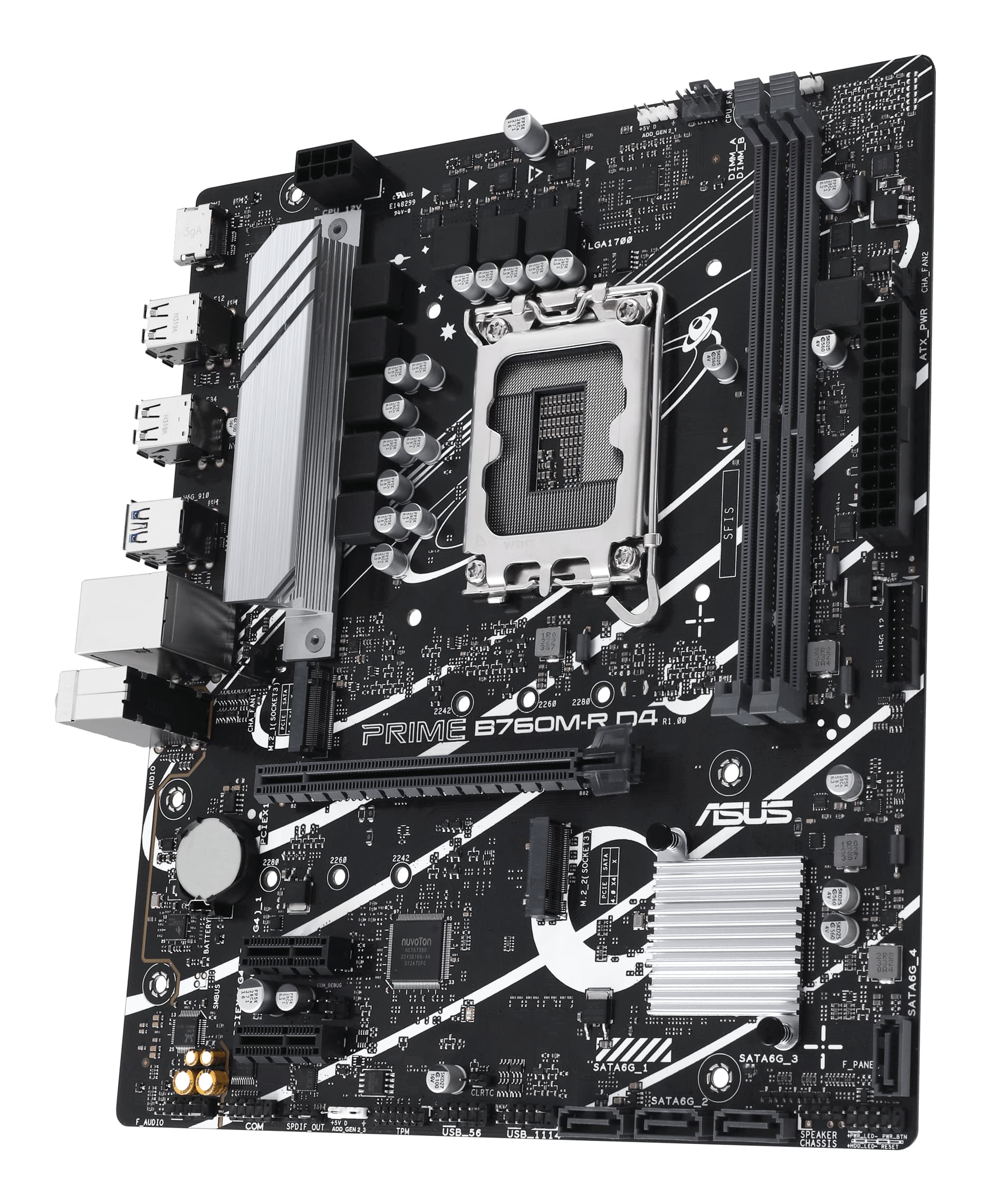

ASUS Mainboard Prime B760M-R D4
LGA1700, 2x DDR4, PCI-E 4.0, HDMI
Dokumente
Technische Daten
| Arbeitsspeicher-Typ | DDR4 |
|---|---|
| Prozessorsockel | LGA 1700 |
| Chipsatz | B760 |
| Mainboard Formfaktor | Micro-ATX |
| WLAN | Nein |
Prozessor
| Prozessorhersteller | Intel |
|---|---|
| Kompatible Prozessoren | Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
Speicher
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
|---|---|
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Unterstützte Speichertaktrate (max.) | 5333 MHz |
| Unbuffered Speicher | Ja |
Speicher-Controller
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
|---|---|
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| RAID-Unterstützung | Ja |
| RAID Level | 0,1,5,10 |
Grafik
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
|---|
Interne E/A-Anschlüsse
| Anzahl USB 2.0 Schnittstellen | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 0 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Zahl der Chassisventilatorstecker | 2 |
| EPS Stromstecker (8-pin) | Ja |
| Zahl der COM Stecker | 1 |
| TPM-Anschluss | Ja |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |

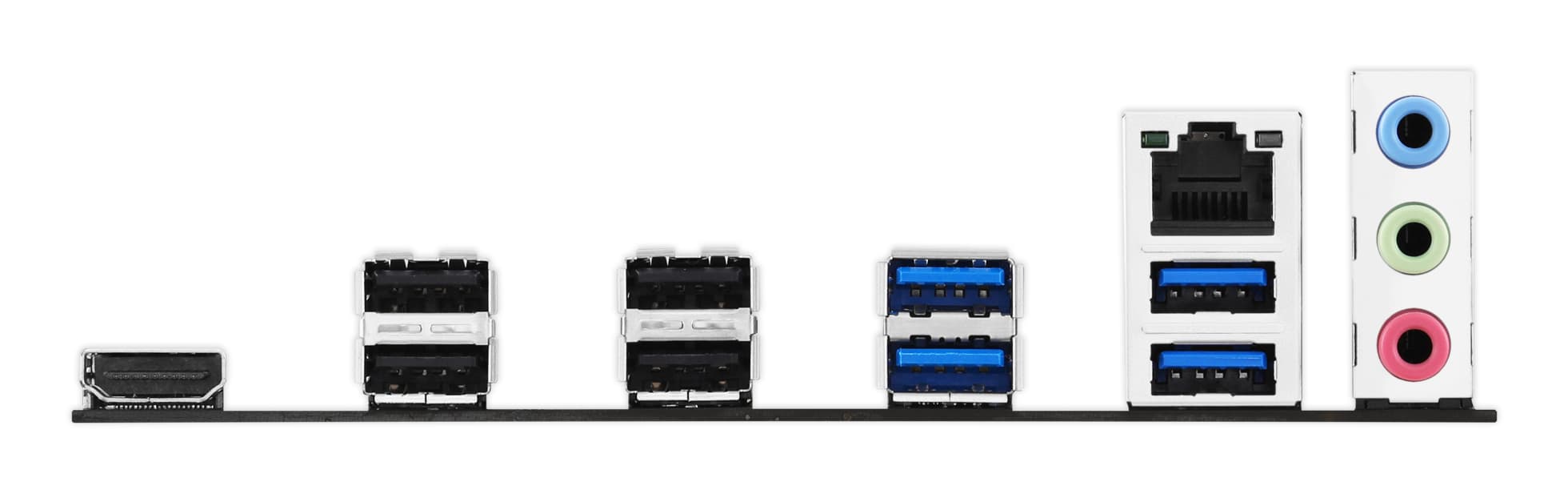

E/A-Anschlüsse auf der Rückseite
| Anzahl USB 2.0 Anschlüsse | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 0 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 0 |
| HDMI-Version | 2.1 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
Netzwerk
| Ethernet/LAN | Ja |
|---|---|
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| Top WLAN-Standard | Nicht verfügbar |
Merkmale
| Komponente für | PC |
|---|---|
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Motherboard Chipsatz | Intel B760 |
| Audio Kanäle | 7.1 Kanäle |
| Detailfarbe | Schwarz |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 11 |
Erweiterungssteckplätze
| PCI Express x1-Steckplätze (Gen 4.x) | 2 |
|---|---|
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
BIOS
| BIOS-Typ | UEFI AMI |
|---|---|
| BIOS-Speichergrösse | 128 Mbit |
Verpackungsdaten
| Verpackungsbreite | 270 mm |
|---|---|
| Verpackungstiefe | 263 mm |
| Verpackungshöhe | 51,5 mm |
| Paketgewicht | 903 g |
Gewicht und Abmessungen
| Breite | 244 mm |
|---|---|
| Tiefe | 211 mm |
Lieferumfang
| Mitgelieferte Kabel | SATA |
|---|---|
| Gewicht | 0.90 kg |
