1/11ASUS
All 51 specifications

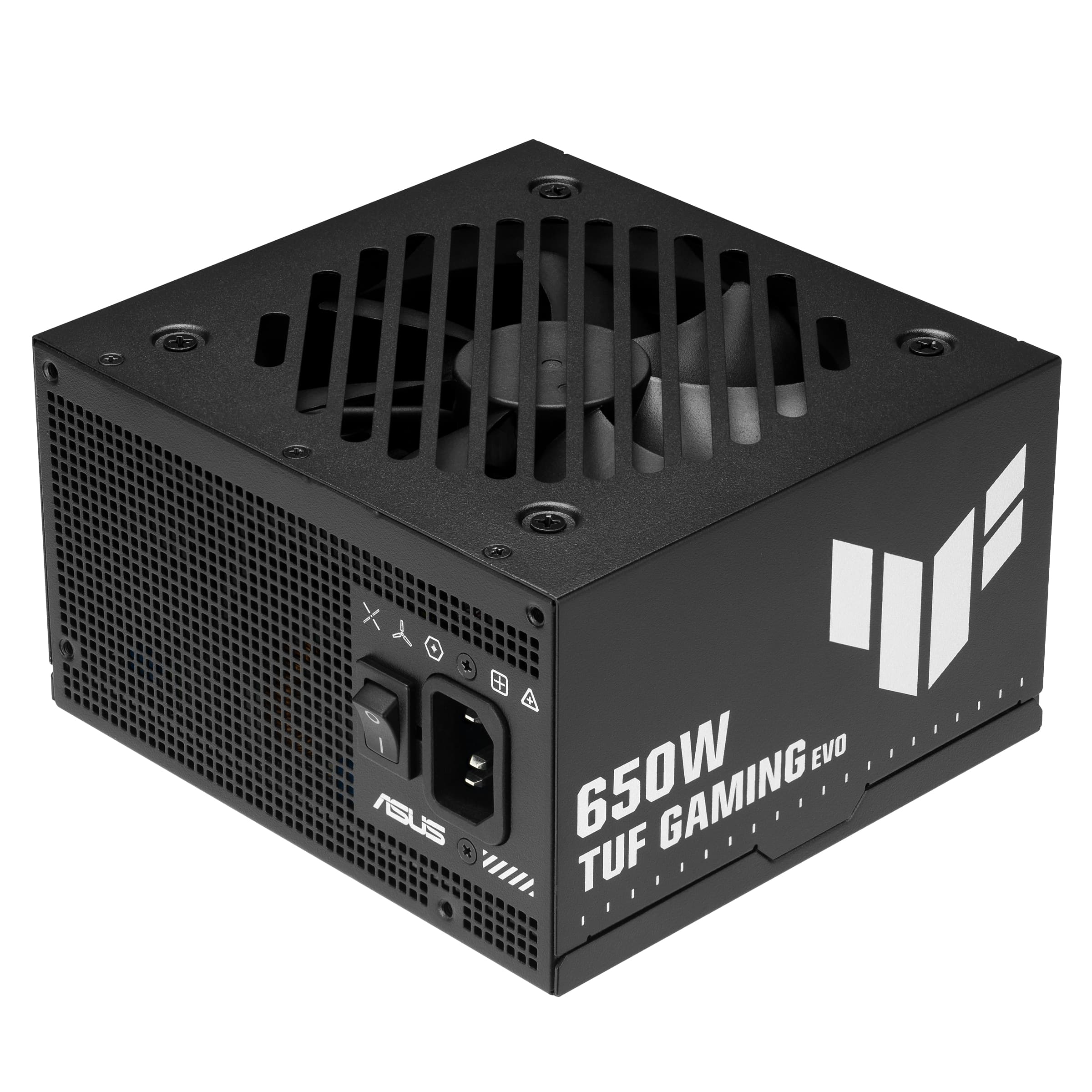

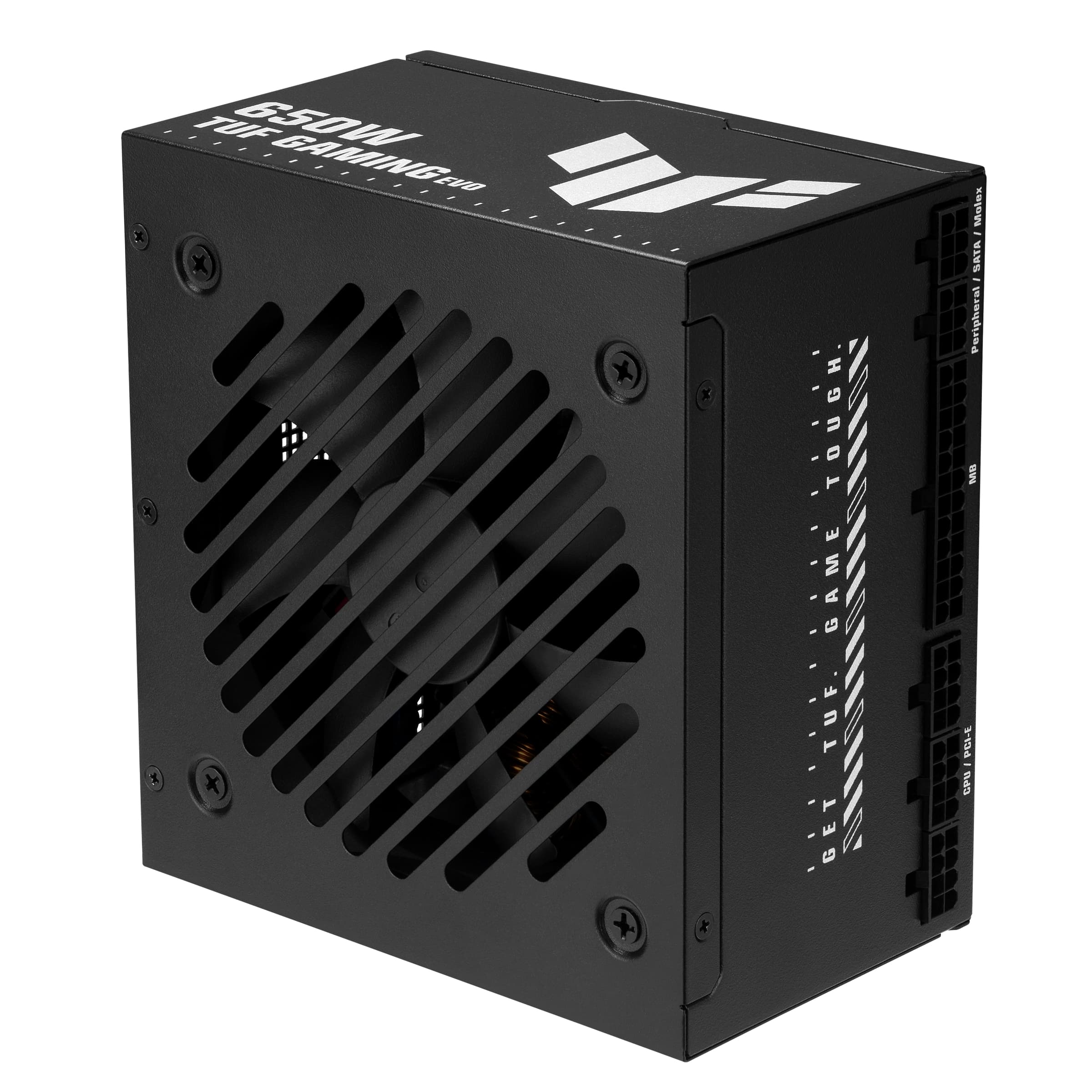

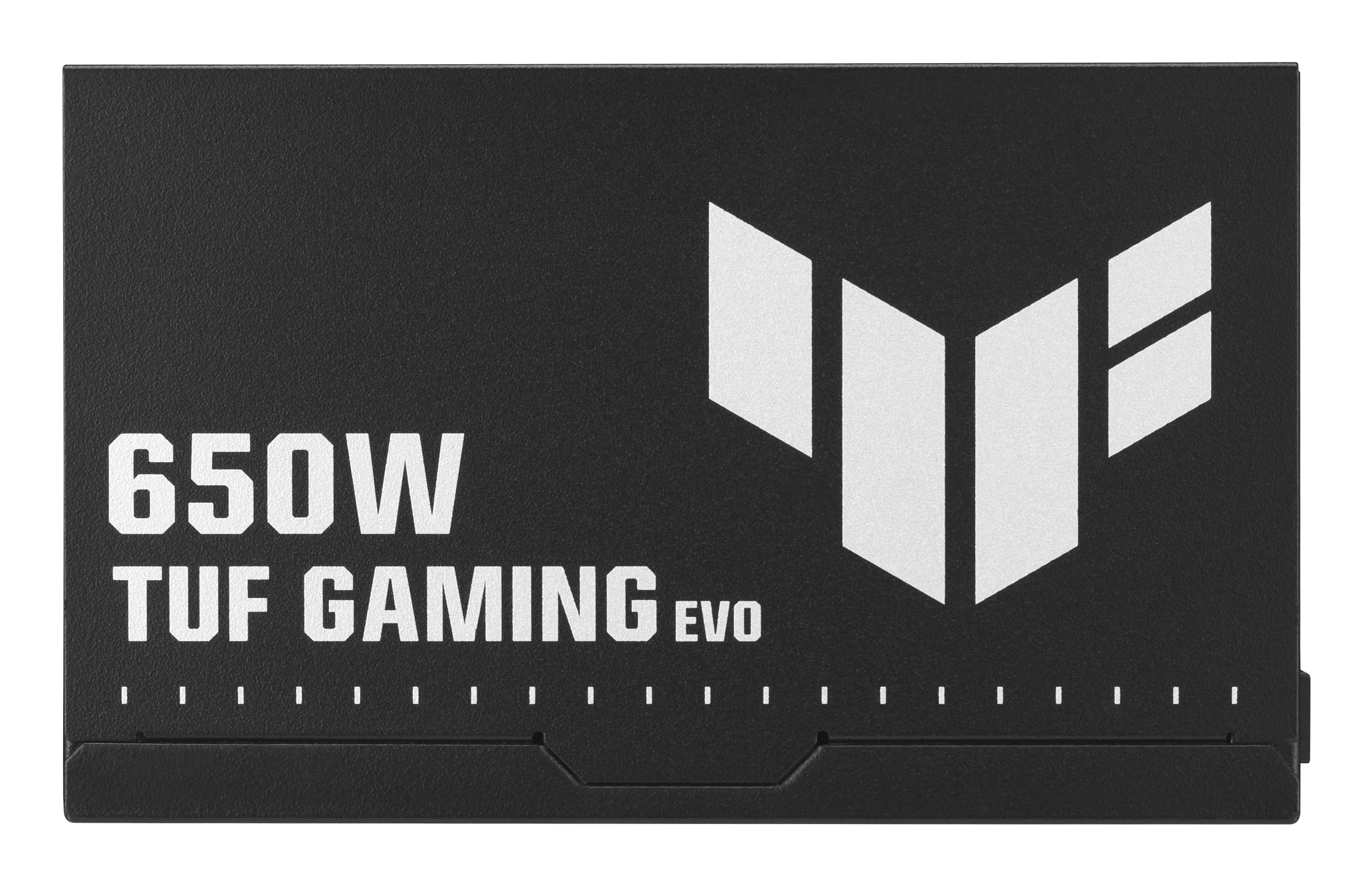

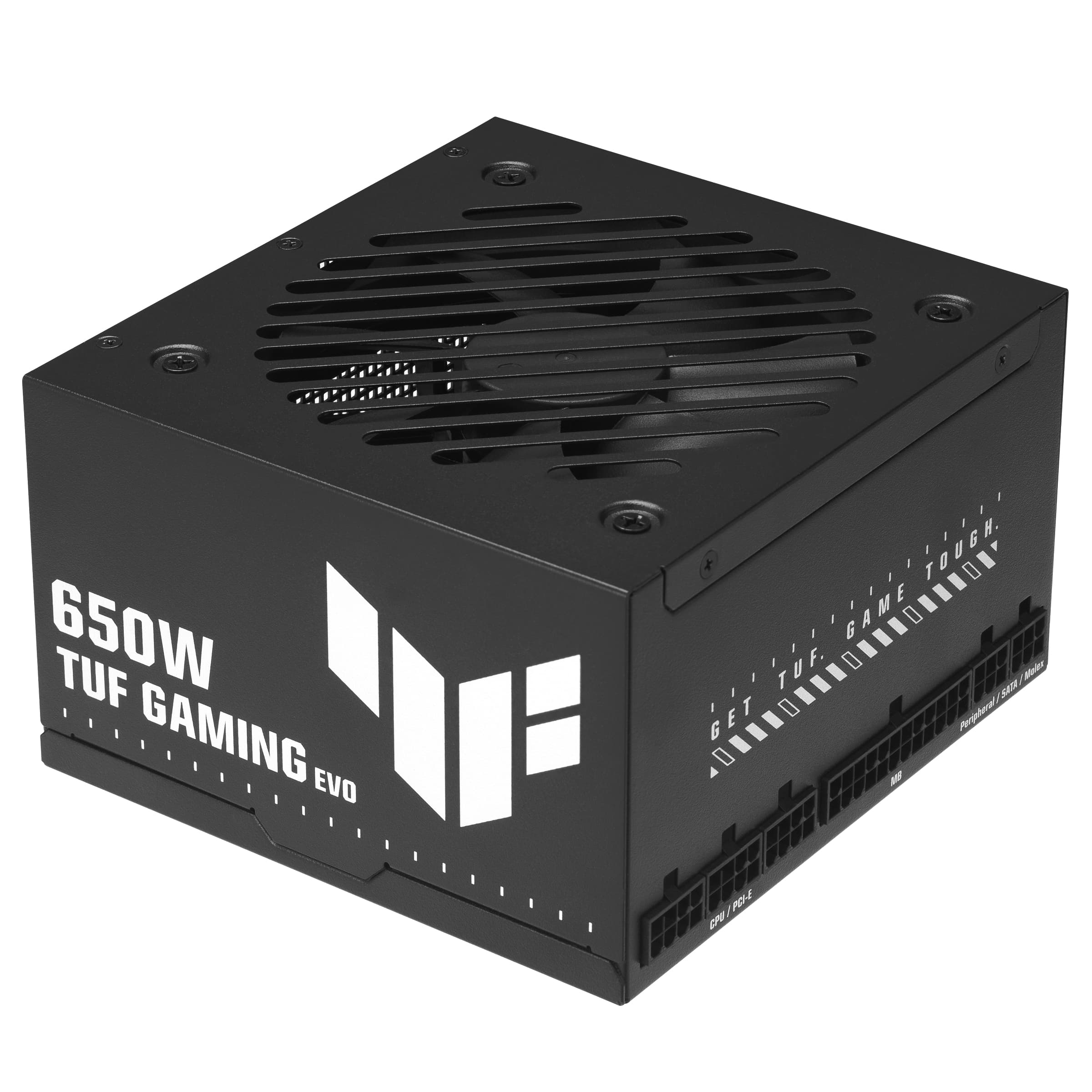

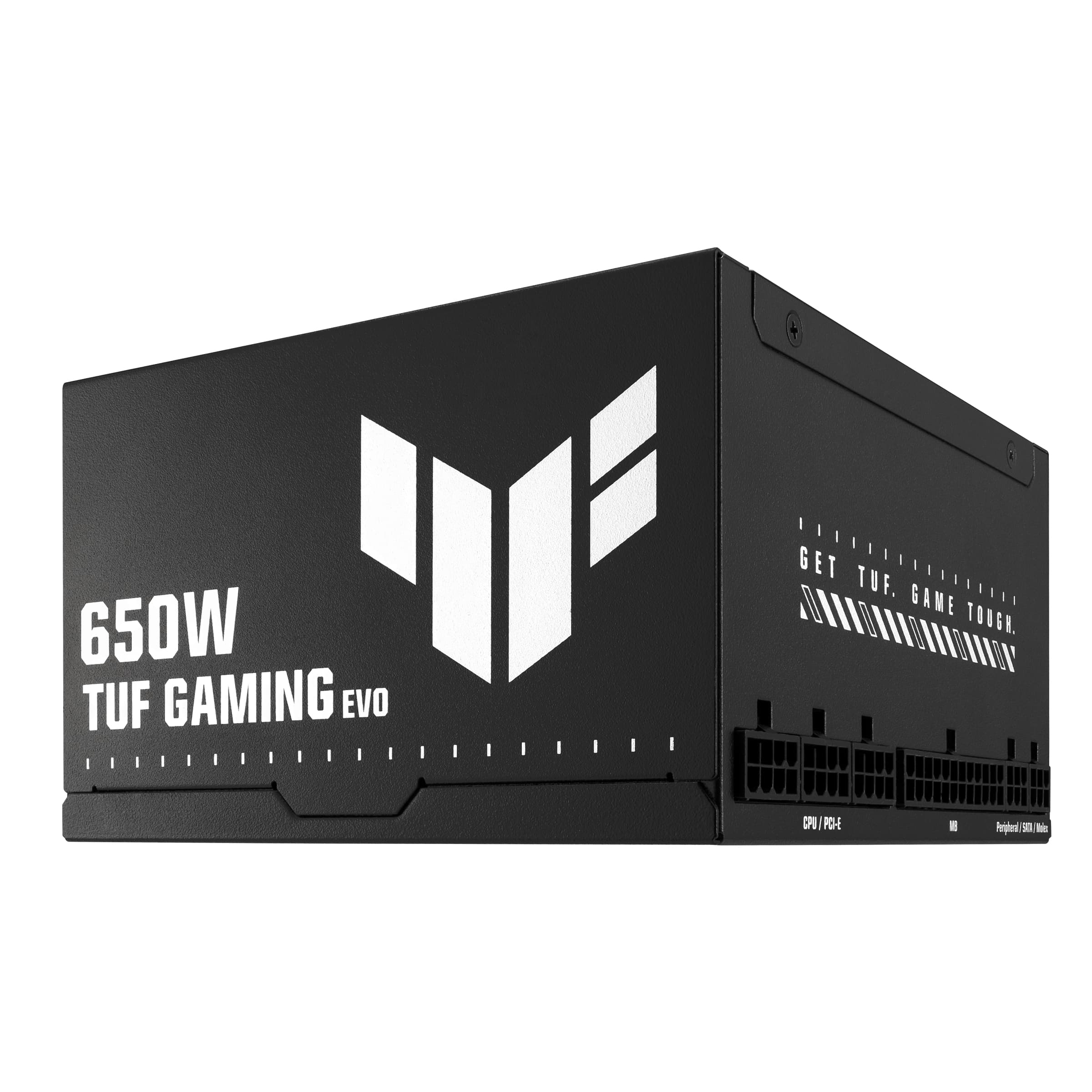

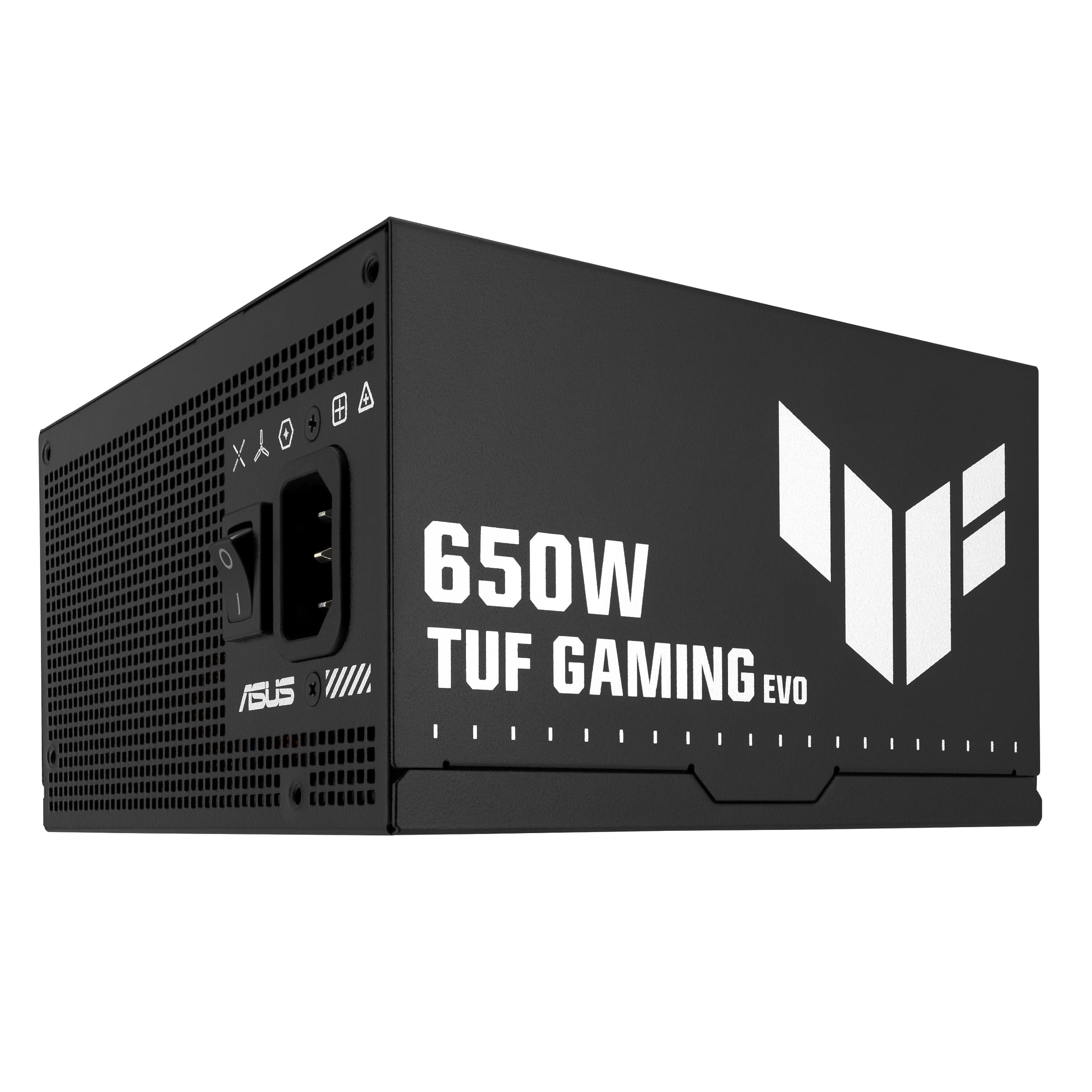

ASUS TUF-GAMING-650B-EVO power supply unit 650 W 20+4 pin ATX ATX Black
- Part number
- 2151505
- MPN
- 90YE00D6-B0NA00
- EAN
- 4711636170550
ASUS TUF-GAMING-650B-EVO, 650 W, 100 - 240 V, Active, 80 W, 650 W, 80 W
| 80 PLUS Zertifikat | 80 PLUS Bronze |
|---|---|
| Netzteil Nennleistung | 650 W |
| Netzteil Kabelstrang | Voll-modular |
| Netzteil Formfaktor | ATX |
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
Description
ASUS TUF-GAMING-650B-EVO. Total power: 650 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
Documents
Specifications
| 80 PLUS Zertifikat | 80 PLUS Bronze |
|---|---|
| Netzteil Nennleistung | 650 W |
| Netzteil Kabelstrang | Voll-modular |
| Netzteil Formfaktor | ATX |
Power
| Total power | 650 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 54.16 A |
| Max output current (+5V) | 12 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit |
Ports & interfaces
| Motherboard power connector | 20+4 pin ATX |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power cable length | 400,120 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Purpose | PC |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
Design
| Product colour | Black |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
Packaging content
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
|---|
Weight & dimensions
| Width | 140 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.25 kg |
Packaging data
| Package width | 282 mm |
|---|---|
| Package depth | 182 mm |
| Package height | 127 mm |
| Package weight | 2.07 kg |
| Package type | Box |
| Weight | 2.80 kg |
