ATEN 2-Port USB DVI KVM Switch with Audio
- Part number
- 208665
- MPN
- CS682
- EAN
- 4710423775909

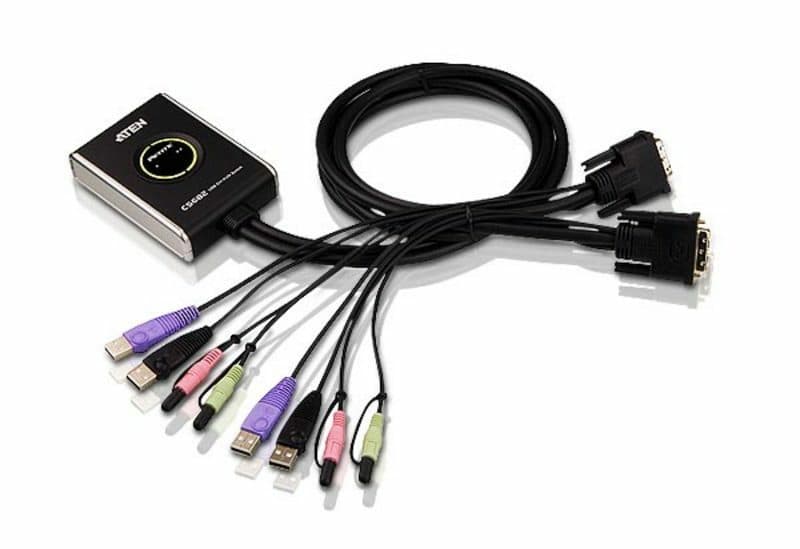

ATEN 2-Port USB DVI KVM Switch with Audio, 1920 x 1200 pixels, WUXGA, 1.9 W, Black
| Konsolen Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, DVI-D, USB 2.0 |
|---|---|
| Computer Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, DVI-D, USB 2.0 |
| Mounting | Desktop |
| KVM-Art | Lokal |
| Power supply | USB |
| Max. Auflösung | 1920 x 1200 (WUXGA) |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
Description
ATEN 2-Port USB DVI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.9 W. Width: 111.5 mm, Depth: 78 mm, Height: 24 mm
Documents
Specifications
| Konsolen Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, DVI-D, USB 2.0 |
|---|---|
| Computer Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, DVI-D, USB 2.0 |
| Mounting | Desktop |
| KVM-Art | Lokal |
| Power supply | USB |
| Max. Auflösung | 1920 x 1200 (WUXGA) |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| DVI-D ports quantity | 2 |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
Performance
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Display
| Built-in display | No |
|---|
Power
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 1.9 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Width | 111.5 mm |
|---|---|
| Depth | 78 mm |
| Height | 24 mm |
| Weight | 460 g |
Packaging data
| Package width | 70 mm |
|---|---|
| Package depth | 163 mm |
| Package height | 235 mm |
| Package weight | 590 g |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Logistics data
| Master (outer) case net weight | 4.6 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 182 mm |
| Master (outer) case gross weight | 6.61 kg |
| Products per master (outer) case | 10 pc(s) |
| Weight | 0.60 kg |
