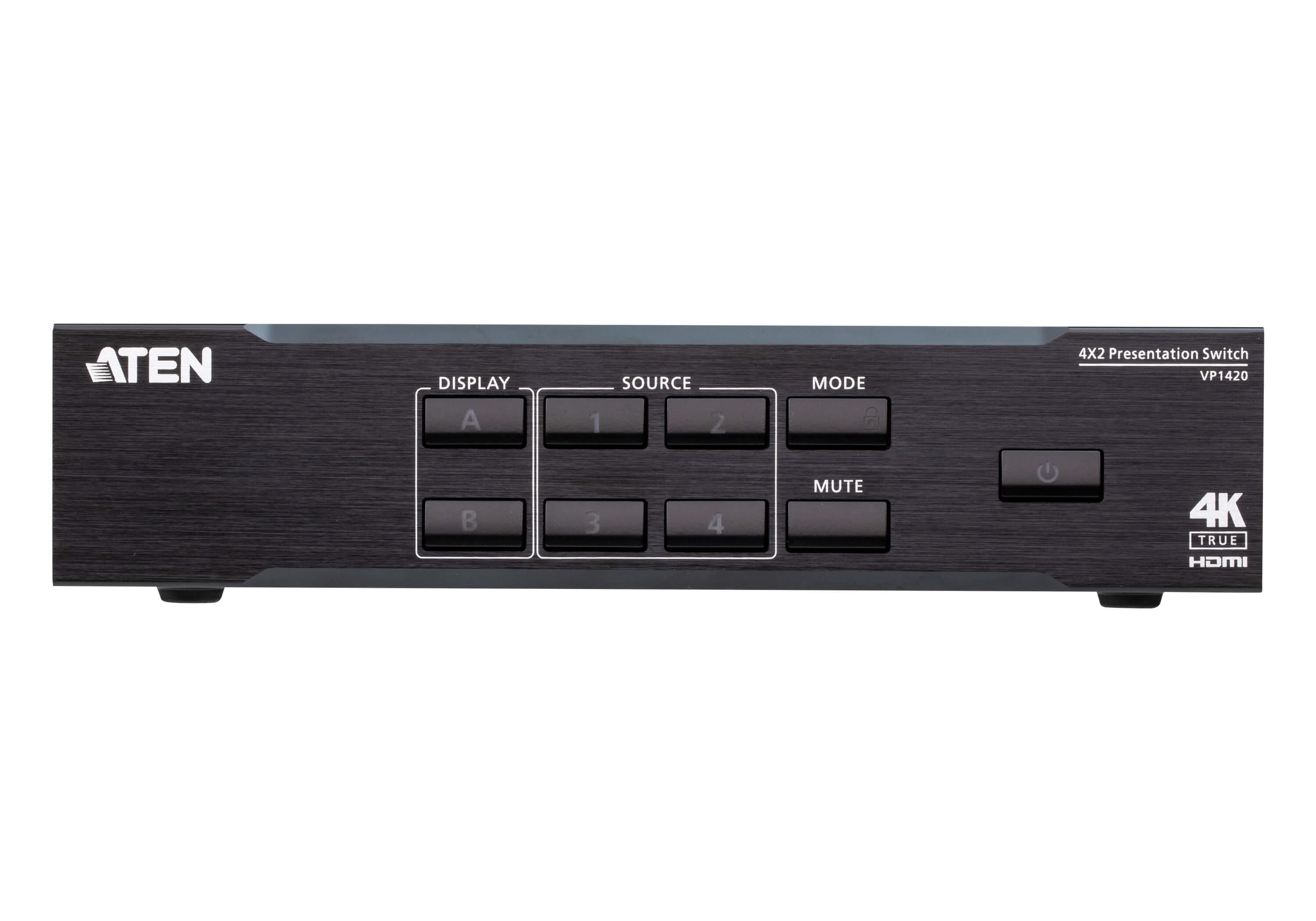

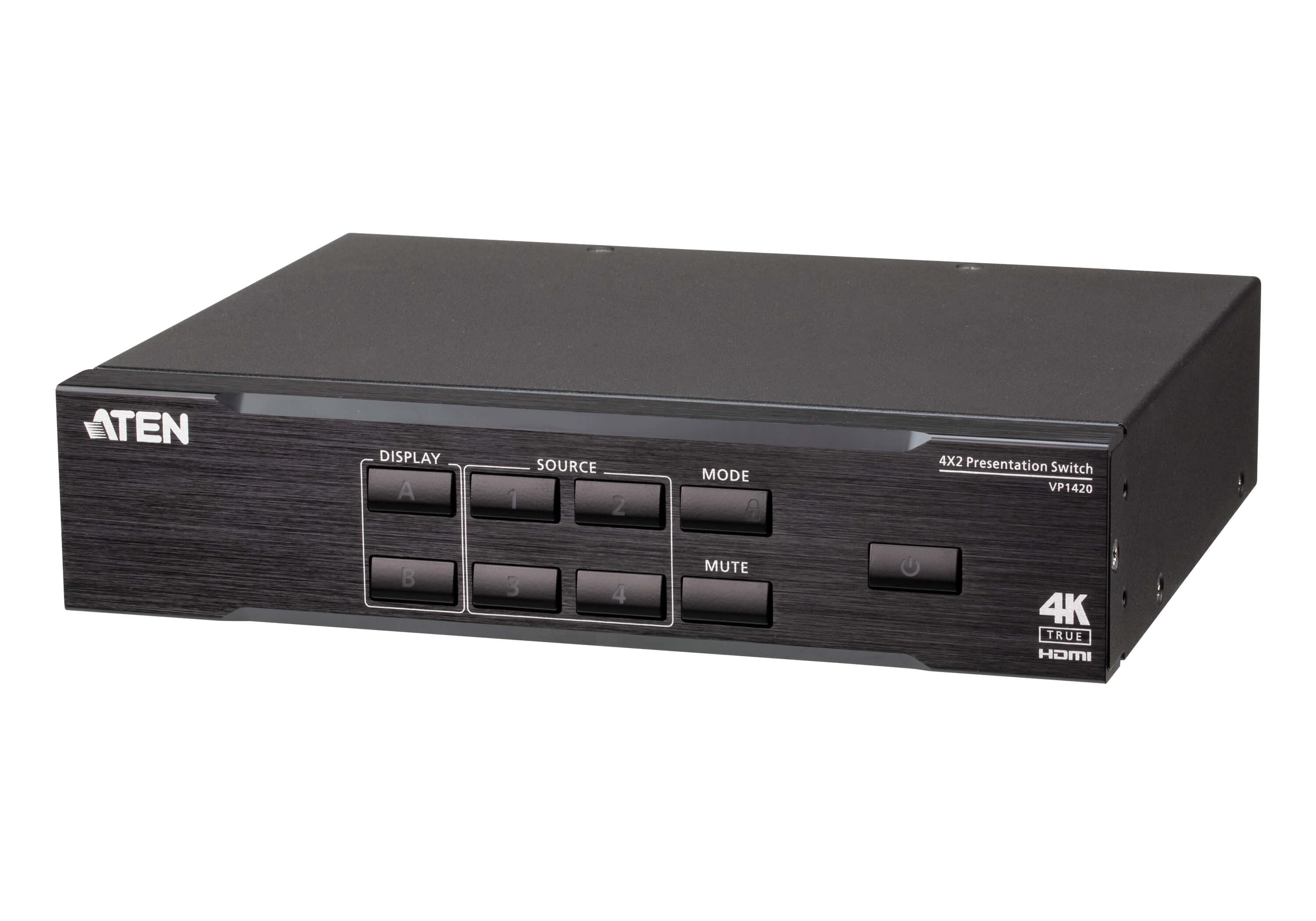

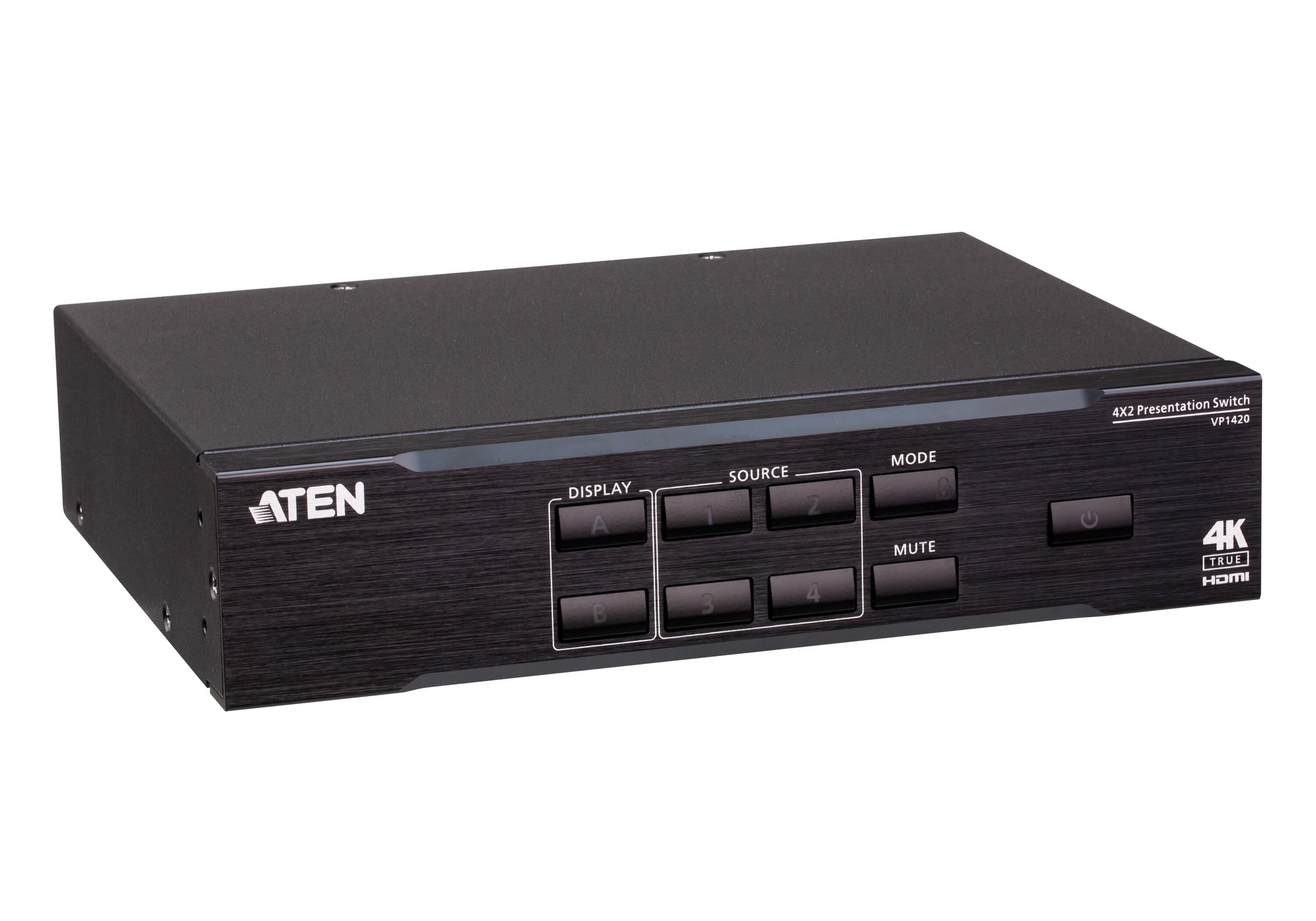

ATEN 4 x 2 True 4K Presentation Matrix Switch
- Part number
- 1291372
- MPN
- VP1420
- EAN
- 4719264649141
ATEN 4 x 2 True 4K Presentation Matrix Switch, Media presentation matrix switcher, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, Black, Metal, Buttons
| Power supply | Externes Netzteil |
|---|---|
| Max. Auflösung | 4096 x 2160 (4K) |
| Anzahl Eingänge | 4 × |
| Anzahl Ausgänge | 2 × |
| Eingänge | 3.5 mm Klinke, HDMI, RJ-45, VGA |
| Ausgänge | HDMI |
| Product type | Media presentation matrix switcher |
| Maximum resolution | 4096 x 2160 pixels |
Description
ATEN 4 x 2 True 4K Presentation Matrix Switch. Product type: Media presentation matrix switcher, Maximum resolution: 4096 x 2160 pixels, Supported resolutions: 4096 x 2160, 3840 x 2160. Housing colour: Black, Housing material: Metal, Control type: Buttons. Power consumption (typical): 7.21 W. Products per master (outer) case: 3 pc(s), Master (outer) case gross weight: 6.37 kg, Master (outer) case length: 427 mm. Width: 160.5 mm, Depth: 200 mm, Height: 44 mm
Documents
Specifications
| Power supply | Externes Netzteil |
|---|---|
| Max. Auflösung | 4096 x 2160 (4K) |
| Anzahl Eingänge | 4 × |
| Anzahl Ausgänge | 2 × |
| Eingänge | 3.5 mm Klinke, HDMI, RJ-45, VGA |
| Ausgänge | HDMI |
Features
| Product type | Media presentation matrix switcher |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
Design
| Housing colour | Black |
|---|---|
| Housing material | Metal |
| Control type | Buttons |
| On/off switch | Yes |
| LED indicators | Yes |
| Remote control included | Yes |
Display
| Built-in display | No |
|---|
Ports & interfaces
| HDMI input ports quantity | 3 |
|---|---|
| HDMI output ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| RJ-45 input ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Power consumption (typical) | 7.21 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Products per master (outer) case | 3 pc(s) |
|---|---|
| Master (outer) case gross weight | 6.37 kg |
| Master (outer) case length | 427 mm |
| Master (outer) case width | 370 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case net weight | 4.17 kg |
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Width | 160.5 mm |
|---|---|
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.39 kg |
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 1.85 kg |
Packaging content
| Quick start guide | Yes |
|---|---|
| AC adapter included | Yes |
| IR receiver included | Yes |
| Weight | 1.84 kg |
