Aten Transmitter VE814AT HDMI 4K, HDBaseT1/5
Aten

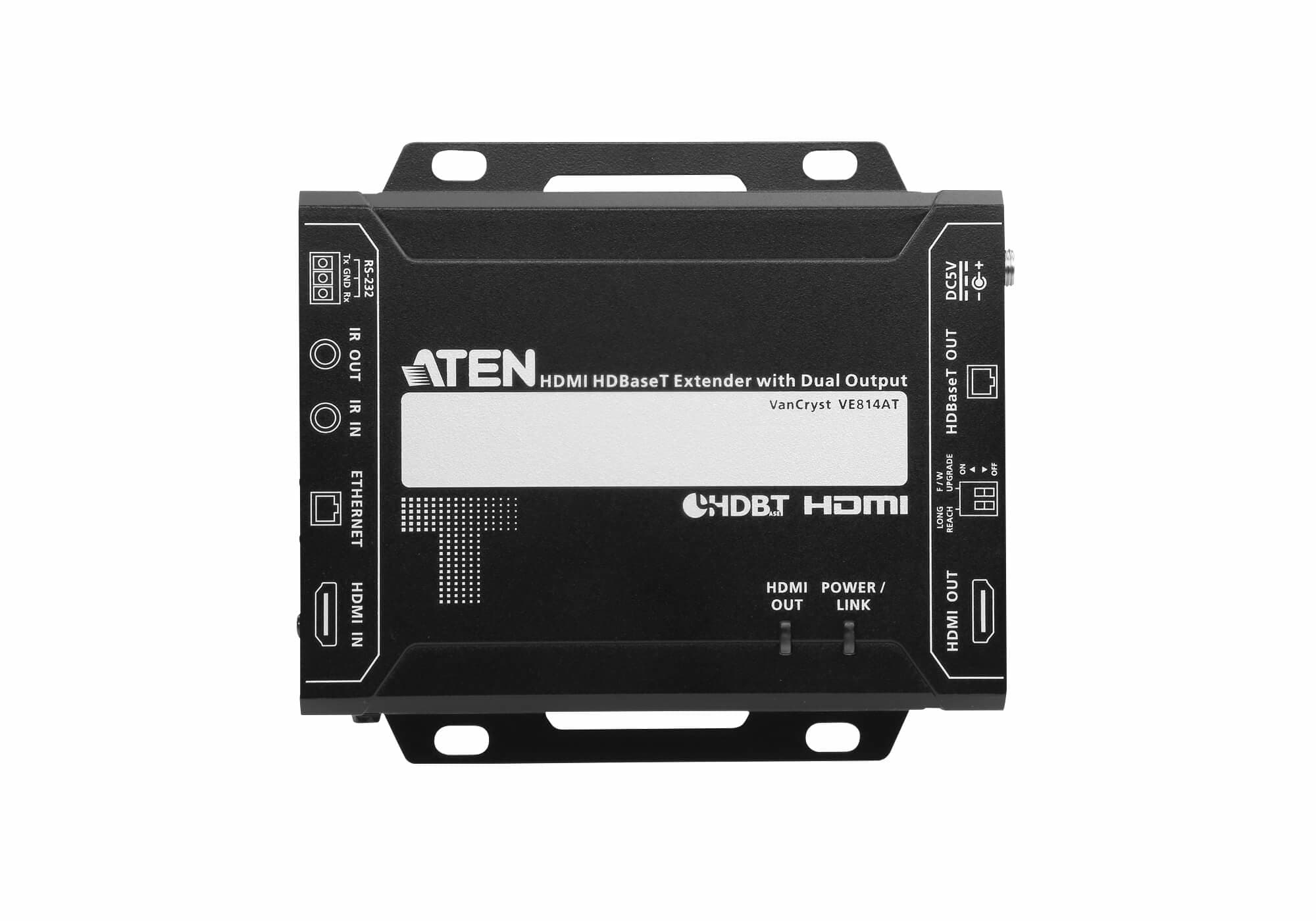

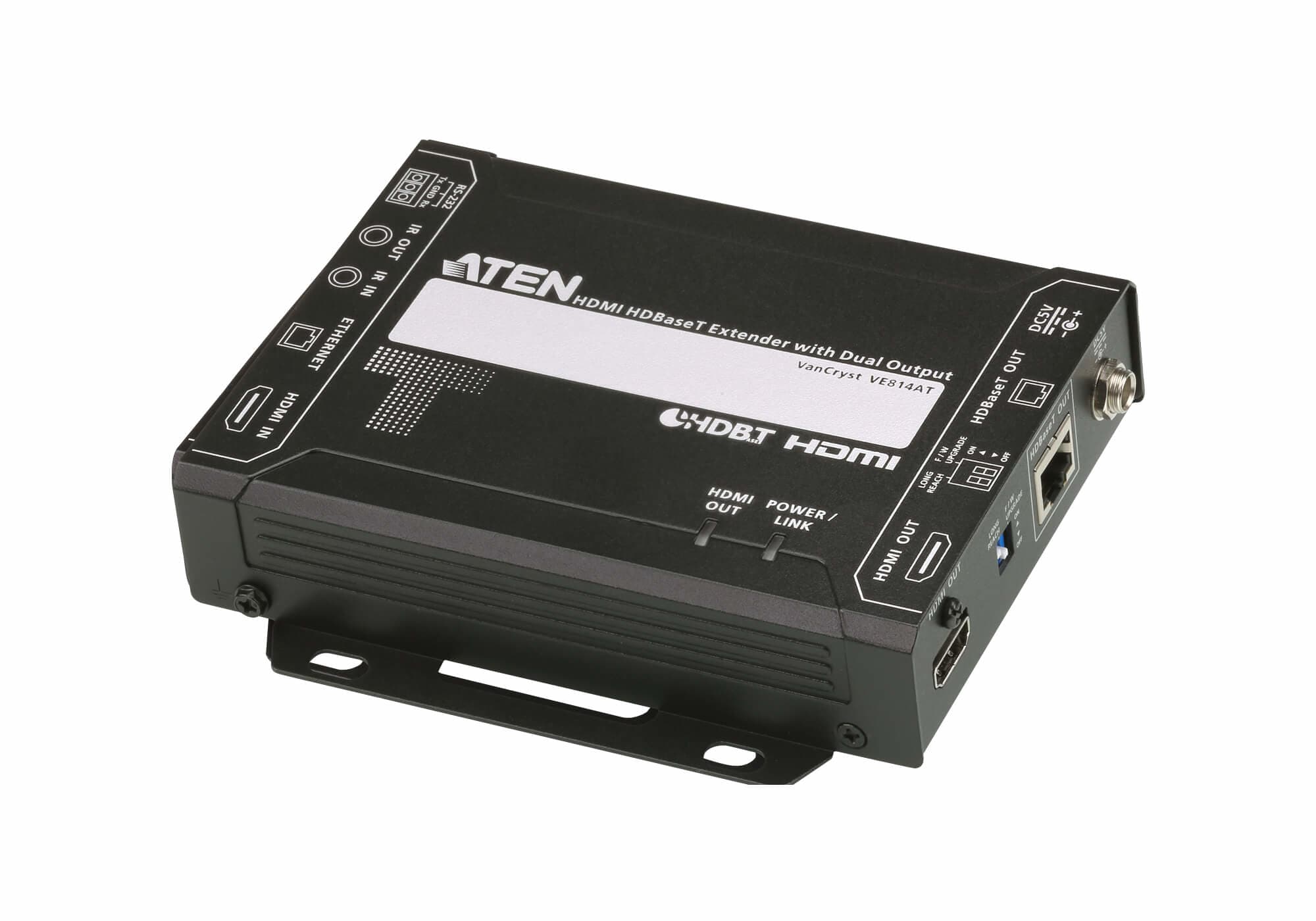

ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A)

Part number
1393406
MPN
VE814AT-AT-G
EAN
4719264646058

ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV transmitter, 150 m, Wired, 3D, HDCP

ÜbertragungsartHDBaseT, HDMI
Max. Auflösung4096 x 2160 (4K)
Reichweite150 m

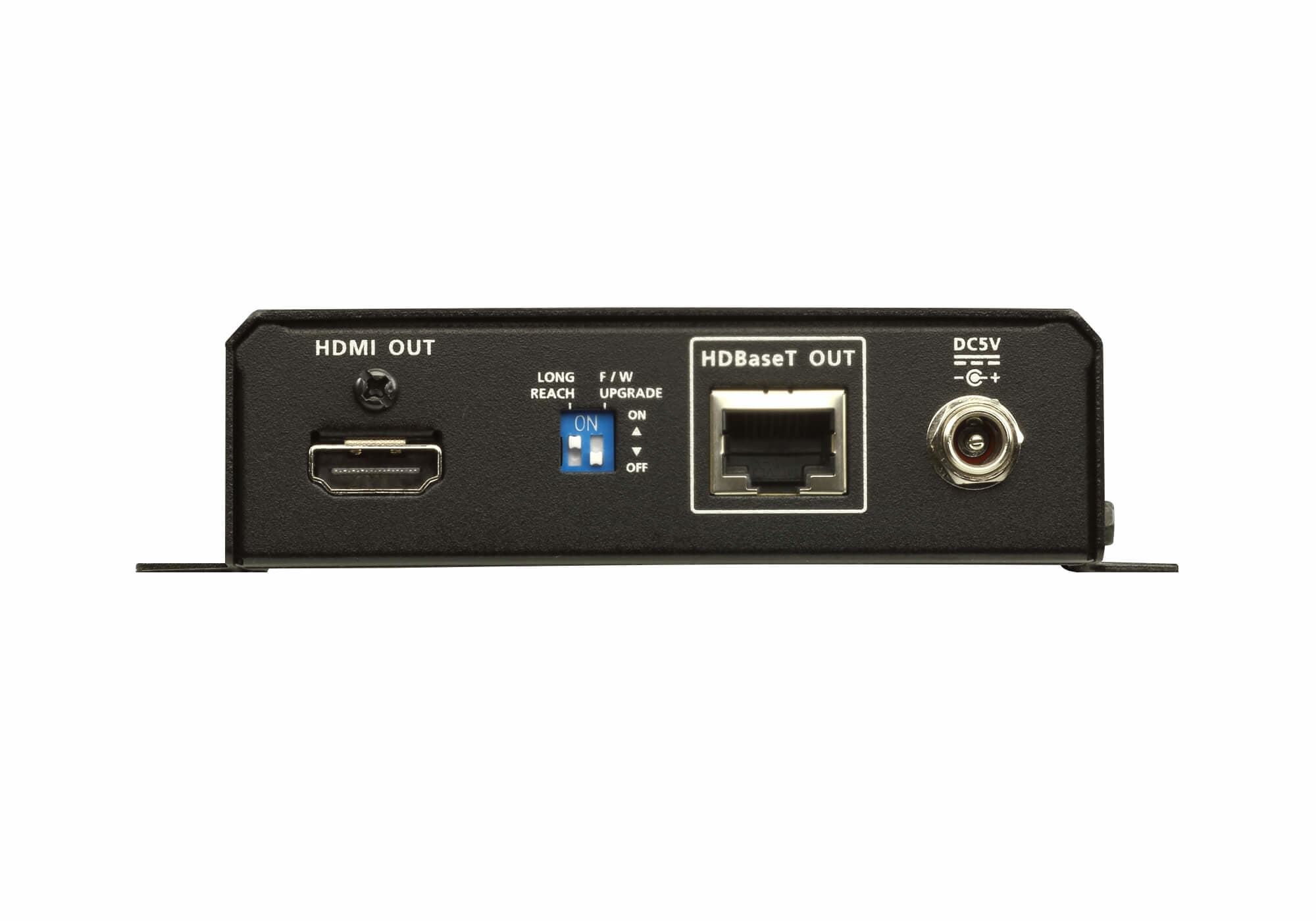

Anschluss Seite BHDBaseT, HDMI, IR

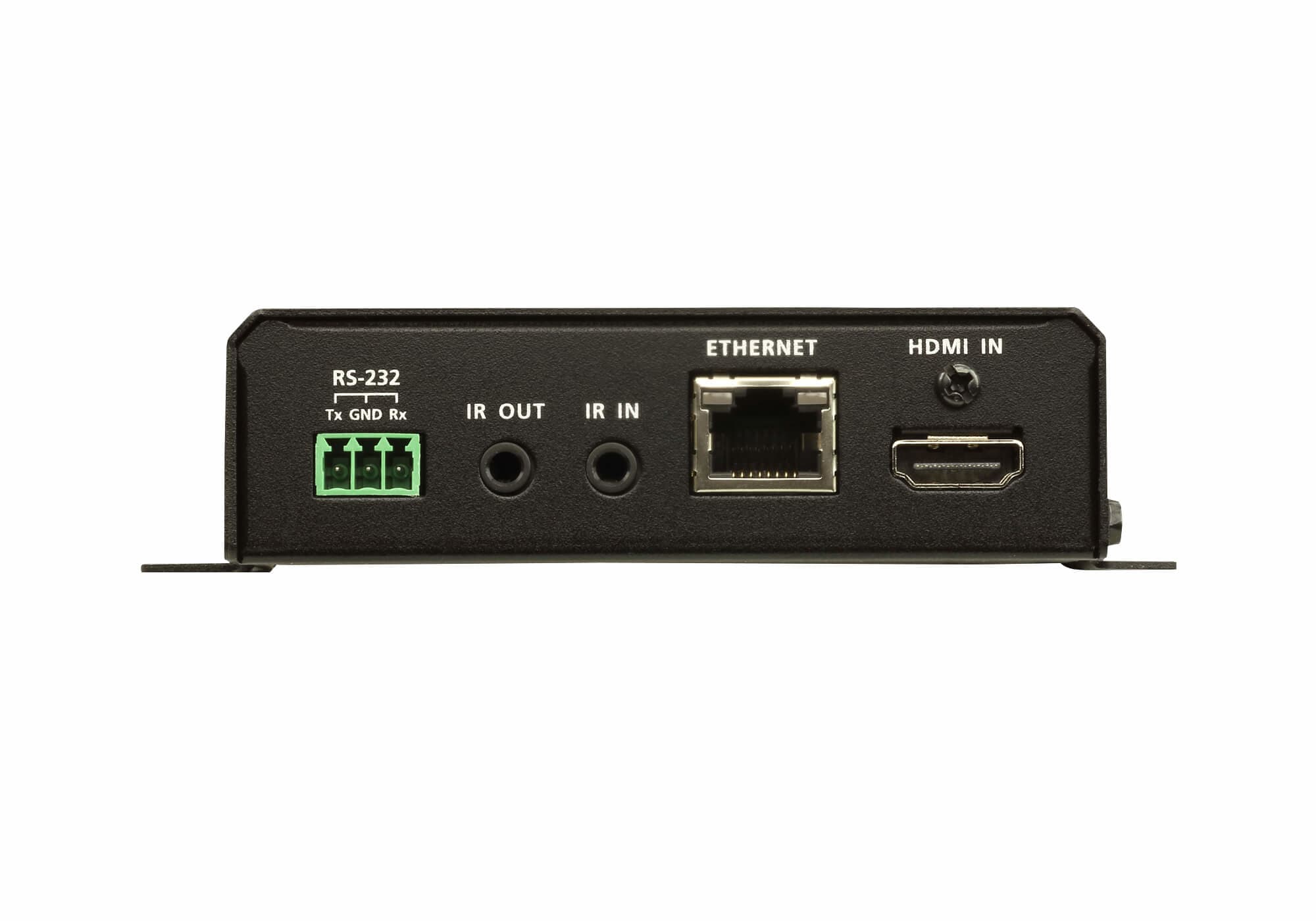

Anschluss Seite AHDMI, IR, RJ45, RS-232
TypeAV transmitter
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
All 58 specifications

Description

ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A). Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Serial interface type: RS-232. Width: 123 mm, Depth: 140.2 mm, Height: 30 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Master (outer) case width: 250 mm, Master (outer) case length: 325 mm, Master (outer) case height: 175 mm

Documents

Specifications

ÜbertragungsartHDBaseT, HDMI
Max. Auflösung4096 x 2160 (4K)
Reichweite150 m
Anschluss Seite BHDBaseT, HDMI, IR
Anschluss Seite AHDMI, IR, RJ45, RS-232

Features

TypeAV transmitter
Maximum resolution4096 x 2160 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance150 m
Maximum refresh rate60 Hz
Extended display identification data (EDID)Yes
Electrostatic Discharge (ESD) protectionYes
Electrostatic Discharge (ESD) protection15 kV
Supported graphics resolutions1920 x 1080 (HD 1080), 4096 x 2160
Bandwidth340 MHz
Bandwidth340 MHz
HDCPYes
MaterialMetal
3DYes
Rack mountingYes
Consumer Electronics Control (CEC) supportYes
Plug and PlayYes
Impedance100 Ω
HDCP version2.2
Product colourBlack

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDBaseT portYes
HDMI in1
Number of HDMI outputs1
Serial ports quantity1
Serial interface typeRS-232
Remote (IR) input1
Remote (IR) output1
DC-in jackYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width123 mm
Depth140.2 mm
Height30 mm
Weight450 g

Packaging data

Package width59 mm
Package depth239 mm
Package height160 mm
Package weight730 g

Packaging content

AC adapter includedYes
ManualYes

Technical details

Country of originTaiwan
Package volume2265.35 cm³

Logistics data

Master (outer) case width250 mm
Master (outer) case length325 mm
Master (outer) case height175 mm
Master (outer) case gross weight3.98 kg
Master (outer) case volume14158.42 cm³
Master (outer) case net weight3.8 kg
Products per master (outer) case5 pc(s)
Weight0.72 kg
