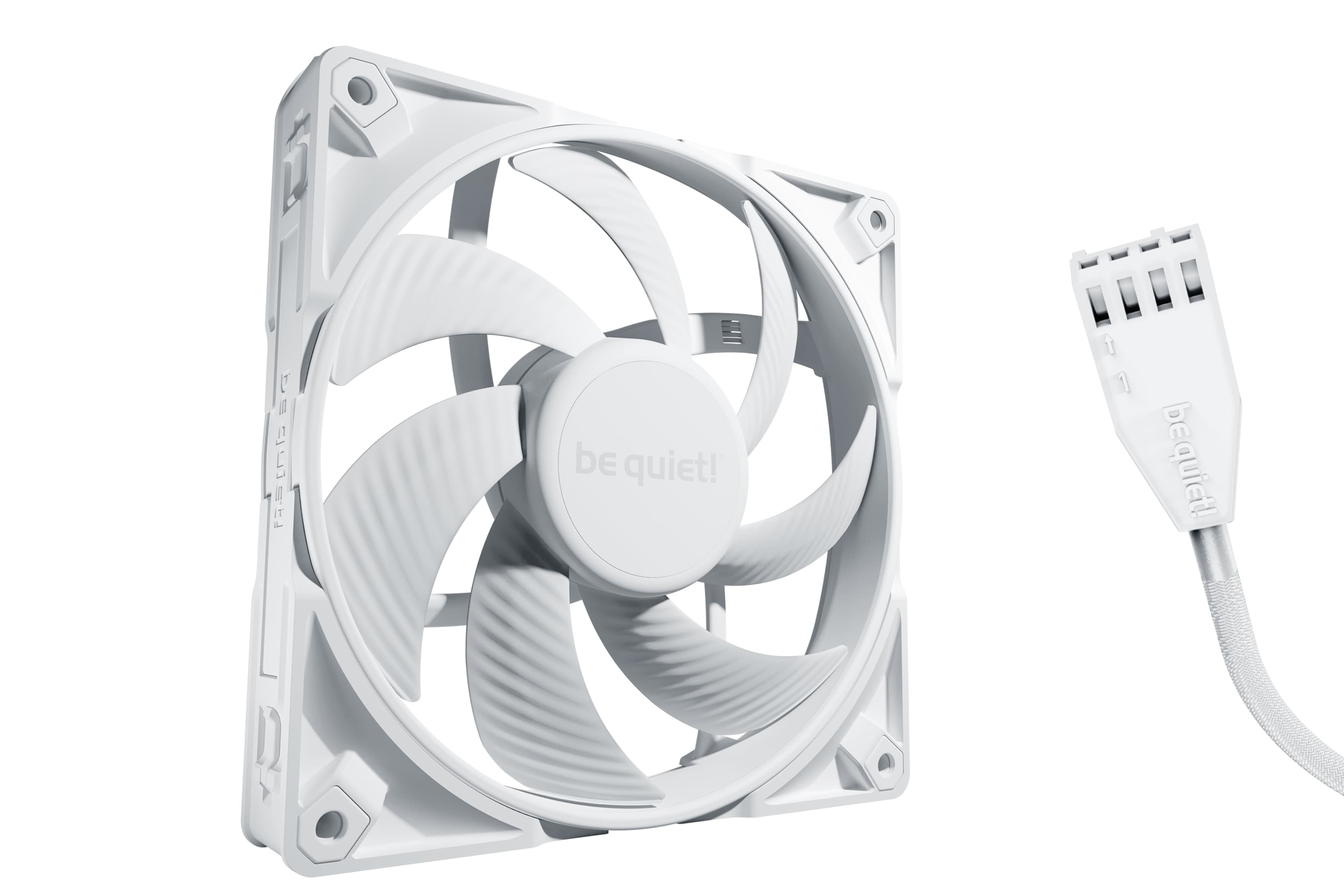

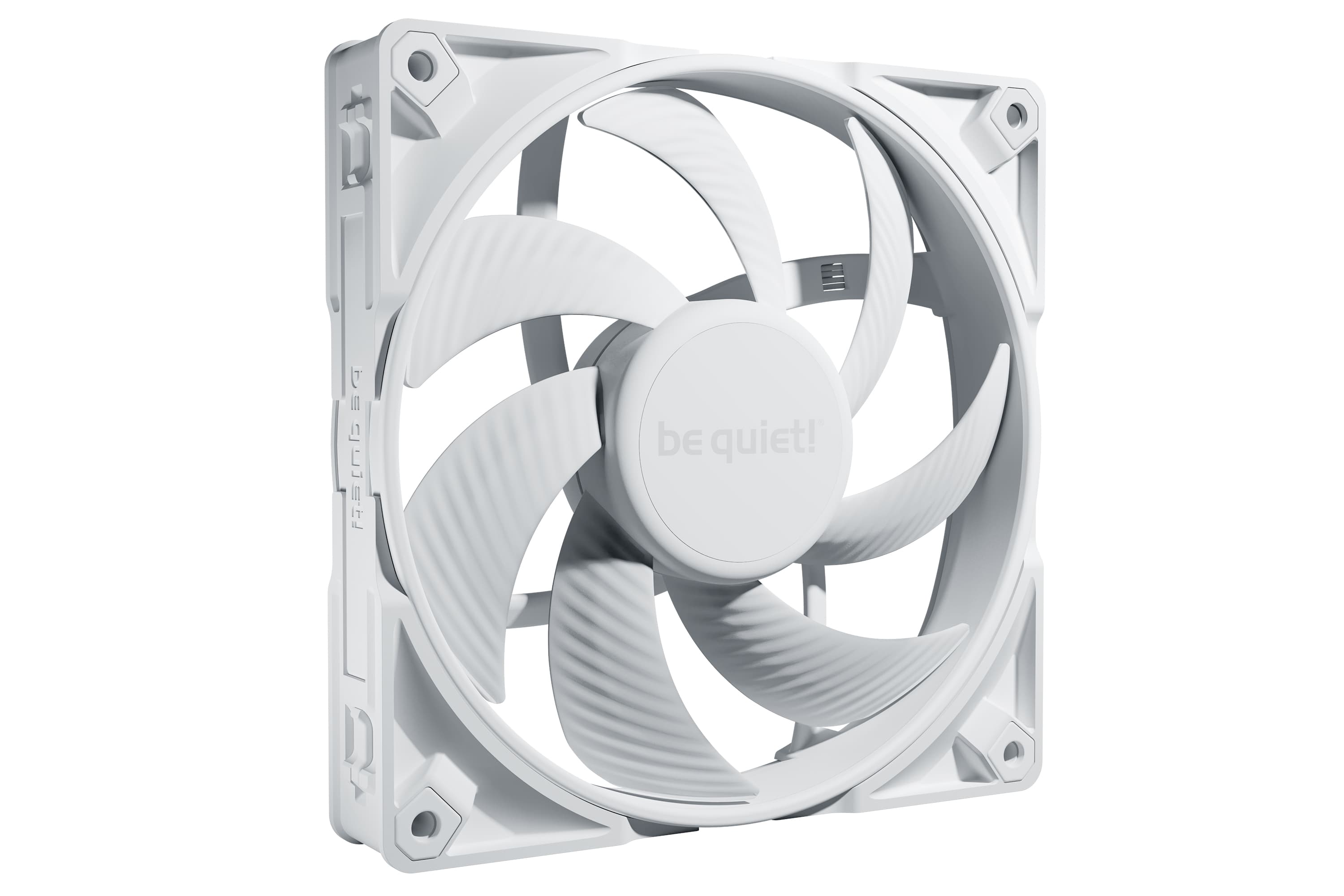

be quiet! PC-Lüfter Silent Wings PRO 4 140 mm PWM1/6
be quiet!

be quiet! BL119 computer cooling system Computer case Fan 14 cm White 1 pc(s)

Part number
1710909
MPN
BL119
EAN
4260052191101

be quiet! BL119, Fan, 14 cm, 165.5 m³/h, White

BeleuchtungNo
Lüfterdimension140 mm
Interfaces4-Pin (PWM)
Betriebsspannung12 V
Suitable locationComputer case
TypeFan
Fan diameter14 cm
Noise level (high speed)36.8 dB
All 44 specifications

Description

be quiet! BL119. Type: Fan, Fan diameter: 14 cm, Airflow: 165.5 m³/h, Maximum air pressure: 3.64 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 7 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: White

Documents

Specifications

BeleuchtungNo
Lüfterdimension140 mm
Interfaces4-Pin (PWM)
Betriebsspannung12 V

Performance

Suitable locationComputer case
TypeFan
Fan diameter14 cm
Noise level (high speed)36.8 dB
Maximum airflow97.4 cfm
Airflow165.5 m³/h
Maximum air pressure3.64 mmH2O
Pulse-width modulation (PWM) supportYes
Bearing typeFluid Dynamic Bearing (FDB)
Fan noise level (max)36.8 dB
Quantity per pack1 pc(s)
Fan speed (max)2400 RPM
Fan's mean time to failure (MTTF)300000 h

Design

Product colourWhite
Number of fans1 fan(s)
Illumination LEDNo
Fan connector4-pin
Display typeNot applicable

Power

Voltage7 - 13.2 V
Rated voltage12 V
Fan power consumption6 W
Rated current0.5 A

Weight & dimensions

Width140 mm
Depth140 mm
Height25 mm
Weight258 g
Cable length0.5 m
Package width156 mm
Package depth206.5 mm
Package height31 mm
Package weight450 g

Technical details

Sustainability certificatesTriman
Compliance certificatesCE, RoHS, UKCA, WEEE
Sustainability complianceYes

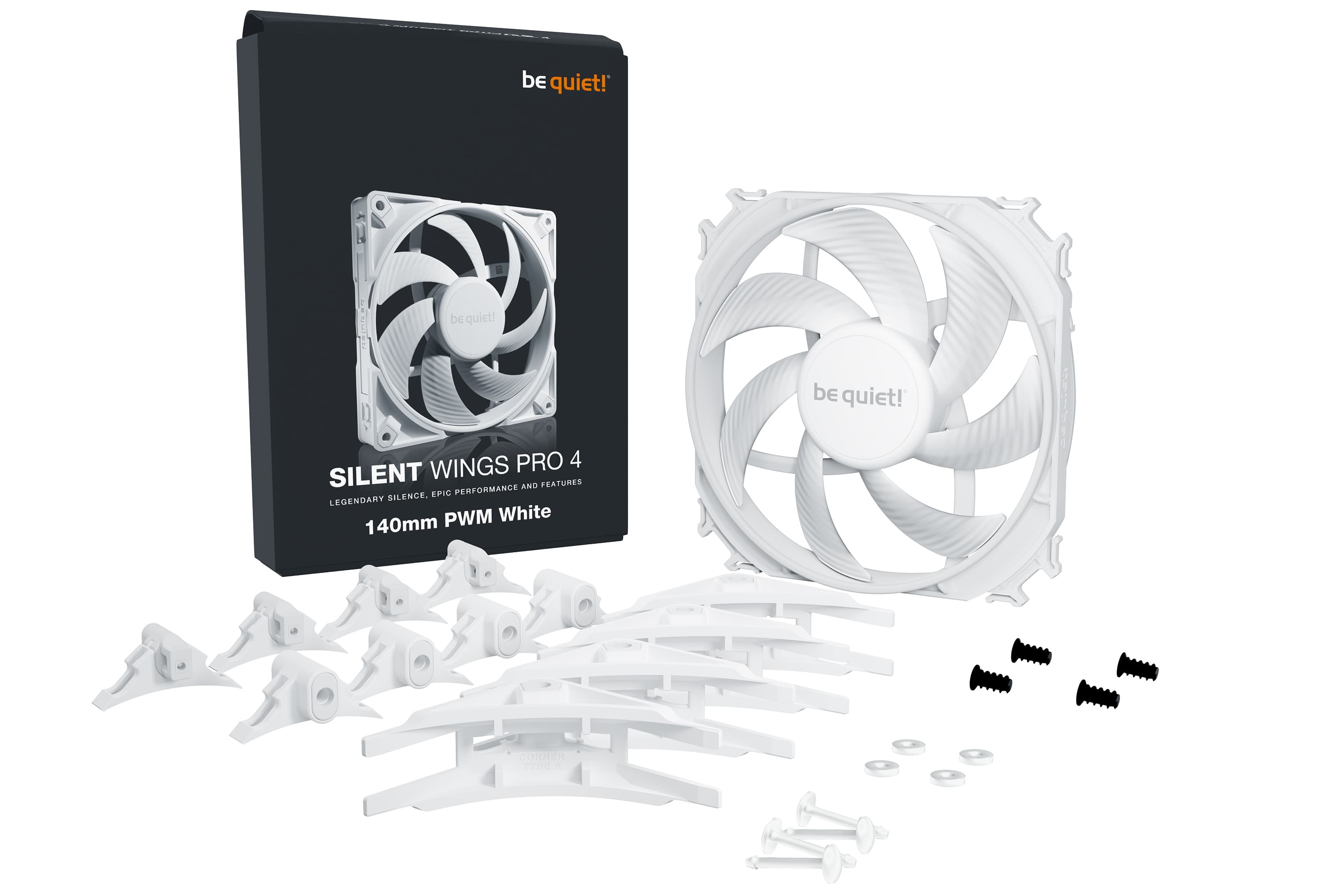

Packaging content

Screws includedYes
Number of screws4

Logistics data

Shipping (inner) case width31.7 cm
Shipping (inner) case length46.3 cm
Shipping (inner) case height38.8 cm
Shipping (inner) case gross weight15.5 kg
Weight0.45 kg
