be quiet! Wasserkühlung Light Loop 360 LCD1/7
be quiet!

be quiet! Light Loop IO LCD 360 mm Black

Part number
2213337
MPN
BW032
EAN
4260052193228

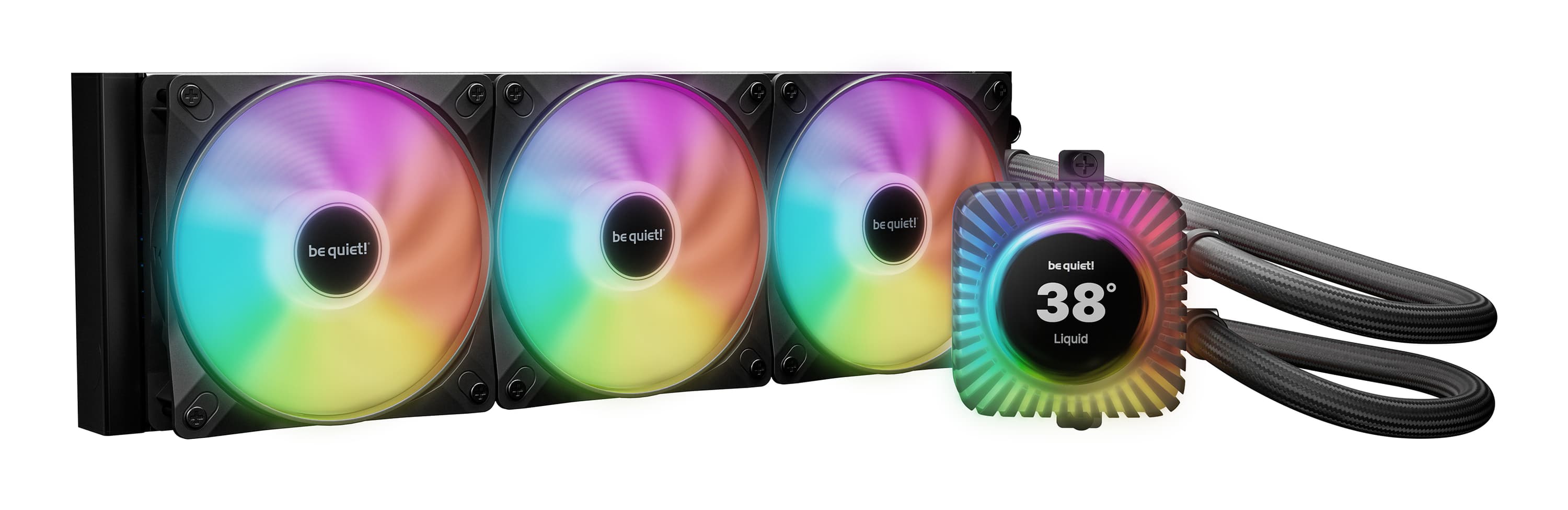

be quiet! Light Loop IO LCD 360 mm Black, All-in-one liquid cooler, 12 cm, 105.1 m³/h, Black

Processor socketAM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 1851
Radiatorgrösse360 mm
Suitable locationProcessor
TypeAll-in-one liquid cooler
Fan diameter12 cm
Supported processor socketsLGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Compatible processor seriesAMD Ryzen 9000 Series, Intel® Core™ i9
Noise level (low speed)17.2 dB
All 54 specifications

Description

be quiet! Light Loop IO LCD 360 mm Black. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 105.1 m³/h, Maximum air pressure: 2.51 mmH2O, Bearing type: Rifle bearing. Height: 52 mm. Product colour: Black

Documents

Specifications

Processor socketAM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 1851
Radiatorgrösse360 mm

Performance

Suitable locationProcessor
TypeAll-in-one liquid cooler
Fan diameter12 cm
Supported processor socketsLGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Compatible processor seriesAMD Ryzen 9000 Series, Intel® Core™ i9
Noise level (low speed)17.2 dB
Noise level (high speed)36.8 dB
Maximum airflow61.8 cfm
Airflow105.1 m³/h
Maximum air pressure2.51 mmH2O
Pulse-width modulation (PWM) supportYes
Bearing typeRifle bearing
Quantity per pack1 pc(s)
Pump motor speed2900 RPM
Pump motor speed (min)2900 RPM
Pump motor speed (max)2900 RPM
Fan speed (max)2100 RPM
Fan's mean time to failure (MTTF)60000 h

Design

Product colourBlack
Radiator materialAluminum
Base plate materialCopper
Number of fans3 fan(s)
Number of fan blades9
Illumination LEDYes
Illumination colourMulti
Display typeNot applicable
Daisy chainYes

Power

Fan power consumption5.4 W
Fan voltage12 V
Fan current0.17 A

Weight & dimensions

Height52 mm

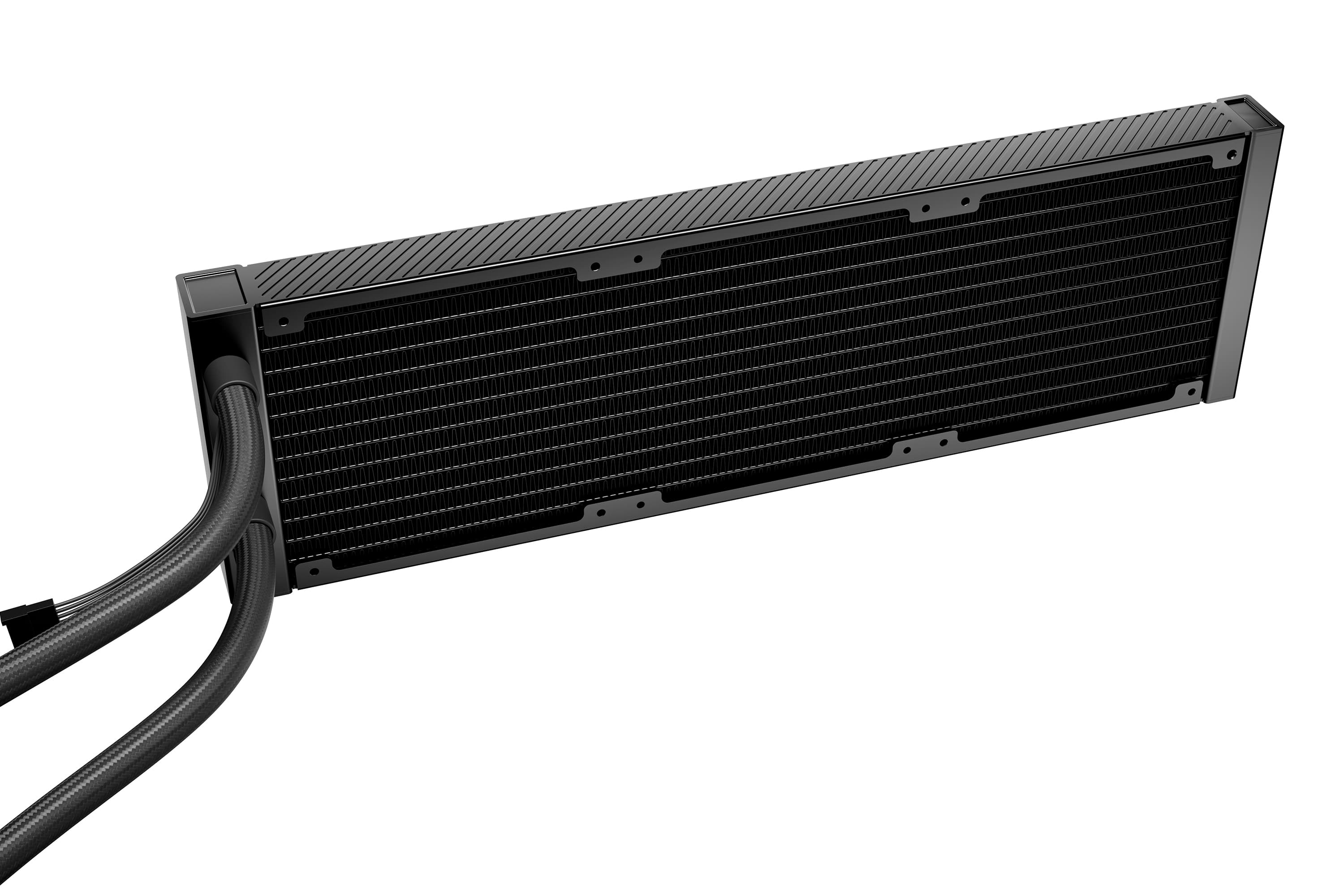

Radiator width12 cm
Radiator depth39.7 cm
Radiator height2.7 cm
Tube length40 cm
Waterblock width6.19 cm
Waterblock depth6.38 cm
Waterblock height5.4 cm
Weight1.6 kg
Fan dimensions (W x D x H)120 x 120 x 25 mm
Package width205 mm
Package depth448 mm
Package height137 mm
Package weight2.61 kg

Technical details

Doesn't containCadmium, Lead, Mercury
Warranty period3 year(s)
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes

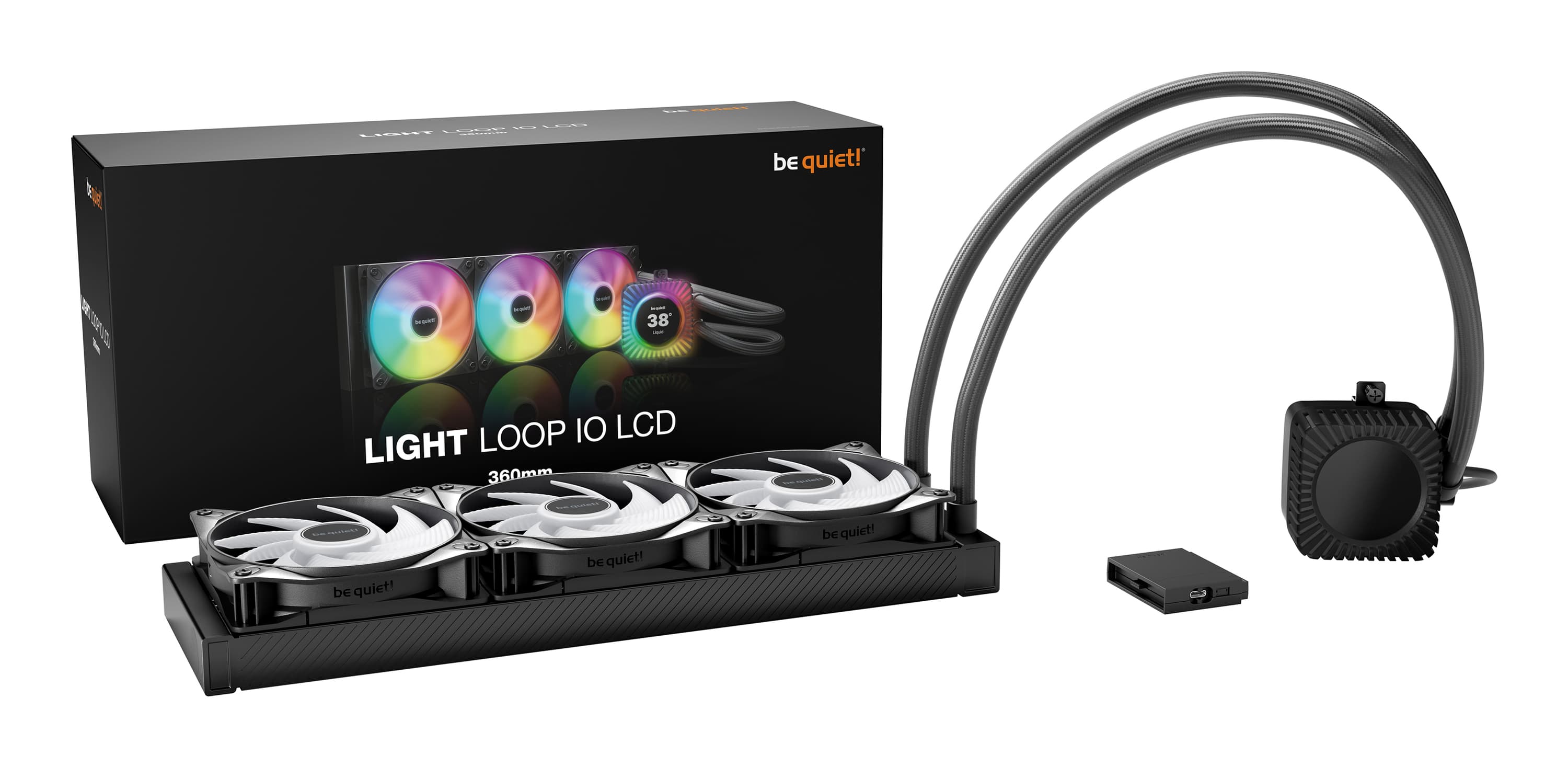

Packaging content

Package typeBox
Mounting kitYes
ManualYes

Other features

Thermal greaseYes
Weight2.63 kg
