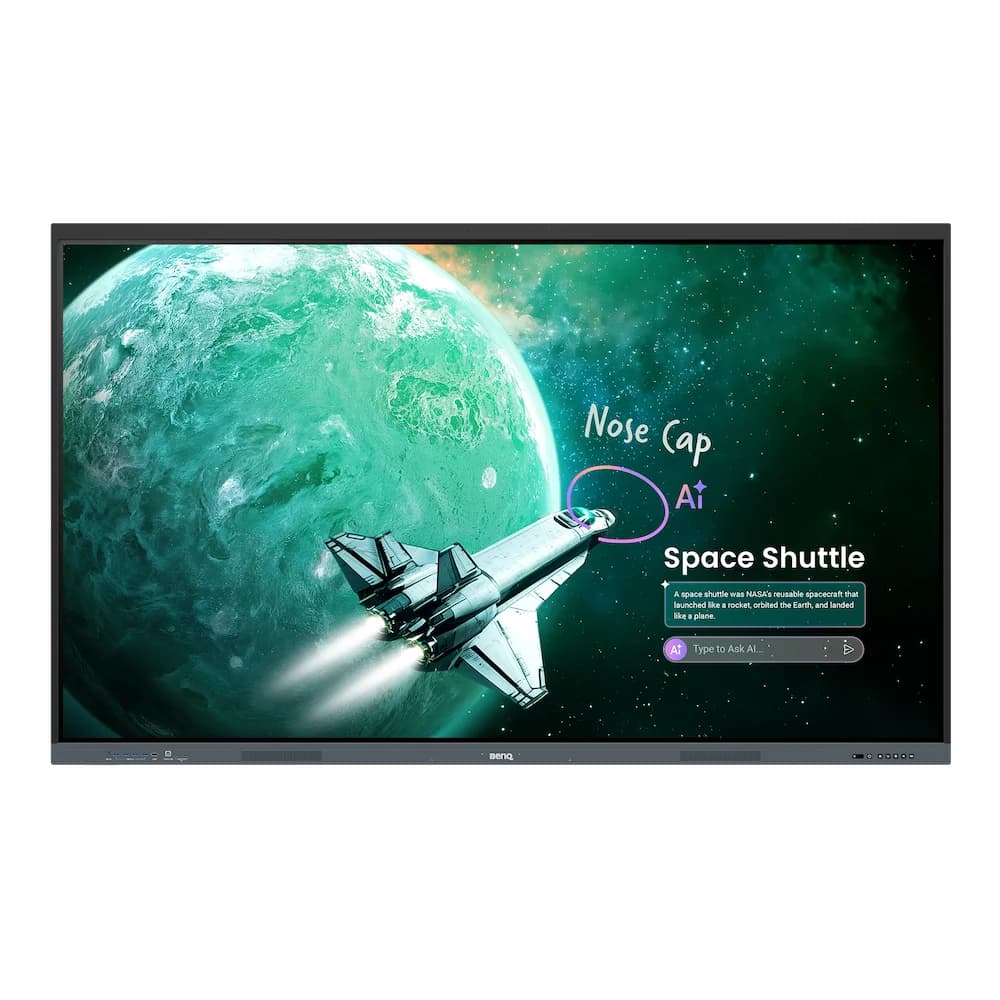

BenQ RE8605E interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Black USB

Part number: 2174974
MPN: 9H.FD9TK.DE2
EAN: 4718755098963

BenQ RE8605E, 2.18 m (86"), 1895 x 1066 mm, 500 cd/m², 3840 x 2160 pixels, 4K Ultra HD, IPS

Energy efficiency class	Keine
Detail colour	Grey
Resolution	3840 x 2160 (Ultra HD 4K)
Seitenverhältnis Bildschirm	16:9
Interfaces	3.5 mm Klinke, HDMI, OPS-Slot, RJ-45 (LAN), RS-232, USB
Display diagonal	2.18 m (86")
Touchscreen	Yes
Working area	1895 x 1066 mm

Description

BenQ RE8605E. Display diagonal: 2.18 m (86"), Working area: 1895 x 1066 mm, Display brightness: 500 cd/m². Operating system installed: Android, Operating system version: Android 16 (EDLA), Processor architecture: ARM Cortex A78 + ARM Cortex A55. Speaker power: 25 W, Subwoofer RMS power: 20 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Interface: USB, USB connector type: USB Type-A, USB Type-B, USB Type-C, USB Power Delivery up to: 65 W

Documents

Data sheetPDF · DE

Specifications

Energy efficiency class	Keine
Detail colour	Grey
Resolution	3840 x 2160 (Ultra HD 4K)
Seitenverhältnis Bildschirm	16:9
Interfaces	3.5 mm Klinke, HDMI, OPS-Slot, RJ-45 (LAN), RS-232, USB

Display

Display diagonal	2.18 m (86")
Touchscreen	Yes
Working area	1895 x 1066 mm
Display brightness	500 cd/m²
Anti-glare screen	Yes
HD type	4K Ultra HD
Panel type	IPS
Native aspect ratio	16:9
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	30000:1
Response time	8 ms
Number of simultaneous touchpoints	50
Touch system response time	5 ms
Colour gamut	72%
Surface material	Tempered glass
Low Blue Light technology	Yes
Hardness	9H

Computer system

Operating system installed	Android
Operating system version	Android 16 (EDLA)
Processor architecture	ARM Cortex A78 + ARM Cortex A55
Maximum internal memory	8 GB
User memory	128 GB

Audio

Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	25 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Built-in microphone	Yes
Number of microphone arrays	8

Projector

Built-in projector	No

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Interface	USB
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity	4
HDMI version	2.0
HDMI output ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
Line-in	Yes
OPS slot	1
S/PDIF out port	Yes
Headphone connectivity	3.5 mm
RS-232 ports	1

Ergonomics

VESA mounting	Yes
Panel mounting interface	800 x 600 mm

Performance

Ambient light sensor	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Operating hours (hours/days)	18/7

Power

Power consumption (typical)	101.2 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 80%

Weight & dimensions

Width	1950.4 mm
Height	1174 mm
Depth	87.6 mm
Weight	59.5 kg

Packaging data

Package width	2095 mm
Package depth	185 mm
Package height	1265 mm
Package weight	76 kg

Packaging content

Cables included	HDMI, VGA, USB
Remote control included	Yes
Mounting kit	Yes
Number of stylus pens	2

Sustainability

Sustainability certificates	ENERGY STAR
Weight	76.00 kg
