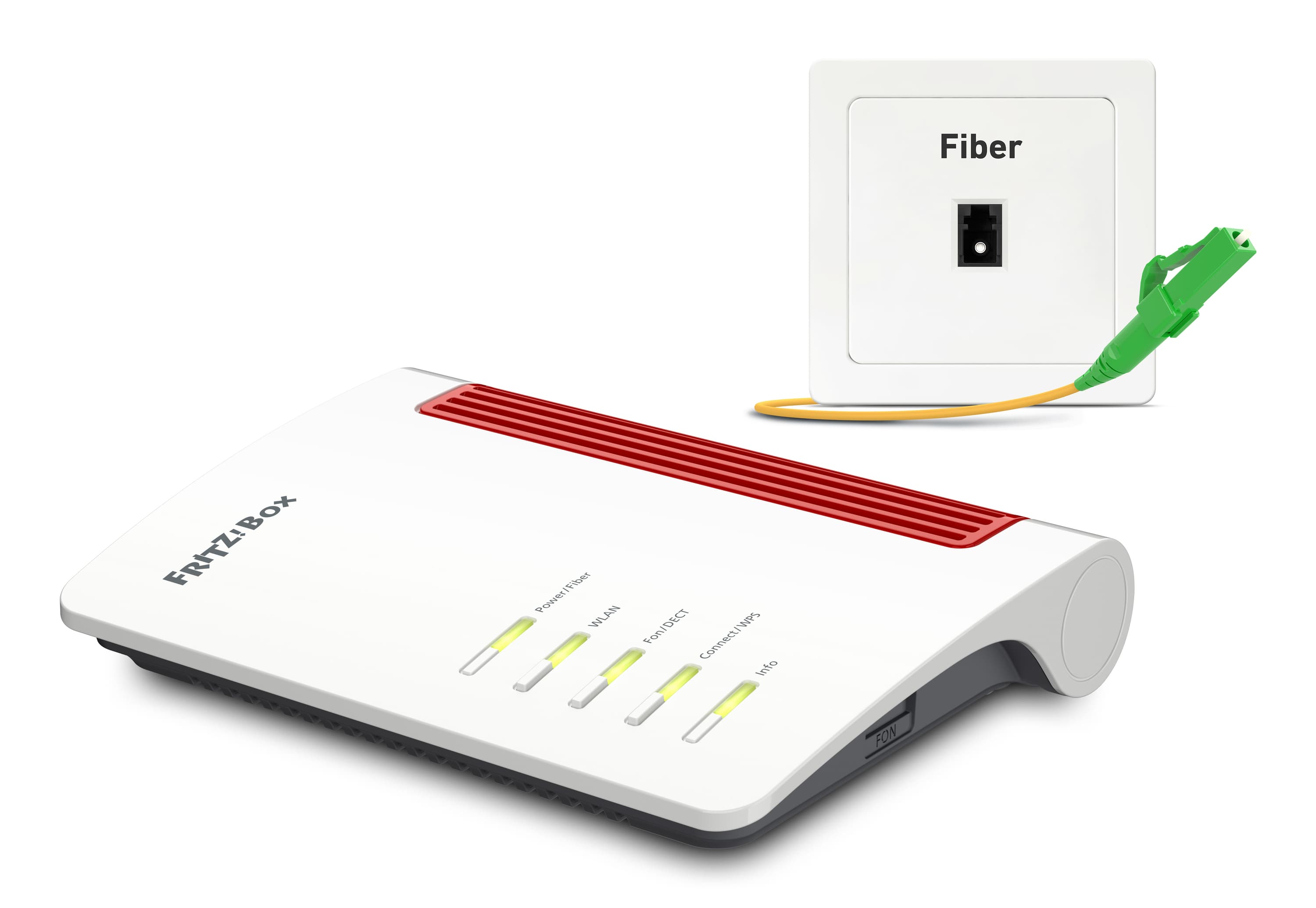

FRITZ! XGS-PON Fiber-Router FRITZ!Box 5530 mit XGS-PON SFP

Hover to zoom1/8

Box 5530 Fiber XGS-PON

Part number: 1489992
MPN: 20002959
EAN: 4023125029592

Box 5530 Fiber XGS-PON, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, White, Tabletop router

Application area	Home, Small/Medium Business
SFP Anschlüsse	1
Basisanschluss	Glasfaser (FTTH)
Depth	150 mm
SFP Geschwindigkeit	10 Gbit/s
Width	208 mm
Ethernet WAN	Yes
SIM card slot	No

Description

Box 5530 Fiber XGS-PON. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet. Security algorithms: WPA3. Product type: Tabletop router, Product colour: White, LED indicators: Power, WLAN, WPS. Antenna design: Internal

Documents

Data sheetPDF · DE

Specifications

Application area	Home, Small/Medium Business
SFP Anschlüsse	1
Basisanschluss	Glasfaser (FTTH)
Depth	150 mm
SFP Geschwindigkeit	10 Gbit/s
Width	208 mm

WAN connection

Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)

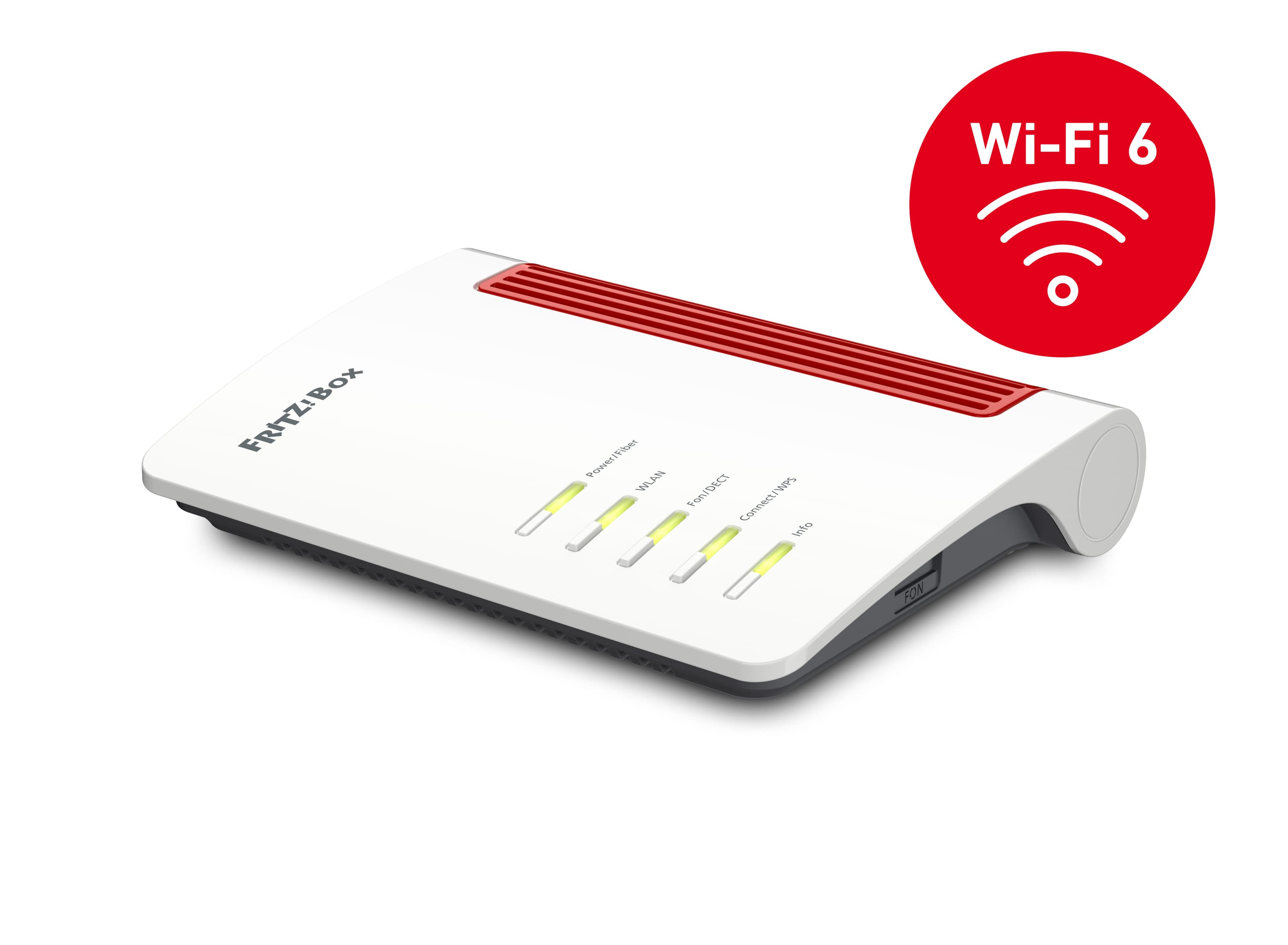

Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2400 Mbit/s
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	2400 Mbit/s

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Media server	Yes

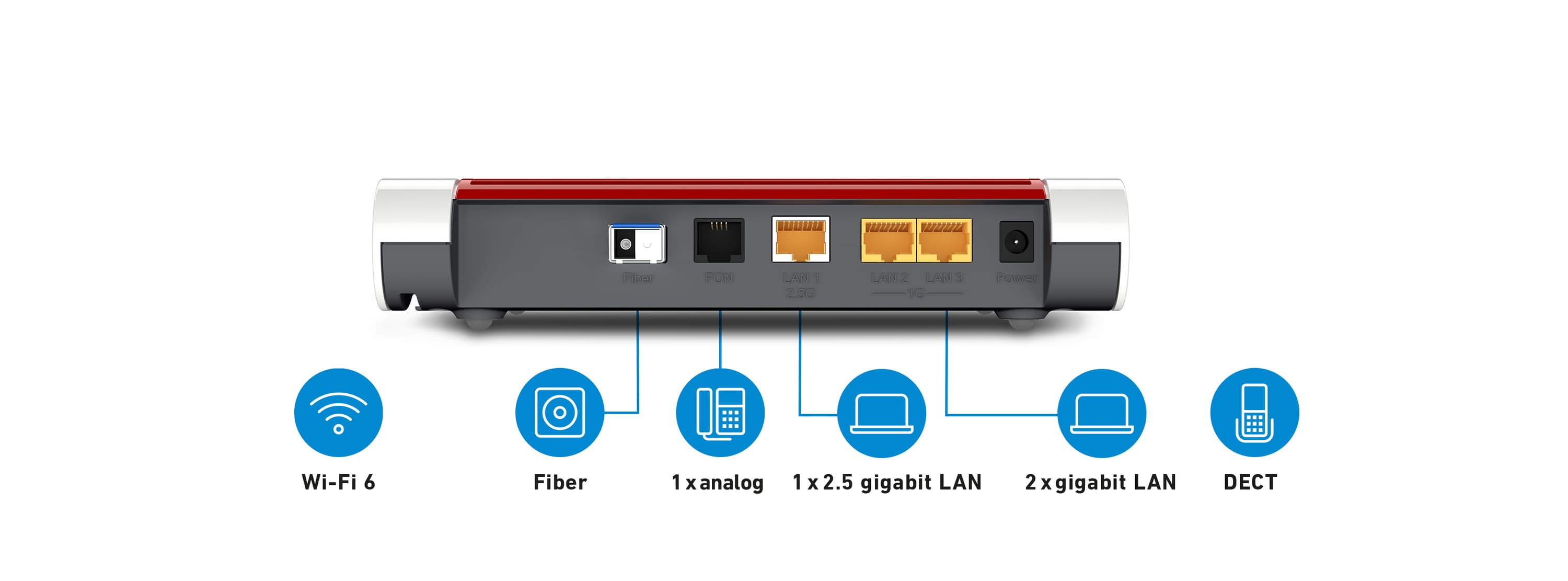

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
USB port	No
RJ-11 ports quantity	1

Management features

Web-based management	Yes
WPS push button	Yes
Intelligent Mesh technology	Yes
MU-MIMO technology	No
MIMO	Yes

Security

Security algorithms	WPA3
Firewall	Yes
Guest access	Yes
Parental control	Yes

Protocols

DHCP client	Yes
DHCP server	Yes

Design

Product type	Tabletop router
Product colour	White
Wall mountable	Yes
LED indicators	Power, WLAN, WPS

Packaging content

AC adapter included	Yes
Manual	Yes
Quick installation guide	Yes

Antenna

Antenna design	Internal

Features

Firmware upgradeable	Yes

Power

Power source type	AC

System requirements

Introduction month	November
Introduction year	2022

Weight & dimensions

Height	37 mm
Weight	341 g

Packaging data

Package width	260 mm
Package depth	68 mm
Package height	183 mm
Package weight	728 g
Package type	Box
Number of products included	1 pc(s)

Logistics data

Warranty period	5 year(s)
Weight	0.69 kg
