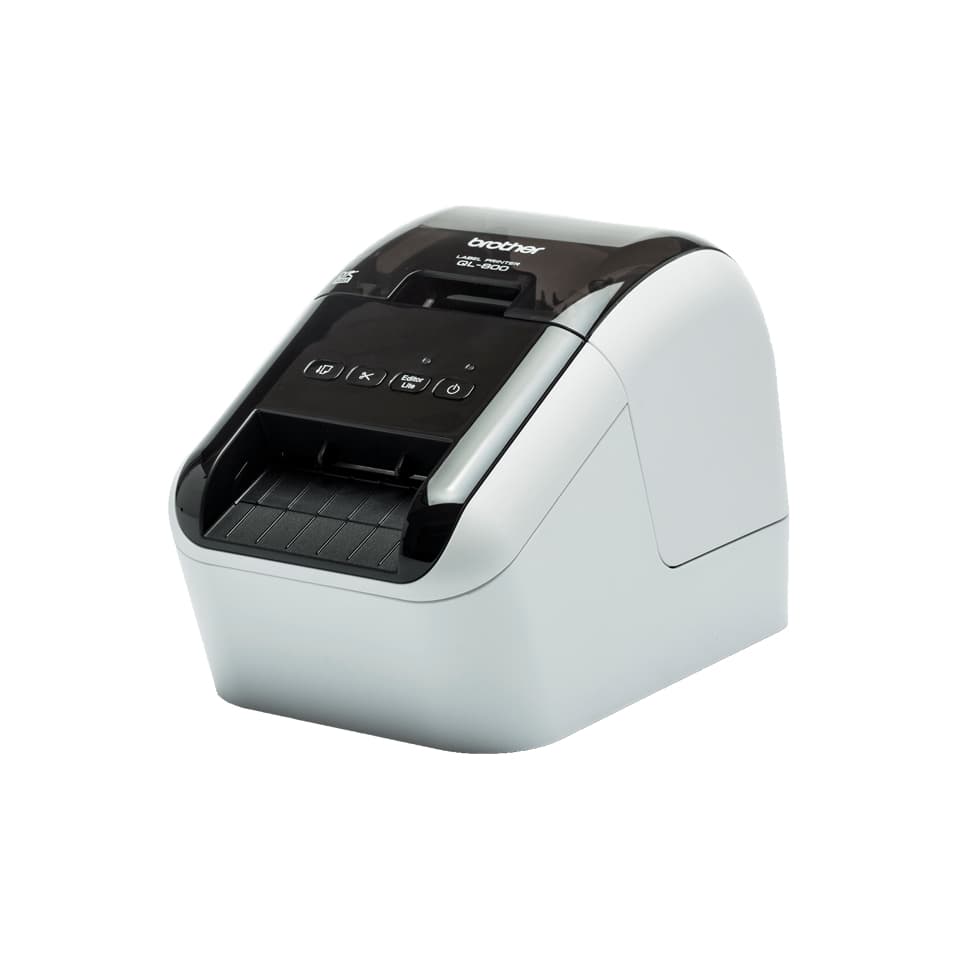

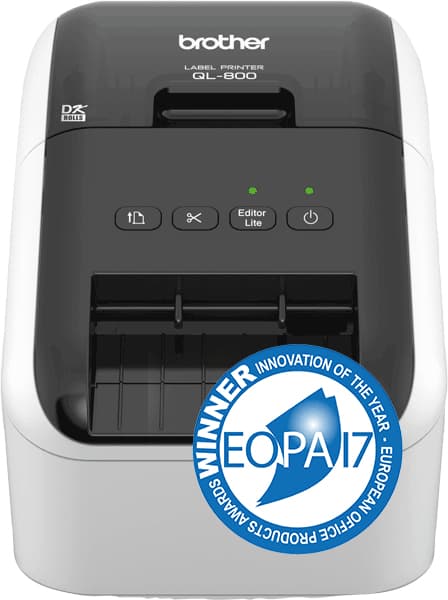

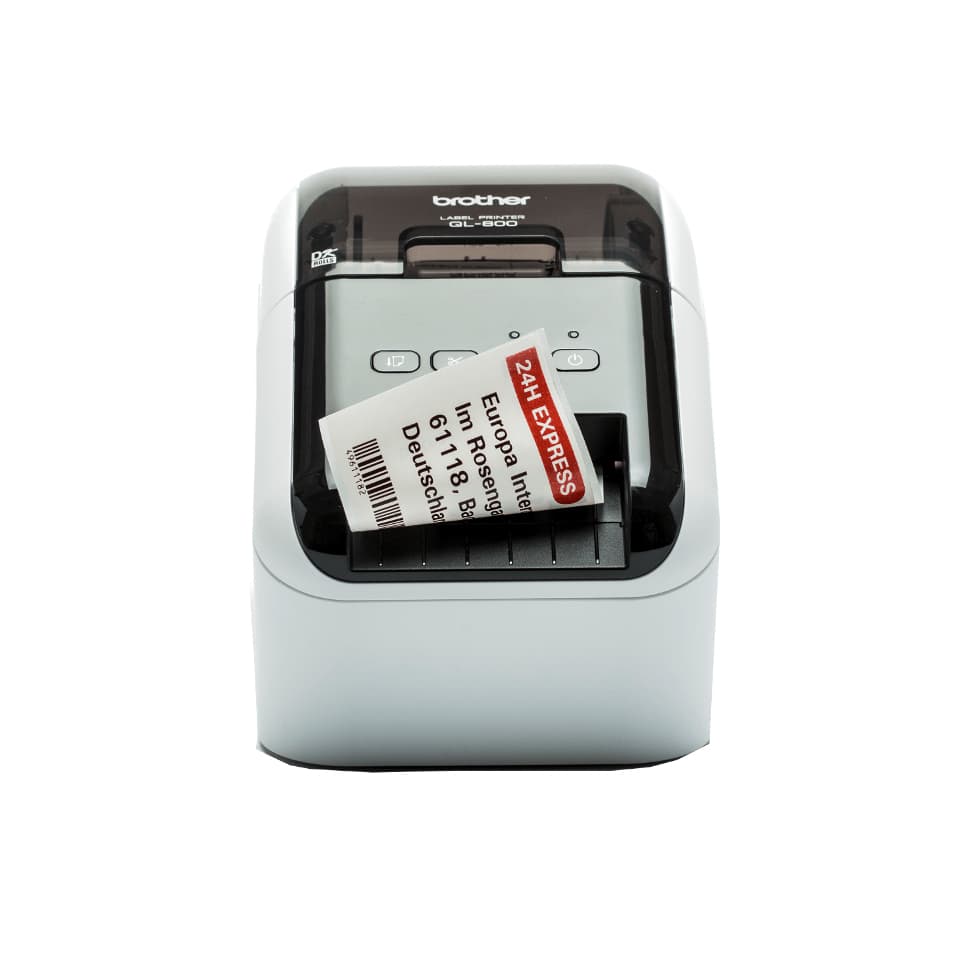

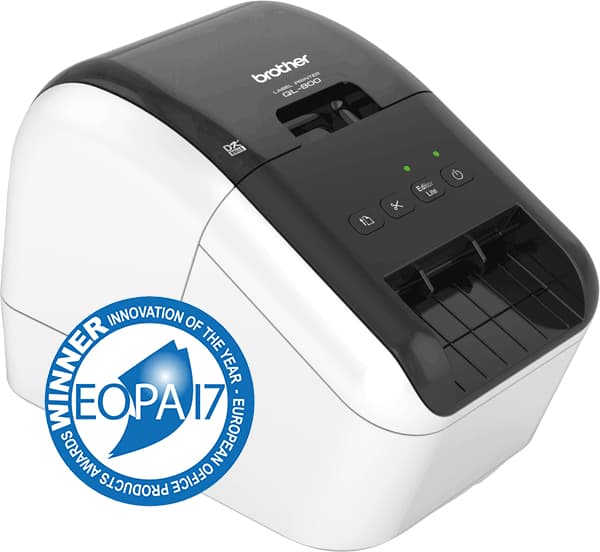

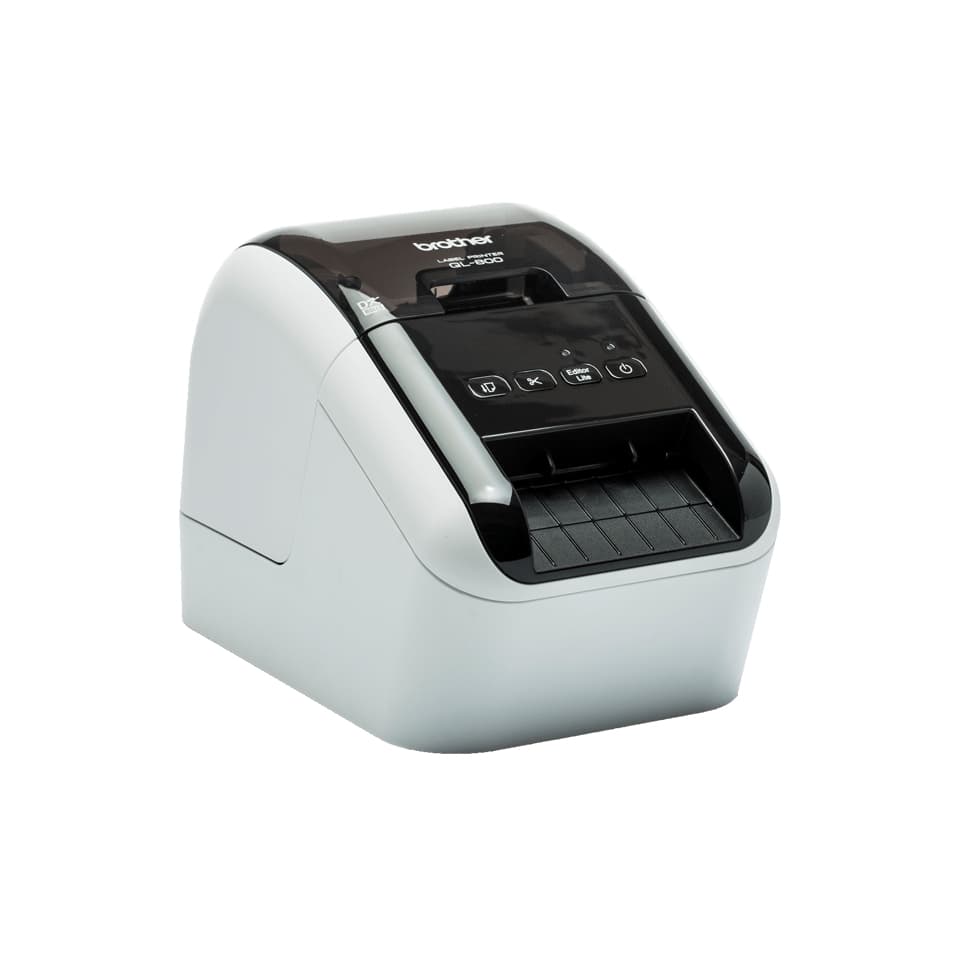

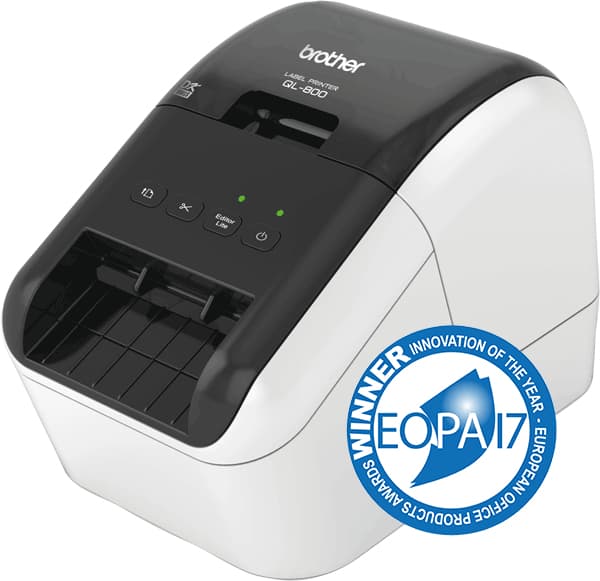

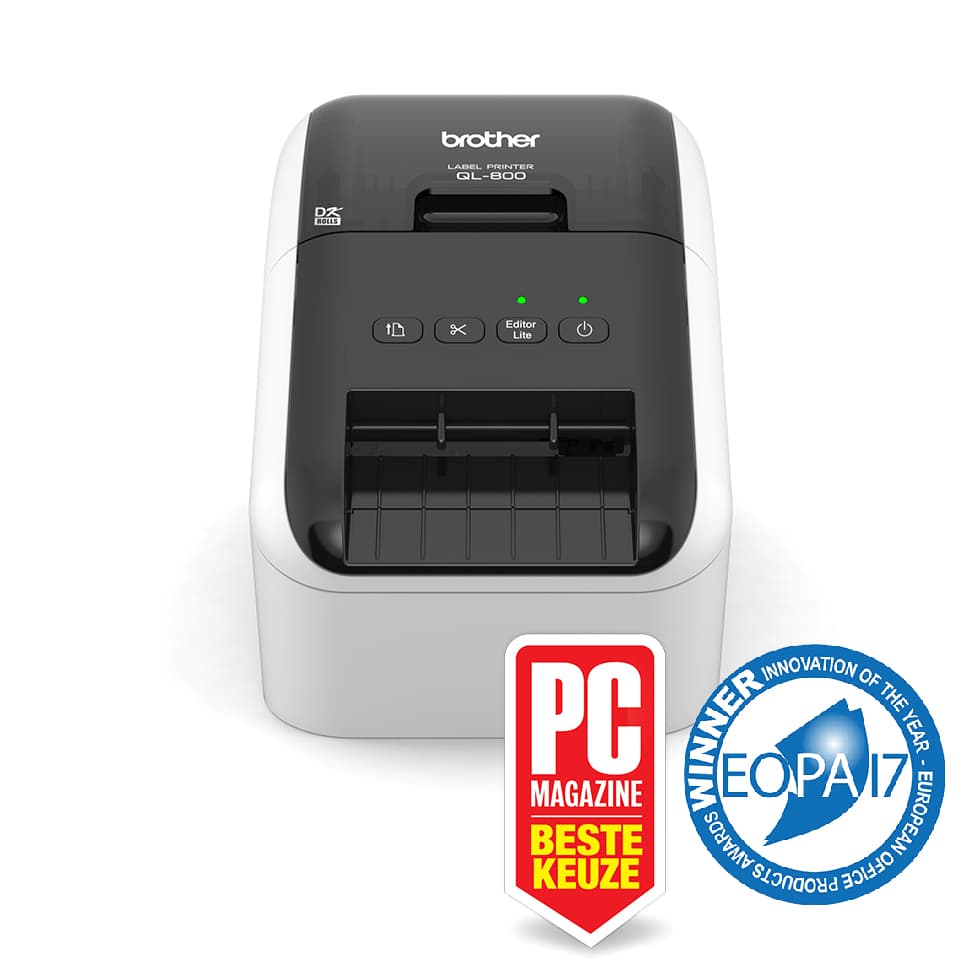

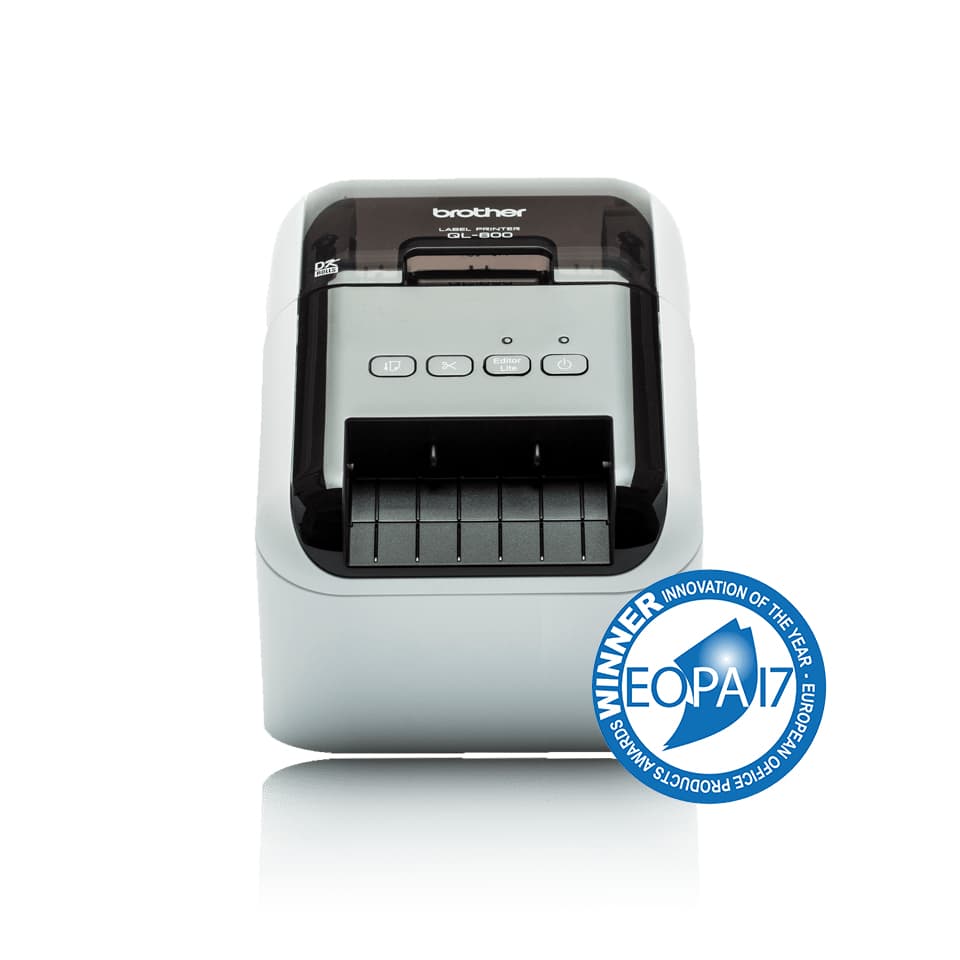

Brother QL-800 label printer Direct thermal Colour 300 x 600 DPI 148 mm/sec Wired DK

Part number: 534331
MPN: QL800UA1
EAN: 4977766771245

Brother QL-800, DK, Direct thermal, 300 x 600 DPI, 148 mm/sec, Colour, Wired

Drucktechnik	Thermodirektdruck
Druckmedien	Band
Interfaces	USB
Capacity in watt-hours	0 Wh
Print technology	Direct thermal
Colour	Yes
Maximum resolution	300 x 600 DPI
Print speed	148 mm/sec

Description

Brother QL-800. Print technology: Direct thermal, Maximum resolution: 300 x 600 DPI, Print speed: 148 mm/sec, Colour. Connectivity technology: Wired, USB port. Tape type: DK. Product colour: Black, Grey

Documents

Specifications

Drucktechnik	Thermodirektdruck
Druckmedien	Band
Interfaces	USB
Capacity in watt-hours	0 Wh

Printing

Print technology	Direct thermal
Colour	Yes
Maximum resolution	300 x 600 DPI
Print speed	148 mm/sec
Maximum printing width	6.1 cm
Print speed	93 lpm
Printing colours	Black, Red
Maximum print height	5.8 cm
Minimum print length	100 cm
Vertical printing	Yes
Rotated printing	Yes
Text alignment	Right, Center, Left

Paper handling

Autocutter	Yes
Maximum label width	6.2 cm
Maximum label length	1 m

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN	No
Wi-Fi	No
USB port	Yes
USB 2.0 ports quantity	1

Performance

Page description languages	Raster_P
Flash memory	6 MB
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Tape type	DK
Number of styles	8
Tape size detection	Yes

Design

Product colour	Black, Grey
Built-in display	No
Housing material	Plastic

Power

AC input voltage	220 - 240 V
Auto power off	Yes

System requirements

Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Width	262 mm
Depth	185 mm
Height	230 mm
Weight	2.01 kg

Packaging data

Package width	264 mm
Package depth	184 mm
Package height	232 mm
Package weight	2.37 kg

Packaging content

Cables included	USB
Cartridge(s) included	Yes
Cartridges quantity	2 pc(s)
Bundled software	P-touch Editor Lite P-touch Editor 5 P-touch Address Book
Drivers included	Yes
Quick start guide	Yes
Warranty card	Yes
AC adapter included	Yes
Manual	Yes

Logistics data

Harmonized System (HS) code	84433210
Pallet gross height	16.3 cm
Pallet gross weight	284.4 kg
Master (outer) cases per pallet	36 pc(s)
Master (outer) cases per pallet layer	6 pc(s)
Layers per pallet	6 pc(s)
Products per pallet	108 pc(s)

Technical details

PC connection	USB 2.0
Sustainability certificates	ENERGY STAR
Pallet type	800 x 1200 mm

Other features

Label memory	99 label(s)
Country of origin	China
Number of frames	126
Languages support	Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Date & time printing	Yes
Number of languages	18
Spare part retention	5 year(s)
Weight	2.13 kg
