Club 3D Adapterkabel Mini-DisplayPort - VGA1/3
Club 3D

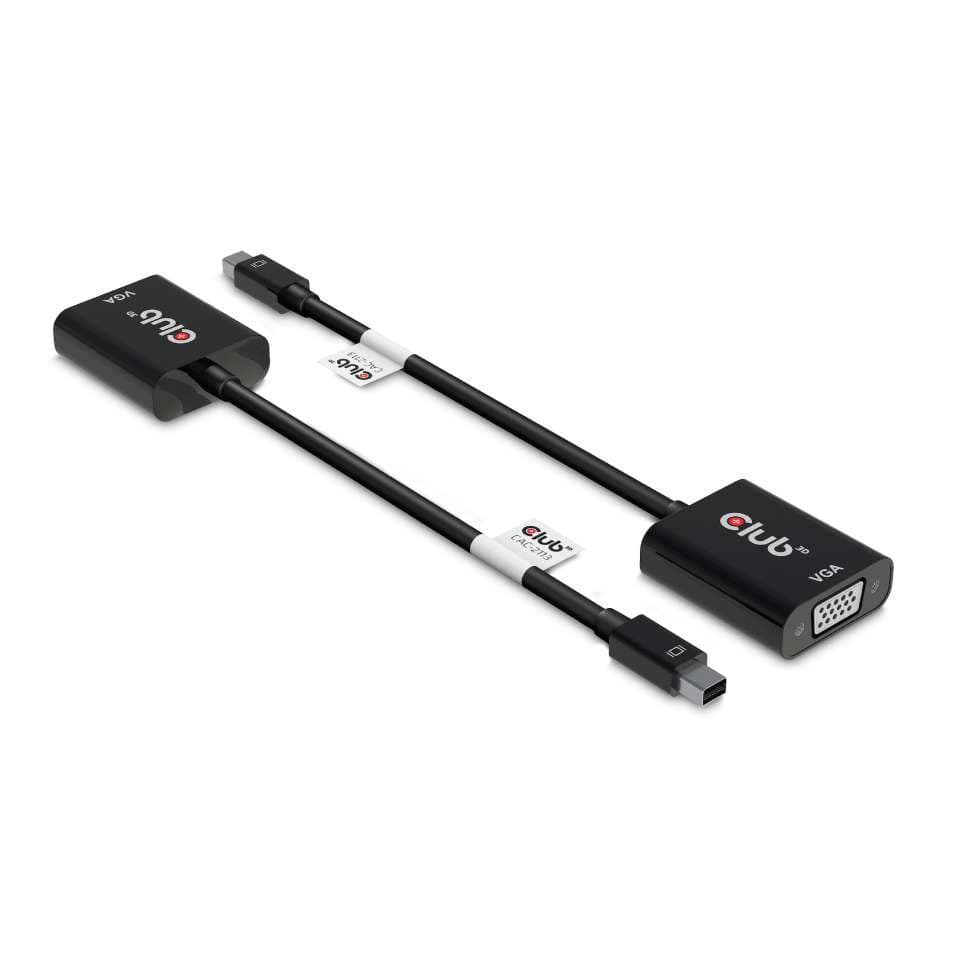

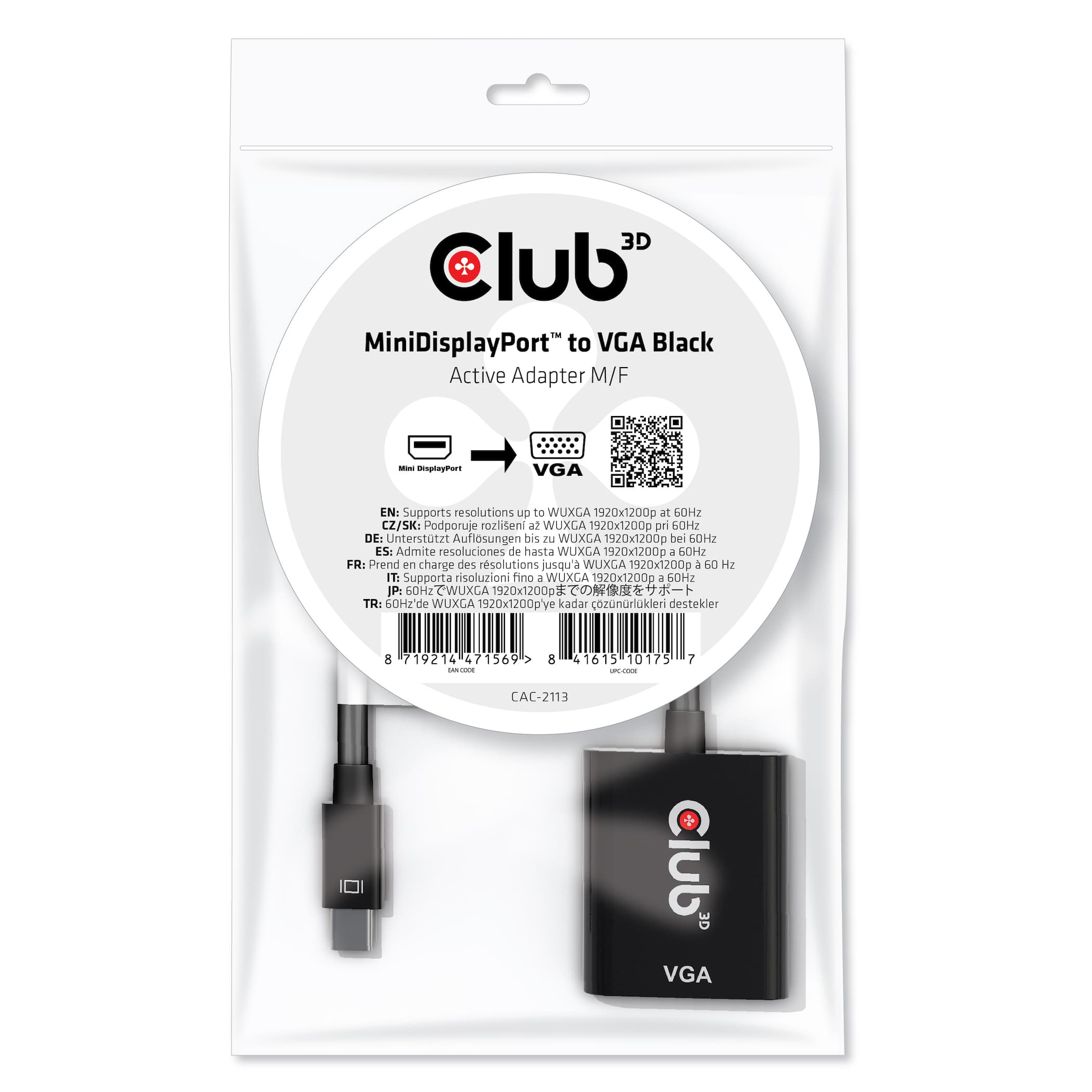

CLUB3D MiniDisplayPort™ to VGA Black Active Adapter M/F

Part number
1095156
MPN
CAC-2113
EAN
8719214471569

CLUB3D MiniDisplayPort™ to VGA Black Active Adapter M/F, 0.228 m, Mini Displayport, VGA, Male, Female, Straight

Cable typeRound cable
Video connector side AMini-DisplayPort
Video connector side BVGA
Cable length0.228 m
Connector 1Mini Displayport
Connector 2VGA
Connector 1 genderMale
Connector 2 genderFemale
All 31 specifications

Description

CLUB3D MiniDisplayPort™ to VGA Black Active Adapter M/F. Cable length: 0.228 m, Connector 1: Mini Displayport, Connector 2: VGA. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Plastic packaging weight: 9 g. Connector 1 dimensions (WxDxH): 27 x 11 x 9 mm, Connector 2 dimensions (WxDxH): 41.8 x 38 x 15.7 mm, Weight: 26 g. Package width: 215 mm, Package depth: 150 mm, Package height: 13 mm

Documents

Specifications

Cable typeRound cable
Video connector side AMini-DisplayPort
Video connector side BVGA

Features

Cable length0.228 m
Connector 1Mini Displayport
Connector 2VGA
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
DisplayPort version1.1
Supported graphics resolutions1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Data transfer rate5.4 Gbit/s
Maximum refresh rate60 Hz
Product colourBlack
Windows operating systems supportedWindows 10, Windows 8.1

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Packaging composition

Plastic packaging weight9 g
Paper/cardboard packaging weight0 g
Total plastic packaging weight0 g
Total paper/cardboard packaging weight0 g

Weight & dimensions

Connector 1 dimensions (WxDxH)27 x 11 x 9 mm
Connector 2 dimensions (WxDxH)41.8 x 38 x 15.7 mm
Weight26 g

Packaging data

Package width215 mm
Package depth150 mm
Package height13 mm
Package weight35 g
Package typePolybag

Packaging content

Quantity per pack1 pc(s)

Logistics data

Harmonized System (HS) code85444290
Weight0.04 kg
