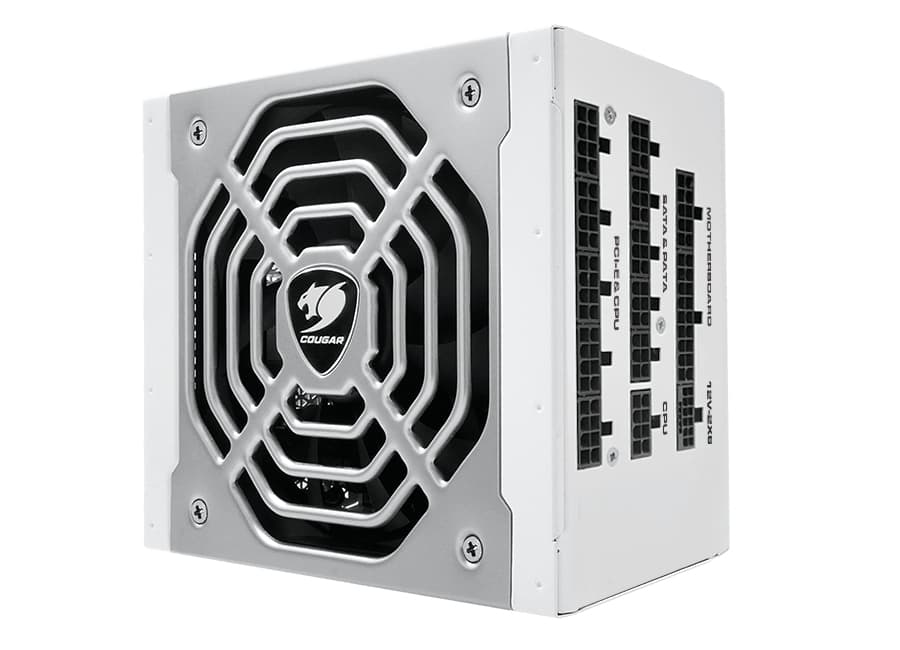

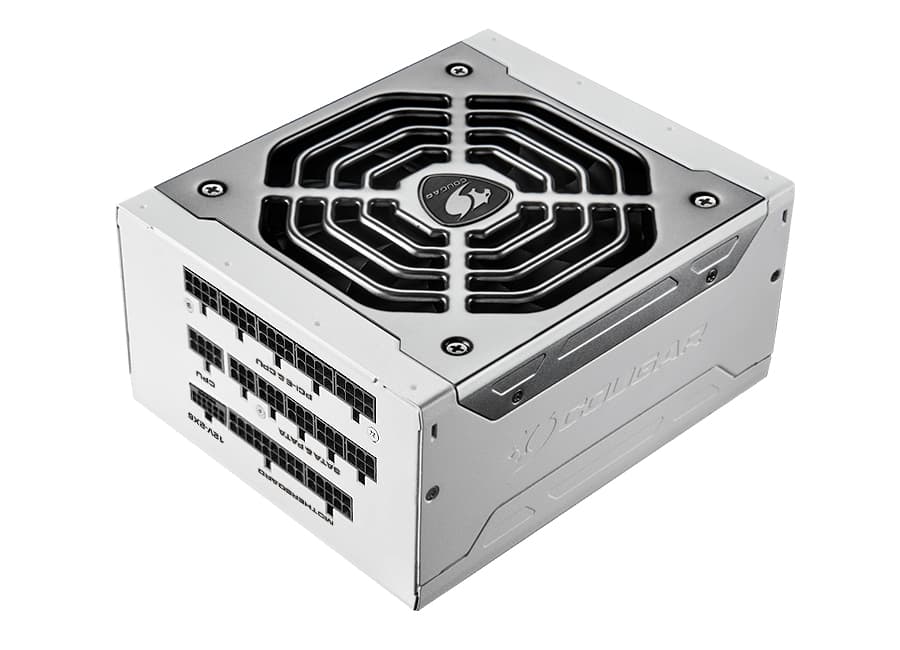

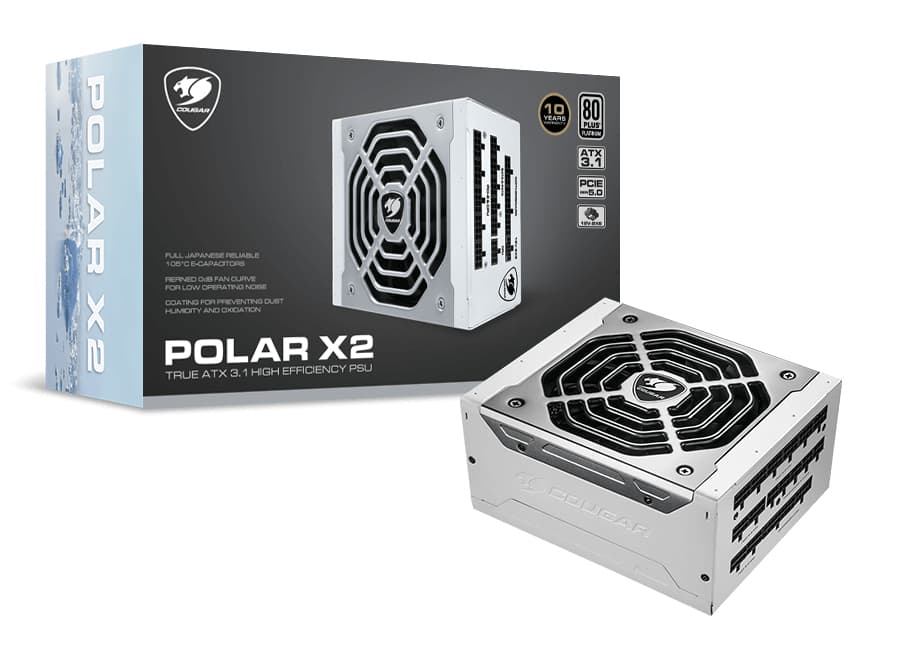

COUGAR POLAR X2 1050W Power Supply ATX3.1 / 80 Plus Platinum / Modular

Part number
2209088
MPN
CGR-POLAR-X2-1050
EAN
4710483775413

COUGAR POLAR X2 1050W Power Supply ATX3.1 / 80 Plus Platinum / Modular, 1050 W, 100 - 240 V, 47 - 63 Hz, 15 - 7 A, 100 W, 1050 W

80 PLUS Zertifikat80 PLUS Platinum
Netzteil Nennleistung1050 W
Netzteil KabelstrangVoll-modular
Netzteil FormfaktorATX
Total power1050 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current15 - 7 A
All 65 specifications

Description

COUGAR POLAR X2 1050W Power Supply ATX3.1 / 80 Plus Platinum / Modular. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: EAC, TÜV mark, Federal Communications Commission (FCC), RoHS, CCC, CE

Documents

Specifications

80 PLUS Zertifikat80 PLUS Platinum
Netzteil Nennleistung1050 W
Netzteil KabelstrangVoll-modular
Netzteil FormfaktorATX

Power

Total power1050 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current15 - 7 A
Combined power (+3.3V)100 W
Combined power (+12V)1050 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)87.5 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency90%
Power protection featuresOverheating, Over current, Over power, Under voltage, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)4
Motherboard power cable length65 cm
Number of SATA power connectors12
Number of PATA power connectors4
SATA power cable length120,500 mm
Peripheral (Molex) power cable length120,500 mm
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)6
PCI Express power connectors (8-pin)1
PCI Express power connectors (12+4 pin)1
PCI Express power connectors (12+4 pin) cable length650 mm
CPU power connector (4+4 pin)Yes
CPU power cable length65 cm
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version3.1
Silent modeYes
Noise level22 dB
Bearing technologyHDB
Mean time between failures (MTBF)100000 h

Design

Product colourSilver
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
On/off switchYes

Operational conditions

Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)20 - 85%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesEAC, TÜV mark, Federal Communications Commission (FCC), RoHS, CCC, CE

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm
Weight2.09 kg

Packaging data

Package width229 mm
Package depth331 mm
Package height107 mm
Package weight3.59 kg
Package typeBox

Logistics data

Country of originChina
Weight3.97 kg
