D-Link SFP+ Switch DGS-1530 20 Port1/3
D-Link

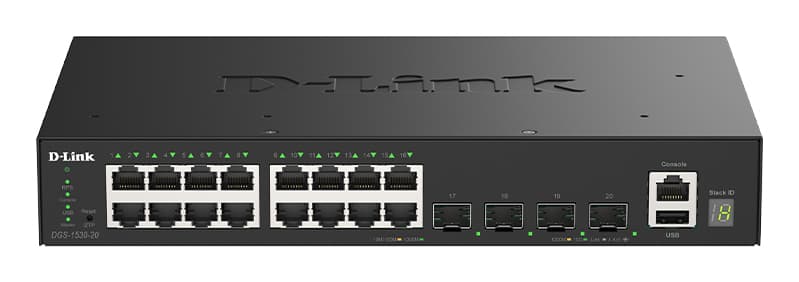

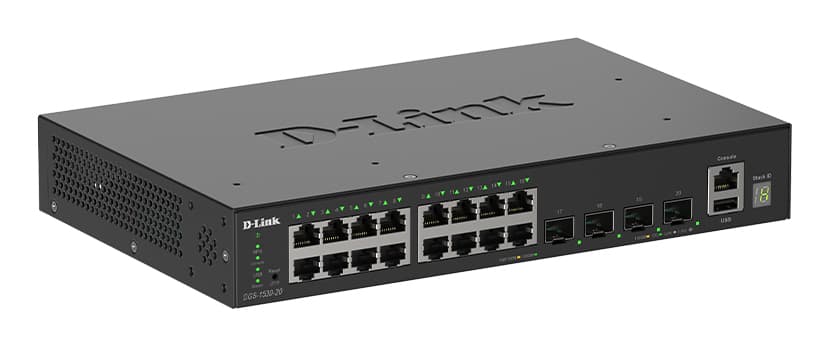

D-Link 20-Port Gigabit Stackable Smart Managed Switch with 4 x 10G SFP+ Ports

Part number
1927865
MPN
DGS-1530-20/E
EAN
790069474620

D-Link 20-Port Gigabit Stackable Smart Managed Switch with 4 x 10G SFP+ Ports, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse4
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementSmart-Managed
Switch typeManaged
Switch layerL2
All 69 specifications

Description

D-Link 20-Port Gigabit Stackable Smart Managed Switch with 4 x 10G SFP+ Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Rack mounting

Documents

Specifications

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse4
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementSmart-Managed

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity2
USB Type-A ports quantity1
Console portRJ-45
USB 2.0 ports quantity1

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G supportYes
Port mirroringYes
Full duplexYes
Policy-based routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Ethernet LAN data rates10,1000,100 Mbit/s
Auto-negotiationYes
VLAN supportYes
Number of VLANs4096

Data transmission

MAC address table16000 entries
Switching capacity112 Gbit/s
Forwarding rate83.33 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Packet buffer memory1.5 MB

Security

Access Control List (ACL)Yes
Access Control List (ACL) egress1000
Access Control List (ACL) ingress2000
IGMP snoopingYes
Security algorithmsSNMP, SNMPv2, SNMPv3
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
Password protectionYes
Authentication typeRADIUS, TACACS+

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourBlack
LED indicatorsYes

Performance

Mean time between failures (MTBF)630098 h

Power

Power sourceAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)25.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation89 BTU/h

Weight & dimensions

Width280 mm
Depth180 mm
Height44 mm
Weight2 kg
Weight3.62 kg
