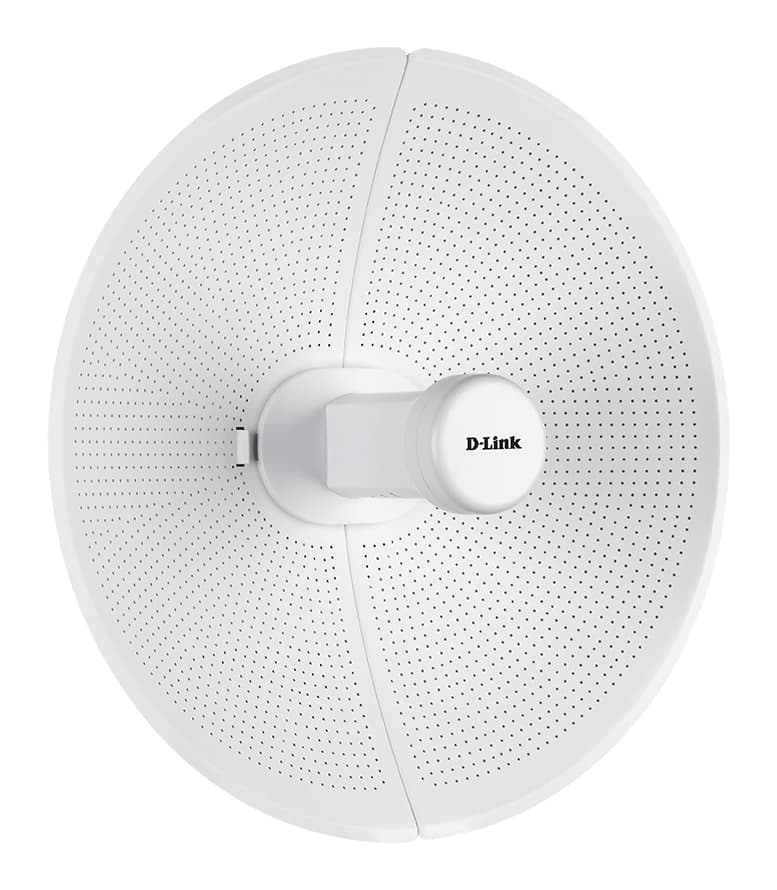

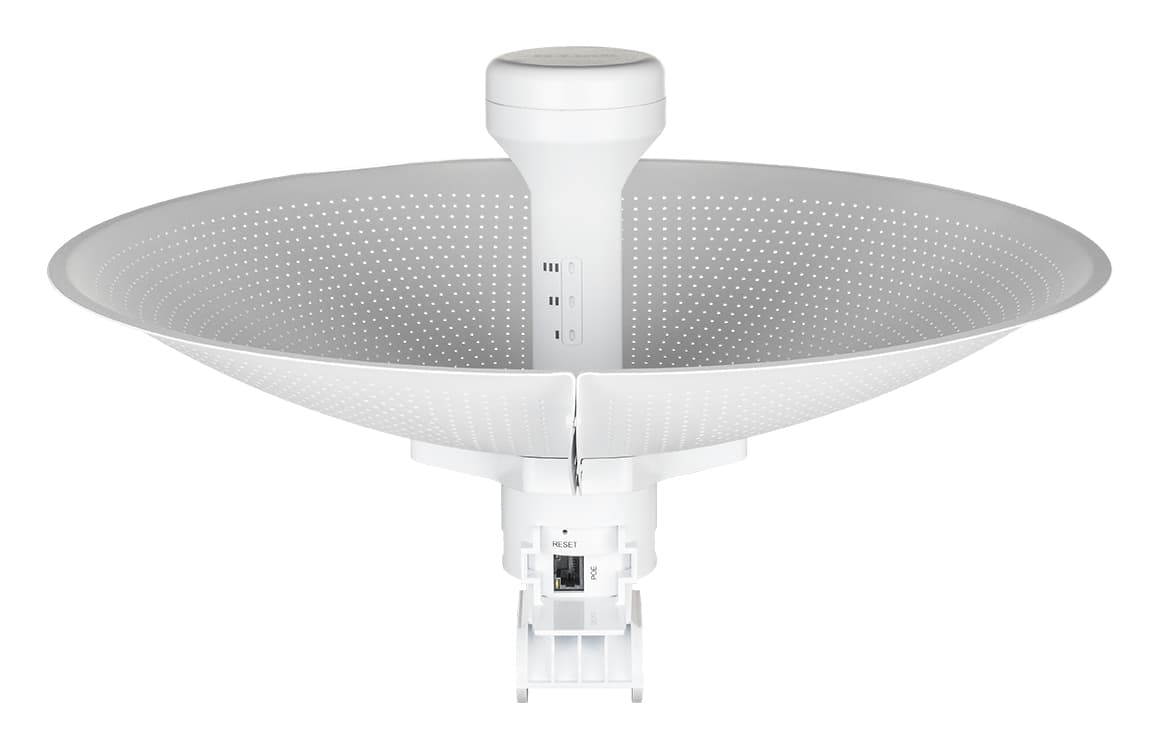

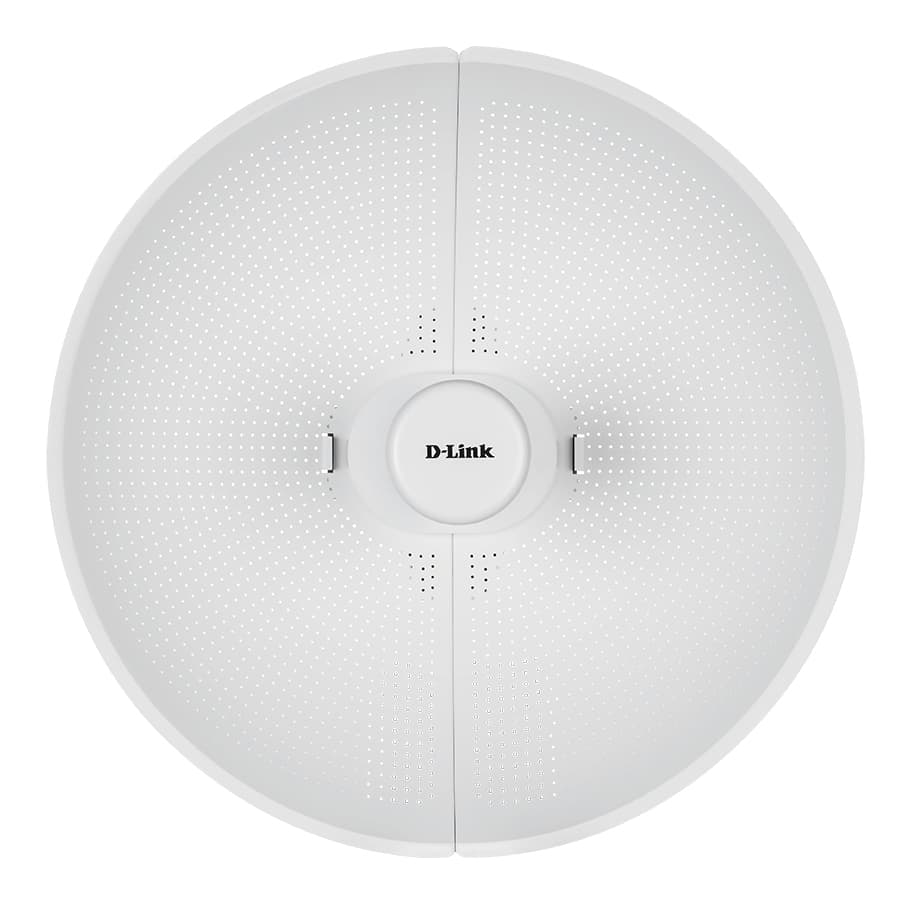

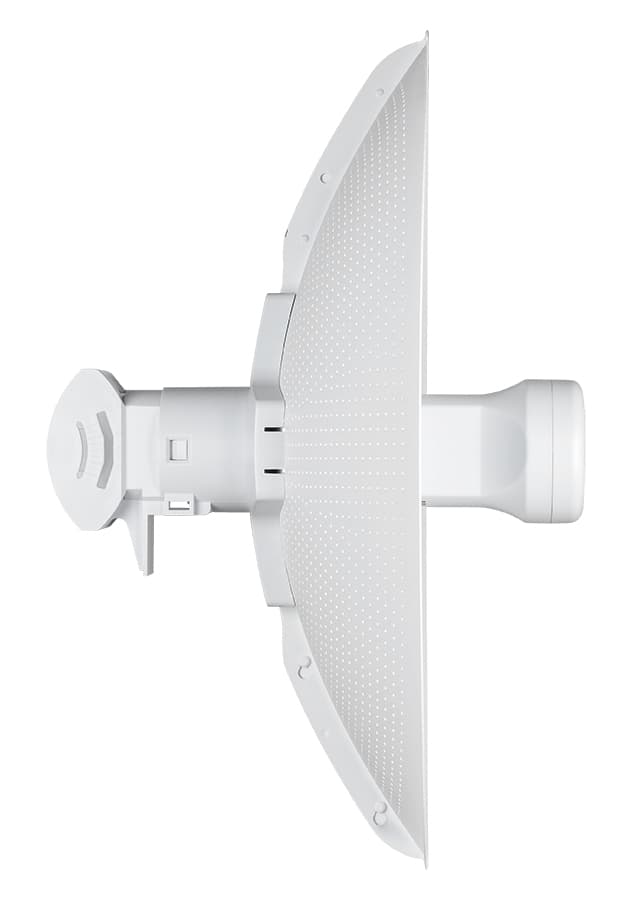

D-Link 20km Long Range Wireless AC Bridge

Part number: 1274543
MPN: DAP-3712
EAN: 790069457289

D-Link 20km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White

Mounting	Mast, Wand
Power supply	802.3af/at Class 4 Type 2 PoE+ 30 Watt
Antennenanschluss	Antennen nicht abnehmbar
RJ-45 Anschlüsse	1
RJ-45 Geschwindigkeit	100/1000 Mbit/s
WLAN Standard	IEEE 802.11a (Wi-Fi 1), IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4)
Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	20000 m

Description

D-Link 20km Long Range Wireless AC Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 20000 m. Antenna design: External, Antenna gain level (max): 23 dBi. Wi-Fi band: Single-band (5 GHz), WLAN data transfer rate (max): 867 Mbit/s, Frequency band: 5.180 - 5.825 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired & Wireless

Documents

Specifications

Mounting	Mast, Wand
Power supply	802.3af/at Class 4 Type 2 PoE+ 30 Watt
Antennenanschluss	Antennen nicht abnehmbar
RJ-45 Anschlüsse	1
RJ-45 Geschwindigkeit	100/1000 Mbit/s
WLAN Standard	IEEE 802.11a (Wi-Fi 1), IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4)

Data transmission

Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	20000 m

Antenna

Antenna design	External
Antenna gain level (max)	23 dBi
Antennas quantity	1

Wireless LAN features

Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
WLAN data transfer rate (max)	867 Mbit/s
Frequency band	5.180 - 5.825 GHz
Signal strength	27 dBm
Channels quantity	2 channels

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Static IP	Yes

Ports & interfaces

Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1

Security

Security algorithms	128-bit AES
MAC address filtering	Yes

Management features

Web-based management	Yes
DHCP client	Yes

Features

Product type	Network bridge
Material	Acrylonitrile butadiene styrene (ABS)
Mounting type	Pole
Product colour	White
LED indicators	Signal strength
Automatic Transmit Power Control (ATPC)	Yes
Reset button	Yes
International Protection (IP) code	IP66
Surge protection	Yes

Power

Power source type	PoE
Power consumption (typical)	15 W
Power consumption (max)	15 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	48 V

Operational conditions

Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	0 - 90%

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC)
Certification	CE, FCC

Weight & dimensions

Width	372 mm
Depth	241 mm
Height	372 mm
Weight	900 g

Packaging data

Quantity per pack	1 pc(s)

Logistics data

Harmonized System (HS) code	85176990
Weight	1.75 kg
