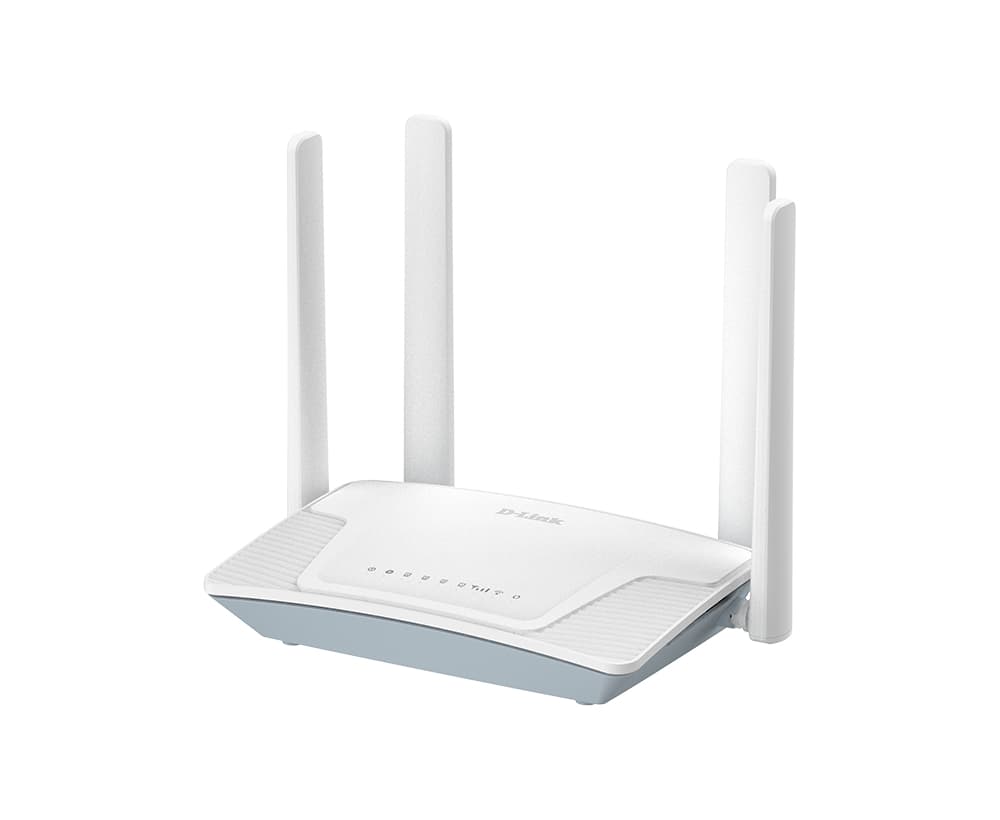

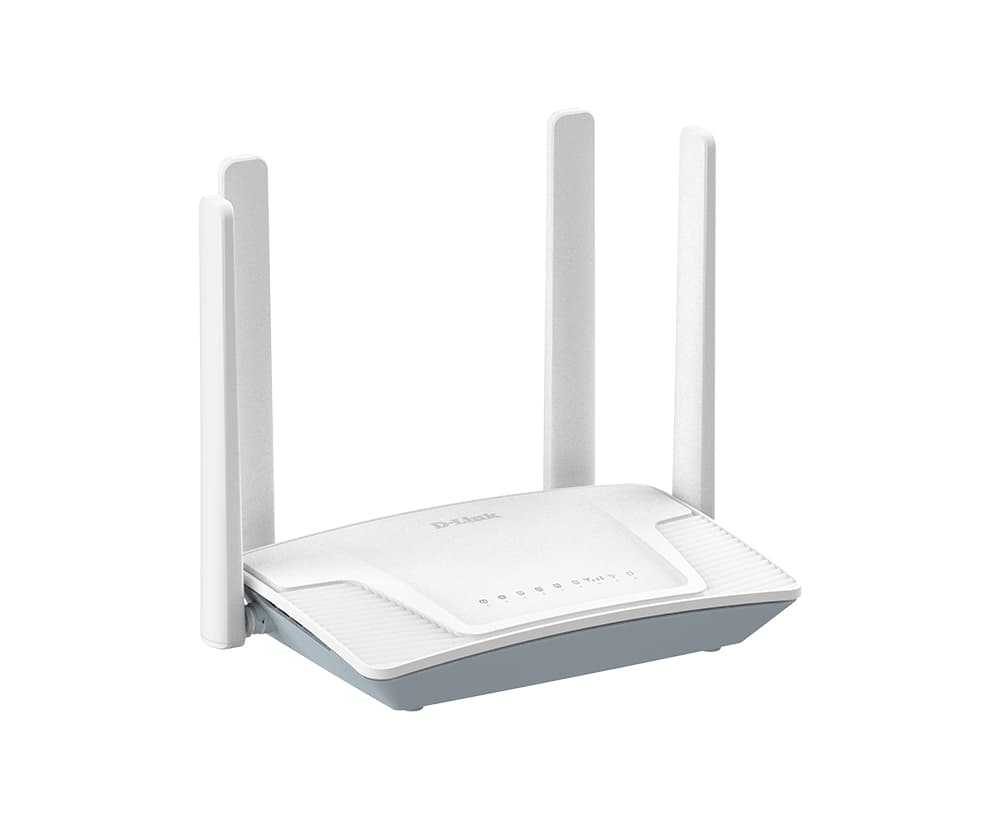

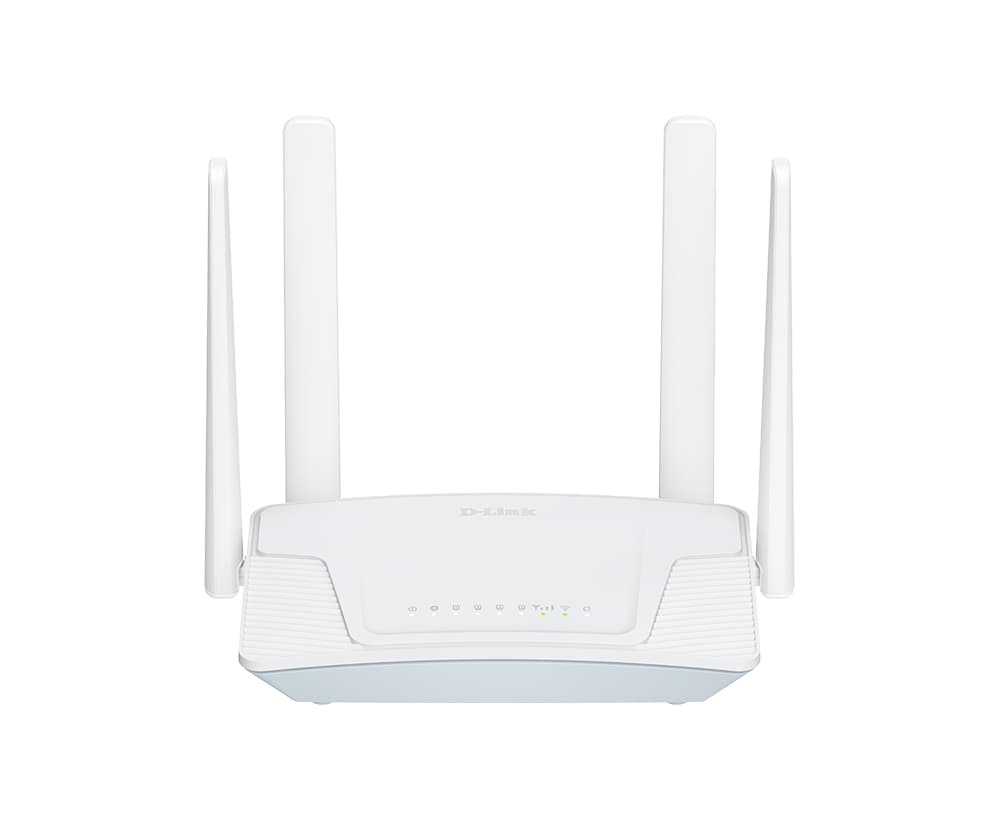

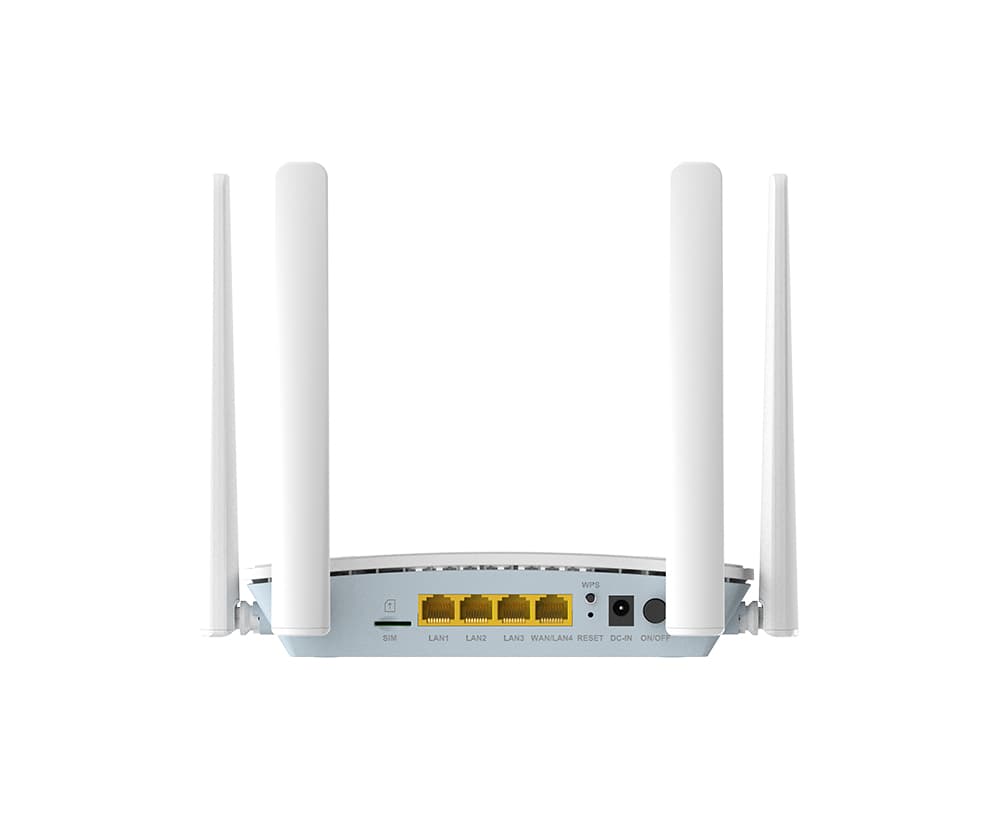

D-Link 4G LTE N300 Wi-Fi ROUTER

Part number: 1970666
MPN: G403C/E
EAN: 790069476860

D-Link 4G LTE N300 Wi-Fi ROUTER, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, 4G, White, Tabletop router

Application area	Home, Small/Medium Business
SFP Anschlüsse	0
Basisanschluss	Mobilfunk
Depth	147 mm
SFP Geschwindigkeit	Keine SFP Ports
Width	222 mm
Ethernet WAN	Yes
DSL WAN	No

Description

D-Link 4G LTE N300 Wi-Fi ROUTER. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: GSM, 3G standards: WCDMA. Security algorithms: WPA-PSK, WPA2-PSK, WPA3-PSK

Documents

Data sheetPDF · DE

Specifications

Application area	Home, Small/Medium Business
SFP Anschlüsse	0
Basisanschluss	Mobilfunk
Depth	147 mm
SFP Geschwindigkeit	Keine SFP Ports
Width	222 mm

WAN connection

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
WAN connection type	RJ-45

Wireless LAN features

Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Port forwarding	Yes

Mobile network

Mobile network generation	4G
Dual SIM support	No
2G standards	GSM
3G standards	WCDMA
4G standard	LTE
GSM bands supported	900,1800 MHz
SIM card type	NanoSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes

Management features

Web-based management	Yes
Reset button	Yes
WPS push button	Yes

Security

Security algorithms	WPA-PSK, WPA2-PSK, WPA3-PSK
Firewall	Yes
DMZ support	Yes

Design

Product type	Tabletop router
Product colour	White
LED indicators	LTE, Power, Status

Certificates

Compliance certificates	CE, NCC, RCM, RoHS

Packaging content

Antenna included	Yes
Quick start guide	Yes

Antenna

Antenna design	External
Antennas quantity	3

Power

Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Operating temperature (T-T)	-10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Height	42 mm
Weight	240 g

Packaging data

Package type	Box
Weight	0.56 kg
