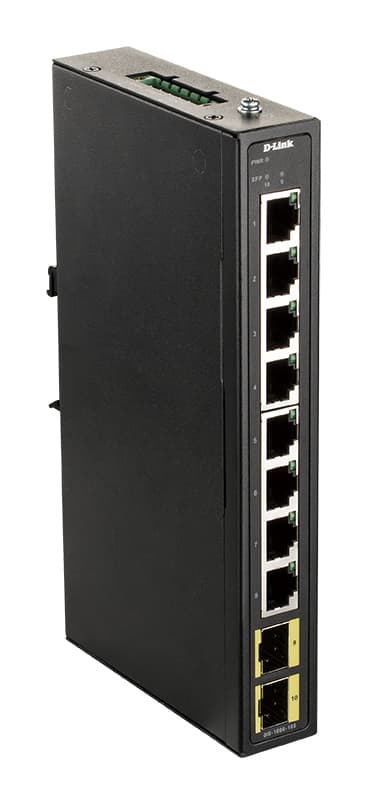

D-Link Rail Switch DIS-100G-10S 10 Port1/3
D-Link

D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP

Part number
1147672
MPN
DIS-100G-10S
EAN
790069455612

D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP, Unmanaged, Gigabit Ethernet (10/100/1000), DIN rail

SFP Anschlüsse2
Montage SwitchDIN-Rail, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged
Switch typeUnmanaged
Quality of Service (QoS) supportYes
All 43 specifications

Description

D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. DC input voltage: 12 - 48 V. Form factor: DIN rail

Documents

Specifications

SFP Anschlüsse2
Montage SwitchDIN-Rail, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology1000BASE-T
Auto MDI/MDI-XYes

Data transmission

MAC address table4000 entries
Switching capacity20 Gbit/s
Forwarding rate14.88 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Transmission methodStore-and-forward

Design

StackableYes
Form factorDIN rail
Product colourBlack
LED indicatorsYes
International Protection (IP) codeIP40

Performance

FanlessYes
Mean time between failures (MTBF)392267 h

Power

Power sourceDC
DC input voltage12 - 48 V
Input current1 A
Power consumption (max)7.44 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-20 - 65 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width190 mm
Depth28 mm
Height100 mm
Weight498 g

Certificates

Certification47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC

Logistics data

Harmonized System (HS) code85176990
Weight0.74 kg
