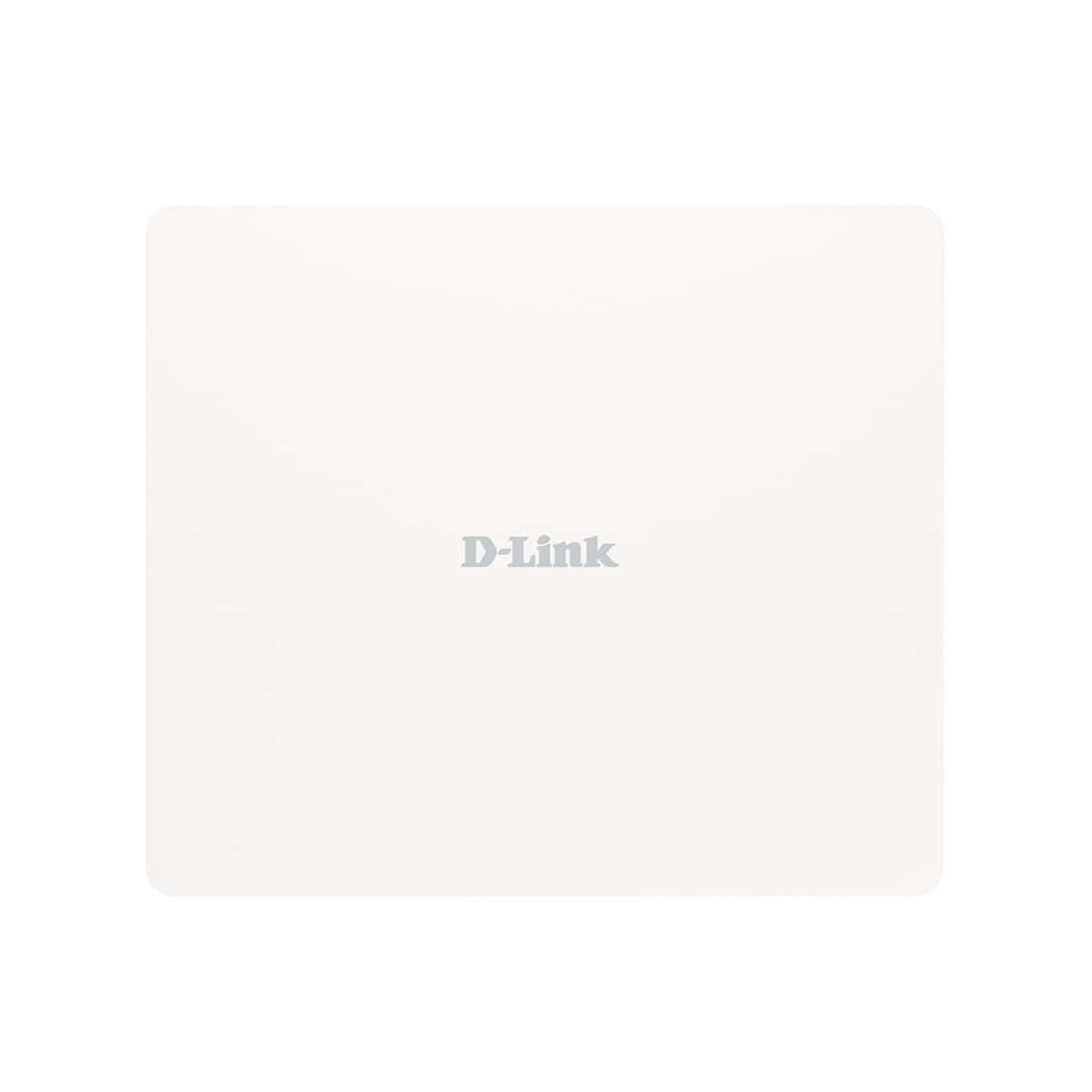

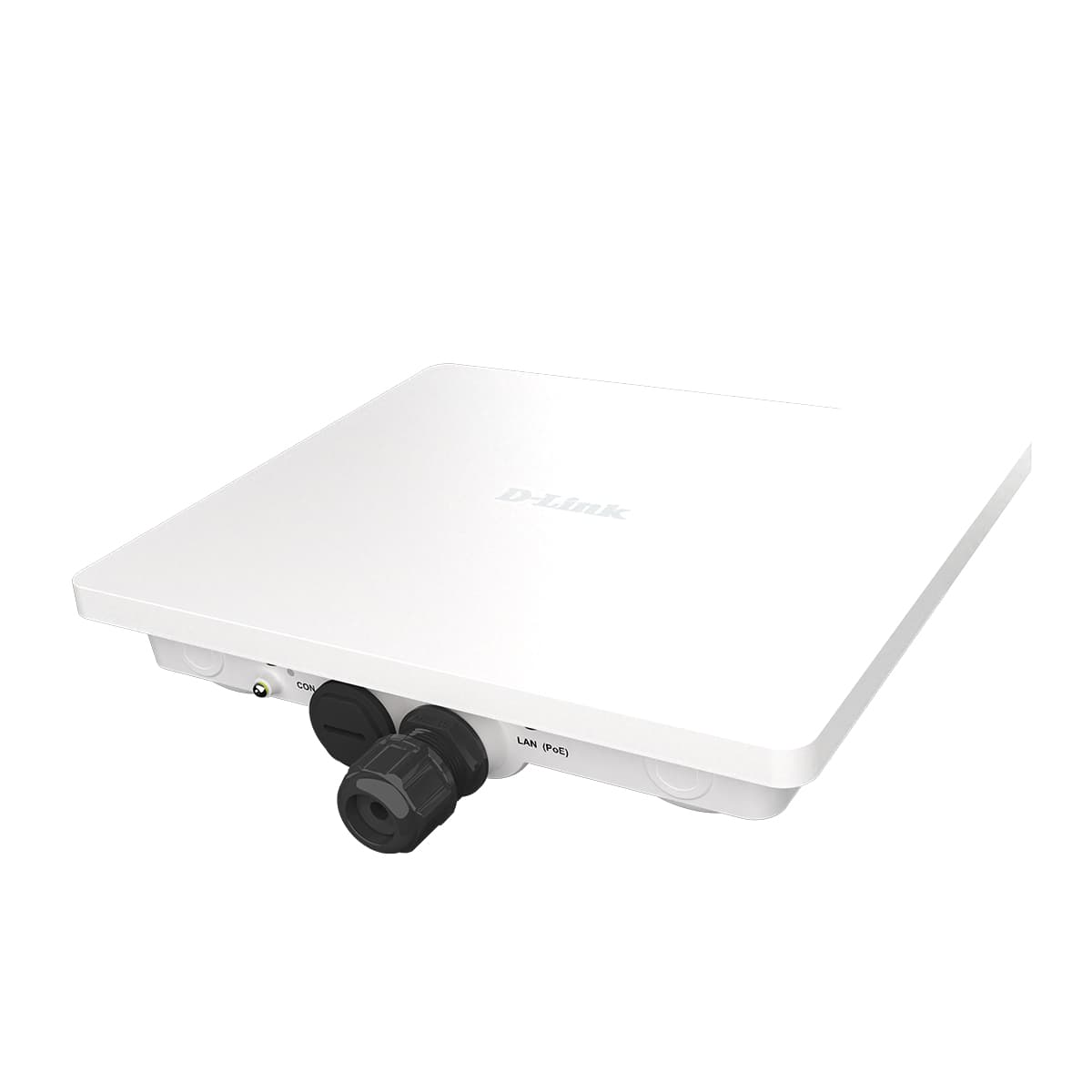

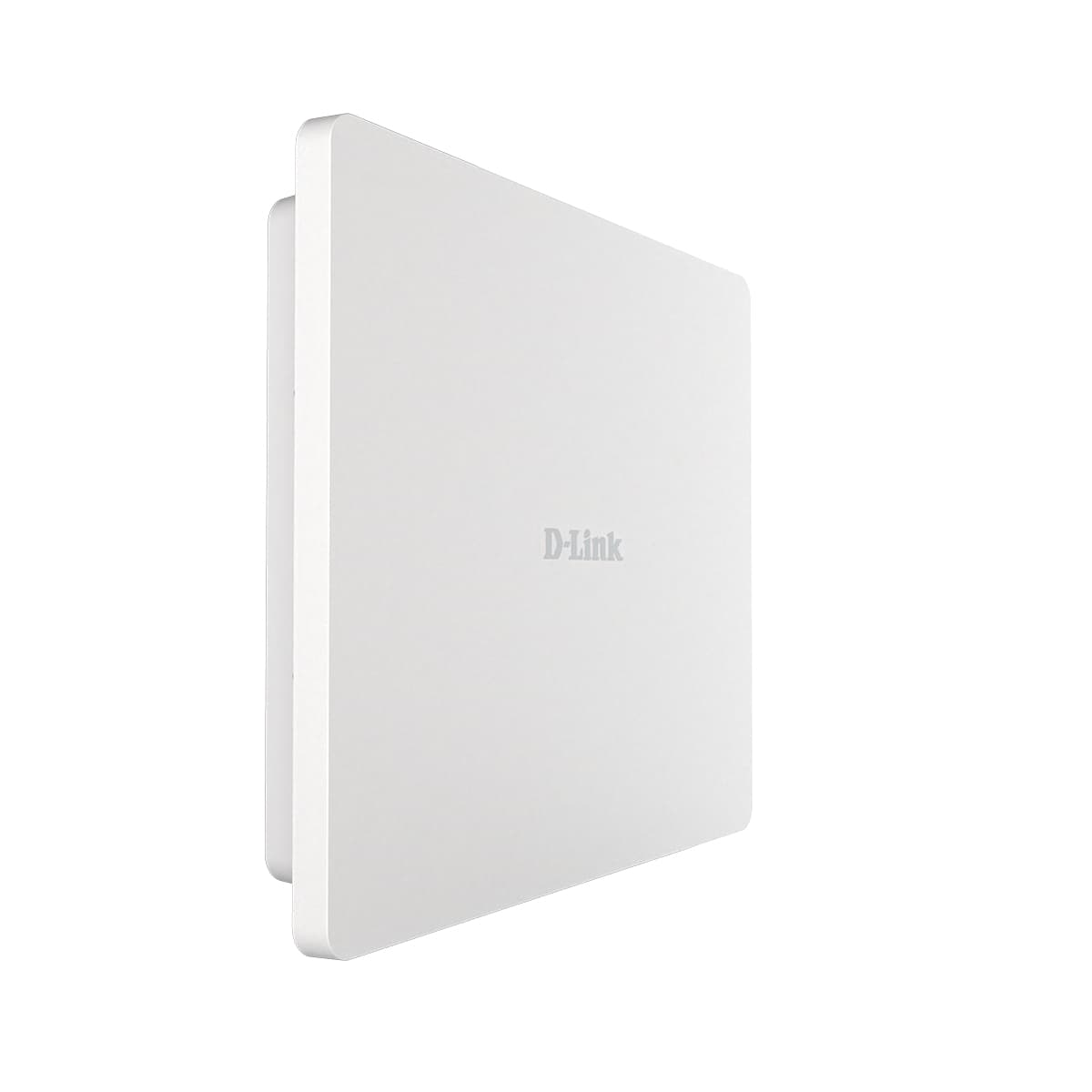

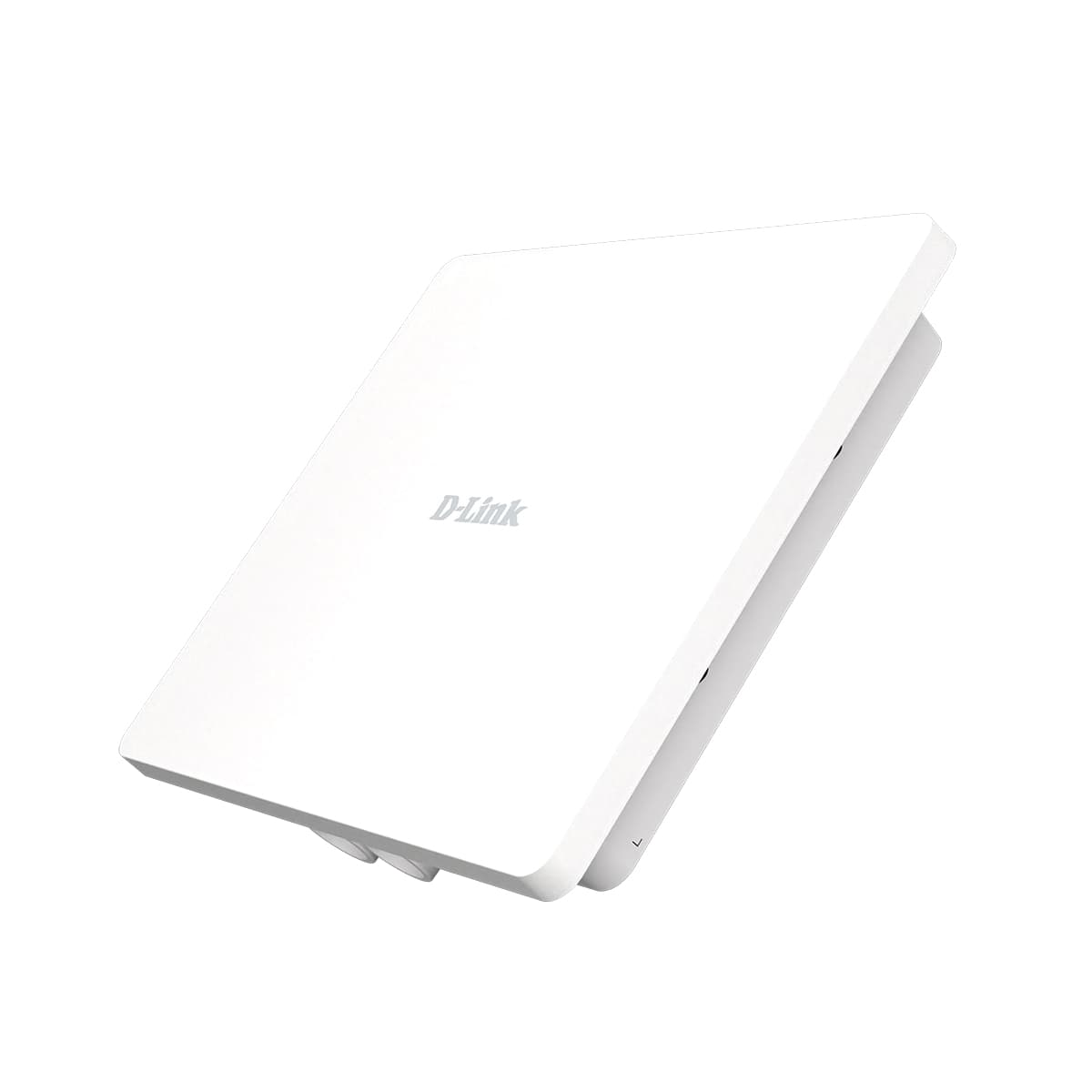

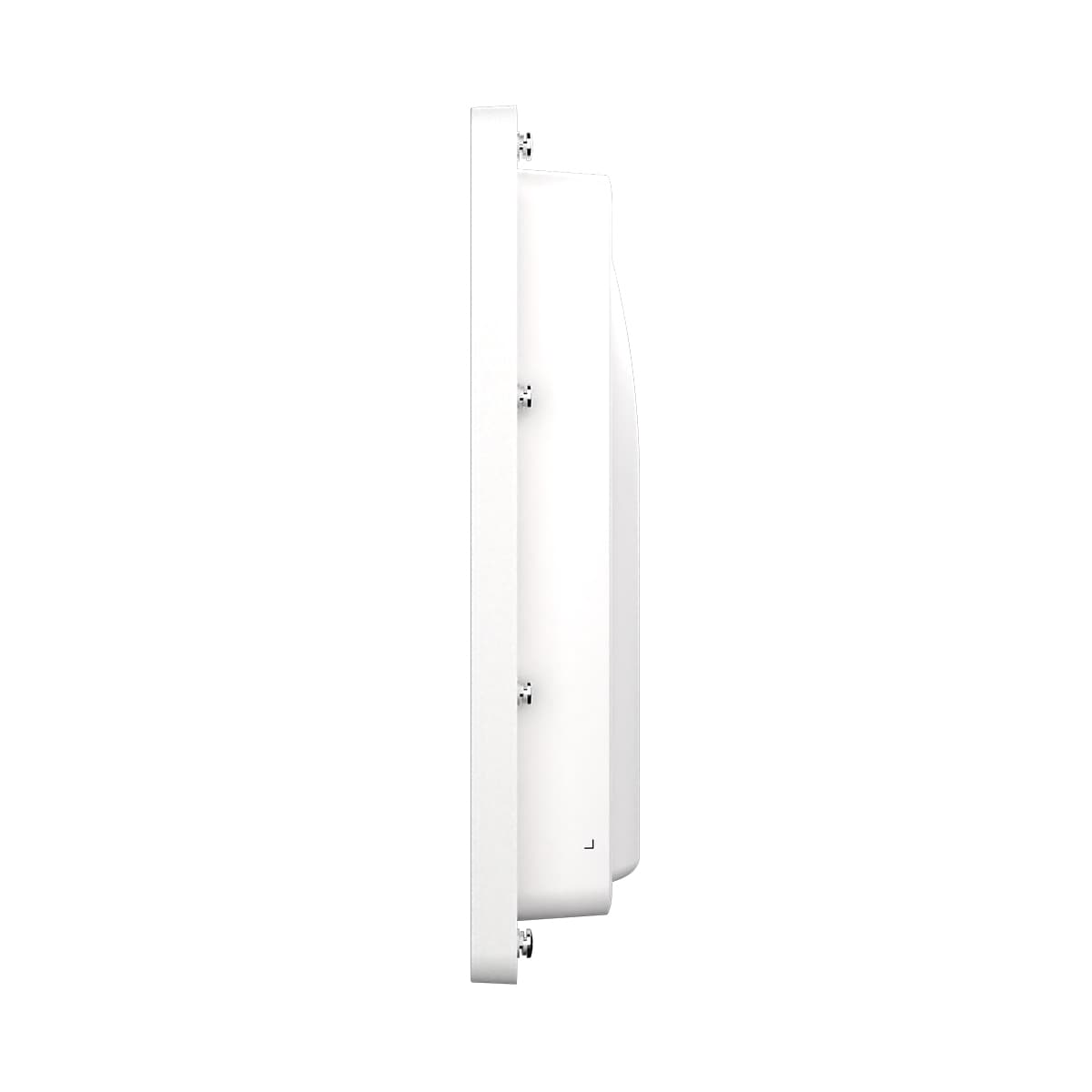

D-Link AX3000 Wi-Fi 6 Dual-Band PoE Outdoor Access Point
- Part number
- 1864843
- MPN
- DAP-X3060OU
- EAN
- 790069473586
D-Link AX3000 Wi-Fi 6 Dual-Band PoE Outdoor Access Point, 2.4 GHz, 5 GHz, 3000 Mbit/s, 64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3, 10,100,1000,2500 Mbit/s
| Access Point Features | Access Point, Für den Ausseneinsatz geeignet, Gast-WLAN, Lizenzfrei, Multiple SSID, Network Monitoring, Nuclias Connect by D-Link, PoE, PoE+, Quality of Service (QoS), RADIUS, Verwaltbar, VLAN, WDS |
|---|---|
| Depth | 50 mm |
| Width | 277 mm |
| Outdoor use | Yes |
| Antennenanschluss | Antennen Intern vor verbaut |
| Height | 240 mm |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
Description
D-Link AX3000 Wi-Fi 6 Dual-Band PoE Outdoor Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 16.7 W
Documents
Specifications
| Access Point Features | Access Point, Für den Ausseneinsatz geeignet, Gast-WLAN, Lizenzfrei, Multiple SSID, Network Monitoring, Nuclias Connect by D-Link, PoE, PoE+, Quality of Service (QoS), RADIUS, Verwaltbar, VLAN, WDS |
|---|---|
| Depth | 50 mm |
| Width | 277 mm |
| Outdoor use | Yes |
| Antennenanschluss | Antennen Intern vor verbaut |
| Height | 240 mm |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fast roaming | Yes |
Security
| Security algorithms | 64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3 |
|---|---|
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 2.0 ports quantity | 0 |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power consumption (max) | 16.7 W |
Design
| Placement | Wall |
|---|---|
| Product colour | White |
Antenna
| Antenna type | Internal |
|---|---|
| Antennas quantity | 4 |
| Antenna gain level (max) | 7.9 dBi |
Weight & dimensions
| Weight | 1.16 kg |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight | 2.20 kg |
