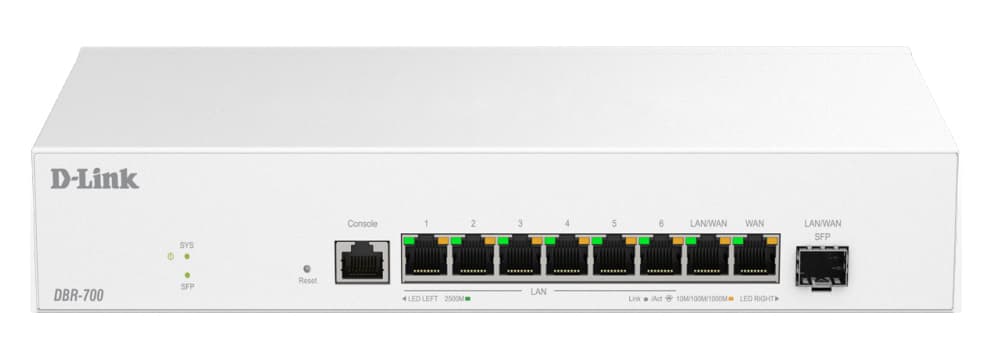

D-Link Router DBR-7001/2
D-Link

D-Link Busines Router

Part number
1970664
MPN
DBR-700
EAN
790069477430

D-Link Busines Router, Ethernet WAN, 2.5 Gigabit Ethernet, White

Application areaBusiness, Small/Medium Business
SFP Anschlüsse1
BasisanschlussWAN
Depth280 mm
SFP Geschwindigkeit1/2.5 Gbit/s
Width126 mm
Ethernet WANYes
Networking standardsIEEE 802.1x
All 39 specifications

Description

D-Link Busines Router. Networking standards: IEEE 802.1x, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Security algorithms: IPSec, VPN support: IPSec/ PPTP/L2TP/WireGuard/OpenVPN/GRE. Product colour: White. Output voltage: 12 V, Output current: 2 A. Width: 126 mm, Depth: 280 mm, Height: 44 mm

Documents

Specifications

Application areaBusiness, Small/Medium Business
SFP Anschlüsse1
BasisanschlussWAN
Depth280 mm
SFP Geschwindigkeit1/2.5 Gbit/s
Width126 mm

WAN connection

Ethernet WANYes

Network

Networking standardsIEEE 802.1x
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Static routeYes
Port forwardingYes
Concurrent connections200000
Number of users4000 user(s)

Management features

Web-based managementYes
Reset buttonYes

Ports & interfaces

Ethernet LAN (RJ-45) ports8
WAN/Ethernet LAN ports quantity1
WAN ports quantity1
SFP module slots quantity1

Protocols

DHCP serverYes
DMZ supportYes

Security

Security algorithmsIPSec
FirewallYes
MAC address filteringYes
IP address filteringYes
DoS attack preventionYes
VPN tunnels quantity100
VPN supportIPSec/ PPTP/L2TP/WireGuard/OpenVPN/GRE

Packaging content

Quick start guideYes

Design

Product colourWhite
LED indicatorsYes

Power

Output voltage12 V
Output current2 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height44 mm
Weight1.80 kg
