D-Link DCS-6100LHV2 security camera IP security camera Indoor 1920 x 1080 pixels Desk

Part number: 1713603
MPN: DCS-6100LHV2/E
EAN: 790069466724

D-Link DCS-6100LHV2, IP security camera, Indoor, Wired & Wireless, Desk, Black, Status

Type	IP security camera
Indoor/Outdoor	Indoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	2 Megapixel
Vandal protection	No
Application area	Visuelle Videoüberwachung
Placement supported	Indoor
Connectivity technology	Wired & Wireless

Description

D-Link DCS-6100LHV2. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Desk, Product colour: Black, LED indicators: Status. Field of view (FOV) angle: 110°, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.3 mm

Documents

Specifications

Type	IP security camera
Indoor/Outdoor	Indoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	2 Megapixel
Vandal protection	No
Application area	Visuelle Videoüberwachung

Performance

Placement supported	Indoor
Connectivity technology	Wired & Wireless
Day/night mode	Yes

Design

Mounting type	Desk
Product colour	Black
LED indicators	Status

Camera

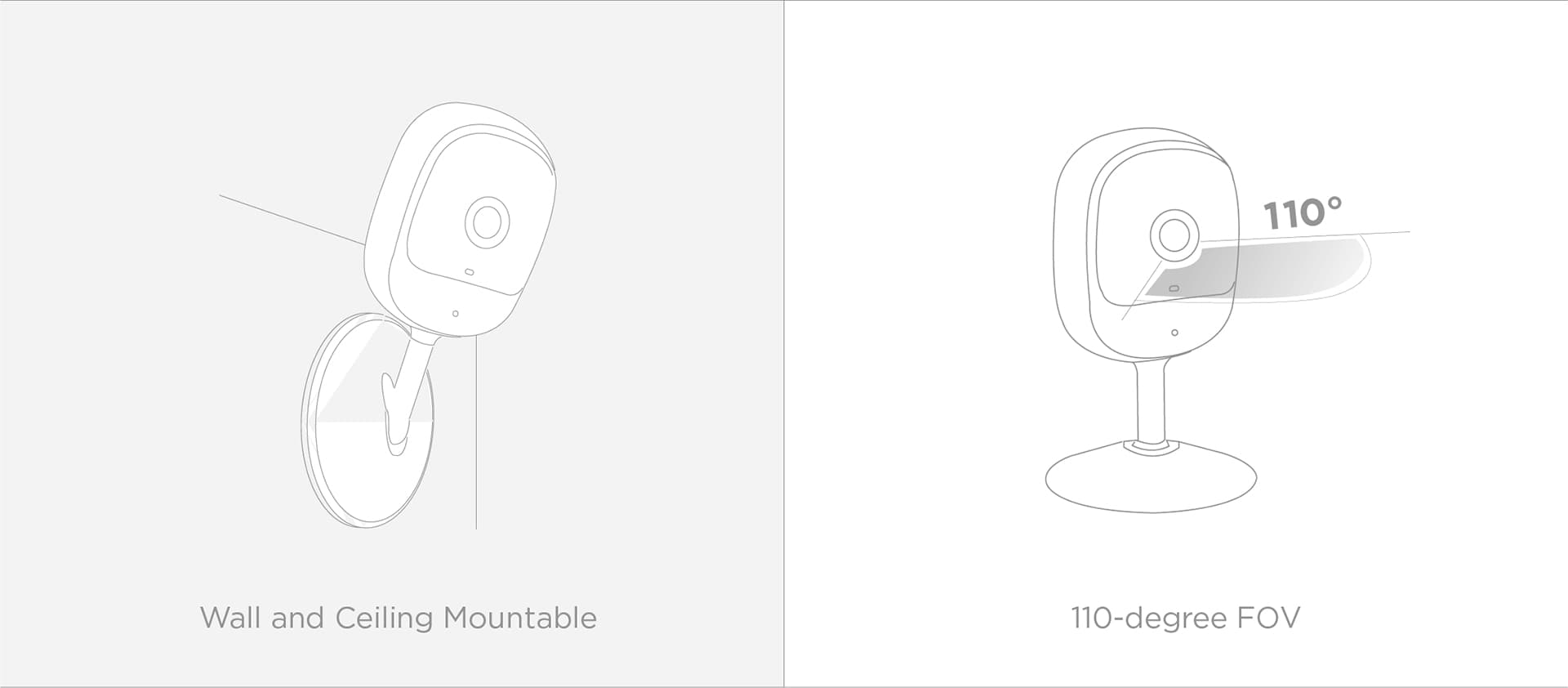

Field of view (FOV) angle	110°
Lens viewing angle, horizontal	90°
Lens viewing angle, vertical	60°
Lens viewing angle, diagonal	110°

Image sensor

Sensor type	CMOS
Optical sensor size	25.4 / 2.9 mm (1 / 2.9")

Lens system

Maximum aperture number	2.4
Fixed focal length	3.3 mm

Night vision

Night vision	Yes
Night vision distance	5 m
LED type	IR

Video

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264
Supported video modes	1080p
Frame rate	30 fps

Audio

Built-in speaker(s)	Yes
Audio formats supported	AAC-LC, MPEG-2
Built-in microphone	Yes

Network

Ethernet LAN	No
Wi-Fi	Yes
Bluetooth	No
Supported network protocols	IPv4, Bonjour (mDNS and DNS-SD), RTSP6 , SRTP, RTP, HTTPS
Wi-Fi standards	802.11g, Wi-Fi 4 (802.11n)

Storage

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB

Security

Video motion detection	Yes
Security algorithms	WPA3

Management features

Reset button	Yes
Remotely operated	Yes

Power

Power source type	AC
AC input voltage	100 - 240 V
DC output voltage	5
DC output current	1 A

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	61 mm
Depth	28 mm
Height	104 mm
Weight	65 g

Sustainability

Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)

Packaging content

Number of cameras	1
Weight	0.22 kg
