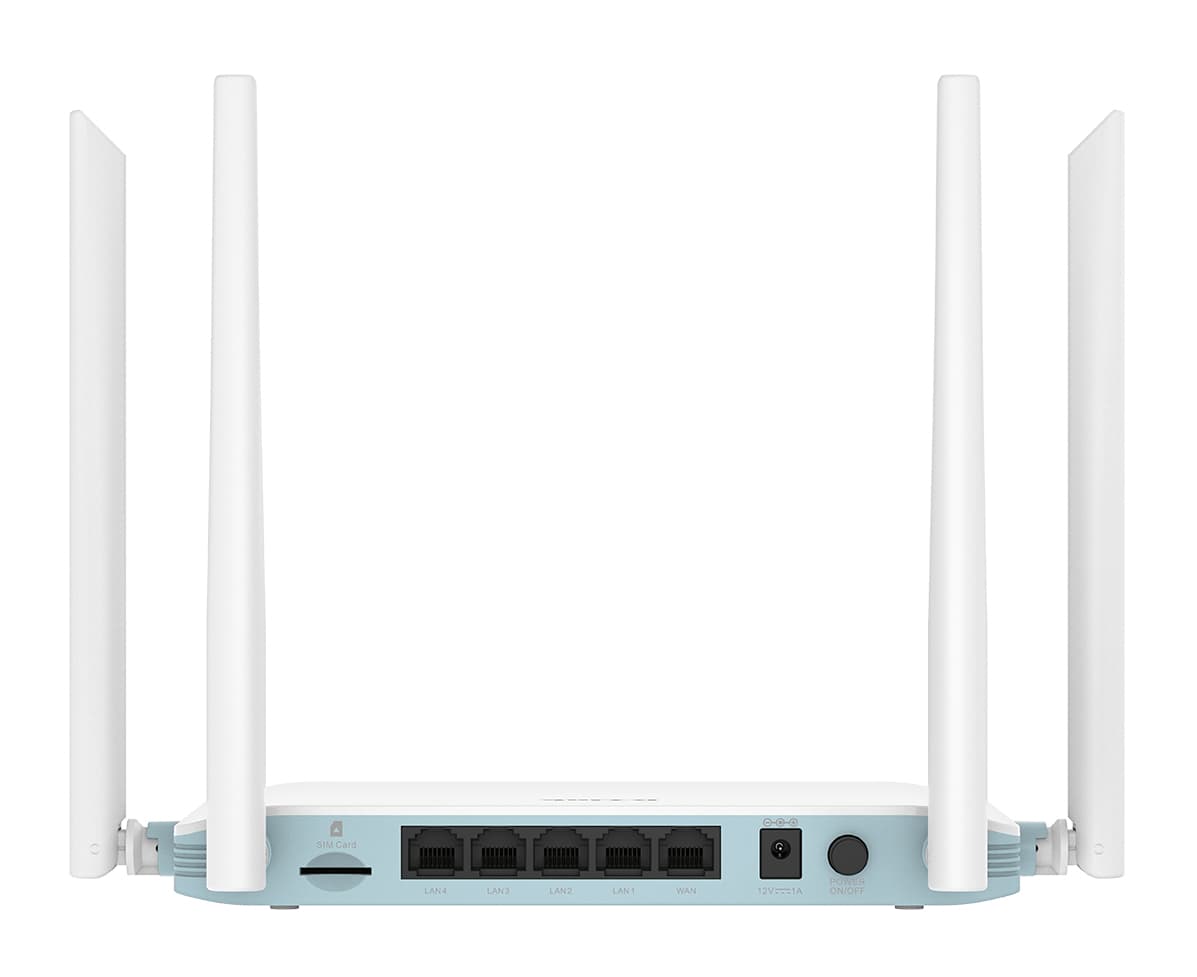

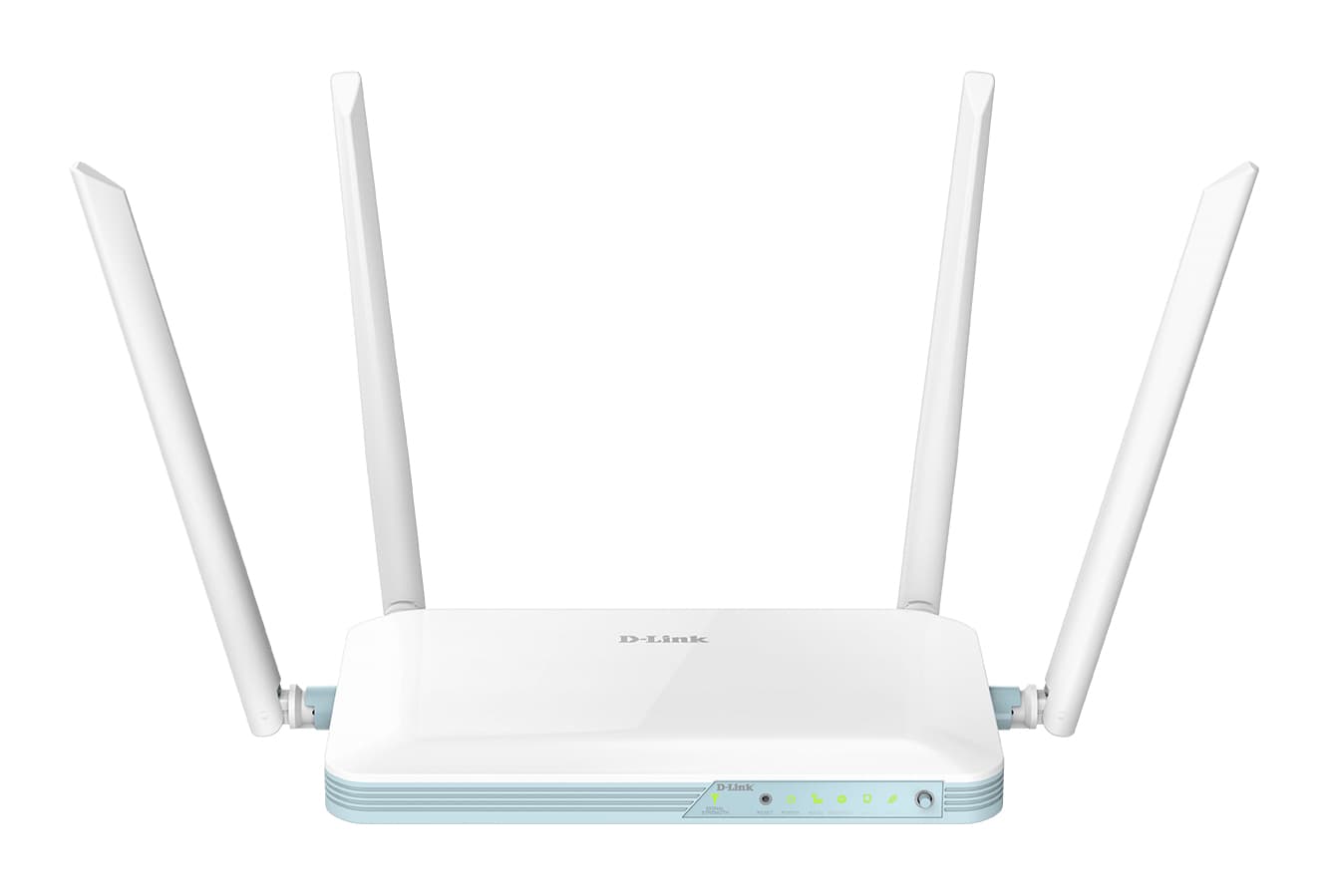

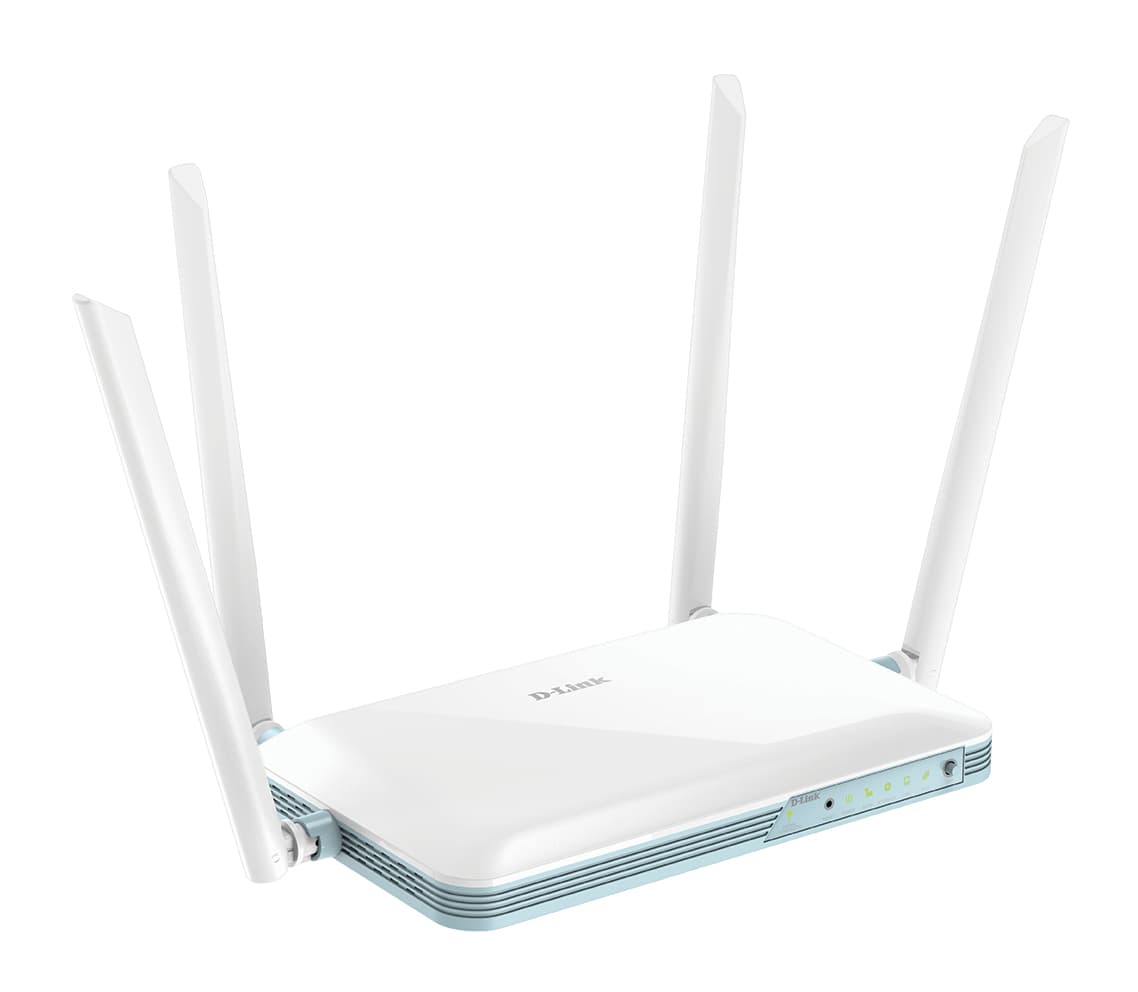

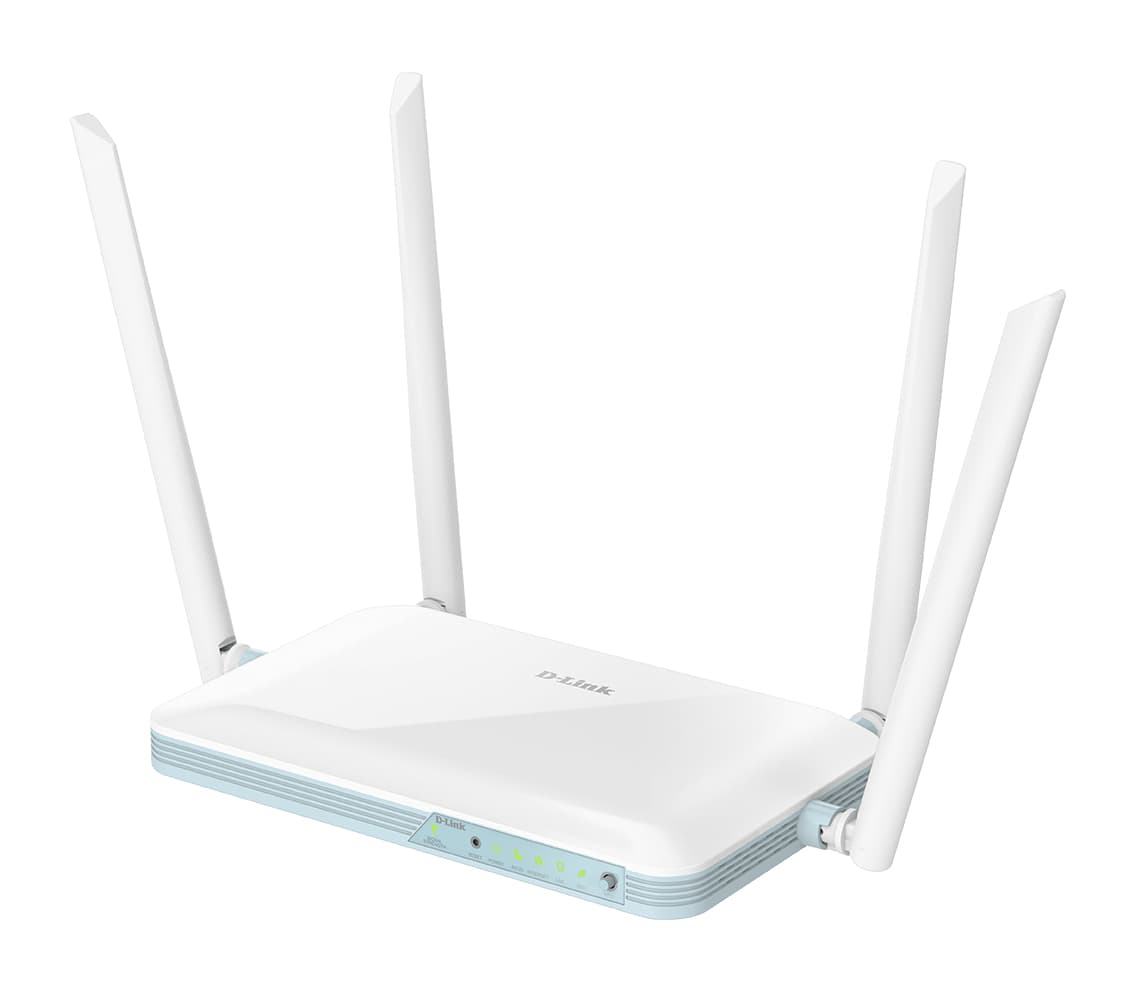

D-Link EAGLE PRO AI N300 4G Smart Router G403

Part number: 1499000
MPN: G403/E
EAN: 790069466014

D-Link EAGLE PRO AI N300 4G Smart Router G403, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, 4G, White, Desktop/pole router

Application area	Home, Small/Medium Business
SFP Anschlüsse	0
Basisanschluss	Mobilfunk
Depth	121.8 mm
SFP Geschwindigkeit	Keine SFP Ports
Width	208 mm
Ethernet WAN	Yes
SIM card slot	Yes

Description

D-Link EAGLE PRO AI N300 4G Smart Router G403. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS. Security algorithms: WPA, WPA2, WPA3, WPS

Documents

Data sheetPDF · DE

Specifications

Application area	Home, Small/Medium Business
SFP Anschlüsse	0
Basisanschluss	Mobilfunk
Depth	121.8 mm
SFP Geschwindigkeit	Keine SFP Ports
Width	208 mm

WAN connection

Ethernet WAN	Yes
SIM card slot	Yes
WAN connection type	RJ-45

Wireless LAN features

Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11k, IEEE 802.11v, IEEE 802.3u

Mobile network

Mobile network generation	4G
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
GSM bands supported	900,1800 MHz
3G bands supported	900,2100 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports	4
USB port	No

Management features

Reset button	Yes
WPS push button	Yes

Security

Security algorithms	WPA, WPA2, WPA3, WPS
Firewall	Yes
Stateful Packet Inspection (SPI)	Yes
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
DMZ support	Yes

Design

Product type	Desktop/pole router
Product colour	White
LED indicators	LAN, Power, WLAN, WPS
On/off switch	Yes

Certificates

Compliance certificates	CE

Antenna

Antenna design	External
Antennas quantity	4

Features

Works with Amazon Alexa	Yes
Works with the Google Assistant	Yes

Power

Power source type	DC
Output voltage	12 V
Output current	1 A

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%

System requirements

Mobile operating systems supported	Android, iOS

Weight & dimensions

Height	23.5 mm
Weight	290 g

Packaging data

Package type	Box

Logistics data

Warranty period	2 year(s)

Sustainability

Sustainability compliance	Yes
Weight	0.58 kg
