D-Link SFP+ Switch DXS-3410-32SY 32 Port

Hover to zoom1/7

D-Link Layer 3 Stackable 10 Gigabit Managed Switches

Part number: 1713614
MPN: DXS-3410-32SY/E
EAN: 790069473494

D-Link Layer 3 Stackable 10 Gigabit Managed Switches, Managed, L3, Full duplex, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	28
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	4
Switch Management	Full-Managed
Switch type	Managed
Switch layer	L3

Description

D-Link Layer 3 Stackable 10 Gigabit Managed Switches. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 48000 entries, Switching capacity: 760 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s,.... Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	28
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	4
Switch Management	Full-Managed

Management features

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC3621, RFC4293, RFC1850, RFC1724, RFC2782, RFC4113, RFC2620, RFC2925, RFC4293, RFC4133,

Ports & interfaces

SFP+ module slots quantity	28
Fiber optic connector	SFP+
Console port	RJ-45
SFP28 ports quantity	4
USB 2.0 ports quantity	1

Network

Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Port-based VLAN

Data transmission

MAC address table	48000 entries
Switching capacity	760 Gbit/s
Throughput	565.44 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB

Security

DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication

Multicast features

Multicast support	Yes

Protocols

Supported network protocols	IPv6, IPv4

Design

Rack mounting	Yes

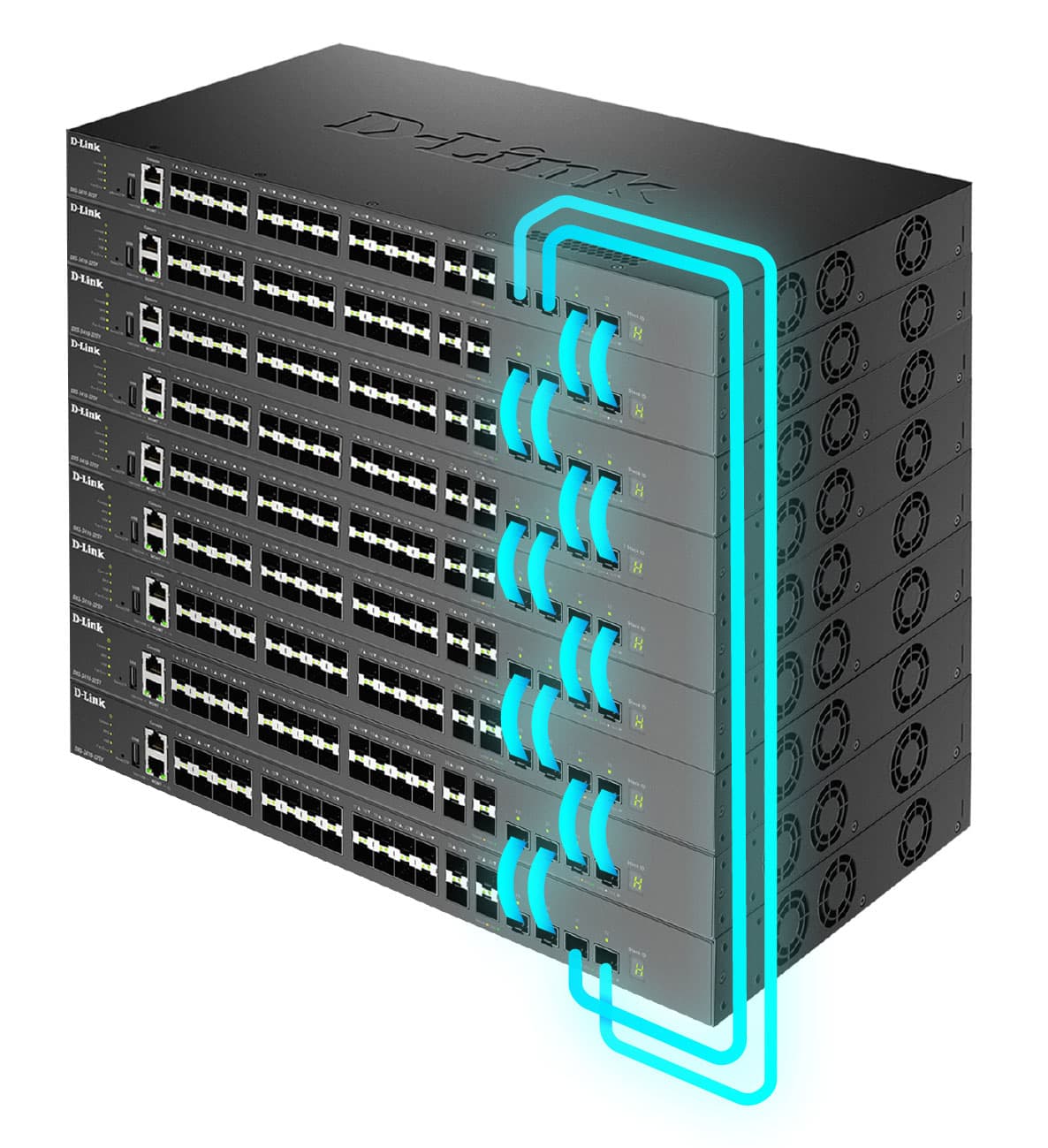

Stackable	Yes
Product colour	Black
Number of fans	3 fan(s)
Safety	cUL, CB, BSMI
Electromagnetic compatibility	FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI

Performance

Physical stacking (units)	9
Virtual stacking (units)	32
Noise level	53.3 dB
Mean time between failures (MTBF)	437675.04 h

Power

Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	104 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	354.86 BTU/h

Weight & dimensions

Width	441 mm
Depth	250 mm
Height	44 mm
Weight	3.88 kg
Weight	8.50 kg
