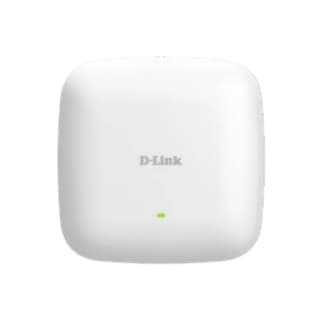

D-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point
- Part number
- 2125148
- MPN
- DAP-E9560
- EAN
- 790069477355
D-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 10,100,1000,10000 Mbit/s
| Access Point Features | Bridge, Nuclias Connect by D-Link, PoE+, Schnelles Roaming |
|---|---|
| Depth | 223 mm |
| Width | 223 mm |
| Outdoor use | No |
| Antennenanschluss | Antennen Intern vor verbaut, Antennen nicht abnehmbar |
| Height | 46.7 mm |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
Description
D-Link Nuclias Connect BE9500 Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Documents
Specifications
| Access Point Features | Bridge, Nuclias Connect by D-Link, PoE+, Schnelles Roaming |
|---|---|
| Depth | 223 mm |
| Width | 223 mm |
| Outdoor use | No |
| Antennenanschluss | Antennen Intern vor verbaut, Antennen nicht abnehmbar |
| Height | 46.7 mm |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 720 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2880 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5760 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt |
| Automatic channel selection | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 21 dBmW |
| Maximum Tx power (6 GHz) | 21 dBmW |
Security
| Number of SSID supported | 24 |
|---|
Management features
| Web-based management | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Weight | 1.89 kg |
