Epson Ultrakurzdistanzprojektor EB-760Wi1/5
Epson

Epson EB-760Wi

Part number
1731962
MPN
V11HA80080
EAN
8715946715261

Epson EB-760Wi, 4100 ANSI lumens, 3LCD, WXGA (1280x800), 2500000:1, 16:10, 1346.2 - 2540 mm (53 - 100")

ANSI-Lumen4100 lm
Resolution1280 x 800 (WXGA)
Beamer LampentechnologieLaser
Lens ShiftKein
Min. Projektionsverhältnis0.27 : 1
Max. Projektionsverhältnis0.37 : 1
Projector brightness4100 ANSI lumens
Projection technology3LCD
All 105 specifications

Description

Epson EB-760Wi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C, Service port type: USB Type-B

Documents

Specifications

ANSI-Lumen4100 lm
Resolution1280 x 800 (WXGA)
Beamer LampentechnologieLaser
Lens ShiftKein
Min. Projektionsverhältnis0.27 : 1
Max. Projektionsverhältnis0.37 : 1

Projector

Projector brightness4100 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)2500000:1
Native aspect ratio16:10
Smart projectorNo
Screen size compatibility1346.2 - 2540 mm (53 - 100")
Contrast ratio (dynamic)5000000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)2800 ANSI lumens
Vertical scan range100 - 120 Hz
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
Matrix size1.5 cm (0.59")

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusManual
Focal length range3.7 mm
Fixed focal length3.7 mm
F-number (relative aperture)1.6
Zoom capabilityYes
Zoom ratio1.35:1
Throw ratio0.27 - 0.37:1

Video

Analog signal format systemNot supported
Full HDNo
3DNo
Video processing10 bit
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB

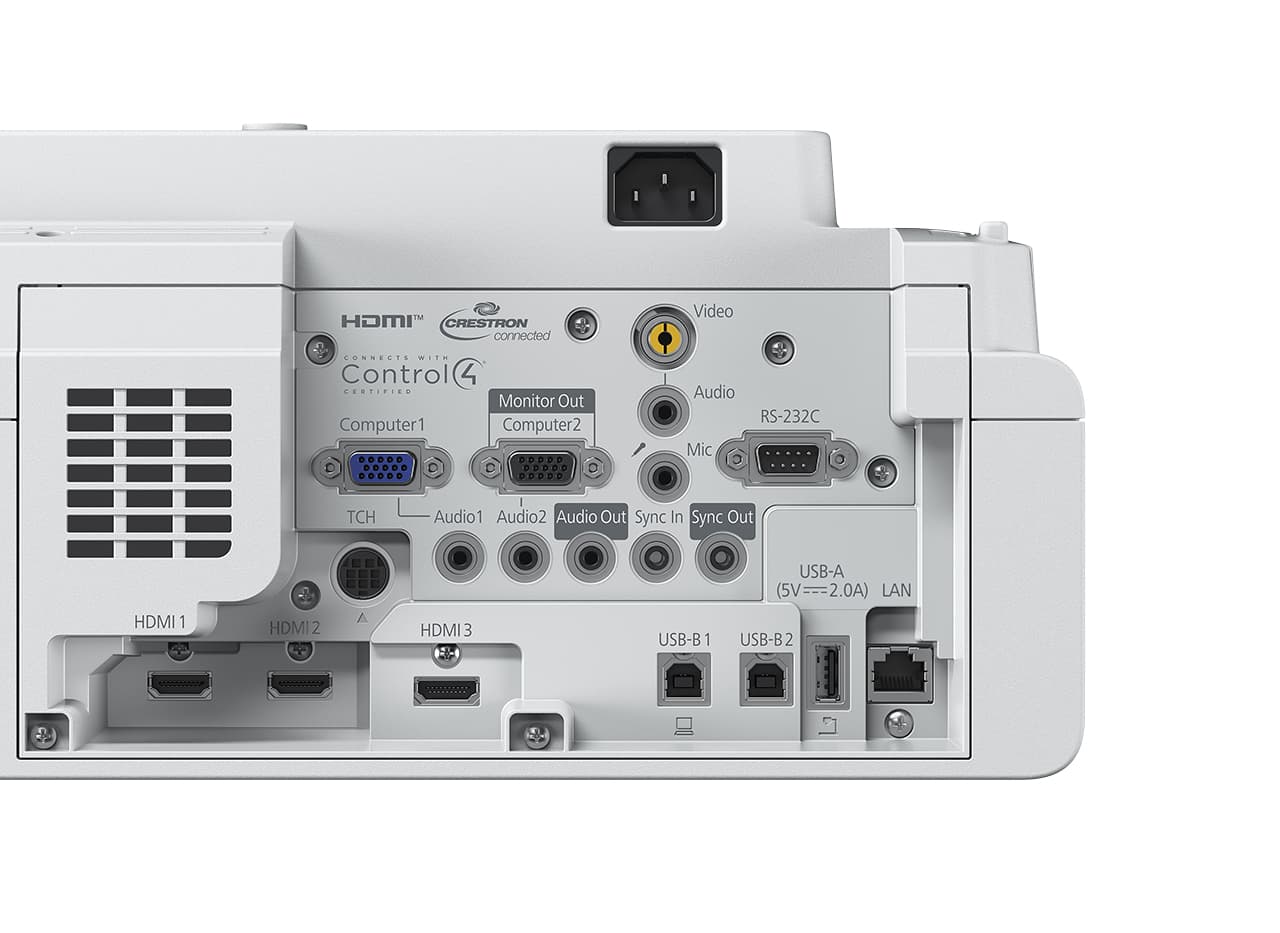

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity3
Composite video in1
Component video (YPbPr/YCbCr) in0
DVI portNo
Serial interface typeRS-232C
Service port typeUSB Type-B
USB 2.0 ports quantity2
Headphone outputs3
Microphone inYes

Network

Smart TVNo
Ethernet LANYes
Wi-FiYes
Ethernet LAN data rates10,100 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
MiracastYes

Storage

Card reader integratedNo

Features

Noise level37 dB
InteractiveYes
Noise level (economic mode)27 dB
On Screen Display (OSD)Yes
Air filterYes
Country of originPhilippines
Password protectionYes

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Market positioningPresentation
Product colourWhite
PlacementCeiling, Desktop, Wall
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)197 W
Power consumption (economy mode)141 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight6 kg
Width356 mm
Depth395 mm
Height133 mm
Package width450 mm
Package depth490 mm
Package height325 mm
Package weight9.17 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, USB
Interactive pen includedYes
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management

Technical details

Other featuresA/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code
Mobile app supportYes

Logistics data

Quantity per pack1 pc(s)
Products per pallet12 pc(s)
Pallet gross length120 cm
Pallet gross width80 cm
Pallet gross height2.1 m
Products per pallet layer2 pc(s)
Products per pallet layer (UK)4 pc(s)
Products per pallet (UK)24 pc(s)
Pallet length (UK)120 cm
Pallet height (UK)2.1 m

Other features

InterfaceUSB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input
Supported network protocolsHTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security featuresKensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Option typeAir filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Control panel0.59 inch with C2 Fine
Weight9.16 kg
