Epson Projektor EB-L890U1/6
Epson

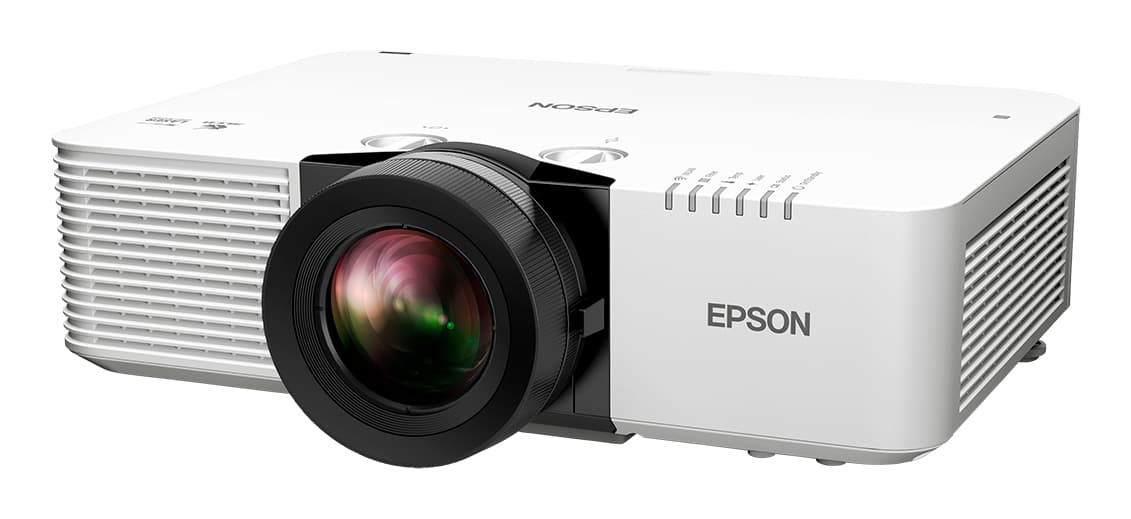

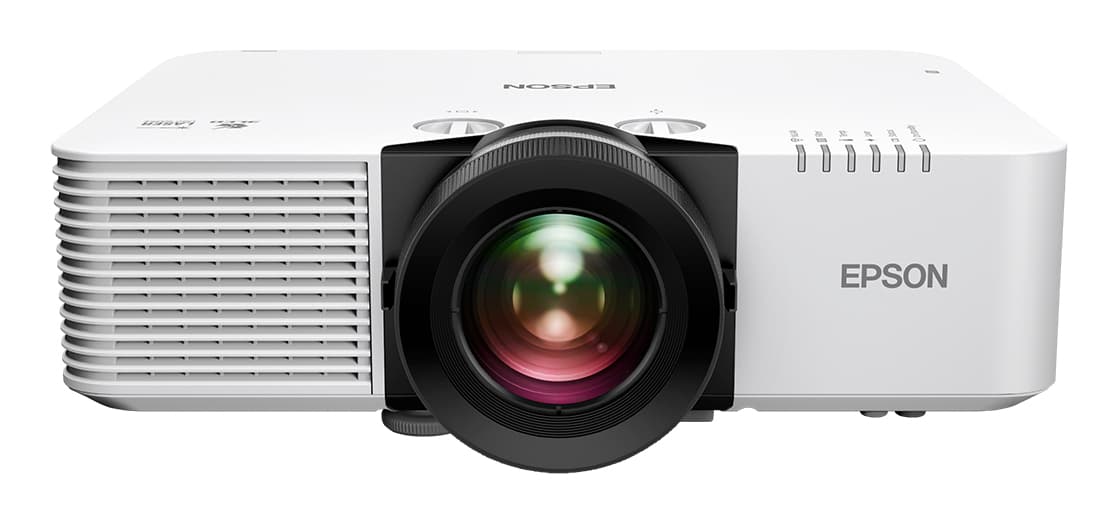

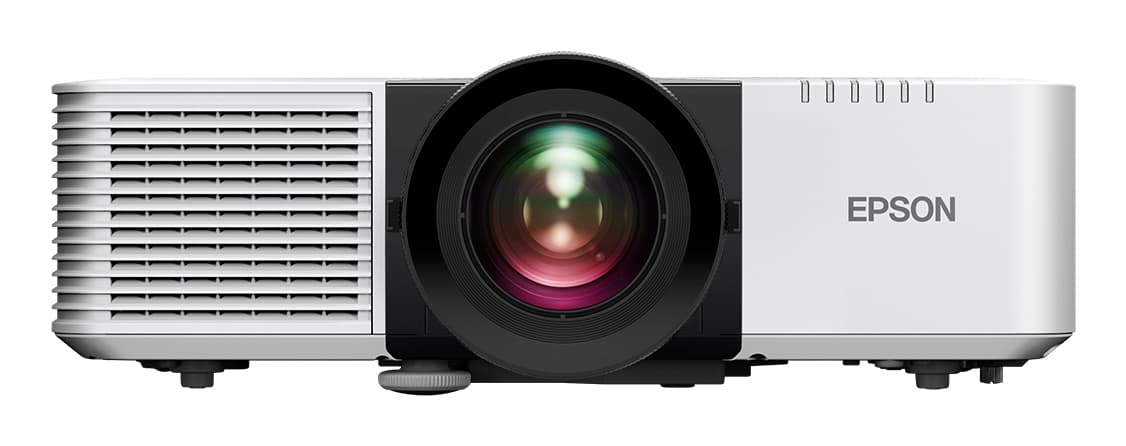

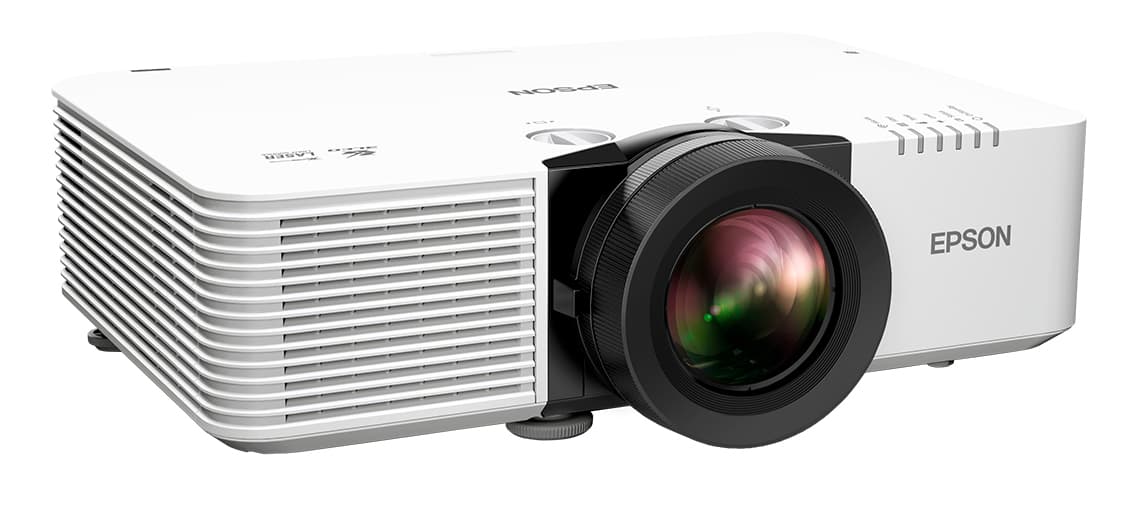

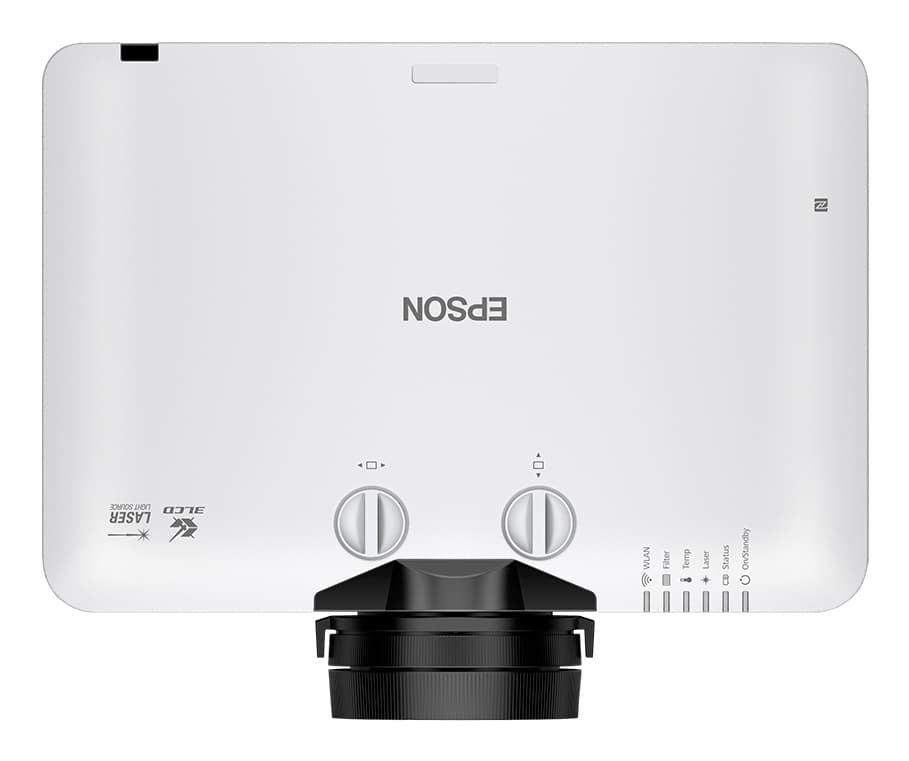

Epson EB-L890U

Part number
2084675
MPN
V11HB27040
EAN
8715946737959

Epson EB-L890U, 8000 ANSI lumens, 3LCD, WUXGA (1920x1200), 5000000:1, 16:10, 1270 - 12700 mm (50 - 500")

ANSI-Lumen8000 lm
Resolution1920 x 1200 (WUXGA)
Beamer LampentechnologieLaser
Lens ShiftHorizontal, Vertikal
Min. Projektionsverhältnis1.35 : 1
Max. Projektionsverhältnis2.2 : 1
Projector brightness8000 ANSI lumens
Projection technology3LCD
All 93 specifications

Description

Epson EB-L890U. Projector brightness: 8000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Serial interface type: RS-232C, Service port type: USB Type-B

Documents

Specifications

ANSI-Lumen8000 lm
Resolution1920 x 1200 (WUXGA)
Beamer LampentechnologieLaser
Lens ShiftHorizontal, Vertikal
Min. Projektionsverhältnis1.35 : 1
Max. Projektionsverhältnis2.2 : 1

Projector

Projector brightness8000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)5000000:1
Native aspect ratio16:10
Screen size compatibility1270 - 12700 mm (50 - 500")
Projection distance (wide)1.4 - 14.8 m
Projection distance (tele)2.4 - 23.8 m
Contrast ratio (dynamic)5000000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)5600 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusManual
Focal length range20 - 31.8 mm
Aperture range (F-F)1.5 - 1.7
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.6:1
Throw ratio1.35 - 2.20:1
Horizontal lens shift range0 - 20%
Vertical lens shift range0 - 50%

Video

Analog signal format systemNot supported
Full HDYes
3DNo
Video processing10 bit
Video colour modesBT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Ports & interfaces

VGA (D-Sub) ports quantity0
HDMI ports quantity3
DVI portNo
Serial interface typeRS-232C
HDBaseT portYes
Service port typeUSB Type-B
USB 2.0 ports quantity3
USB 2.0 Type-A ports quantity2
USB 2.0 Type-B ports quantity1

Network

Ethernet LANYes
Wi-FiYes
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo

Features

Noise level36 dB
InteractiveNo
Noise level (economic mode)26 dB
HDCPYes
Country of originPhilippines
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyHigh Dynamic Range 10 (HDR10)
Password protectionYes

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Market positioningEducation
Product colourWhite
PlacementCeiling, Desktop
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)388 W
Power consumption (standby)0.4 W
Power consumption (max)450 W
Power consumption (economy mode)266 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage100 - 240 V

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight8.5 kg
Width440 mm
Depth340 mm
Height138 mm
Package width505 mm
Package depth515 mm
Package height235 mm
Package weight12.5 kg

Packaging content

Remote control includedYes
Batteries includedYes

Technical details

Other features21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Mobile app supportYes

Logistics data

Quantity per pack1 pc(s)

Other features

InterfaceUSB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2
Supported network protocolsHTTPS, SNMP, ESC/VP.net, PJLink
Security featuresKensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
Option typeAir filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Control panel0.67 inch with C2 Fine
Weight13.00 kg
