Epson

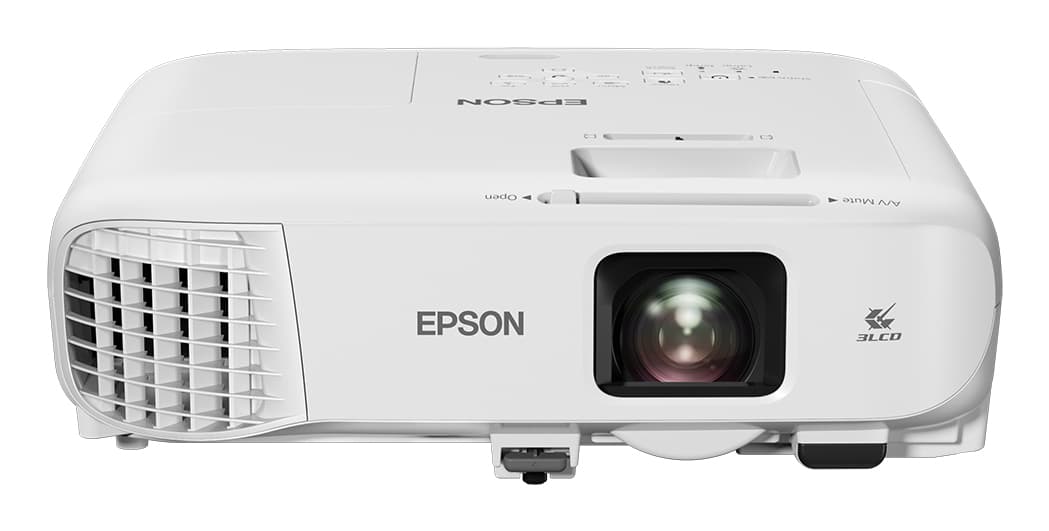

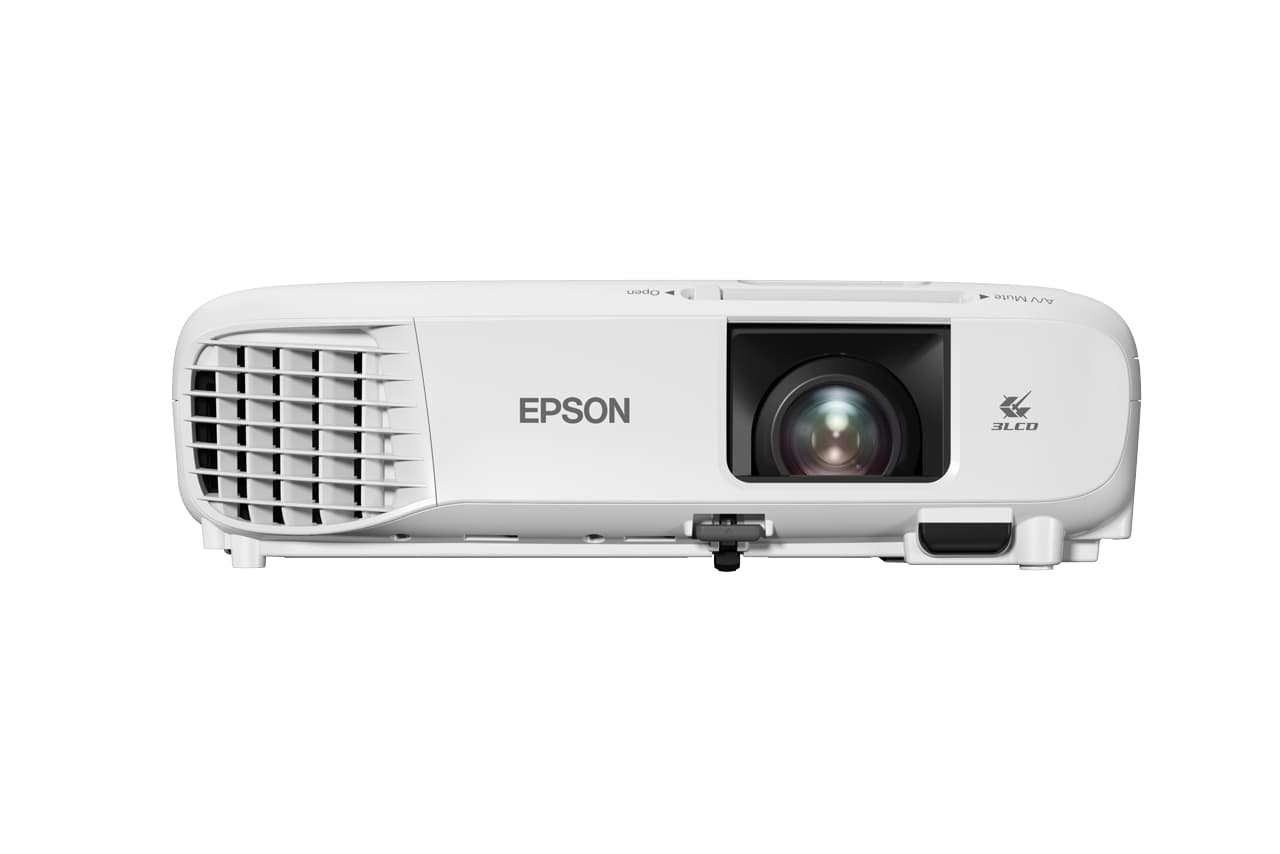

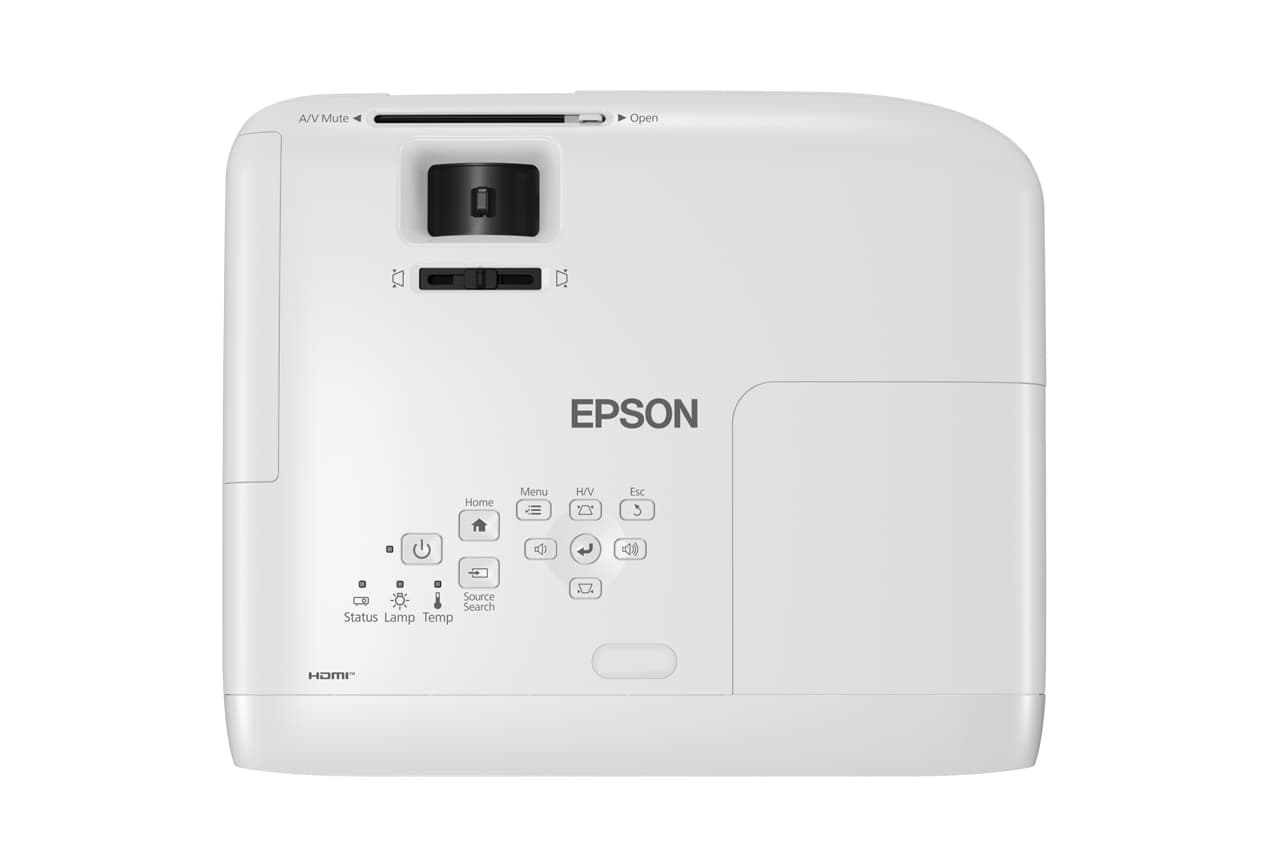

Epson EB-X49

Part number: 1164765
MPN: V11H982040
EAN: 8715946680750

Epson EB-X49, 3600 ANSI lumens, 3LCD, XGA (1024x768), 16000:1, 4:3, 762 - 7620 mm (30 - 300")

ANSI-Lumen	3600 lm
Resolution	1024 x 768 (XGA)
Beamer Lampentechnologie	Lampe
Lens Shift	Kein
Min. Projektionsverhältnis	1.48 : 1
Max. Projektionsverhältnis	1.77 : 1
Projector brightness	3600 ANSI lumens
Projection technology	3LCD

Description

Epson EB-X49. Projector brightness: 3600 ANSI lumens, Projection technology: 3LCD, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 16.9 - 20.28 mm, Aperture range (F-F): 1.49 - 1.72. Video processing: 10 bit, Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre. Serial interface type: RS-232C, HDMI connector type: Full-size

Documents

BrochurePDF · DE

Specifications

ANSI-Lumen	3600 lm
Resolution	1024 x 768 (XGA)
Beamer Lampentechnologie	Lampe
Lens Shift	Kein
Min. Projektionsverhältnis	1.48 : 1
Max. Projektionsverhältnis	1.77 : 1

Projector

Projector brightness	3600 ANSI lumens
Projection technology	3LCD
Projector native resolution	XGA (1024x768)
Contrast ratio (typical)	16000:1
Native aspect ratio	4:3
Screen size compatibility	762 - 7620 mm (30 - 300")
Supported aspect ratios	4:3
Number of colours	1.07 billion colours
Projector brightness (economic mode)	2400 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	±30°
Keystone correction, vertical	±30°
Matrix size	1.4 cm (0.55")

Light source

Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Lamp type	UHE
Lamp power	210 W

Lens system

Focus	Manual
Focal length range	16.9 - 20.28 mm
Aperture range (F-F)	1.49 - 1.72
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1.2:1
Throw ratio	1.48 - 1.77:1

Video

Full HD	No
3D	No
Video processing	10 bit
Video colour modes	Blackboard, Dynamic, Presentation, sRGB, Theatre

Ports & interfaces

VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Composite video in	1
Component video (YPbPr/YCbCr) in	0
DVI port	No
Audio (L/R) in	0
Serial interface type	RS-232C
HDMI connector type	Full-size
S-Video inputs quantity	0
USB 2.0 ports quantity	0
USB 2.0 Type-B ports quantity	1
PC Audio in	Yes
PC Audio out	Yes
PC in (D-Sub)	Yes
AC (power) in	Yes

Network

Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1

Storage

Card reader integrated	No

Features

Noise level	37 dB
Noise level (economic mode)	28 dB
Preset modes	Blackboard, Dynamic, Presentation, Theatre, sRGB
On Screen Display (OSD)	Yes
Country of origin	Philippines

Multimedia

Built-in speaker(s)	Yes
RMS rated power	5 W
Number of built-in speakers	1

Design

Market positioning	Portable
Product colour	White
Placement	Ceiling, Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power source	AC
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Software

Software support	via: AMX, Crestron (Network), Control4, Extron

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Weight	2.7 kg
Width	302 mm
Depth	249 mm
Height	87 mm
Package width	355 mm
Package depth	380 mm
Package height	160 mm
Package weight	4.12 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC, HDMI
Quick start guide	Yes
WLAN adapter included	Yes
Bundled software	EasyMP Multi PC Projection, Epson Projector Management

Technical details

Other features	AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by scanning a code
Mobile app support	Yes
USB display function	2 in 1: Image/ Sound

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	78 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	78 pc(s)
Pallet weight (UK)	0 g
Harmonized System (HS) code	85286200

Other features

Interface	USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A, Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
Supported network protocols	PJLink
Security features	Kensington lock, Security cable hole, Wireless LAN unit lock
Option type	Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01
Control panel	0.55 inch with C2 Fine
Weight	4.22 kg
