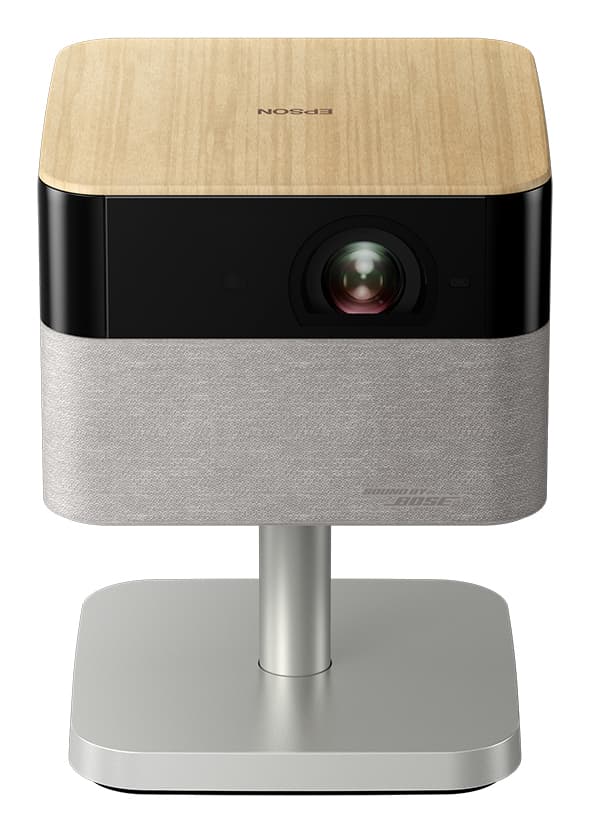

Epson Lifestudio Flex Plus — EF-72 Oak

Part number: 2121948
MPN: V11HB76640
EAN: 8715946741574

Epson Lifestudio Flex Plus — EF-72 Oak, 1000 ANSI lumens, 3LCD, 4K (4096x2400), 16:9, 762 - 3810 mm (30 - 150"), 0.8 - 4 m

ANSI-Lumen	1000 lm
Resolution	4096 x 2160 (4K)
Beamer Lampentechnologie	LED
Lens Shift	Kein
Min. Projektionsverhältnis	1 : 1
Max. Projektionsverhältnis	1 : 1
Projector brightness	1000 ANSI lumens
Projection technology	3LCD

Description

Epson Lifestudio Flex Plus — EF-72 Oak. Projector brightness: 1000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 4K (4096x2400). Light source type: LED, Service life of light source: 20000 h. Focal length range: 16.6 mm, Fixed focal length: 16.6 mm, Throw ratio: 1.20:1. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Vivid. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Documents

Data sheetPDF · DE

Specifications

ANSI-Lumen	1000 lm
Resolution	4096 x 2160 (4K)
Beamer Lampentechnologie	LED
Lens Shift	Kein
Min. Projektionsverhältnis	1 : 1
Max. Projektionsverhältnis	1 : 1

Projector

Projector brightness	1000 ANSI lumens
Projection technology	3LCD
Projector native resolution	4K (4096x2400)
Native aspect ratio	16:9
Screen size compatibility	762 - 3810 mm (30 - 150")
Projection distance (wide)	0.8 - 4 m
Contrast ratio (dynamic)	5000000:1
Vertical scan range	192 - 240 Hz
Keystone correction, horizontal	±20°
Keystone correction, vertical	±20°

Light source

Light source type	LED
Service life of light source	20000 h

Lens system

Focal length range	16.6 mm
Fixed focal length	16.6 mm
F-number (relative aperture)	1.6
Zoom capability	Yes
Throw ratio	1.20:1

Video

Video processing	10 bit
Video colour modes	Cinema, Dynamic, Natural, Vivid

Ports & interfaces

HDMI ports quantity	1
USB 2.0 Type-A ports quantity	1
USB 2.0 Type-C ports quantity	1
USB 2.0 Type-B ports quantity	1

Network

Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes

Features

Noise level	28 dB
Interactive	No
Noise level (economic mode)	22 dB
Preset modes	Bright, Cinema, Dynamic
Country of origin	Philippines
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Works with the Google Assistant	Yes

Multimedia

Built-in speaker(s)	Yes
RMS rated power	10 W
Audio decoders	Dolby Audio

Design

Product type	Standard throw projector
Market positioning	Home cinema
Product colour	Oak
Placement	Desktop, Floor

Display

Built-in display	Yes
Display diagonal	1.57 cm (0.62")

Power

Power source	AC
Power consumption (typical)	111 W
Power consumption (standby)	0.5 W
Power consumption (max)	135 W
Power consumption (economy mode)	82 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Weight	4 kg
Width	190 mm
Depth	190 mm
Height	249 mm
Package width	265 mm
Package depth	335 mm
Package height	265 mm
Package weight	5.73 kg

Packaging content

Remote control included	Yes

Technical details

Other features	4K enhancement, Ambient lighting, Auto Keystone Adjustment, Auto Obstacle Avoidance, Auto Power On, Auto shape correction, Auto source search, Automatic keystone correction, Built-in speaker, Chromecast, Digital zoom, Fit to Screen, Frame interpolation, Game mode, Google TV, Intelligent Instant Setup, Local Contrast, Quick Corner, Screen fit, Touch LED lamp

Logistics data

Quantity per pack	1 pc(s)

Other features

Interface	USB 2.0-A, USB 2.0 Type B (Service Only), HDMI (ARC/eARC), Type-C mobile battery power supply, Headphone Output, Wi-Fi 6, Bluetooth® 5.2
Option type	Floor stand, Safety wire set
Control panel	0.62 inch
Weight	5.82 kg
