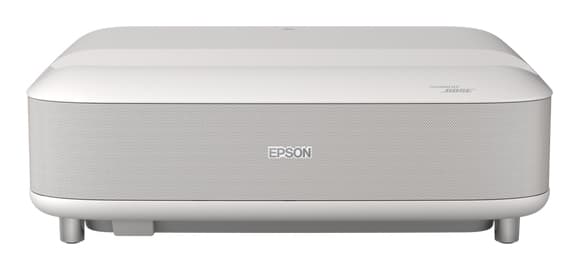

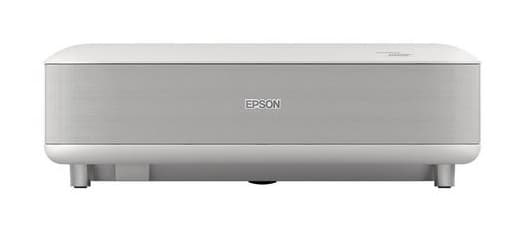

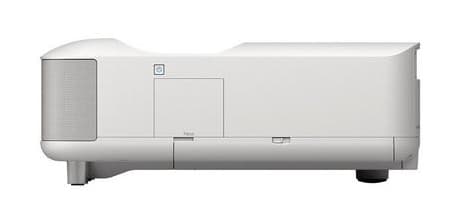

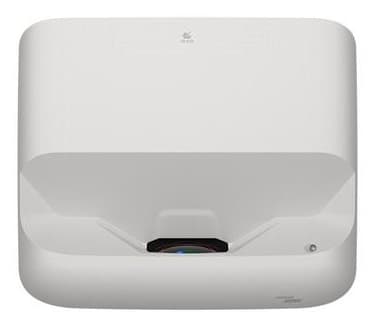

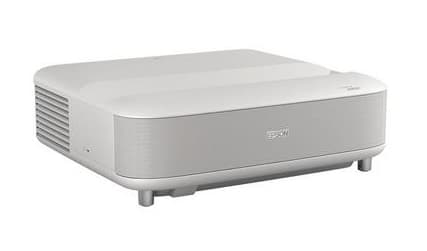

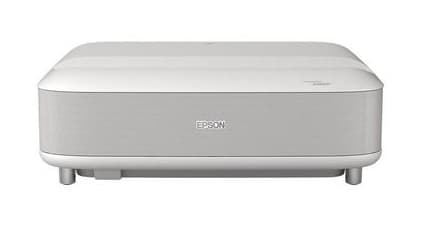

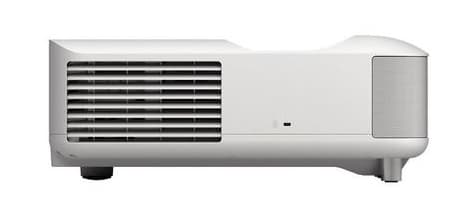

Epson Ultrakurzdistanzprojektor Lifestudio Grand EH-LS670W

Hover to zoom1/16

Epson Lifestudio Grand — EH-LS670W Diamond White

Part number: 2121951
MPN: V11HB82040
EAN: 8715946742656

Epson Lifestudio Grand — EH-LS670W Diamond White, 3LCD, UHD 4K (3840x2160), 5000000:1, 16:9, 1524 - 3048 mm (60 - 120"), 0.3 - 0.7 m

ANSI-Lumen	3600 lm
Resolution	3840 x 2160 (Ultra HD 4K)
Beamer Lampentechnologie	Laser
Lens Shift	Kein
Min. Projektionsverhältnis	1 : 1
Max. Projektionsverhältnis	1 : 1
Projection technology	3LCD
Projector native resolution	UHD 4K (3840x2160)

Description

Epson Lifestudio Grand — EH-LS670W Diamond White. Projection technology: 3LCD, Projector native resolution: UHD 4K (3840x2160), Contrast ratio (typical): 5000000:1. Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 3.7 mm, Throw ratio: 0.25 - 0.62:1. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Vivid. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Documents

Data sheetPDF · DE

Specifications

ANSI-Lumen	3600 lm
Resolution	3840 x 2160 (Ultra HD 4K)
Beamer Lampentechnologie	Laser
Lens Shift	Kein
Min. Projektionsverhältnis	1 : 1
Max. Projektionsverhältnis	1 : 1

Projector

Projection technology	3LCD
Projector native resolution	UHD 4K (3840x2160)
Contrast ratio (typical)	5000000:1
Native aspect ratio	16:9
Smart projector	No
Screen size compatibility	1524 - 3048 mm (60 - 120")
Projection distance	0.3 - 0.7 m
Projection distance (wide)	0.3 - 0.7 m
Contrast ratio (dynamic)	5000000:1
Number of colours	1.07 billion colours
Projector brightness (economic mode)	1800 ANSI lumens
Vertical scan range	192 - 240 Hz
White light output	3600 ANSI lumens
Colour light output	3600 ANSI lumens

Light source

Light source type	Laser
Service life of light source	20000 h

Lens system

Focus	Manual
Focal length range	3.7 mm
F-number (relative aperture)	1.6
Zoom capability	Yes
Throw ratio	0.25 - 0.62:1

Video

Video processing	10 bit
Video colour modes	Cinema, Dynamic, Natural, Vivid

Ports & interfaces

HDMI ports quantity	2
HDMI version	2.3
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Consumer Electronics Control (CEC) support	Yes
Enhanced Audio Return Channel (eARC)	Yes

Network

Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes

Features

Noise level	29 dB
Noise level (economic mode)	20 dB
Country of origin	Philippines
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Compatible operating systems	Android
Operating system installed	Google TV

Multimedia

Built-in speaker(s)	No
RMS rated power	20 W

Design

Product type	Standard throw projector
Market positioning	Home cinema
Product colour	White
Placement	Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power consumption (typical)	193 W
Power consumption (standby)	0.5 W
Power consumption (max)	254 W
Power consumption (economy mode)	103 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Weight	7.4 kg
Width	467 mm
Depth	400 mm
Height	153 mm
Package width	540 mm
Package depth	560 mm
Package height	235 mm
Package weight	10.7 kg

Technical details

Other features	4K enhancement, AIPQ (Artificial Intelligence Picture Quality), AISR (Artificial Intelligence Super Resolution), Arc Correction, Auto Power On, Built-in speaker, CEC compatible, Chromecast, De-contour, Digital zoom, Dynamic Colour Booster, Frame interpolation, Game mode, Google TV, Local Contrast, Long light source life, Point correction, Power on button, Quick Corner, Wireless LAN capable
Mobile app support	No

Logistics data

Quantity per pack	1 pc(s)

Other features

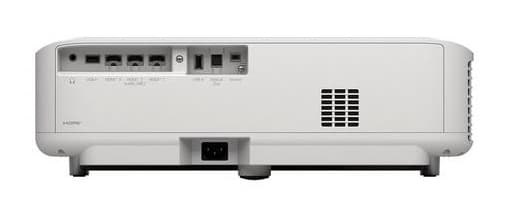

Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only), Jack plug out, HDMI (HDCP 2.3) (2x), Digital coaxial audio out, HDMI (ARC/eARC), Wi-Fi 6E, Bluetooth® 5.2
Security features	Kensington lock
Option type	Air filter
Control panel	0.62 inch with C2 Fine
Weight	9.60 kg
