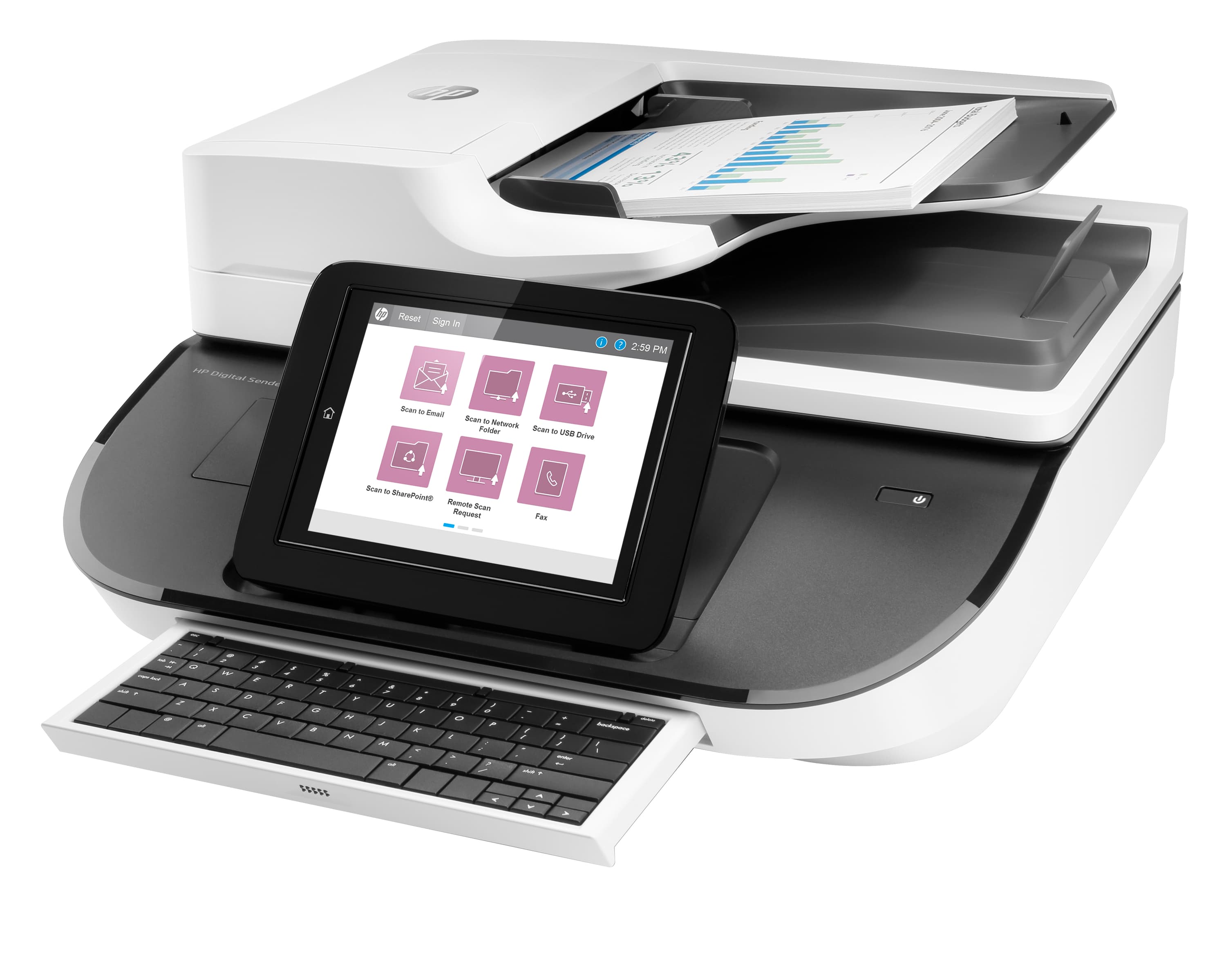

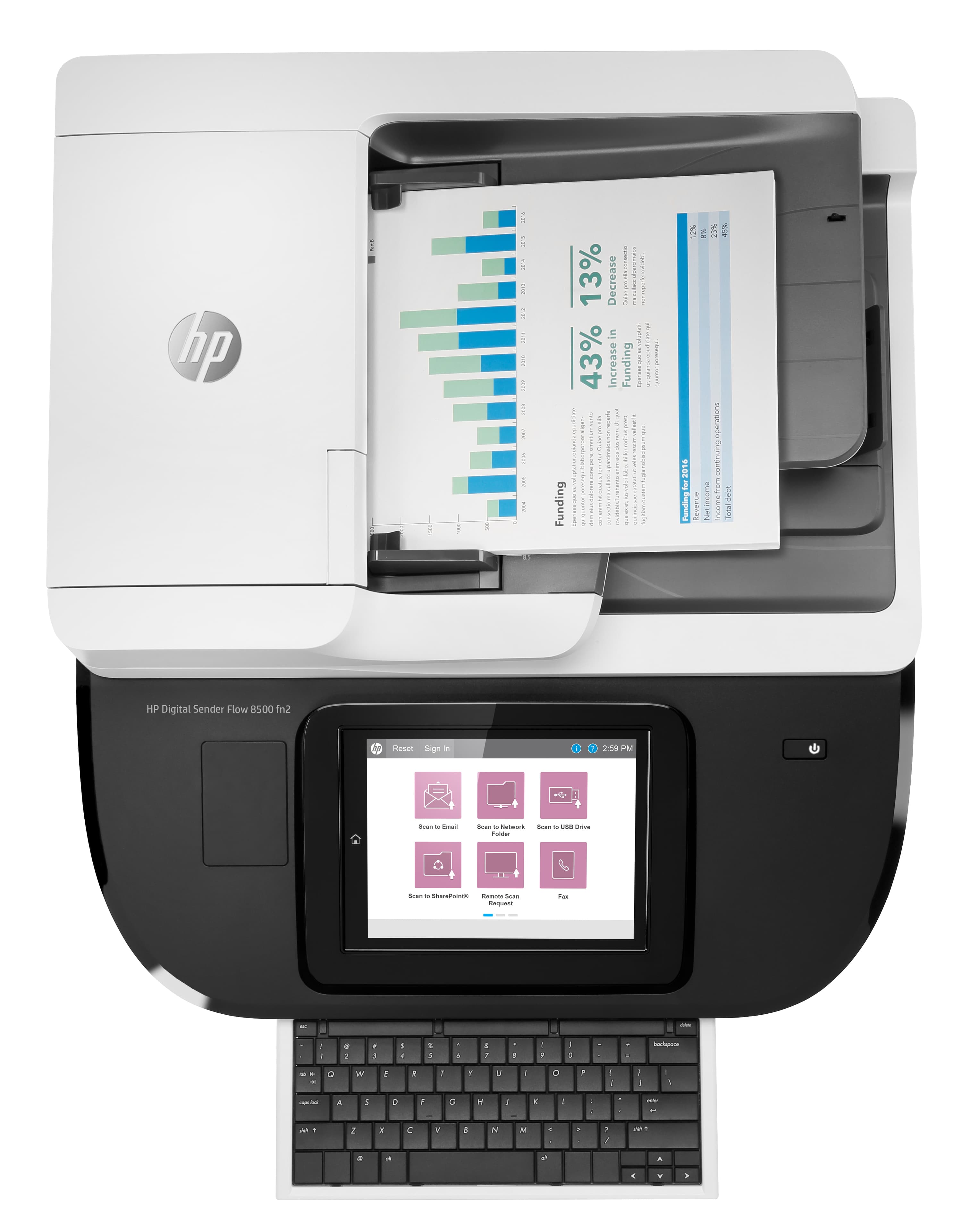

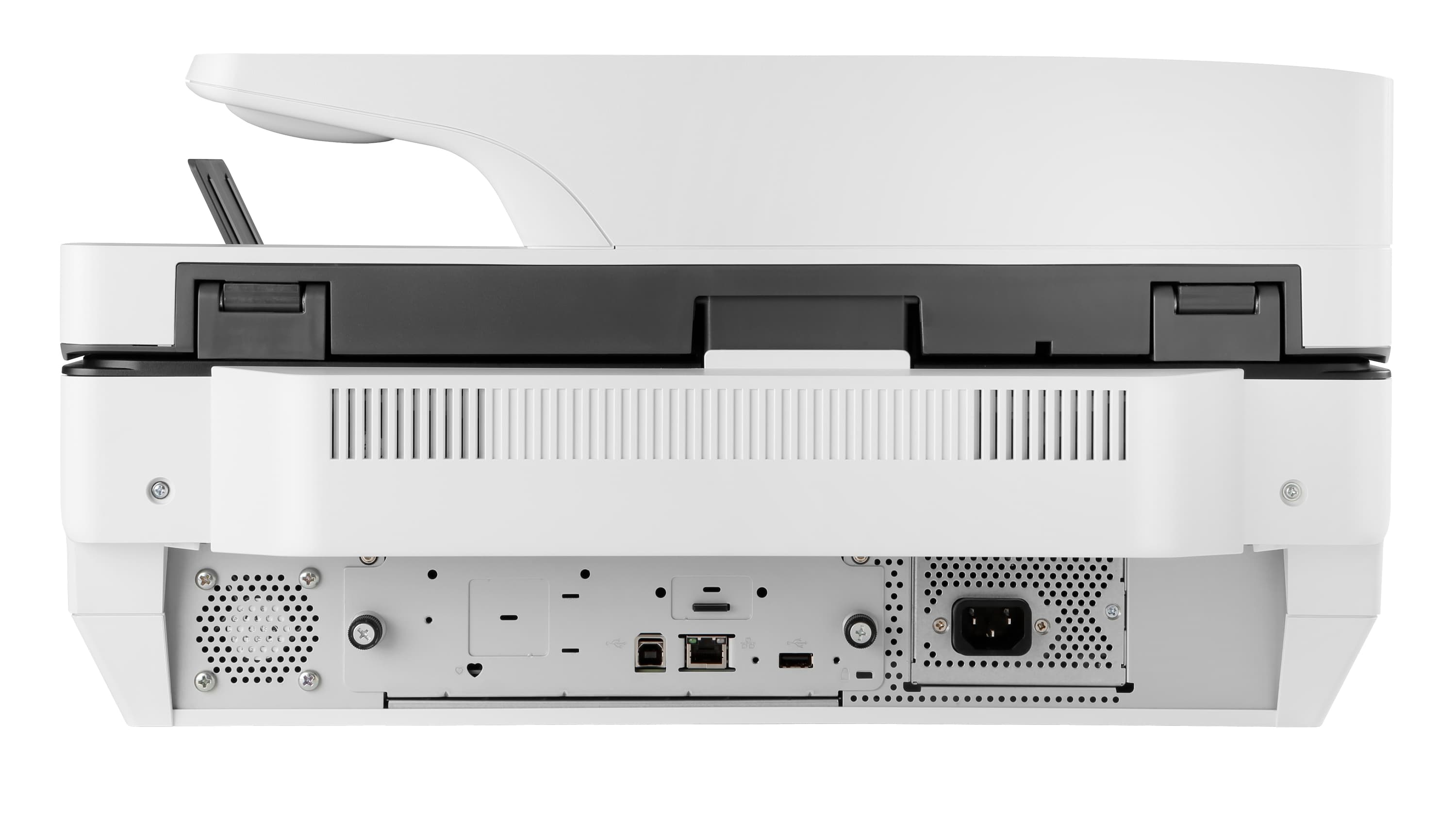

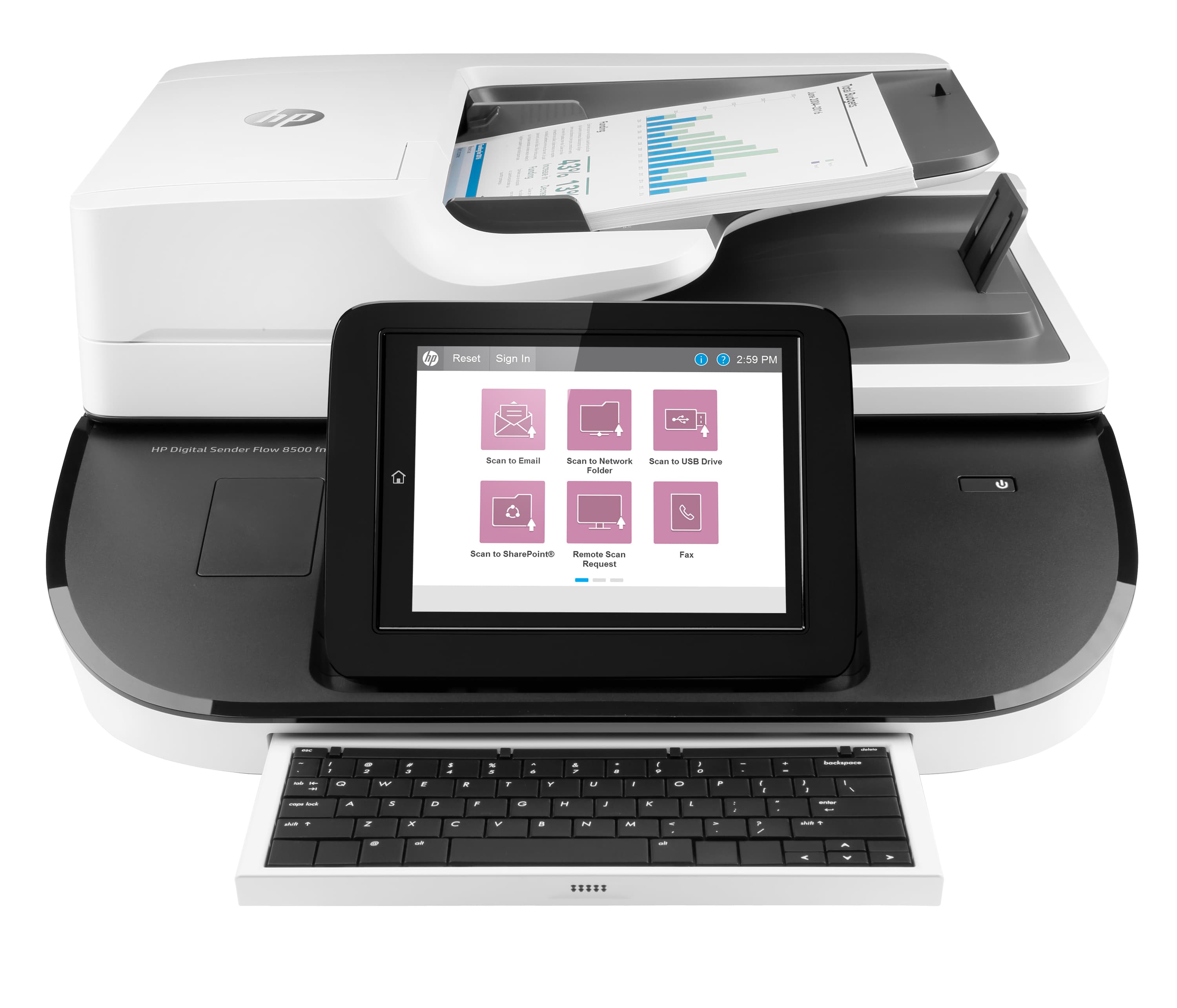

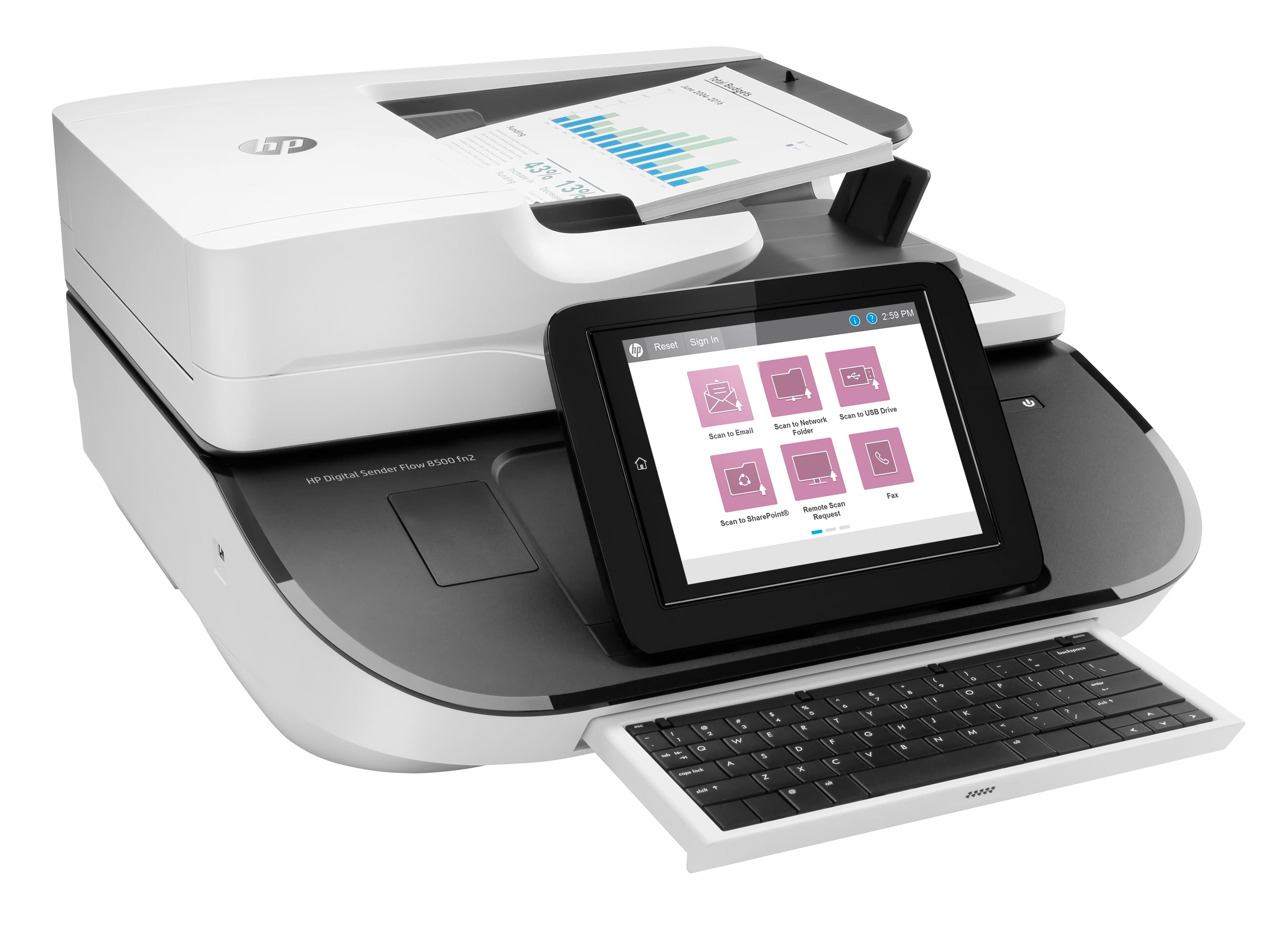

HP Digital Sender Flow 8500 fn2 Flatbed scanner

HP Netzwerkscanner Digital Sender Flow 8500 fn21/10
Part number
1123819
MPN
L2762A#BAZ
EAN
190781643685

HP Digital Sender Flow 8500 fn2, Flatbed scanner, LCD, Touch, CSV, HTML, JPG, OCR, PDF, RTF, TIFF, TXT, XPS, 10000 pages per month, E-mail, Network folder, USB, FTP

Connectivity OptionsLAN (RJ45), USB
Scanner FunktionenDuplex Scan, E-Mail Scan, Fax Scan, Flachbett, FTP Scan, Ordner Scan, Texterfassung, TouchTFT, USB Scan
Maximum Scan FormatA4
Duplex scanningYes
Colour scanningYes
Greyscale levels256
Scanner TypeFlatbed scanner
Built-in DisplayYes
All 71 specifications

Description

HP Digital Sender Flow 8500 fn2. Scanner type: Flatbed scanner, Display: LCD, Control type: Touch. Scan file formats: CSV, HTML, JPG, OCR, PDF, RTF, TIFF, TXT, XPS, Maximum duty cycle: 10000 pages per month, Scan to: E-mail, Network folder, USB, FTP. Auto document feeder (ADF) input capacity: 150 sheets. Security algorithms: SNMPv3, TLS, FIPS 140, HTTPS, IPSec. Power supply type: AC, Power consumption (typical): 22 W, Power consumption (off): 0.3 W

Documents

Specifications

Connectivity OptionsLAN (RJ45), USB
Scanner FunktionenDuplex Scan, E-Mail Scan, Fax Scan, Flachbett, FTP Scan, Ordner Scan, Texterfassung, TouchTFT, USB Scan
Maximum Scan FormatA4

Scanning

Duplex scanningYes
Colour scanningYes
Greyscale levels256

Design

Scanner TypeFlatbed scanner
Built-in DisplayYes
DisplayLCD
ControlTouch

Performance

Scan file formatsCSV, HTML, JPG, OCR, PDF, RTF, TIFF, TXT, XPS
Maximum duty cycle10000 pages per month
Scan toE-mail, Network folder, USB, FTP
Scan driversISIS, TWAIN, WIA
Storage Capacity3584 MB
Processor frequency1200 MHz
HP segmentBusiness

Input capacity

Auto document feeder (ADF) input capacity150 sheets

Ports & interfaces

USB ConnectionYes

Network

Ethernet/LANYes
Supported Security AlgorithmsSNMPv3, TLS, FIPS 140, HTTPS, IPSec

Power

Power Supply TypeAC
Power Consumption (Standard Operation)22 W
Power consumption (off)0.3 W
Power consumption (PowerSave)1.2 W
AC input frequency50 Hz
Power consumption (sleep)1.2 W

Weight & dimensions

Width512 mm
Depth585.3 mm
Height263.4 mm
Weight17.5 kg

Packaging data

Package dimensions (WxDxH)599 x 396 x 731 mm
Package width599 mm
Package depth396 mm
Package height731 mm
Package Weight20.3 kg

Packaging content

Included CablesUSB, AC
Bundled softwareHP browser, Mac OS Welcome Screen (Directs users to HP.com or OS App Source for printer software), Online user manuals. Download from hp.com Network TWAIN (32-bit and 64-bit), and USB TWAIN (32-bit and 64-bit) solution, WIA, Kofax VRS Pro

Sustainability

Sustainability certificatesENERGY STAR, EPEAT
Total carbon footprint (kg of CO2e)573.2
Sustainability complianceYes

System requirements

Minimum system requirements2 GB available hard disk space, OS hardware requirements see http://www.microsoft.com, or 1.3 GB available hard drive space, Internet; OS hardware requirements see http://www.apple.com for more info; For HP Scan: Windows 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer, 2 GHz processor, 1024 x 768 SVGA monitor
Compatible Operating SystemsWindows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; macOS X 10.10 Yosemite; macOS 10.11 El Capitan; macOS 10.12 Sierra; Linux; UNIX
Supported Windows Operating SystemsWindows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
Supports Mac Operating SystemsMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, MacOS

Operational conditions

Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)15 - 80%

Certificates

Electromagnetic compatibilityCISPR 22:2008 (International) - Class A, CISPR 32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU; Other EMC approvals as required by individual countries

Other features

Network readyYes
Cable lock slotYes
Recommended system requirements2 GB available hard disk space; or 1.3 GB available hard drive space; Internet; For HP Scan; Windows 10; 8.1; 8; 7; 32/64-bit; 2 GB available hard disk space; CD-ROM/DVD drive or Internet connection; USB port; Internet Explorer; 2 GHz processor; 1024 x 768 SVGA monitor. 1.3 GB available hard drive space; Internet.
Dimensions (WxDxH)512 x 585.3 x 263.4 mm
Media types supportedADF: Paper (Plain, Inkjet, Inkjet Brochure/Glossy), Photo Paper; Flatbed: All ADF Media, Envelopes, Labels, Cards, Books
Image formats supportedJPEG, MTIFF, TIFF
InterfaceUSB, 10/100/1000 Ethernet
CertificationCISPR 22:2008 (International) - Class A, CISPR 32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU; Other EMC approvals as required by individual countries
Recommended operating temperature range (T-T)10 - 35 °C
Control panelXGA 1024x768 LCD
UNSPSC-code43211711
Recommended media weight45 - 199 g/m²
Box contentsHP Digital Sender Flow 8500 fn2 Document Capture; Hardware install guide; HP 8500 fn2 HbrCD for Mac And PC; HP user's guide regulatory Info CD; Power cord; USB cable

Technical details

Scan technologyCIS/CCD

Logistics data

Products per pallet15 pc(s)
Country of originChina
Layers per pallet3 pc(s)
Pallet gross weight305.2 kg
Master (outer) cases per pallet layer5 pc(s)
Harmonized System (HS) code84716070
Pallet dimensions (W x D x H)1200 x 1000 x 2194 mm
Pallet dimensions (W x D x H) (imperial)1199.9 x 1000 x 2193.8 mm (47.2 x 39.4 x 86.4")
Pallet weight (imperial)305.2 kg (672.9 lbs)
Weight20.30 kg
