ICY BOX Externes Gehäuse IB-RD2253-C31 2.5"1/8
RAIDSONIC

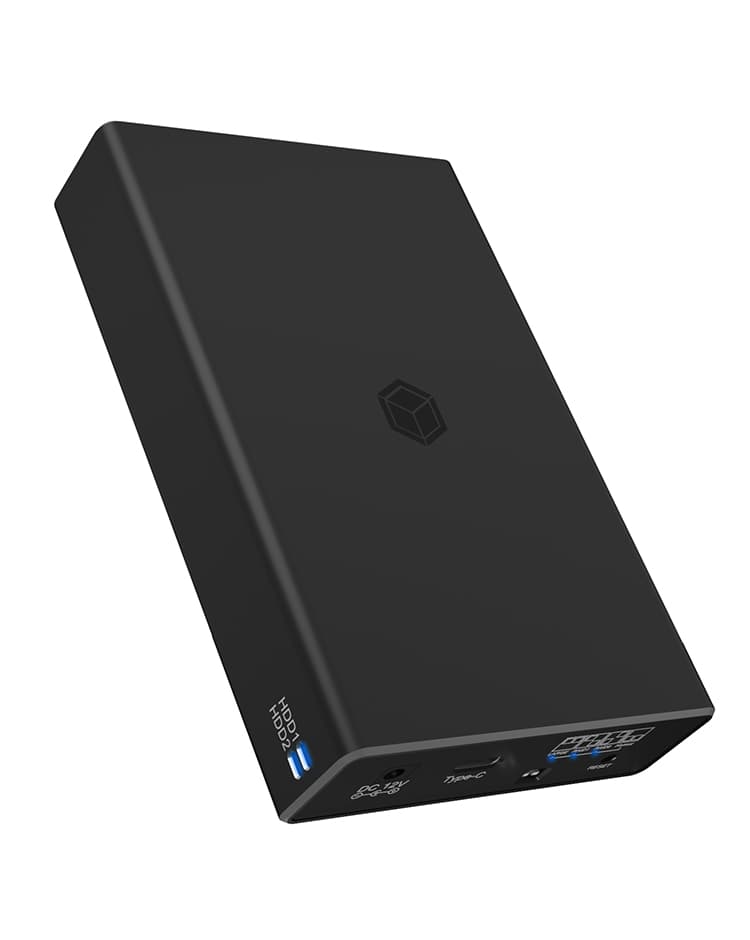

ICY BOX RAID enclosure for 2x HDD/SSD USB 3.2 Gen 2 Type-C® / Type-A interface

Part number
1706082
MPN
IB-RD2253-C31
EAN
4250078173618

ICY BOX RAID enclosure for 2x HDD/SSD USB 3.2 Gen 2 Type-C® / Type-A interface, HDD/SSD enclosure, 2.5", Serial ATA, Serial ATA II, Serial ATA III, 10 Gbit/s, USB connectivity, Black

DurabilityKeine Angabe
Anzahl Laufwerkschächte2

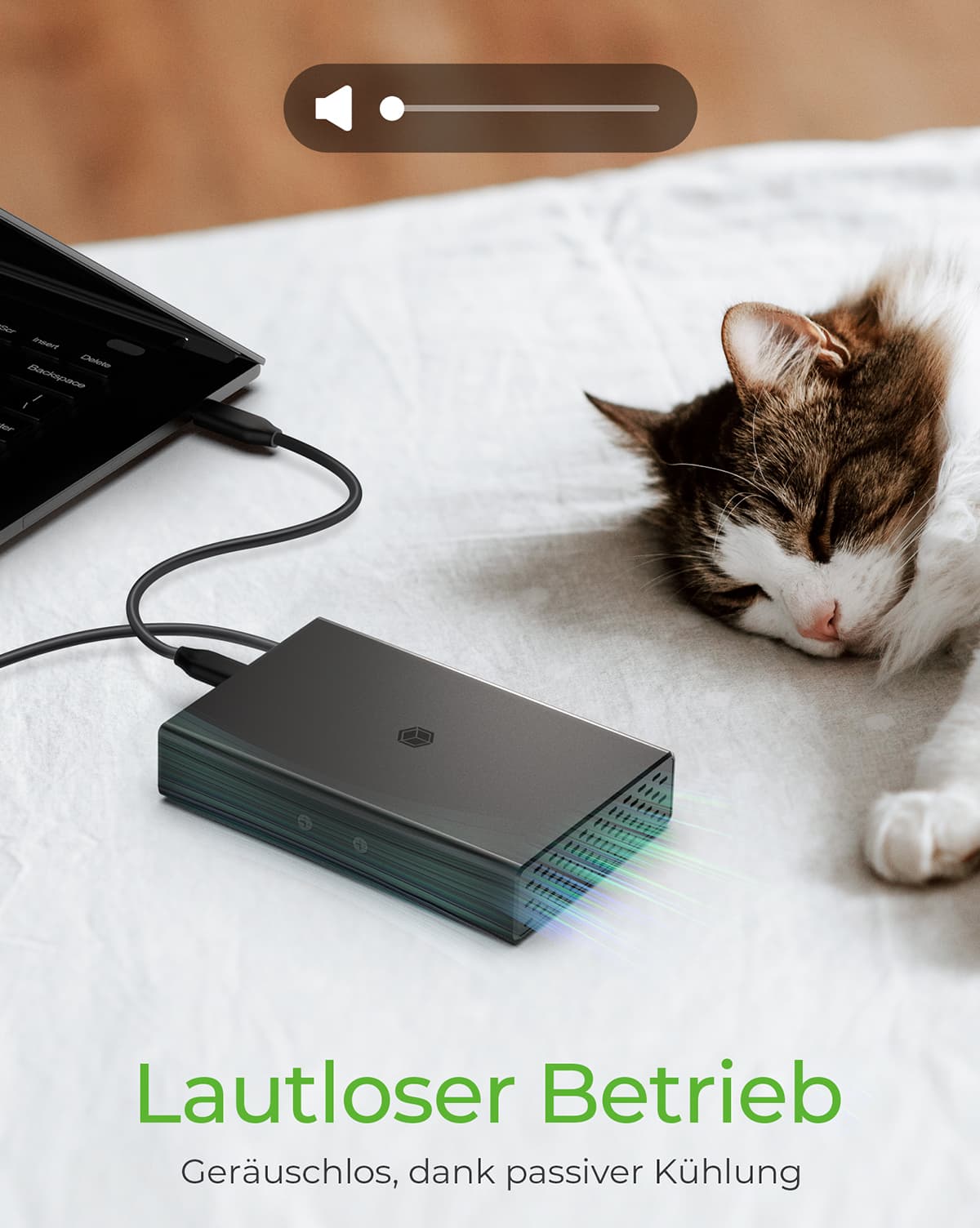

Lüfter vorhandenNo
Power supplyExternes Netzteil
Detail colourBlack
InterfacesType-A USB 3.1 (3.1 / 3.2 Gen. 2), Type-C USB 3.1 (3.1 / 3.2 Gen. 2)

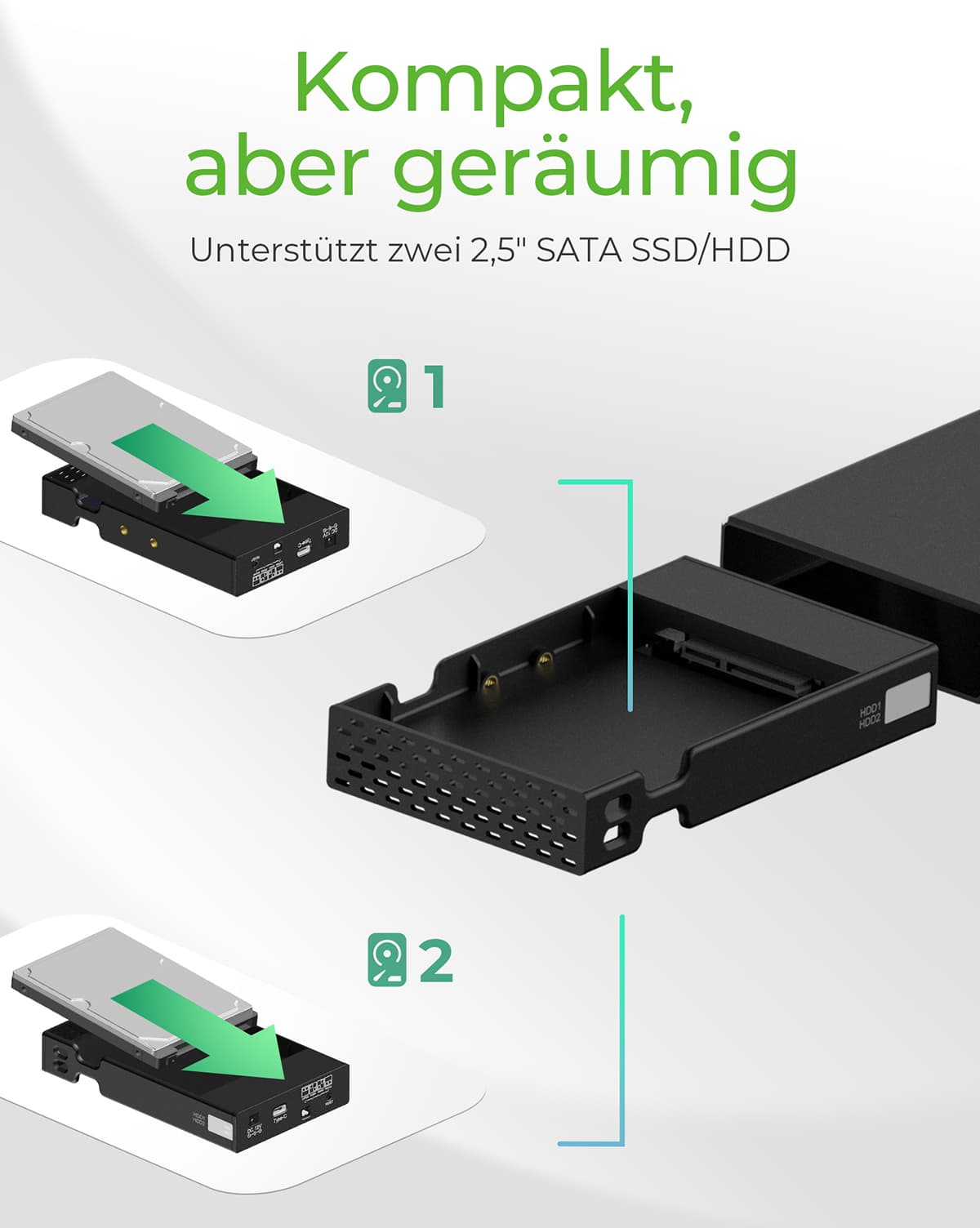

Storage drive size2.5"
Supported storage drive interfacesSerial ATA, Serial ATA II, Serial ATA III
All 47 specifications

Description

ICY BOX RAID enclosure for 2x HDD/SSD USB 3.2 Gen 2 Type-C® / Type-A interface. Product type: HDD/SSD enclosure. Number of storage drives supported: 1, Storage drive size: 2.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 10 Gbit/s. RAID levels: 0, 1. Product colour: Black. USB connector type: USB Type-C

Documents

Specifications

DurabilityKeine Angabe
Anzahl Laufwerkschächte2
Lüfter vorhandenNo
Power supplyExternes Netzteil
Detail colourBlack
InterfacesType-A USB 3.1 (3.1 / 3.2 Gen. 2), Type-C USB 3.1 (3.1 / 3.2 Gen. 2)

Storage

Storage drive size2.5"
Supported storage drive interfacesSerial ATA, Serial ATA II, Serial ATA III
Number of storage drives supported1
Supported storage drive heights9.5 mm

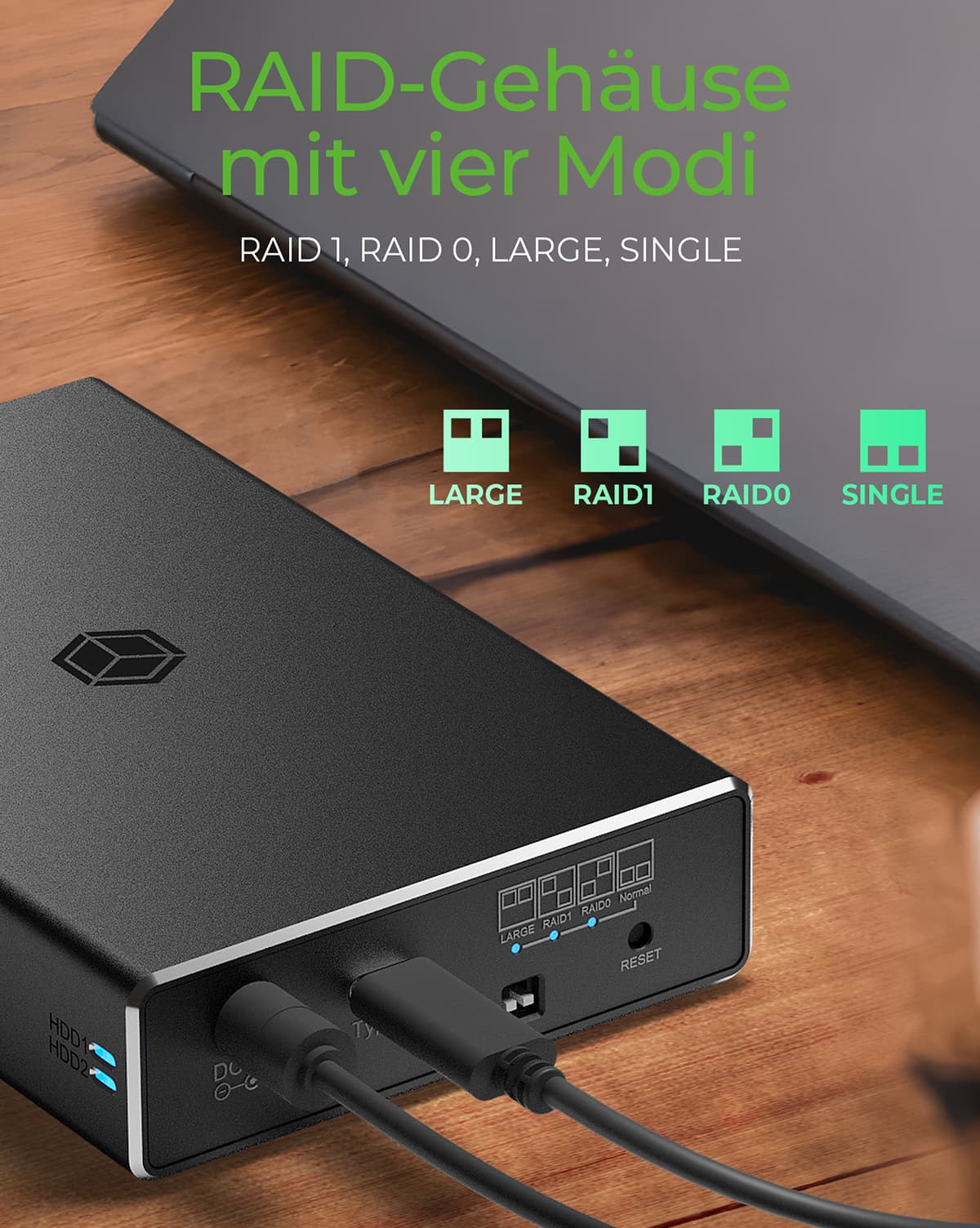

RAID levels0, 1

Ports & interfaces

USB connectivityYes
USB version3.2 Gen 2 (3.1 Gen 2)
USB connector typeUSB Type-C
USB connector genderFemale

Design

Product typeHDD/SSD enclosure
MaterialAluminium, Plastic

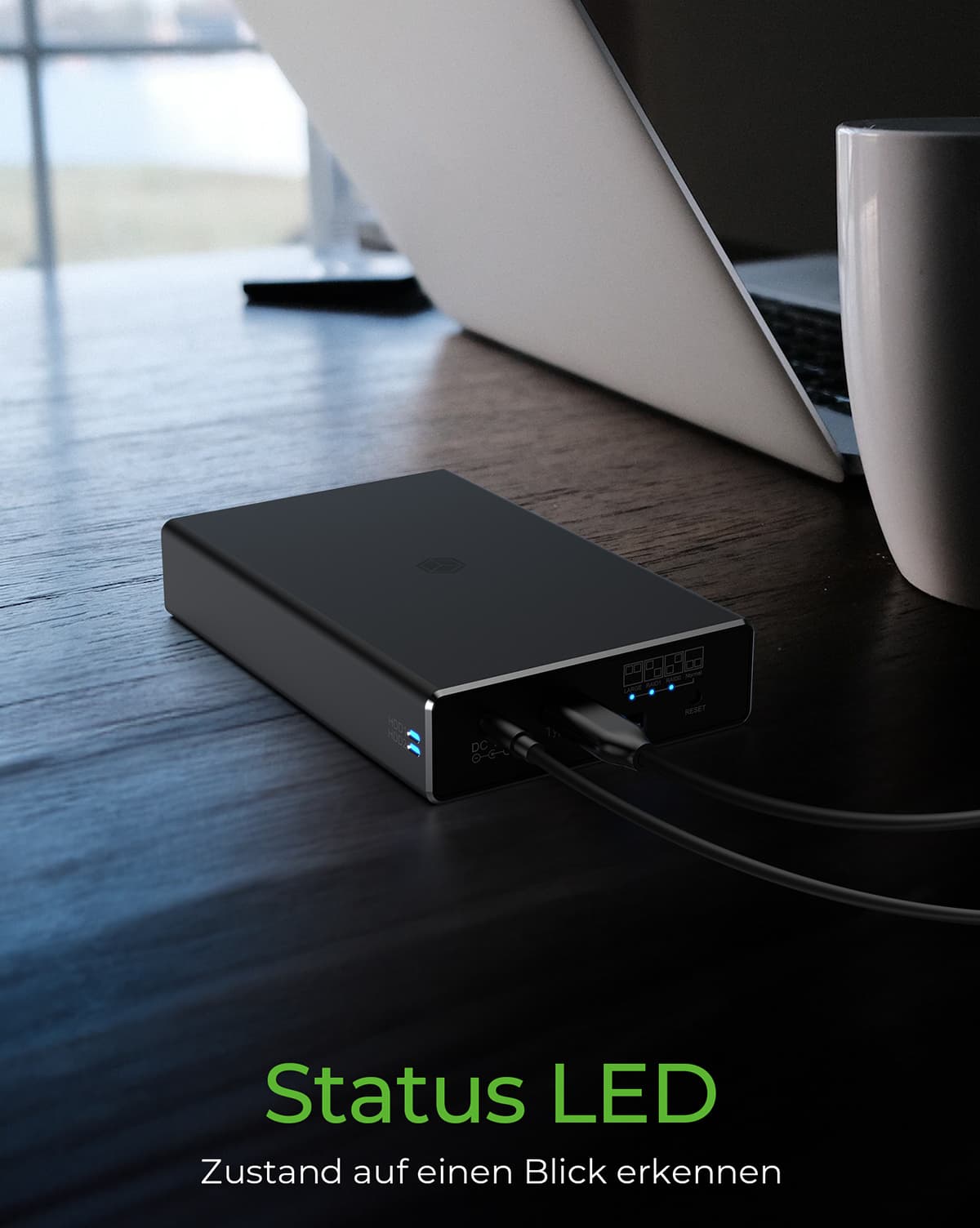

LED indicatorsRAID mode, Access, Power

Performance

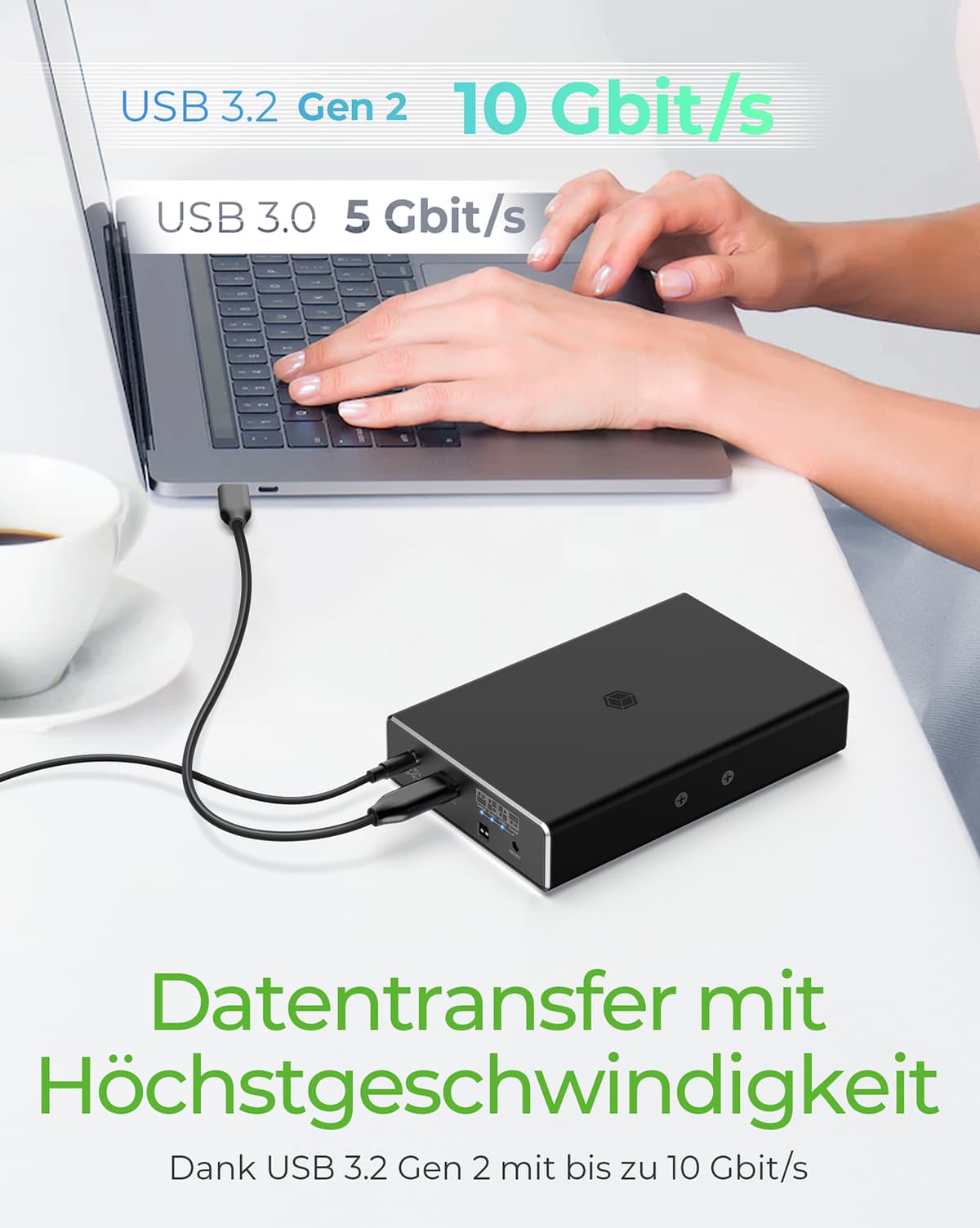

Data transfer rate10 Gbit/s
UASP supportYes

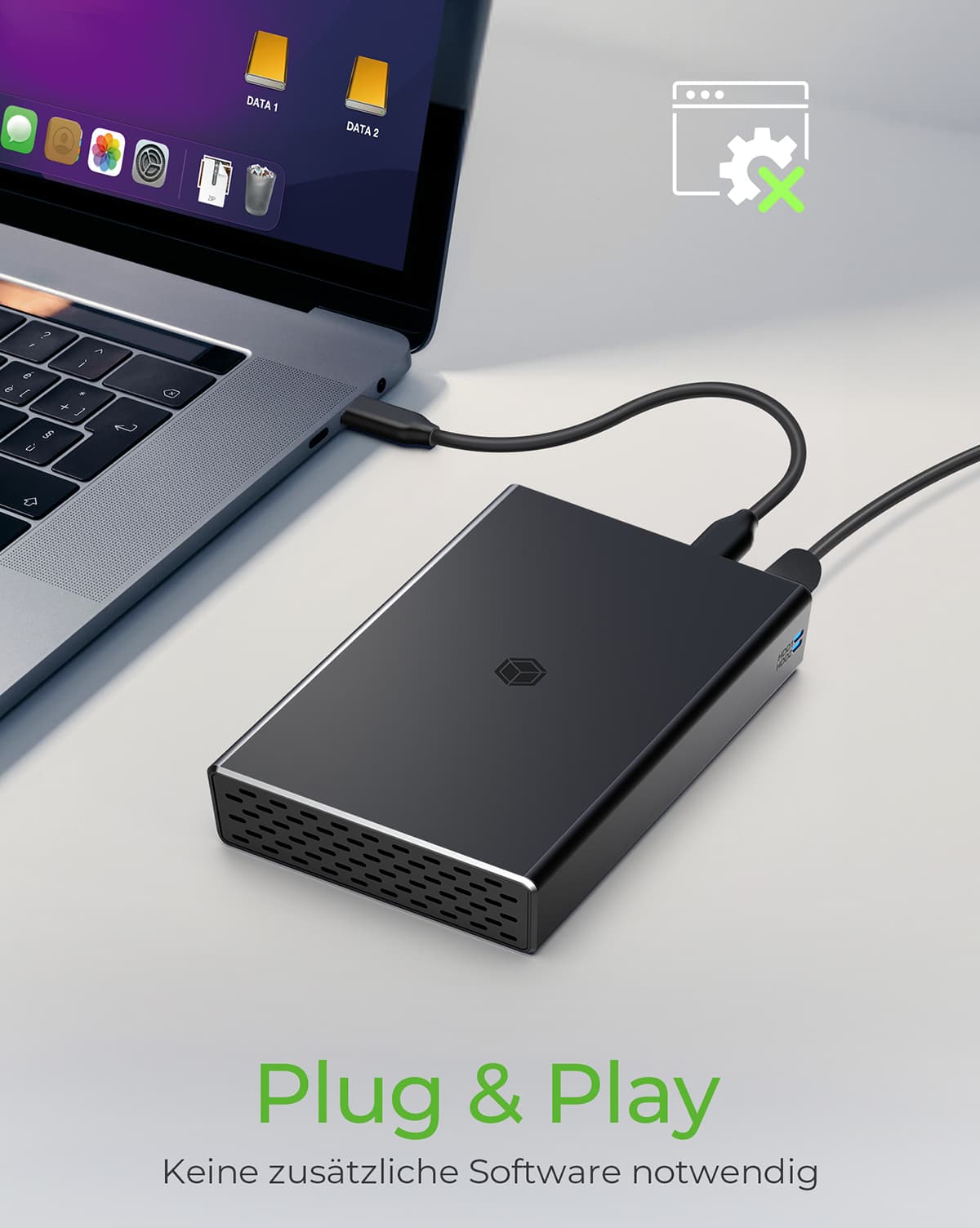

Plug and PlayYes
Country of originChina

Power

Power source typeDC
AC adapter input voltage230 V
AC adapter output voltage5 V
AC adapter output current2 A

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Width84 mm
Depth130 mm
Height26 mm
Weight187 g
Package width231 mm
Package depth131 mm
Package height66 mm
Package weight537 g

Packaging content

AC adapter includedYes
Cables includedUSB Type-A to USB Type-C, USB Type-C to USB Type-C
Screws includedYes
Screwdriver includedYes
ManualYes

Logistics data

Harmonized System (HS) code84718000
Master (outer) case width341 mm
Master (outer) case length506 mm
Master (outer) case height270 mm
Master (outer) case gross weight10.7 kg
Products per master (outer) case20 pc(s)
Weight0.50 kg
