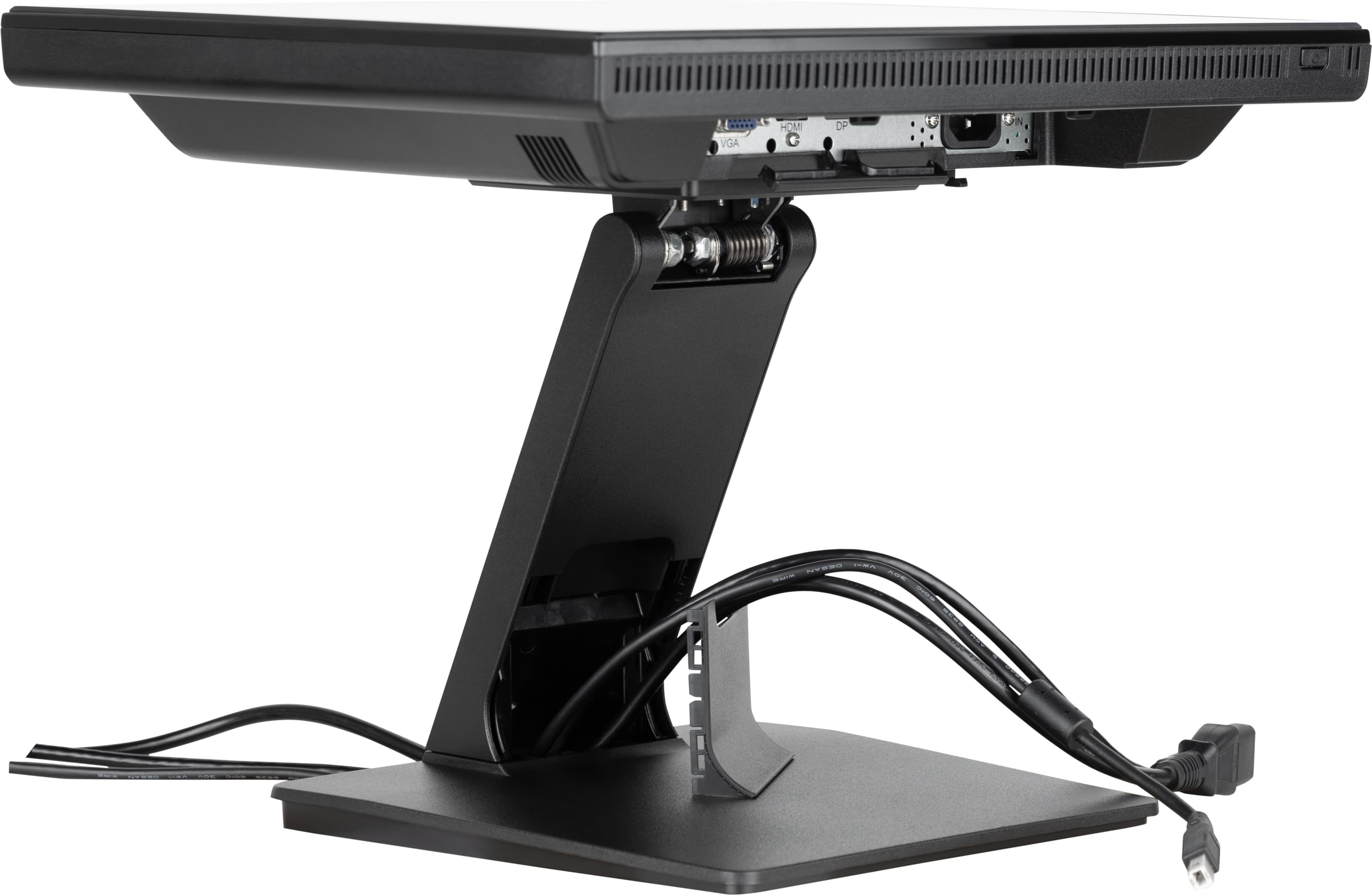

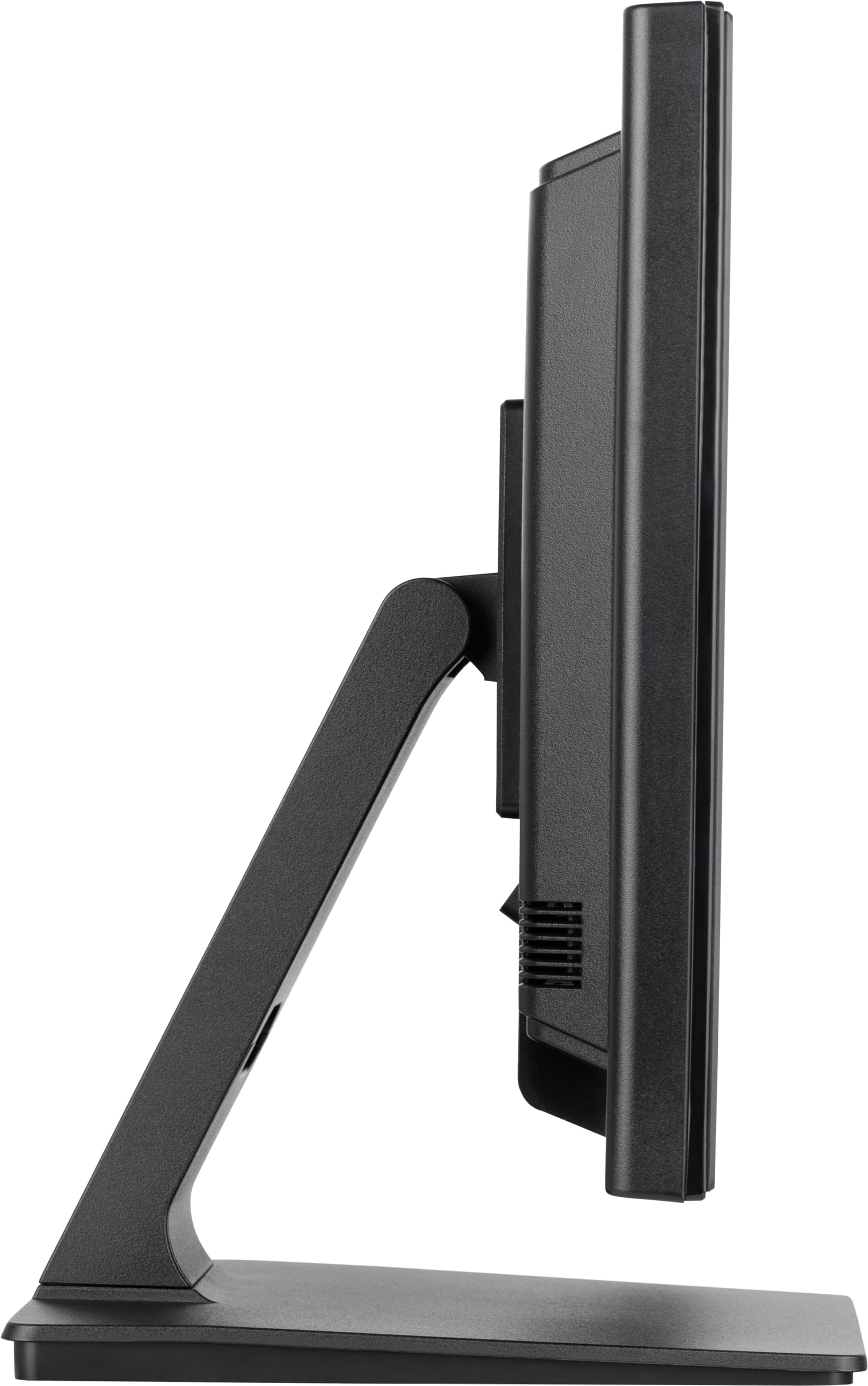

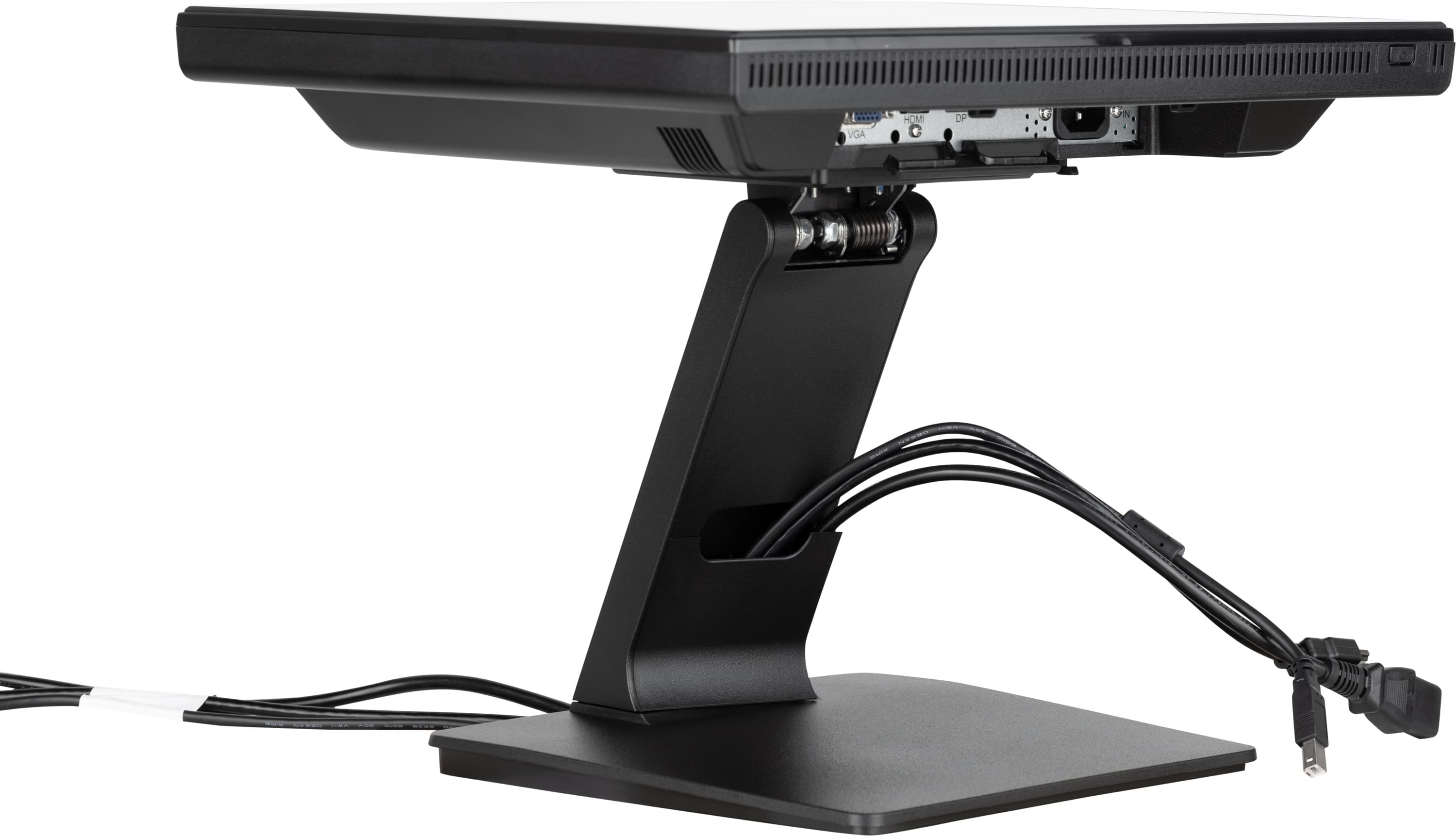

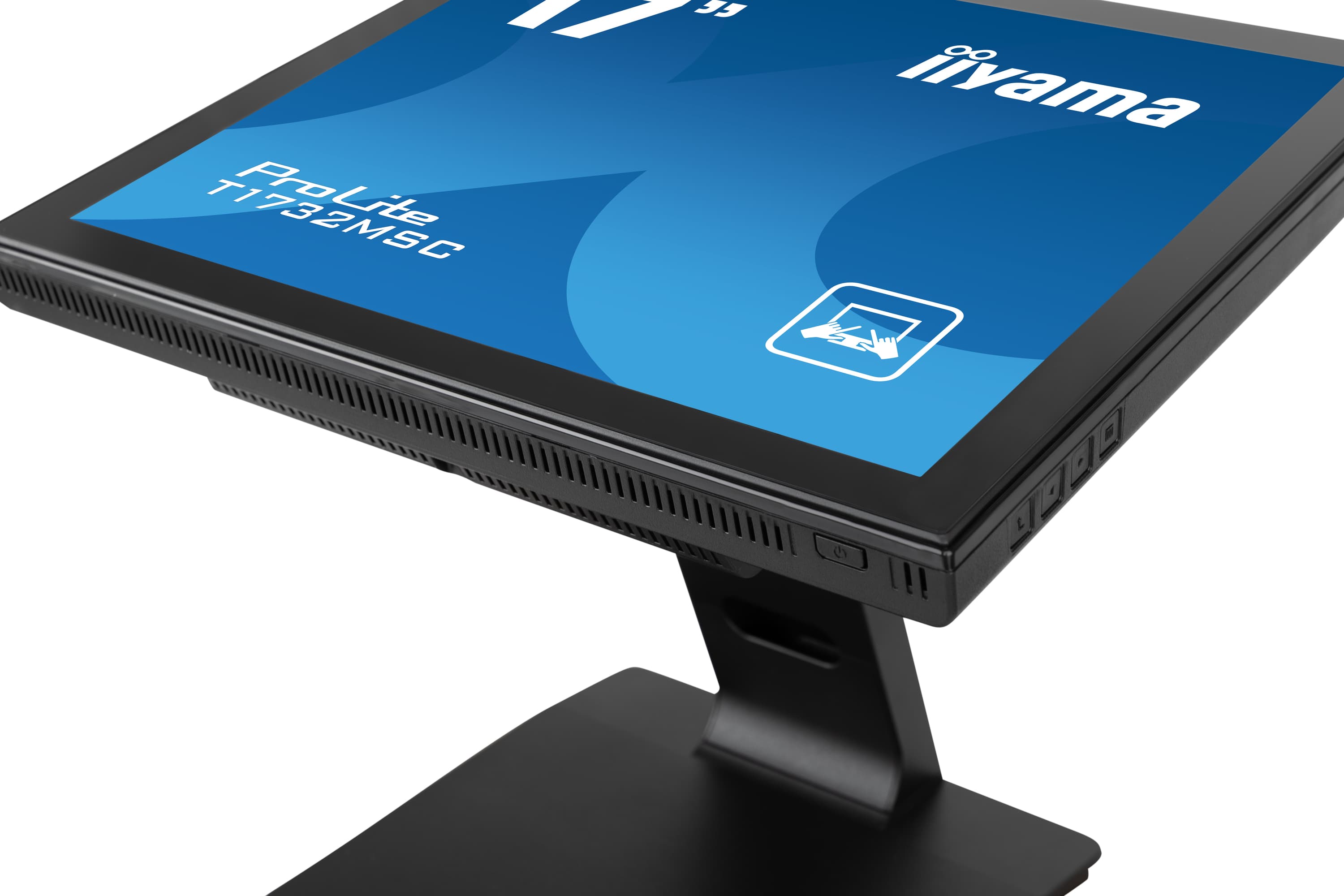

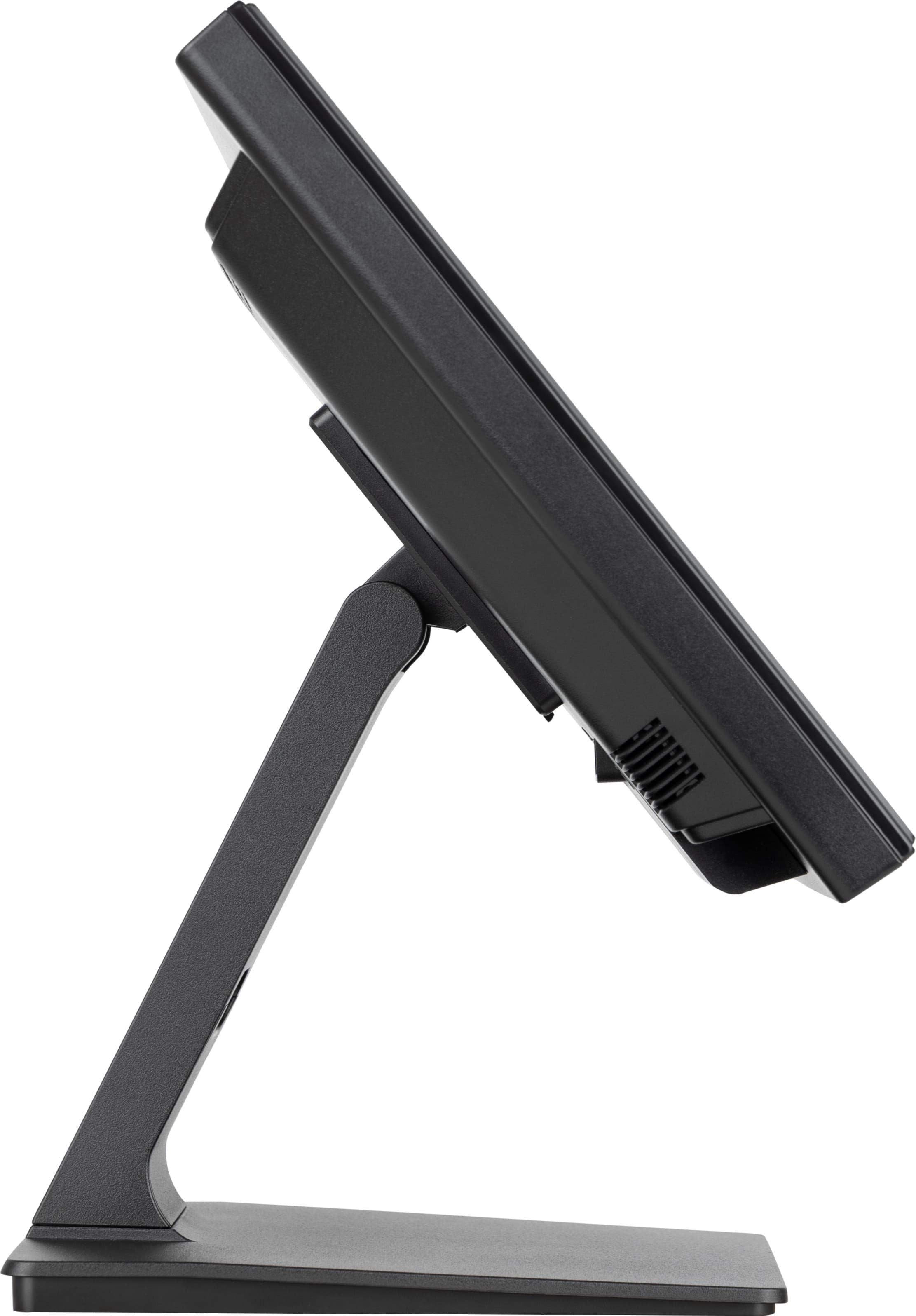

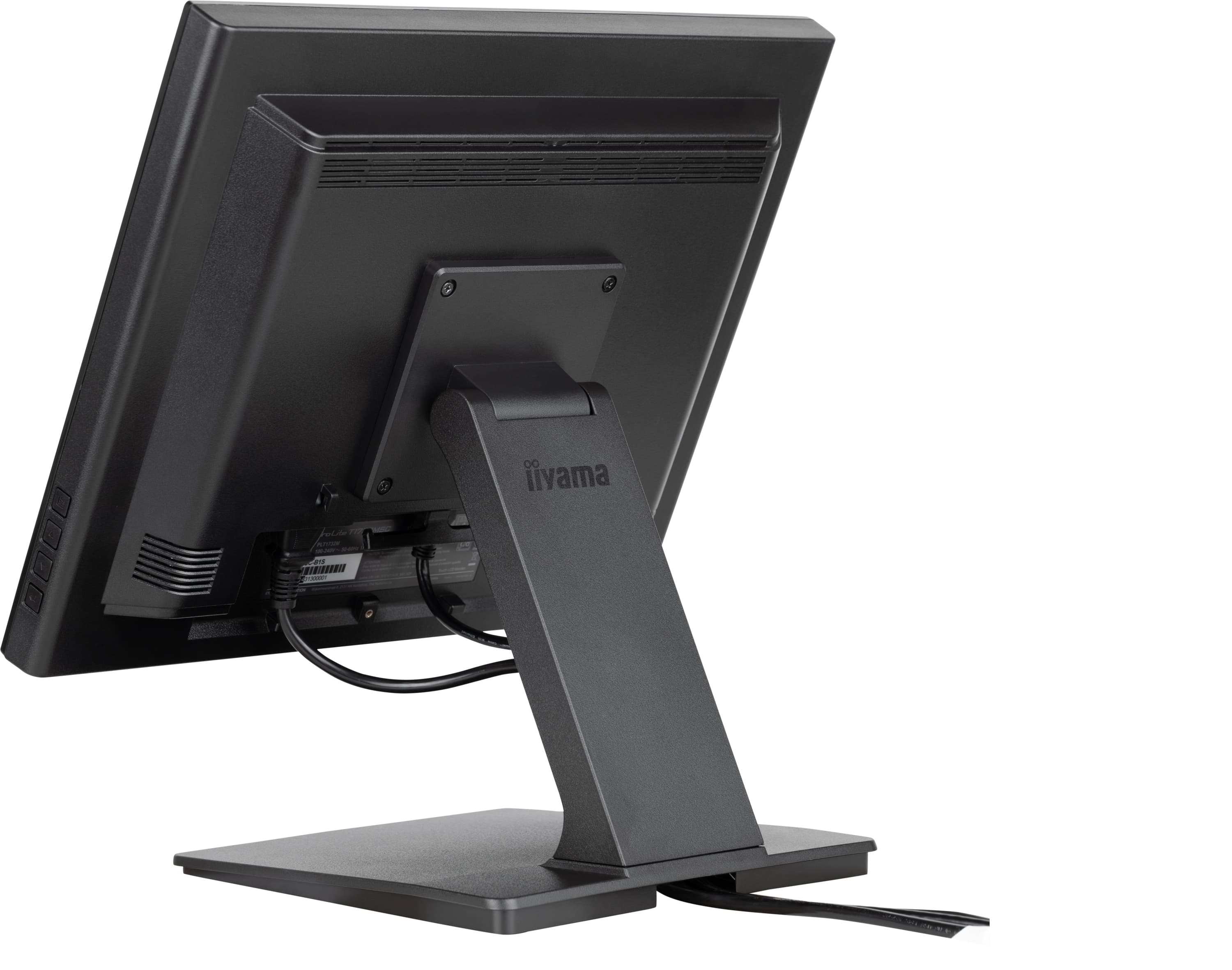

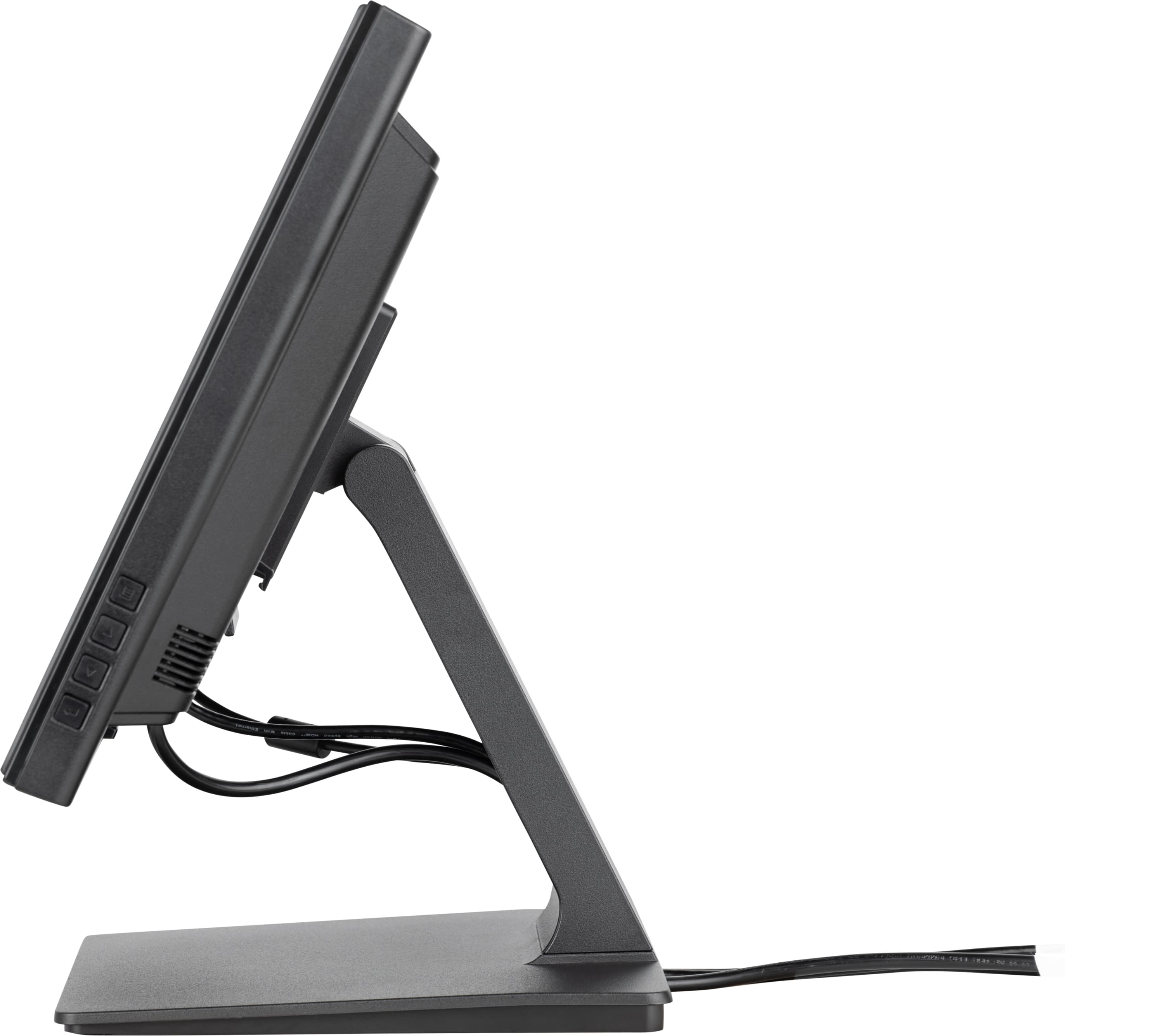

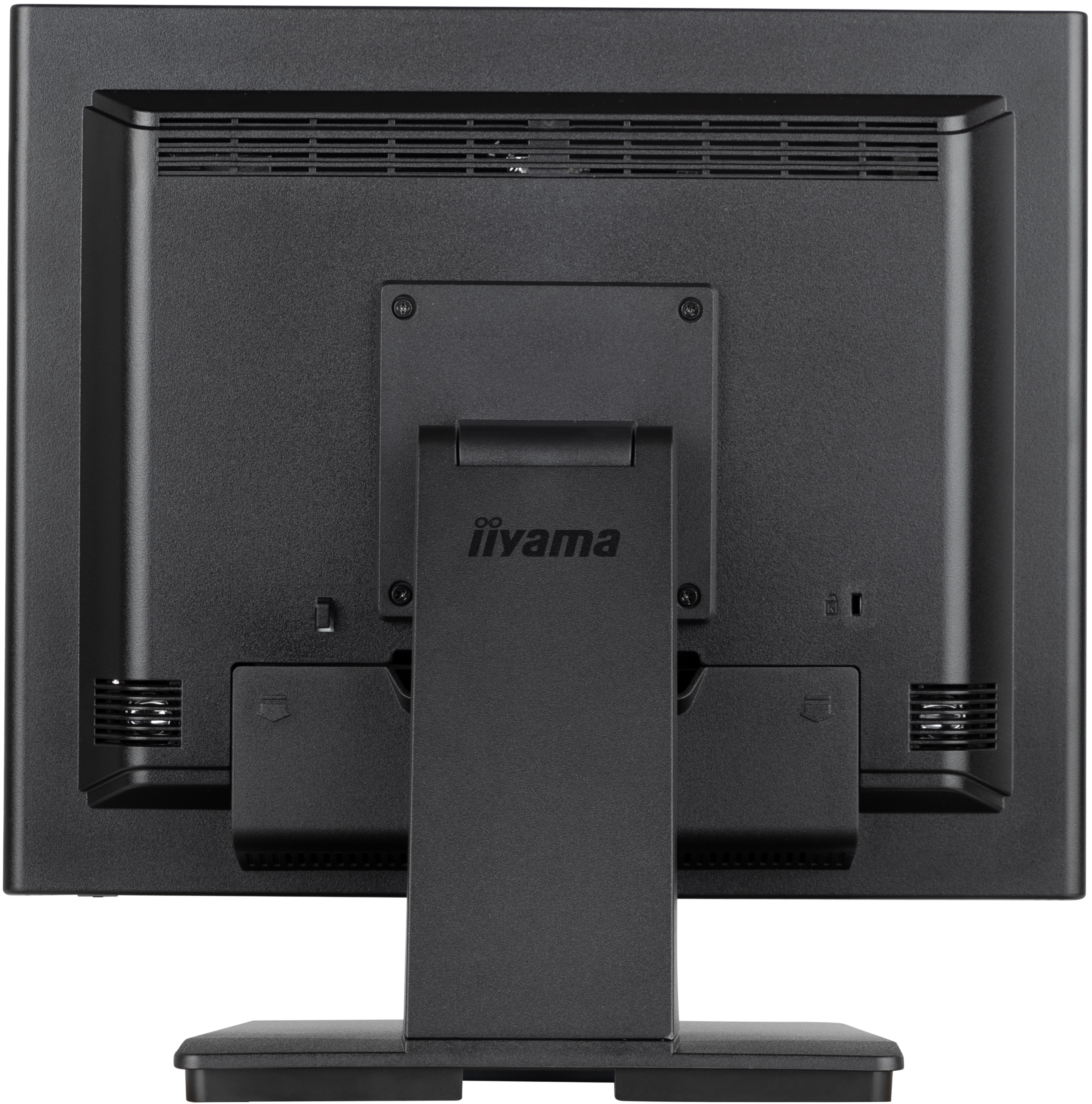

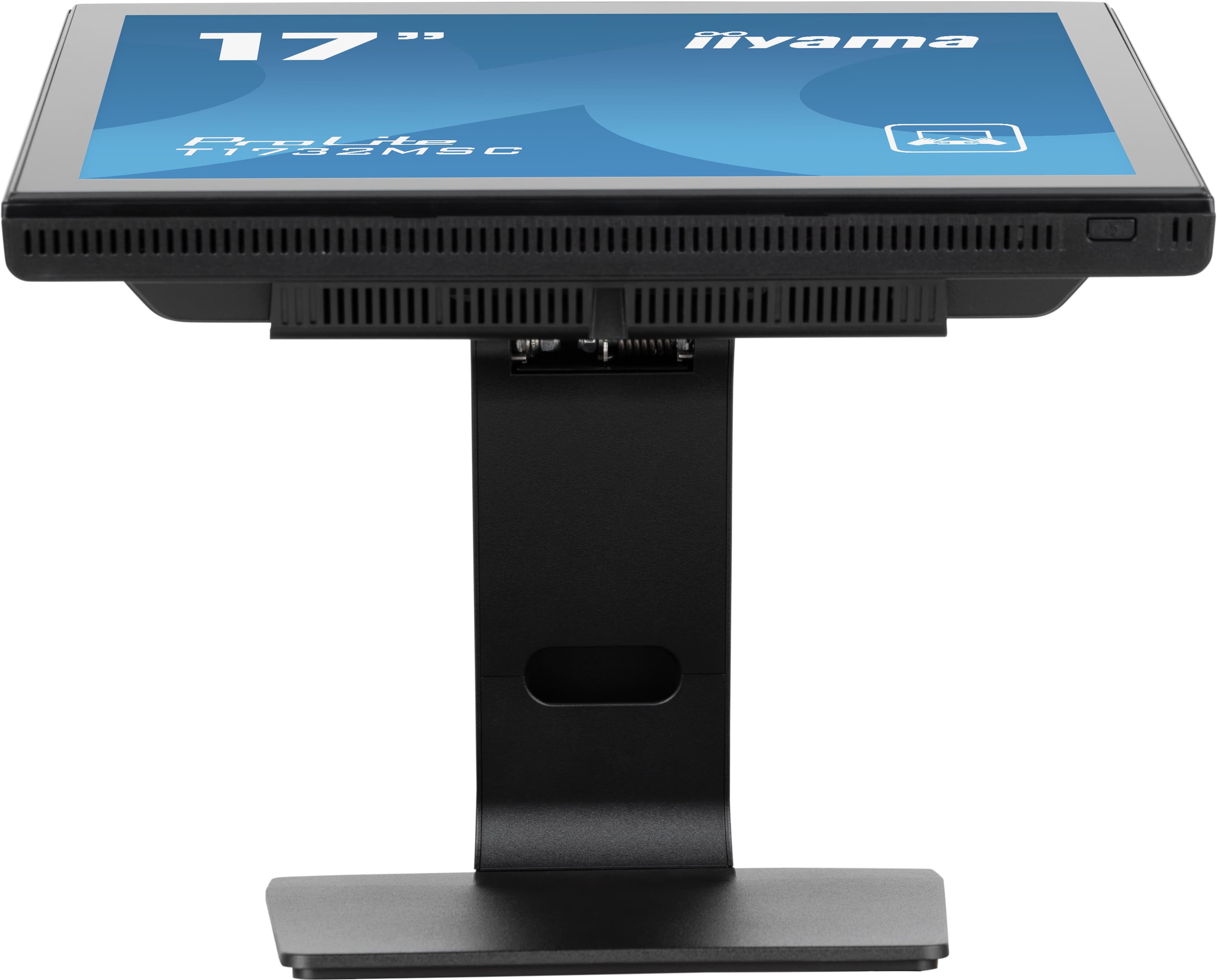

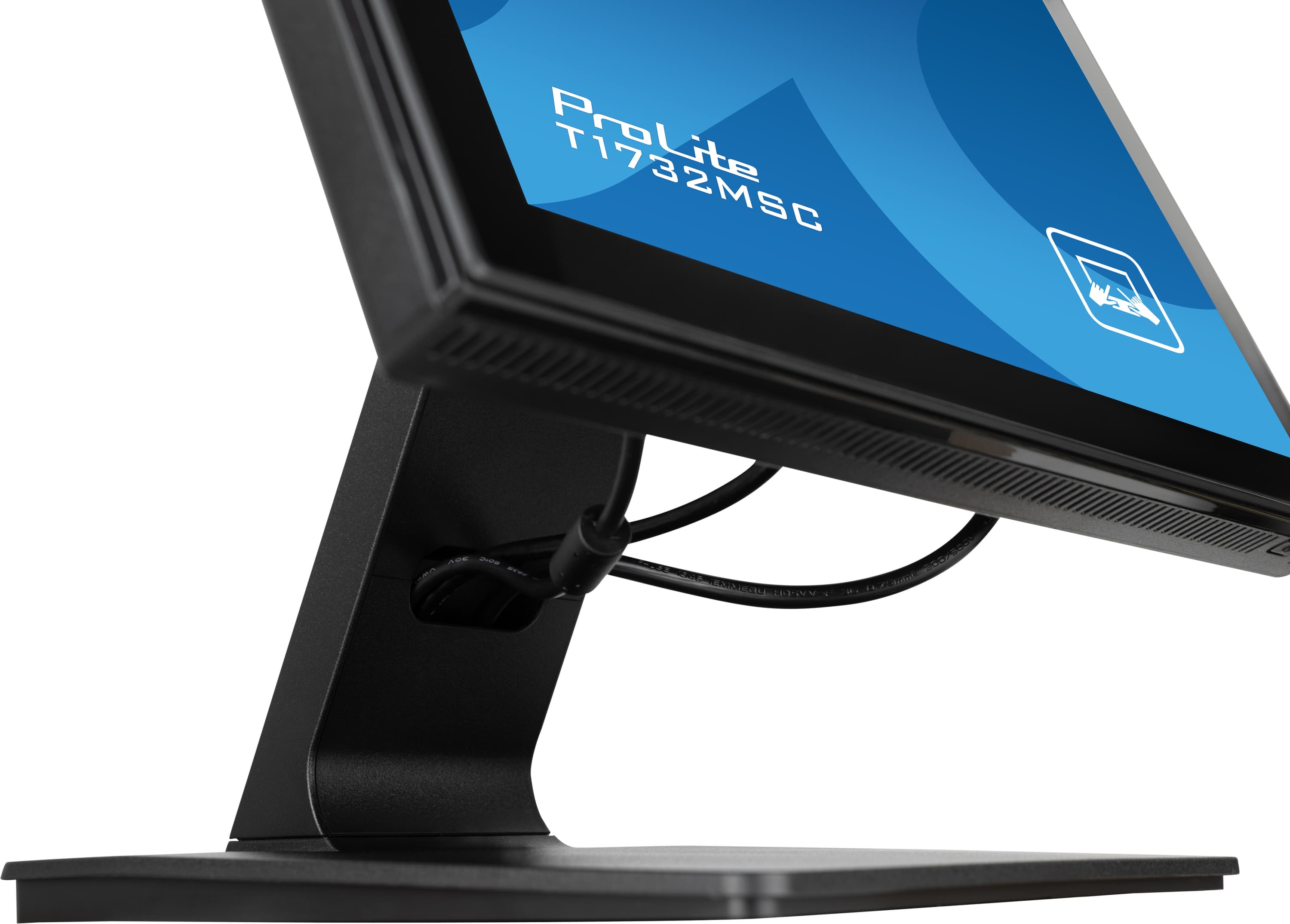

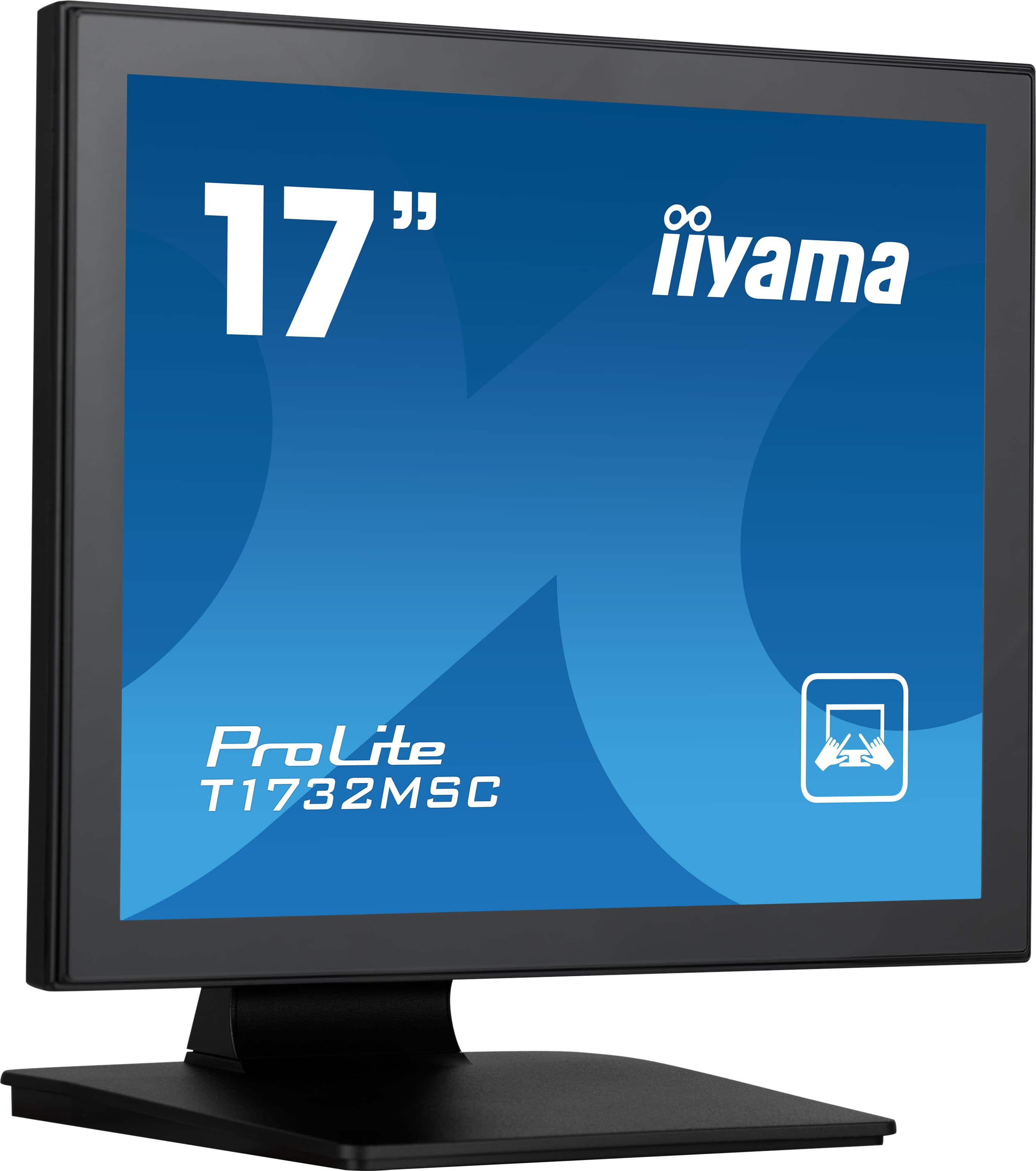

iiyama Monitor ProLite T1732MSC-B1S 17 ", 1280 x 1024 (SXGA)1/22
iiyama

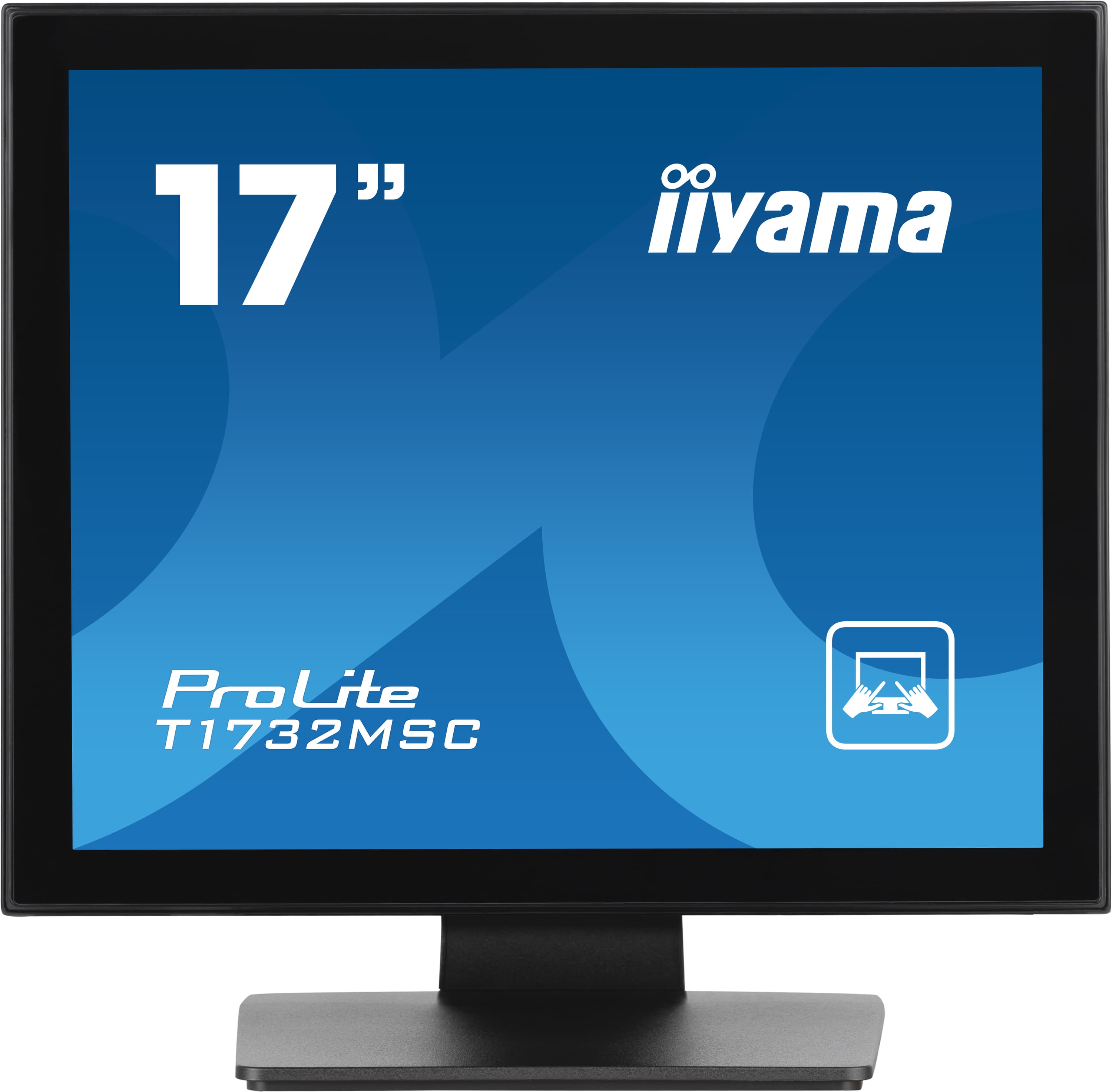

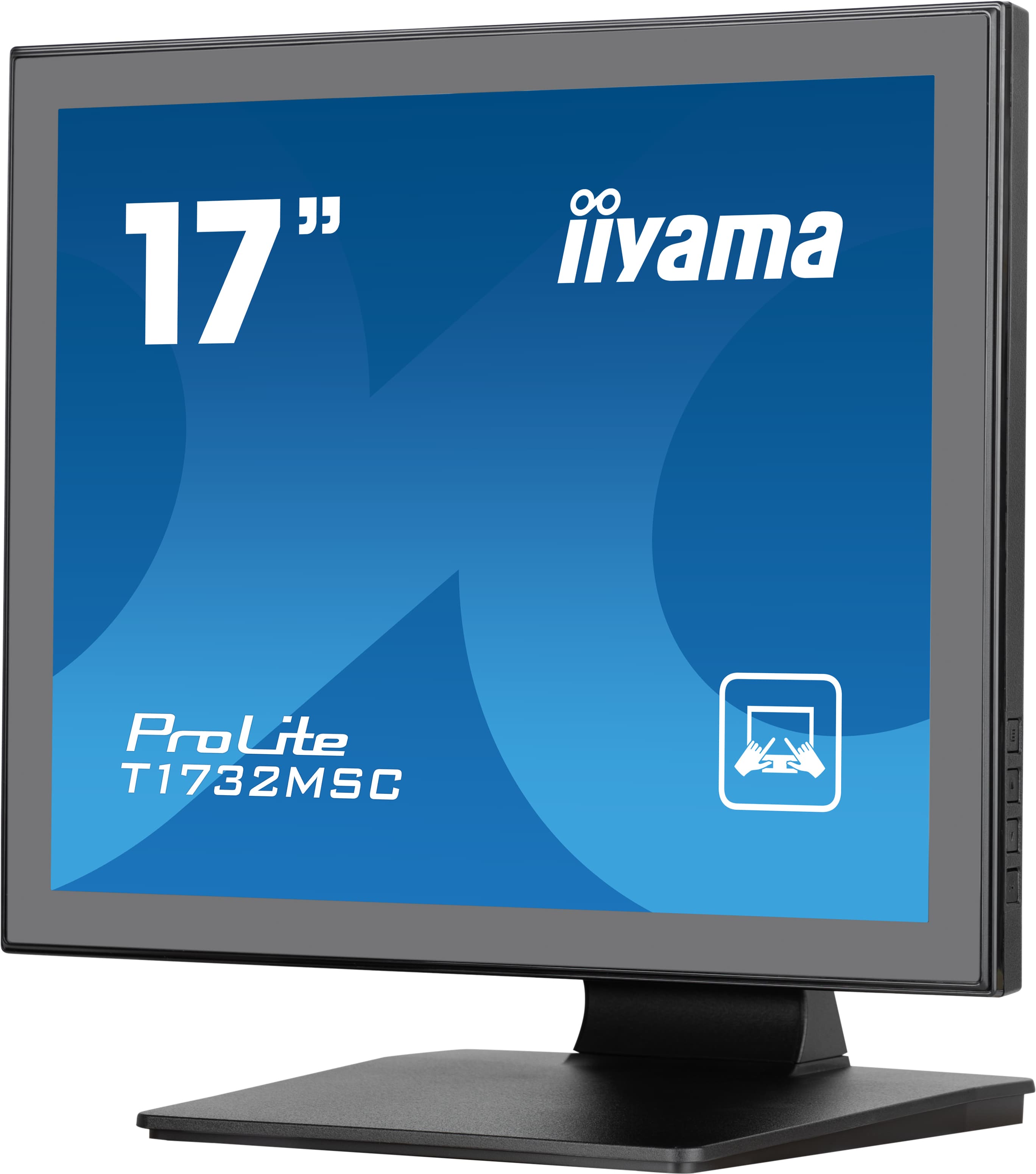

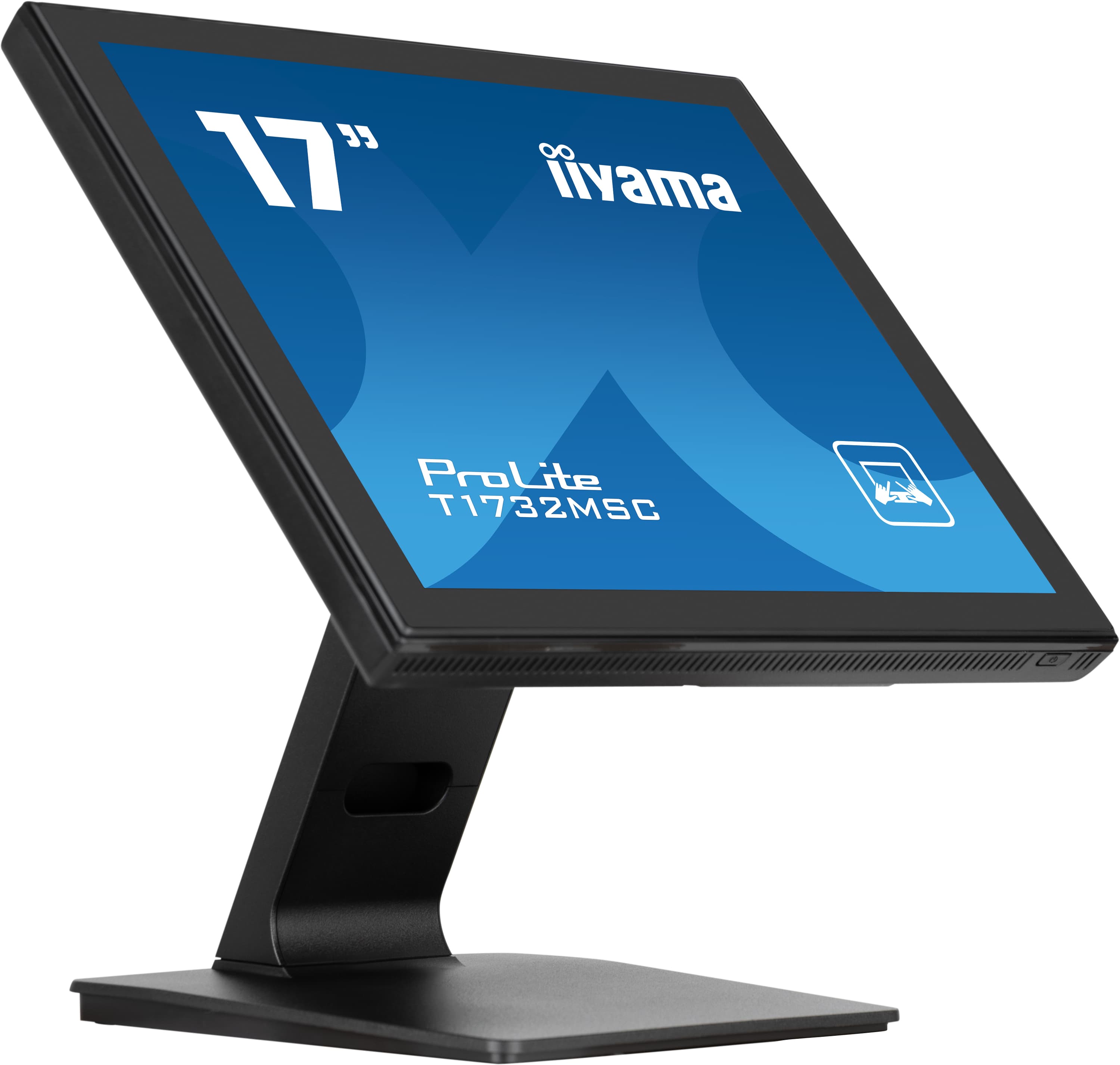

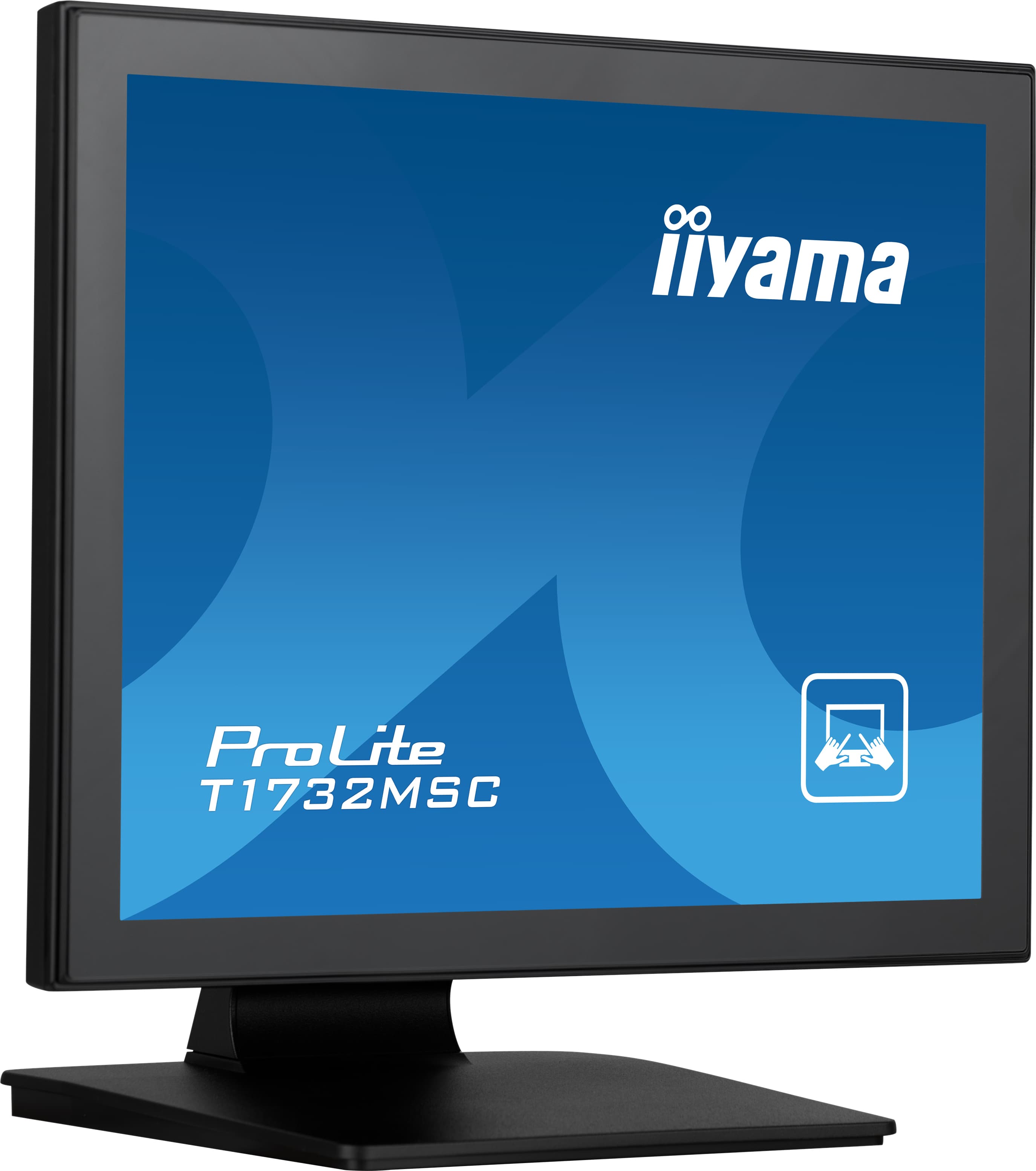

iiyama ProLite computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Table Black

Part number
1608319
MPN
T1732MSC-B1S
EAN
4948570122141

iiyama ProLite , 43.2 cm (17"), 1280 x 1024 pixels, SXGA, LED, 5 ms, Black

Resolution1280 x 1024 (SXGA)
Video-AnschlüsseDVI, VGA
Application areaConsumer
ErgonomieNeigbar
CurvedNo
Display diagonal43.2 cm (17")
Native aspect ratio5:4
Display technologyLED
All 91 specifications

Description

iiyama ProLite . Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black

Documents

Specifications

Resolution1280 x 1024 (SXGA)
Video-AnschlüsseDVI, VGA
Application areaConsumer
ErgonomieNeigbar
CurvedNo

Display

Display diagonal43.2 cm (17")
Native aspect ratio5:4
Display technologyLED
TouchscreenYes
HD typeSXGA
Panel typeTN
Response time5 ms
Screen shapeFlat
Contrast ratio (typical)1000:1
Display number of colours16.7 million colours
Touchscreen typeTable
Touchscreen technologyProjected capacitive system
Touch technologyMulti-touch
Number of simultaneous touchpoints10
Display brightness (typical)250 cd/m²
Aspect ratio5:4
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range31 - 80 kHz
Viewable size, horizontal33.8 cm
Viewable size, vertical27.1 cm
Display diagonal (metric)43 cm

Other features

Brightness225 cd/m²
International Protection (IP) codeIP54
Compatible operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Placement supportedIndoor
Brightness225 cd/m²
Built-in processorNo
Active display area (W x H)338 x 270.5 mm
Weight4.9 kg
Height378 mm
Width387 mm
Depth240 mm
Compliance certificatesCE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
User controlscontrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Touch methodstylus, finger, glove (latex)
Control panelMenu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power

Performance

NVIDIA G-SYNCNo
AMD FreeSyncNo

Multimedia

Built-in speaker(s)Yes
Built-in cameraNo
Number of speakers2
RMS rated power2 W

Design

Market positioningBusiness
Product colourBlack
Front bezel colourBlack

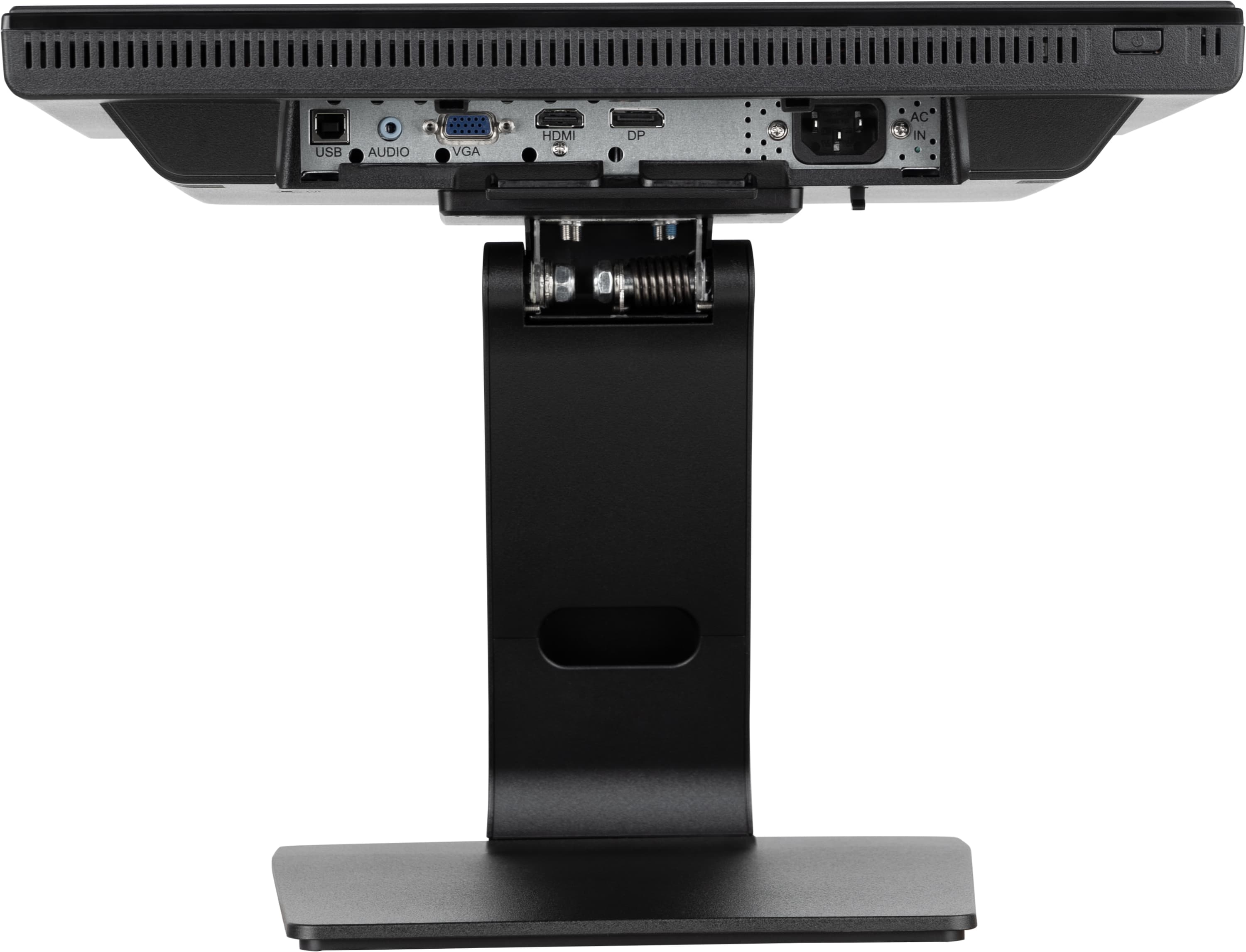

Ports & interfaces

Built-in USB hubNo
HDMIYes
Headphone outNo
USB Touch portYes
VGA (D-Sub) ports quantity1
DVI portNo
HDMI ports quantity1
DisplayPorts quantity1
Audio inputYes
HDCPYes

Network

Wi-FiNo
Ethernet LANNo

Ergonomics

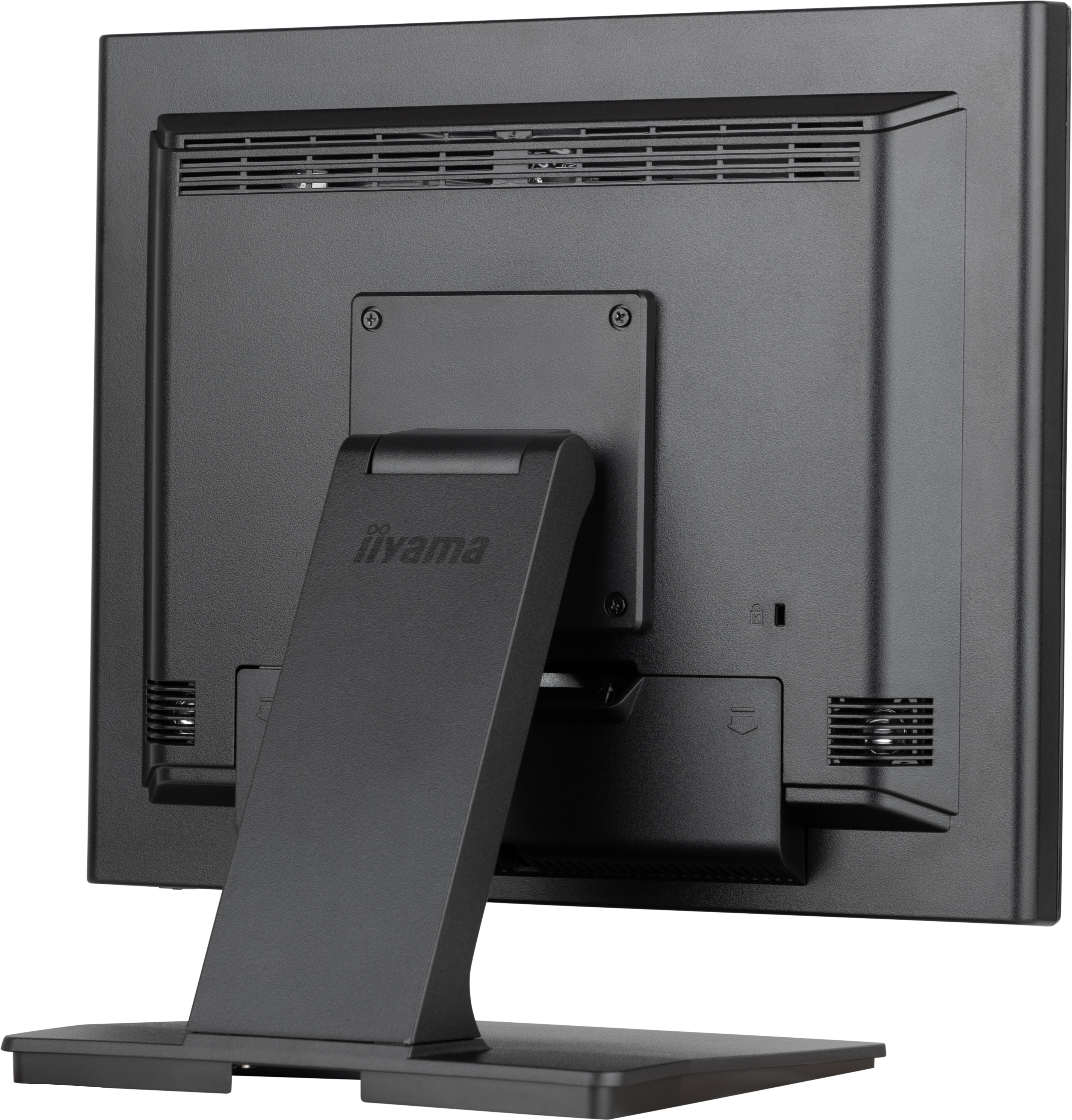

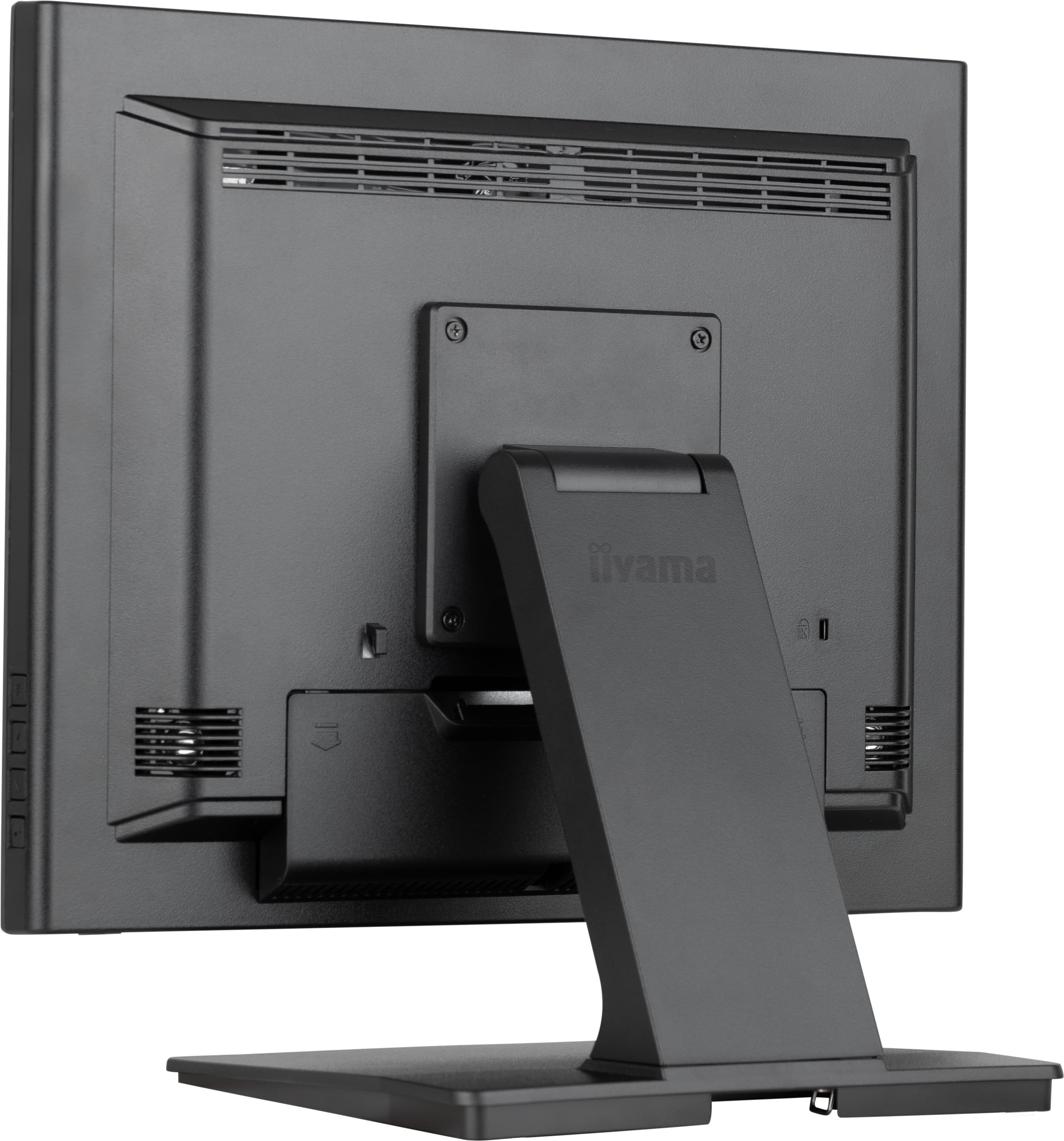

VESA mountingYes
Cable lock slotYes
Height adjustmentNo
Panel mounting interface100 x 100 mm
Cable managementYes
Cable lock slot typeKensington

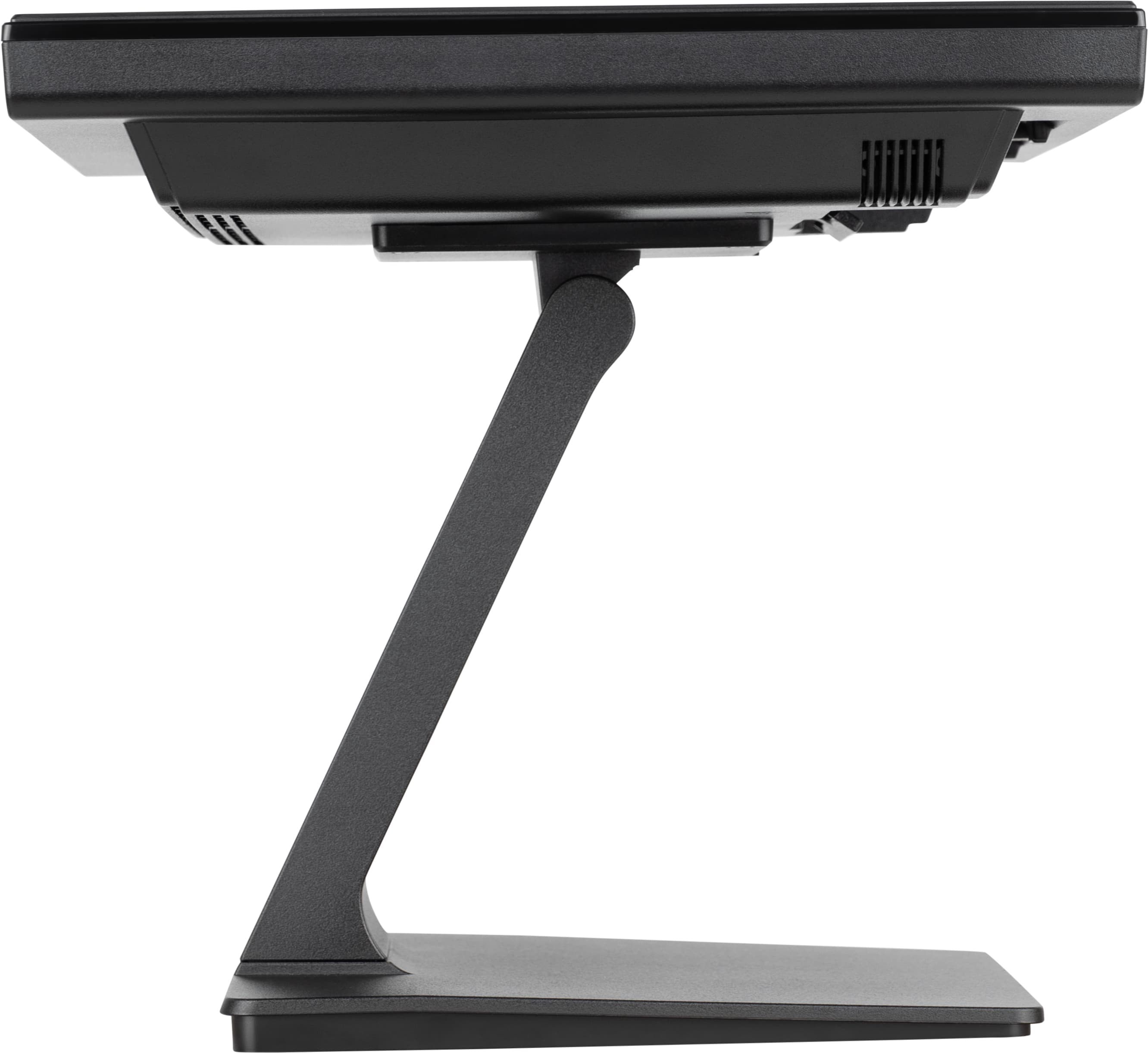

Tilt adjustmentYes
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesTraditional Chinese, German, English, Spanish, French, Italian, Japanese

Power

Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours11.9 kWh
Energy consumption (HDR) per 1000 hours0 kWh
Power consumption (typical)20 W
Power consumption (standby)1.5 W
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power supply typeInternal

Weight & dimensions

Width (with stand)387 mm
Depth (with stand)240 mm
Height (with stand)378 mm
Weight (with stand)4.9 kg

Packaging content

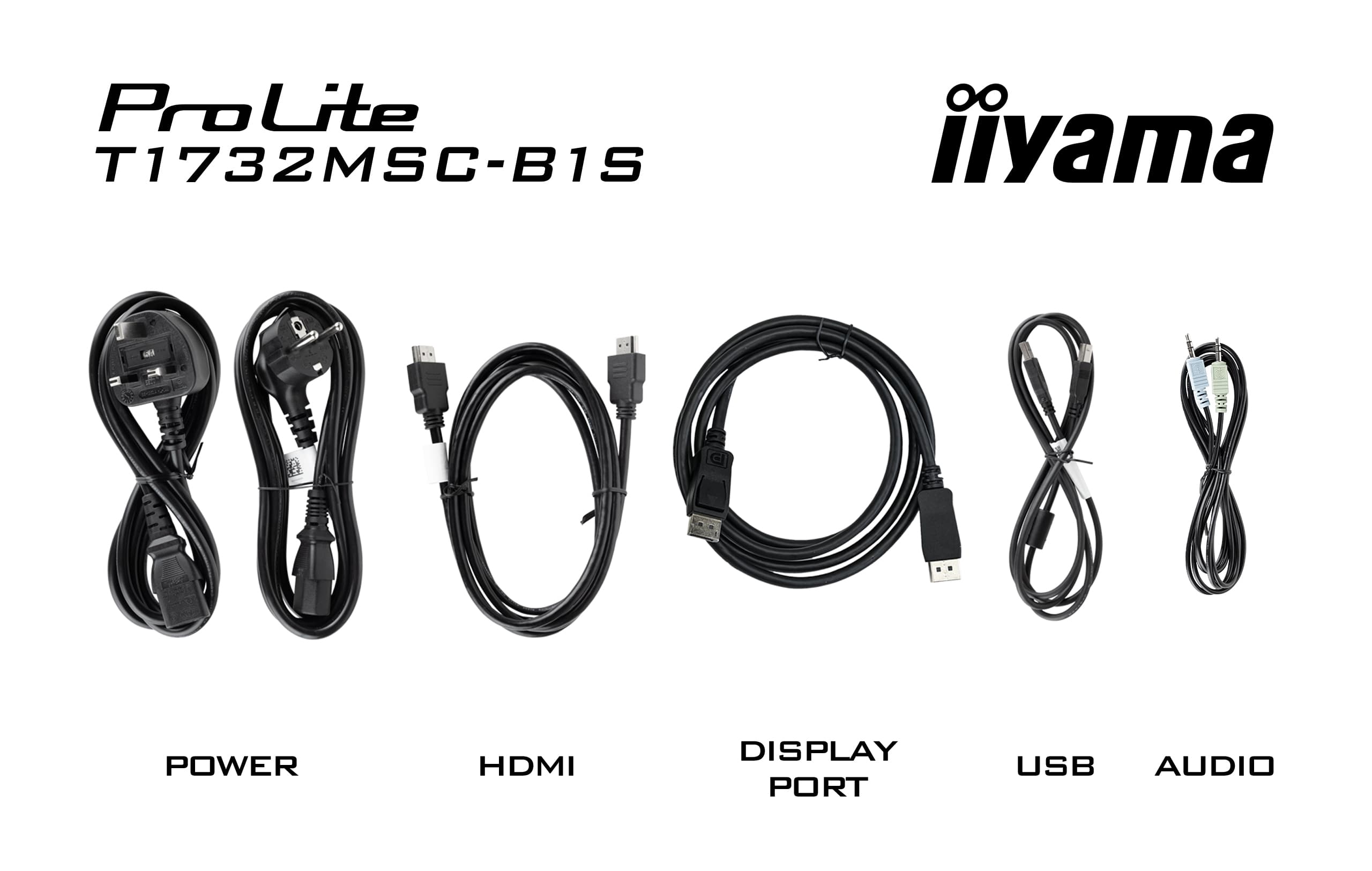

Cables includedAC, USB, HDMI, DisplayPort, Audio
Quick start guideYes

Sustainability

Sustainability certificatesErP
Weight6.74 kg
