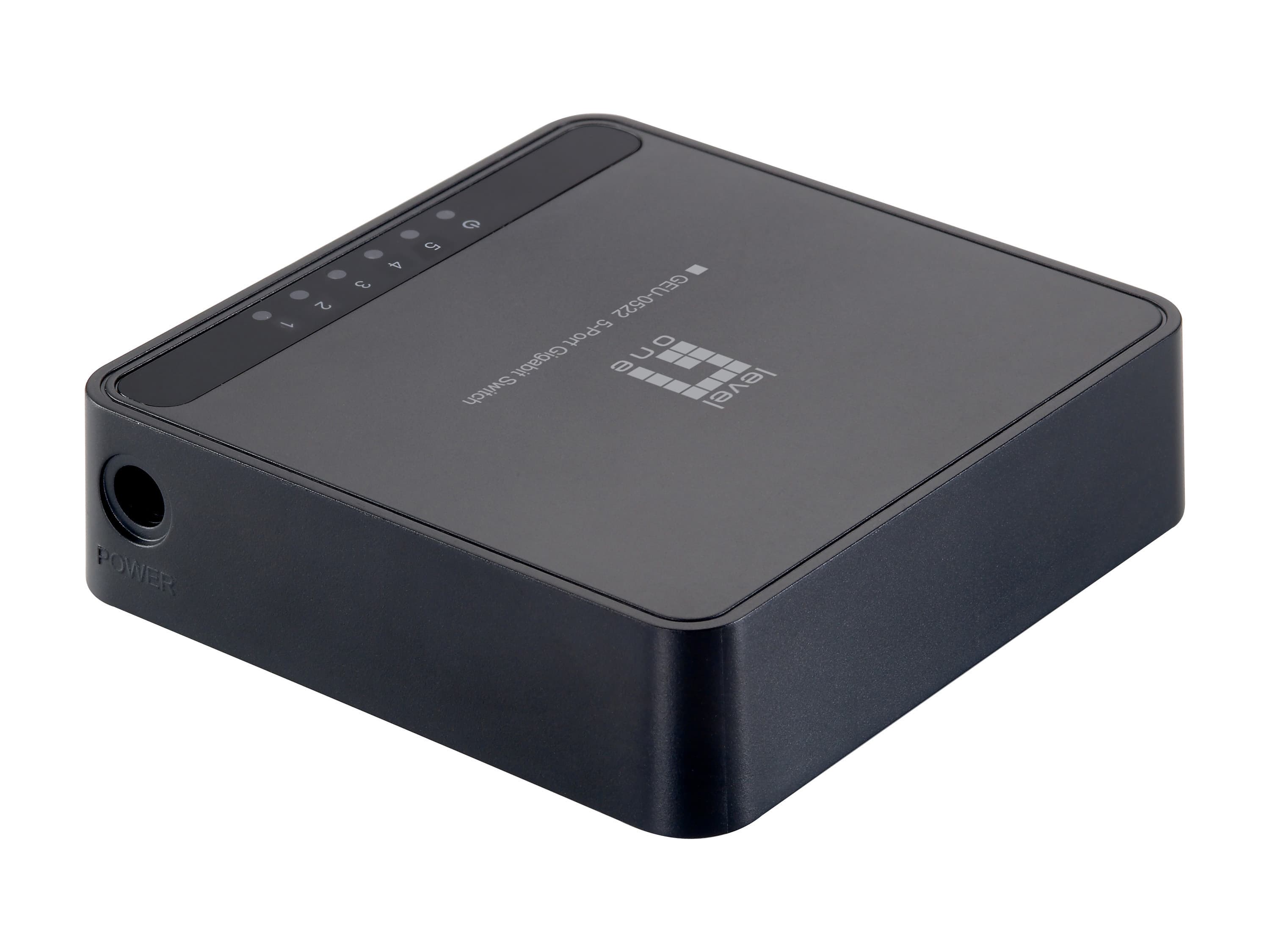

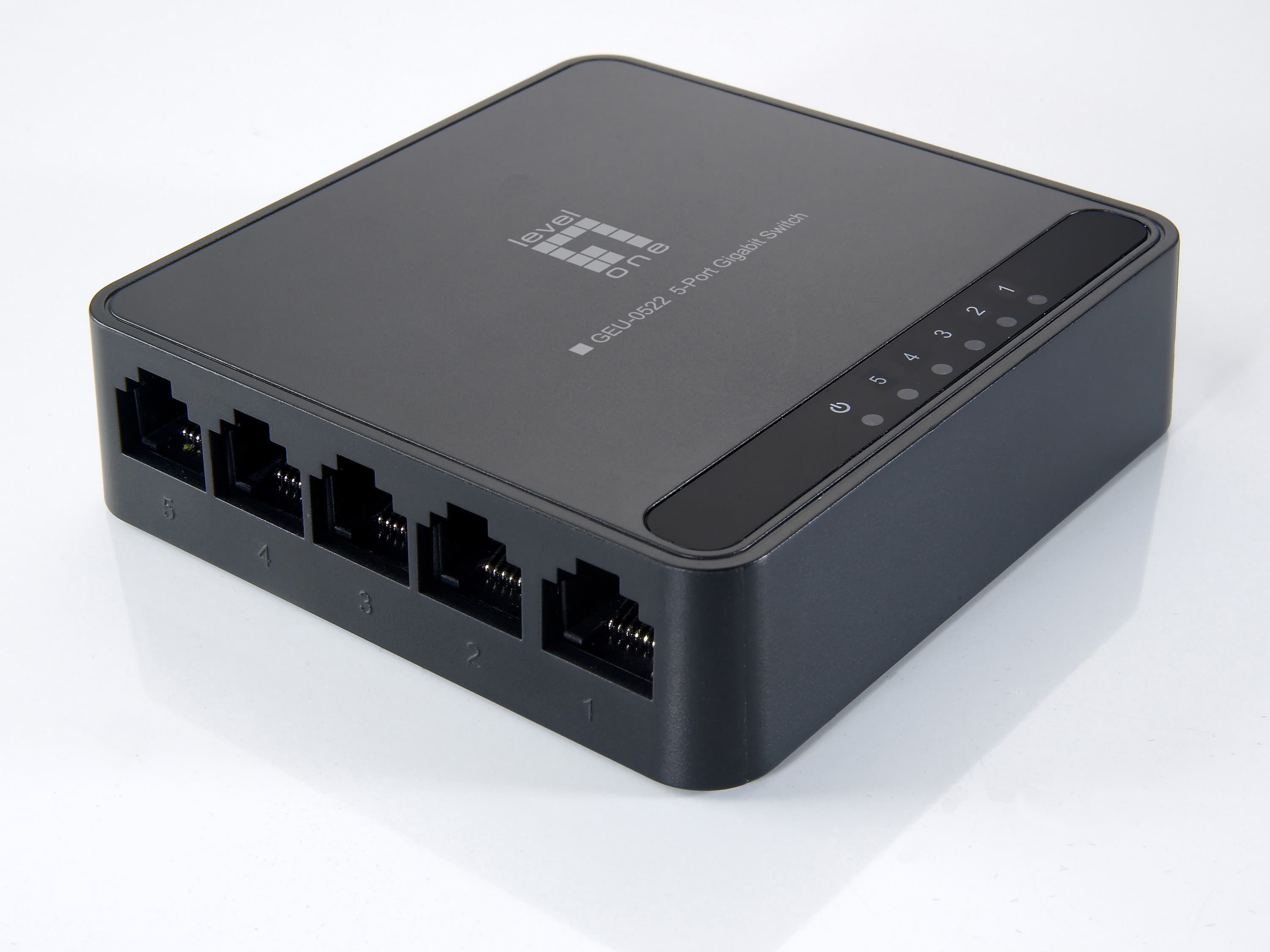

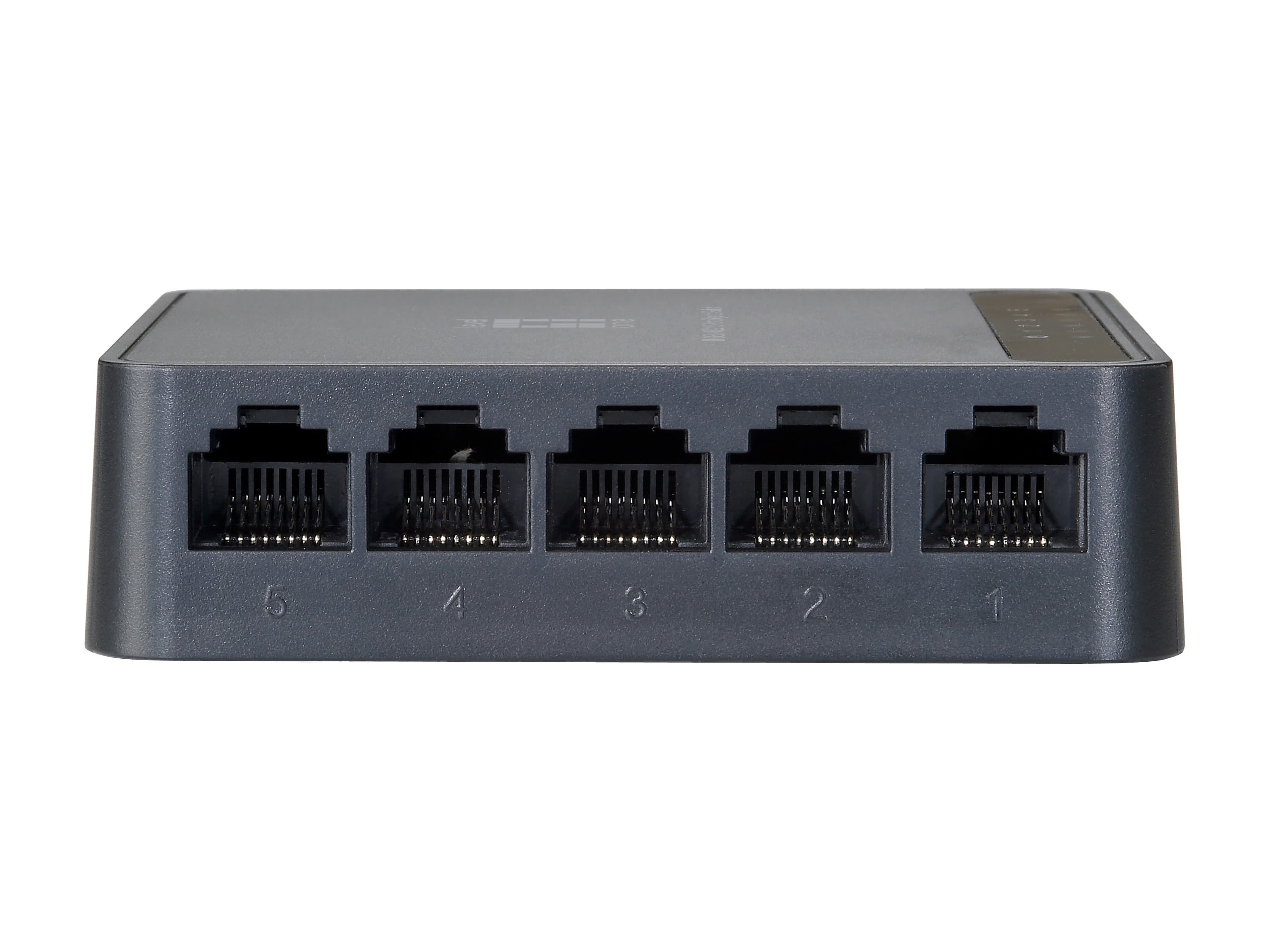

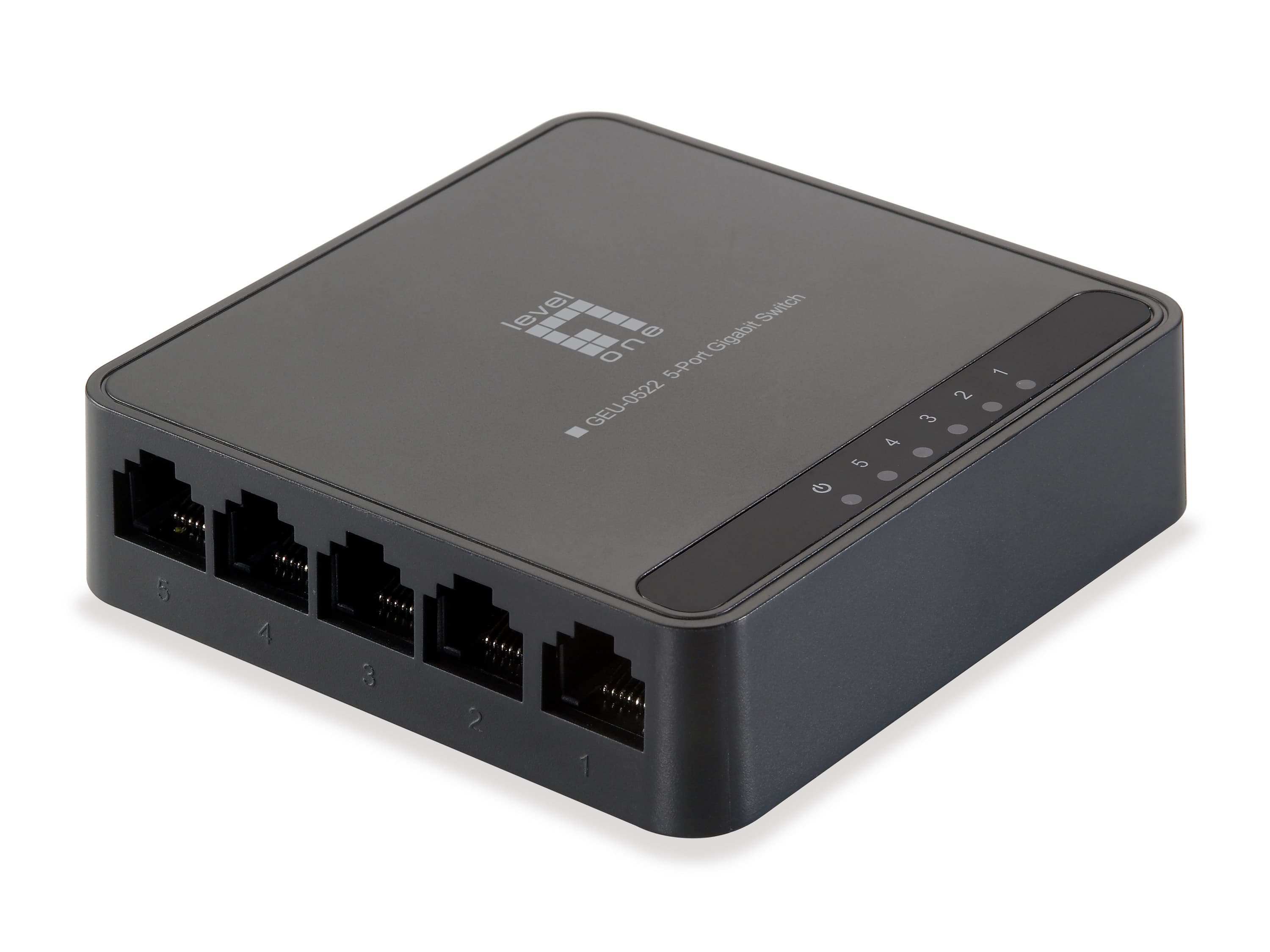

LevelOne 5-Port Gigabit Switch

Part number: 723556
MPN: 53015903
EAN: 4015867229958

LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Description

LevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Documents

BrochurePDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes

Data transmission

MAC address table	1000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488100 pps
Packet forwarding rate (100 Mbps)	148810 pps
Packet forwarding rate (10 Mbps)	14880 pps

Design

Stackable	No
Product colour	Black
LED indicators	Activity, Link, Power

Performance

Buffer size	64 KB

Power

Input current	0.6 A
Input voltage	5 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	86 mm
Depth	23 mm
Height	89 mm
Weight	71.4 g

Packaging content

Quick start guide	Yes

Packaging data

AC adapter included	Yes
Package type	Box
Package width	95 mm
Package depth	82 mm
Package height	98 mm
Package weight	184 g

Certificates

Certification	CE, FCC

Logistics data

Country of origin	China
Master (outer) case width	495 mm
Master (outer) case length	191 mm
Master (outer) case height	516 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	10.2 kg
Products per master (outer) case	50 pc(s)
Weight	0.19 kg
