Exsys
Exsys PoE Injector EX-6007PoE
PoE Injector · 10/100/1000 Mbit/s · Max. Performance PoE per port: 30 W
7 in stock
CHF 120.58
CHF 130.35 incl. VAT
1/6LevelOne
All 32 specifications

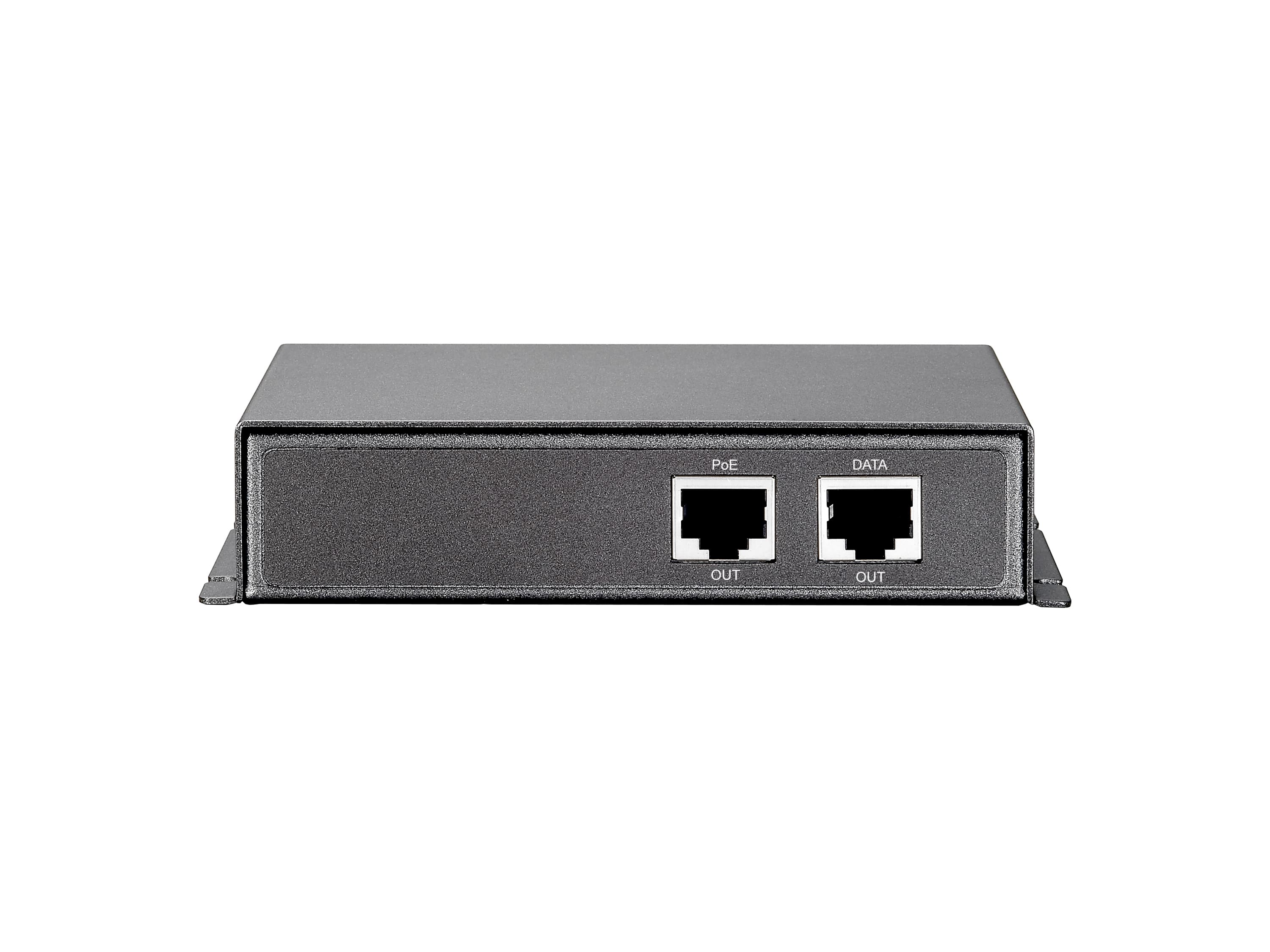

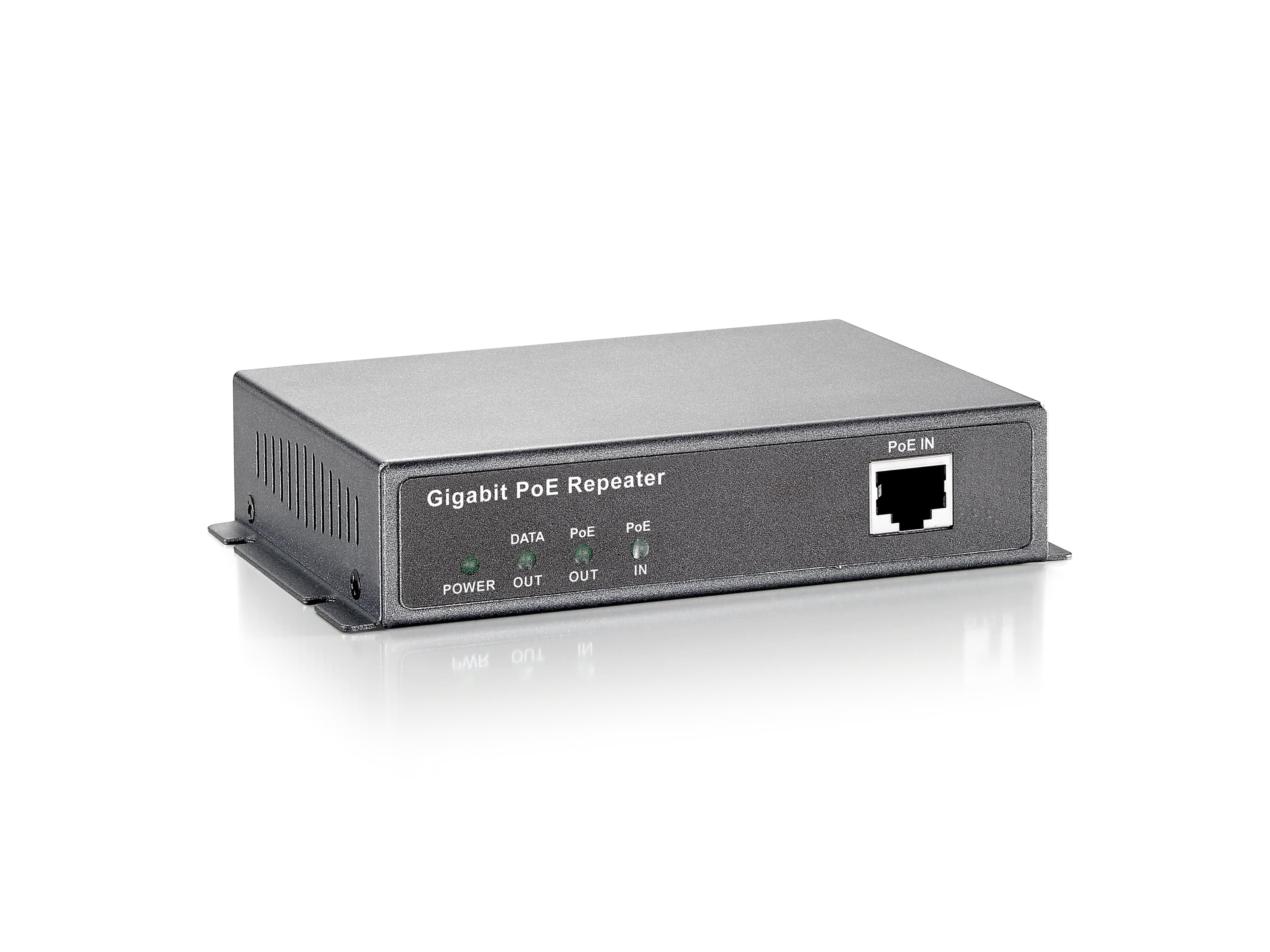

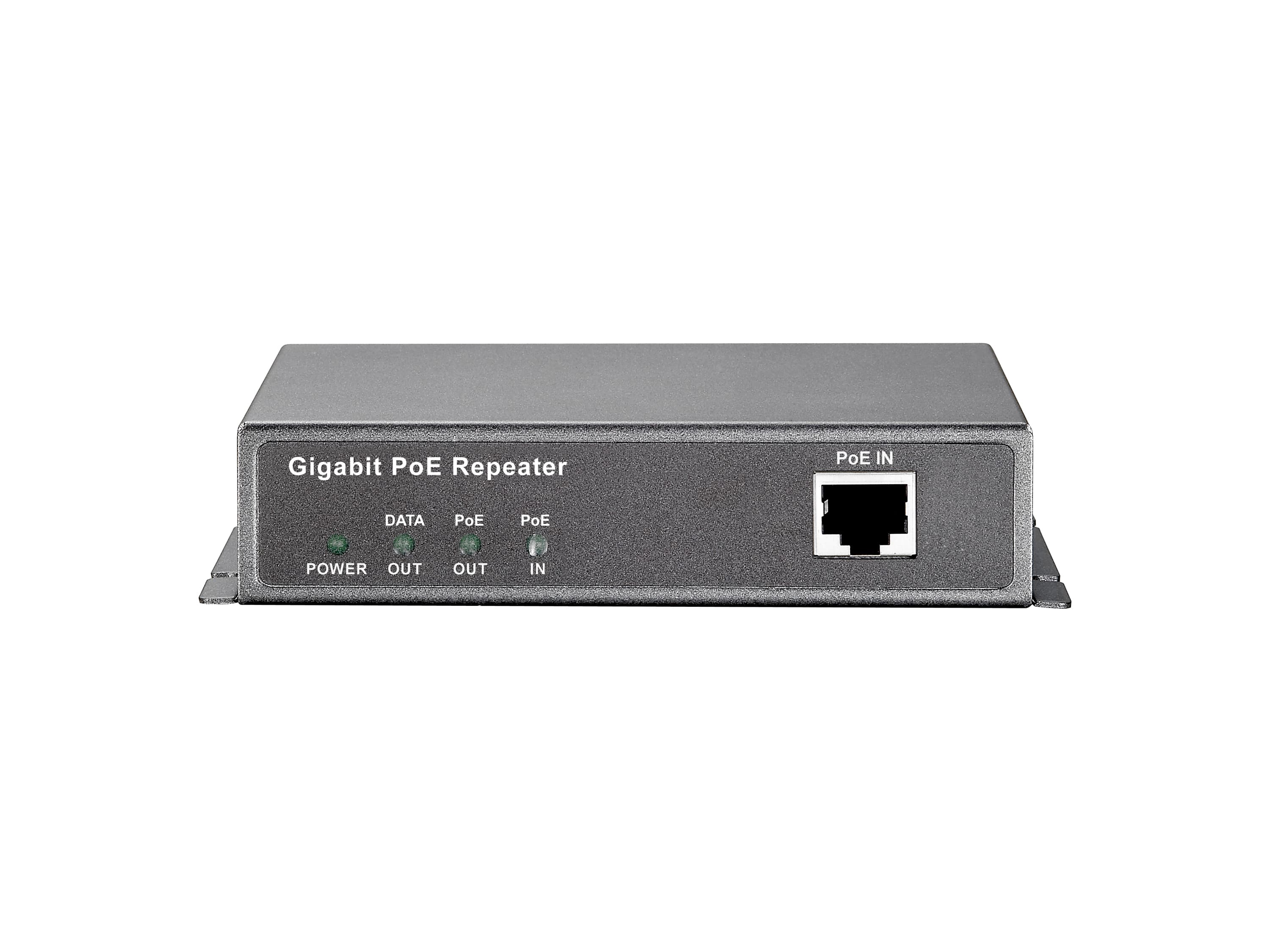

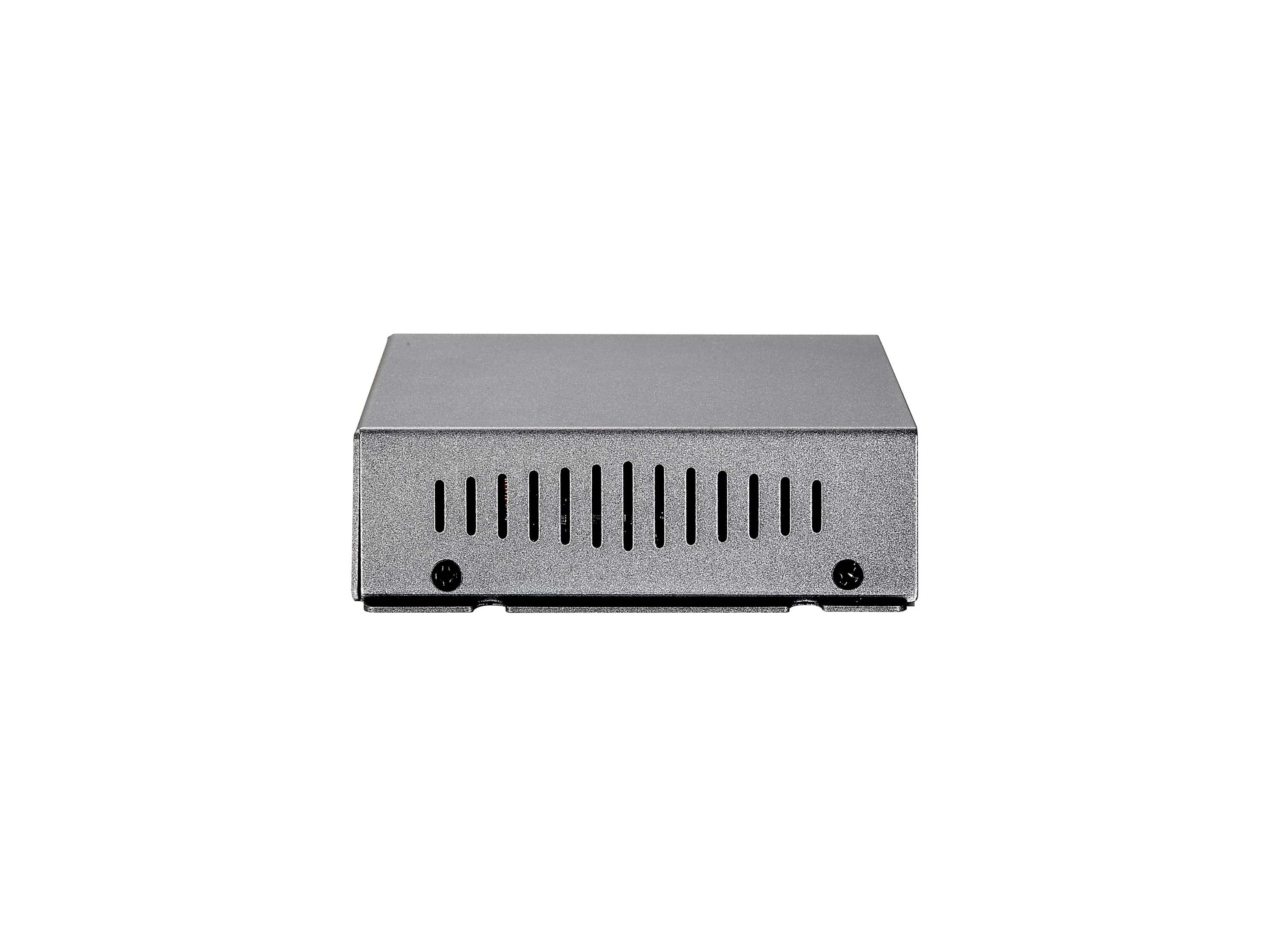

LevelOne Gigabit PoE Repeater, Cascadable
- Part number
- 199726
- MPN
- 552042
- EAN
- 4015867174920
LevelOne Gigabit PoE Repeater, Cascadable, Network repeater, 100 m, 1000 Mbit/s, Full, Half, 10/100/1000Base-T(X), IEEE 802.3af, IEEE 802.3x
| Product type | PoE Repeater |
|---|---|
| PoE Standard | 802.3af Class 0 Type 1 PoE 15.4 Watt |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| Max. Leistung PoE pro Port | 17.5 W |
| Outdoor use | No |
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
Description
LevelOne Gigabit PoE Repeater, Cascadable. Type: Network repeater, Maximum transfer distance: 100 m, Data transfer rate: 1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3af, IEEE 802.3x. Product colour: Black, LED indicators: PoE, Power, Country of origin: Taiwan. Power consumption (max): 2.5 W. Width: 90 mm, Depth: 120 mm, Height: 28 mm
Documents
Specifications
| Product type | PoE Repeater |
|---|---|
| PoE Standard | 802.3af Class 0 Type 1 PoE 15.4 Watt |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| Max. Leistung PoE pro Port | 17.5 W |
| Outdoor use | No |
Performance
| Type | Network repeater |
|---|---|
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Duplex system | Full, Half |
Network
| Cabling technology | 10/100/1000Base-T(X) |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3x |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| Power over Ethernet (PoE) ports quantity | 2 |
Design
| Product colour | Black |
|---|---|
| LED indicators | PoE, Power |
| Country of origin | Taiwan |
| Certification | FCC Rules Part 15, CE |
Power
| Power consumption (max) | 2.5 W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 90 mm |
|---|---|
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 400 g |
Packaging data
| Package width | 148 mm |
|---|---|
| Package depth | 235 mm |
| Package height | 80 mm |
| Package weight | 530 g |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Weight | 0.53 kg |
