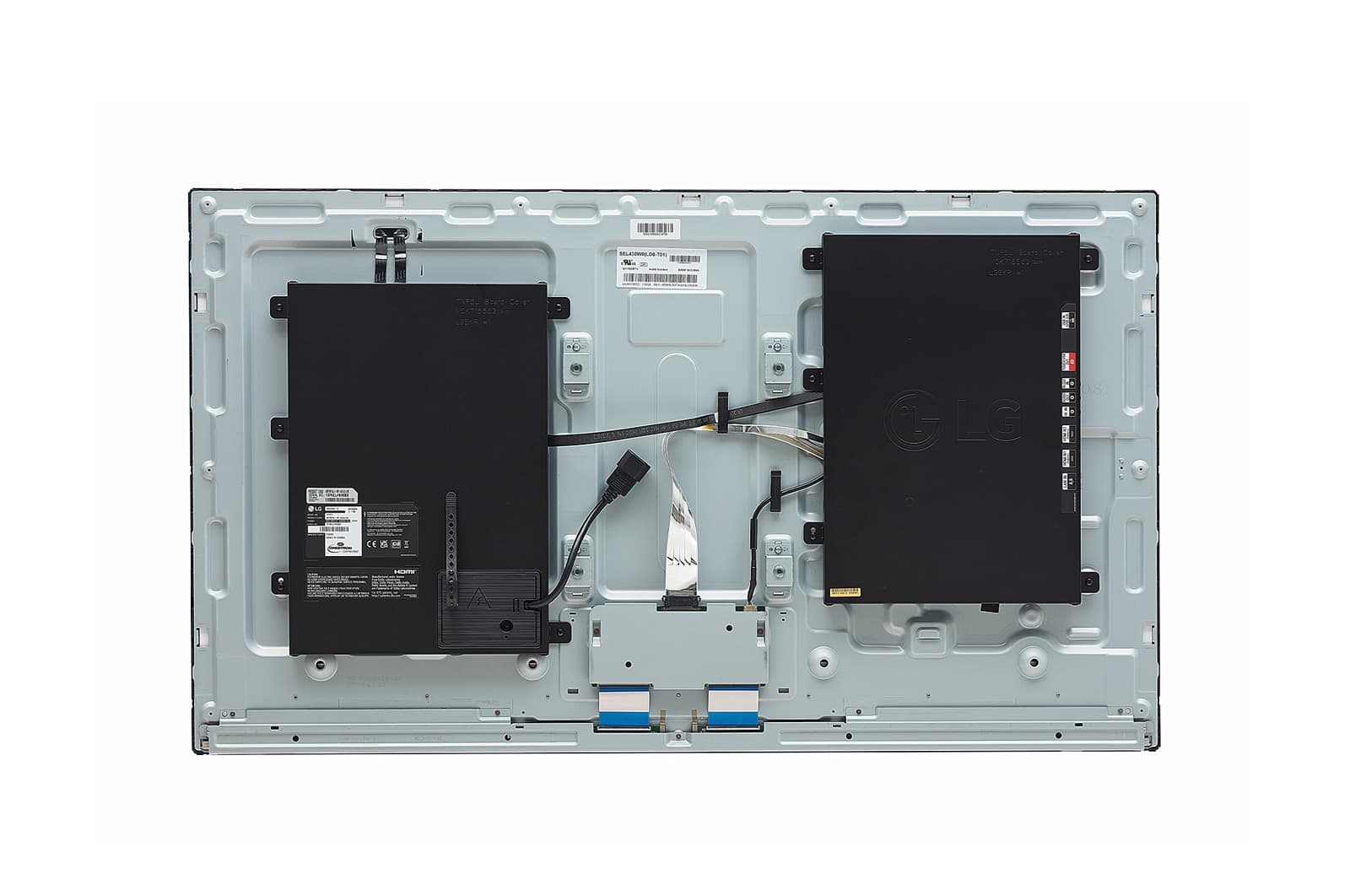

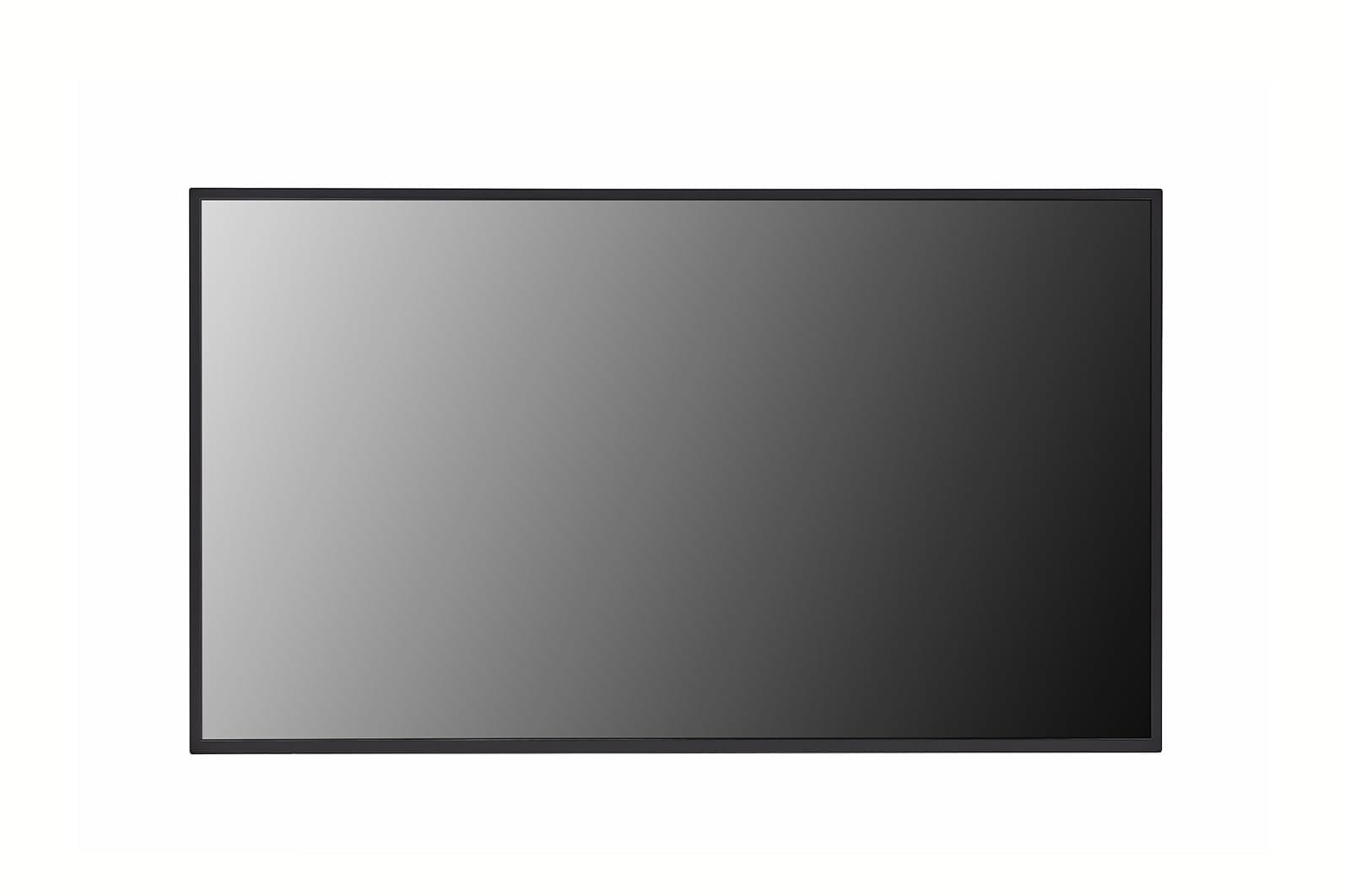

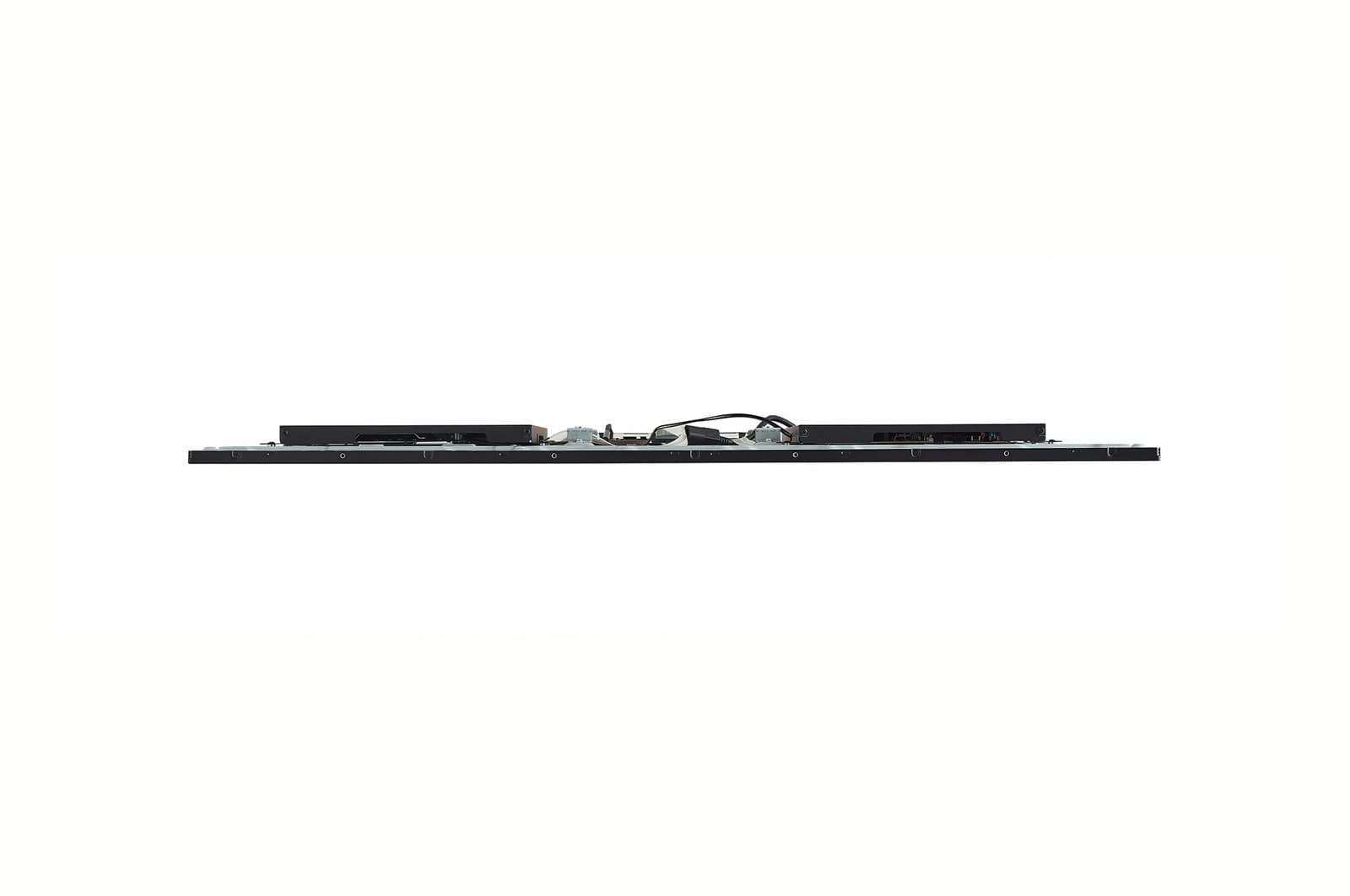

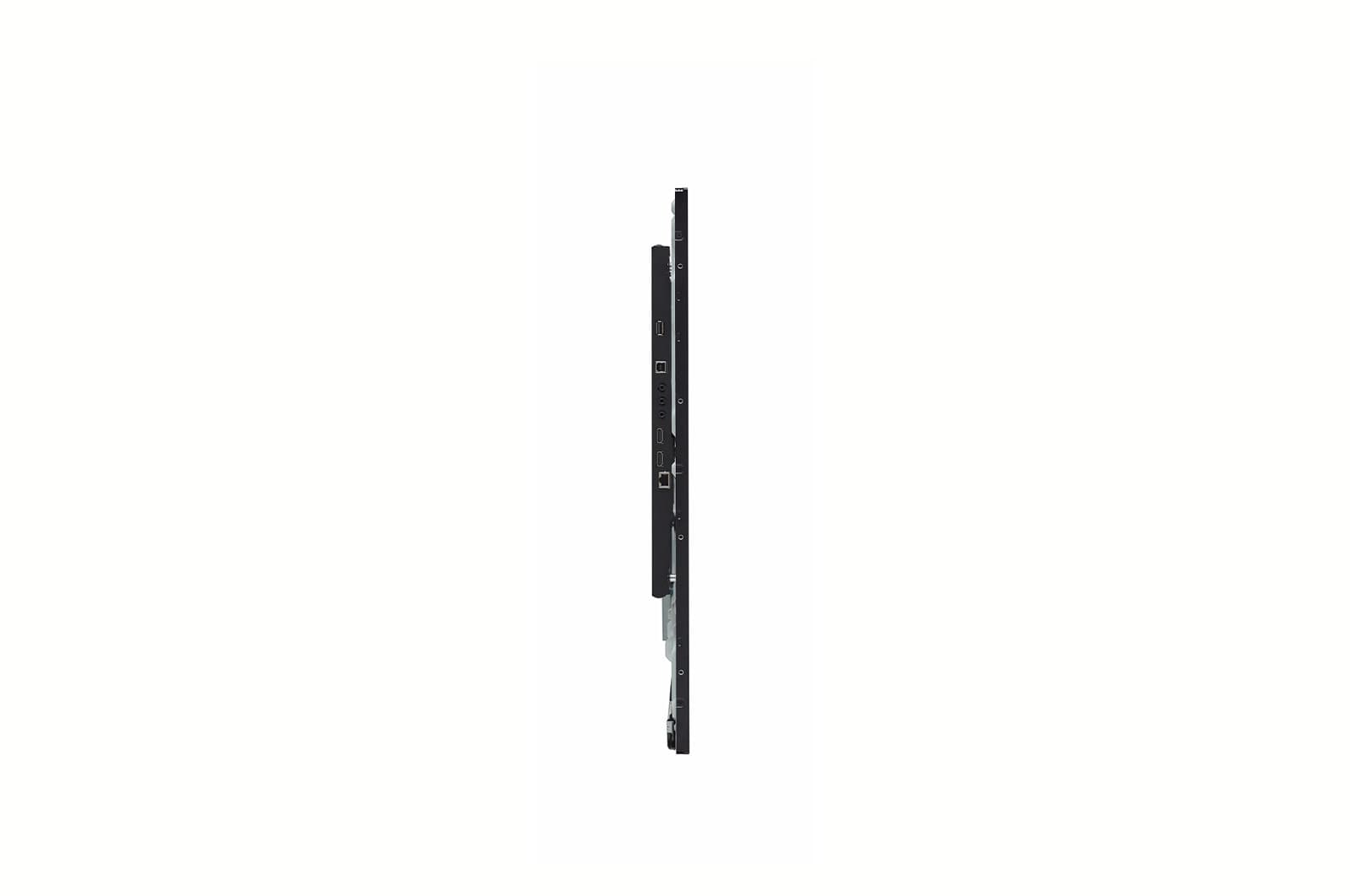

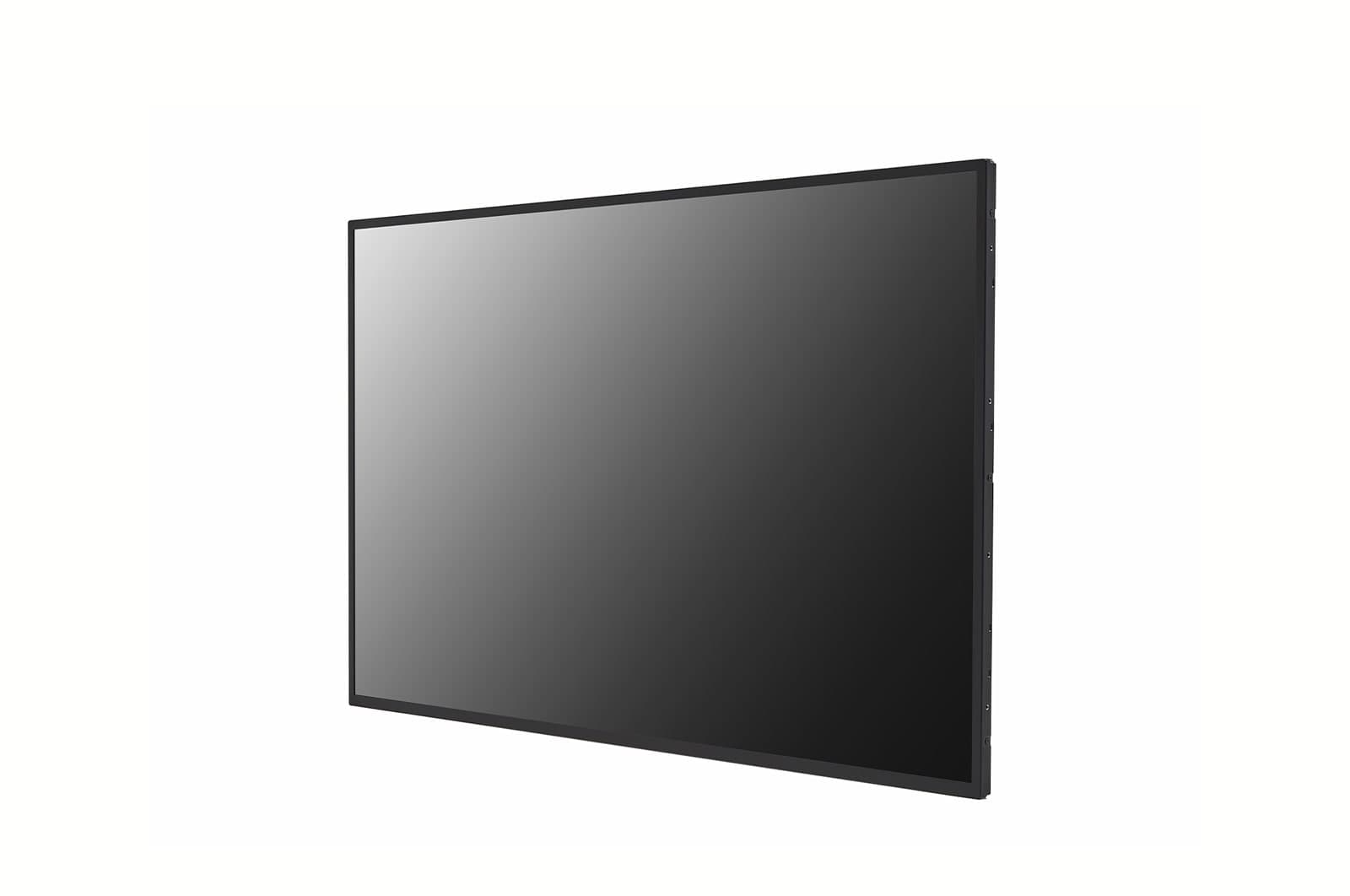

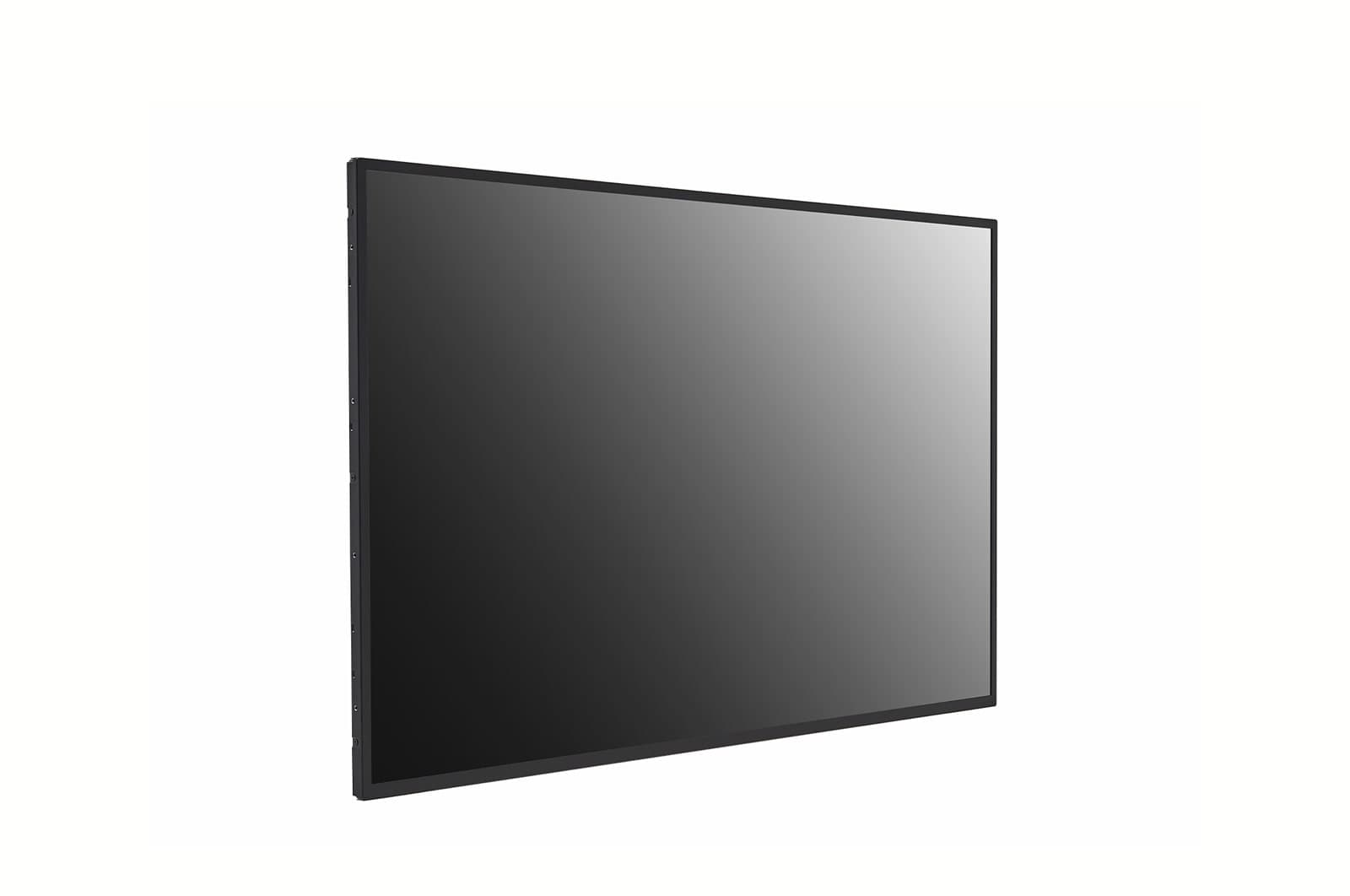

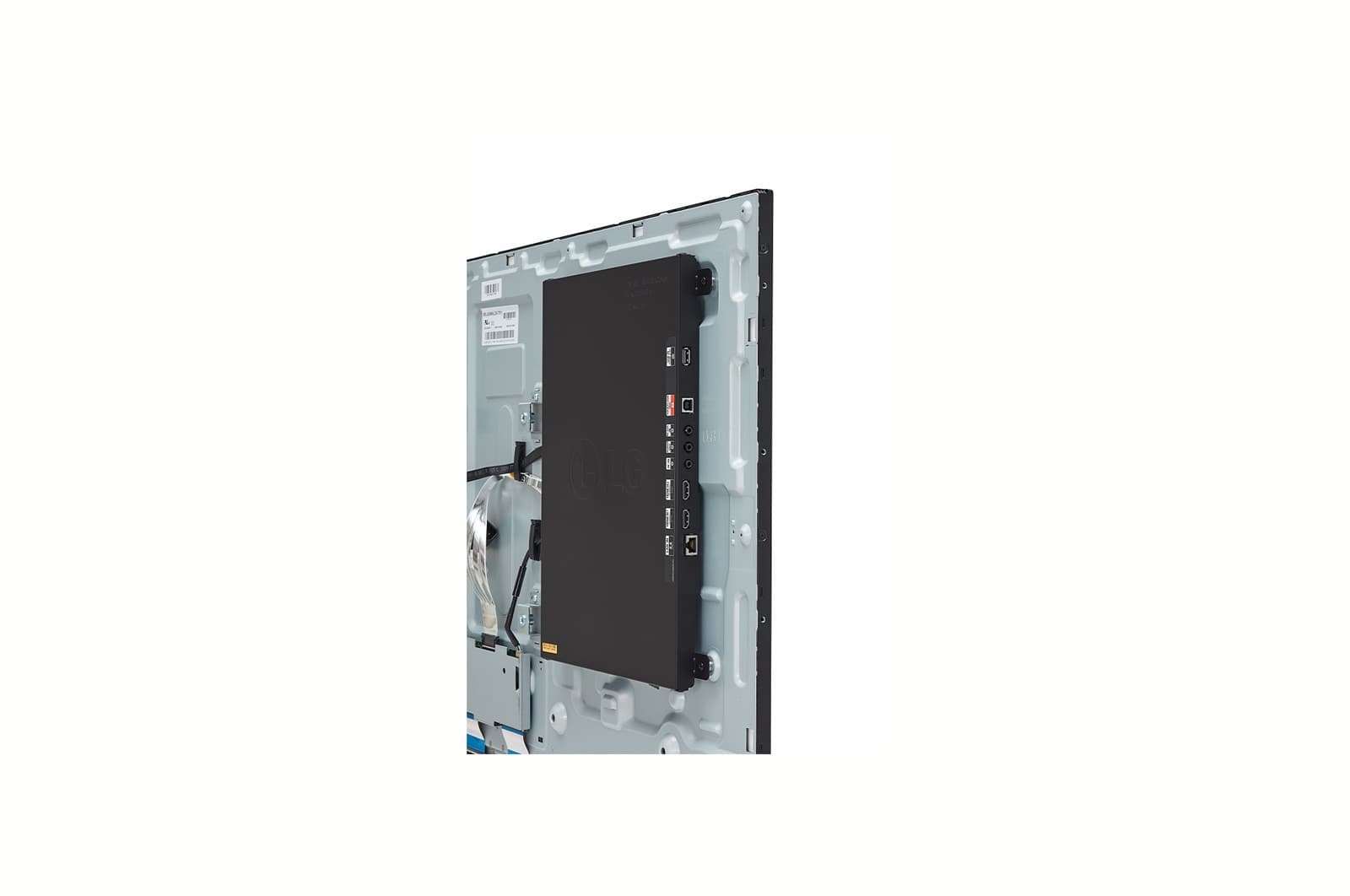

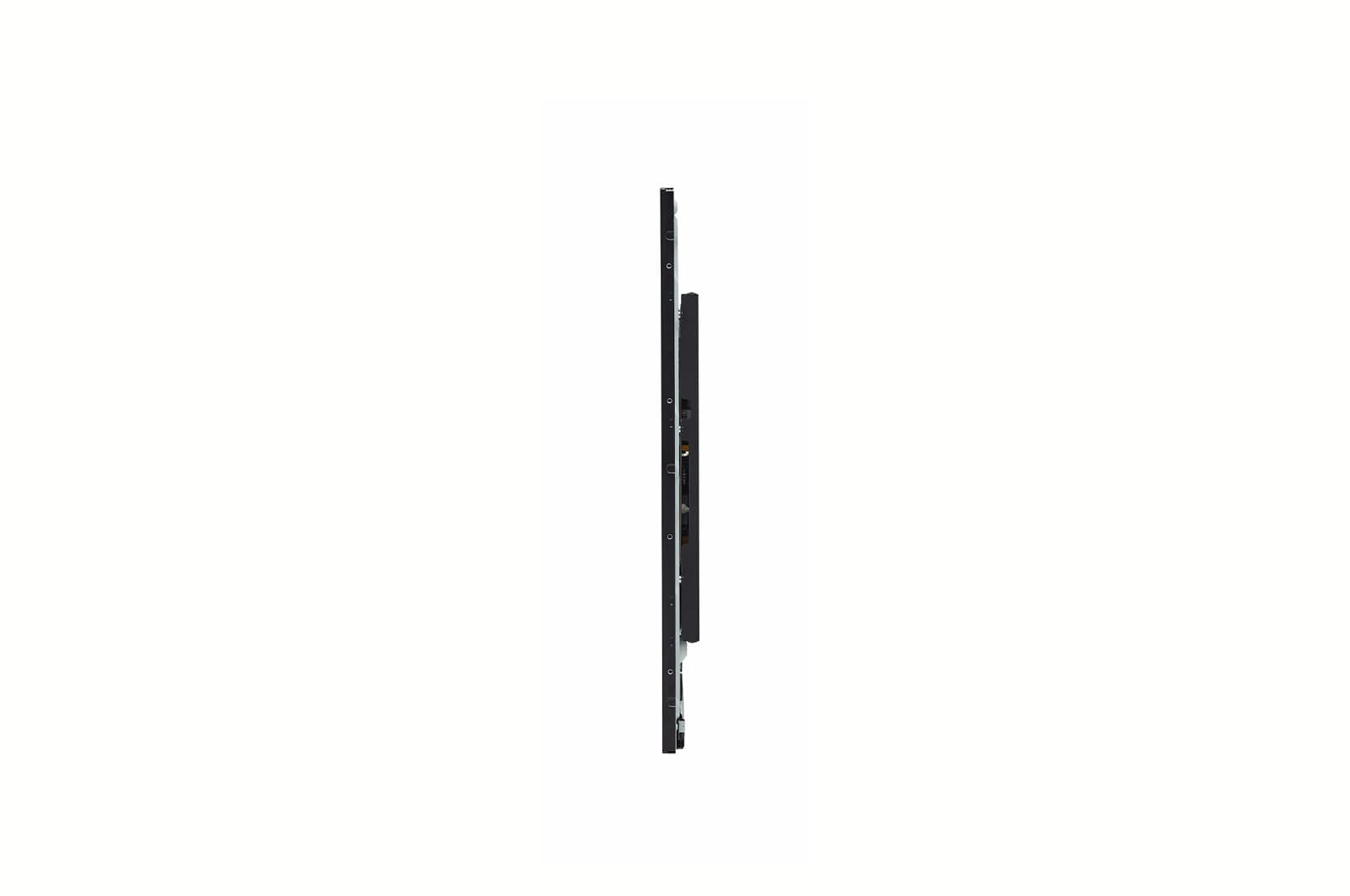

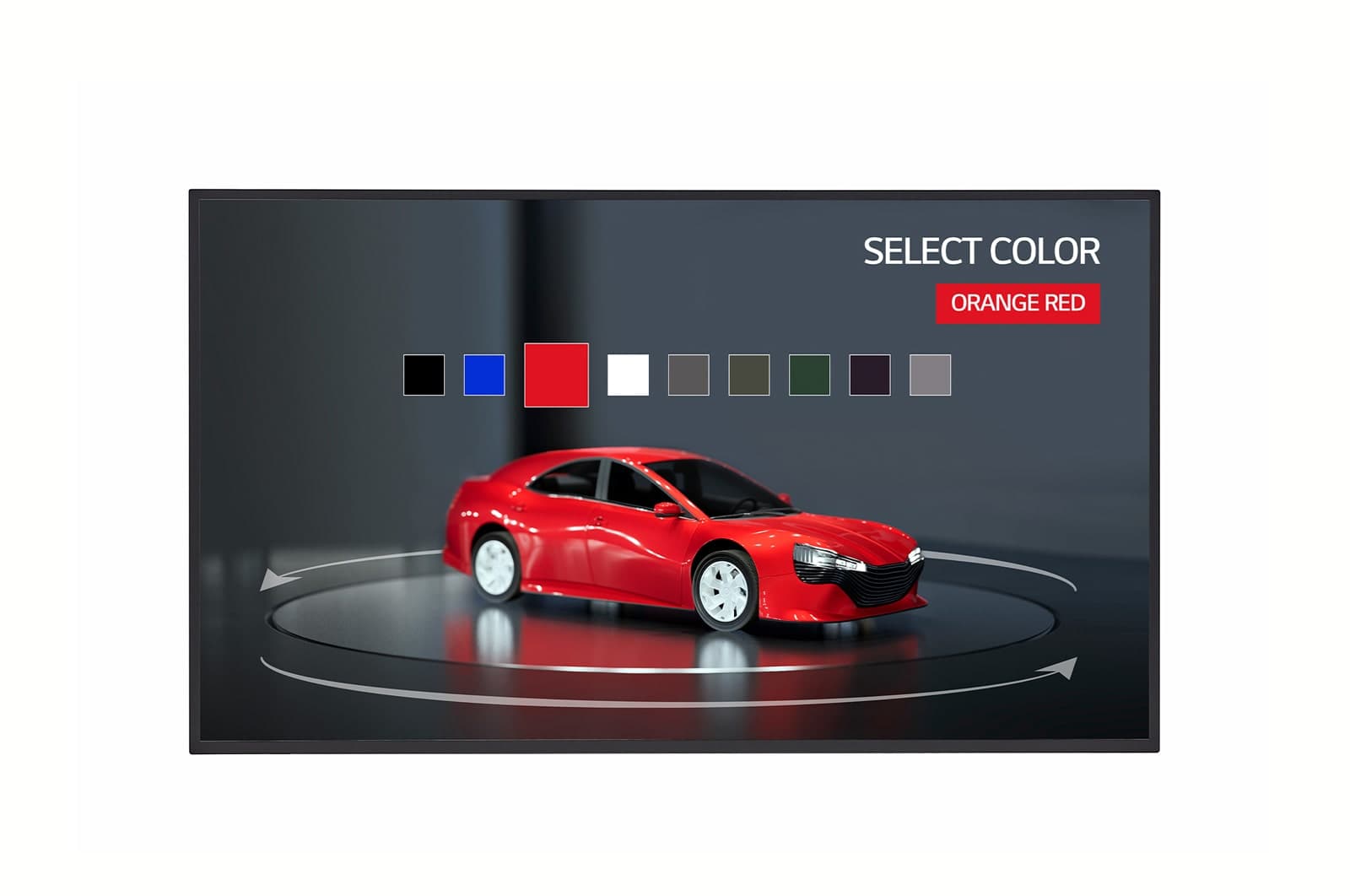

LG Touch Display 32TNF5P Multitouch 32 "1/10
LG

LG 32TNF5P-B Signage Display Interactive flat panel 81.3 cm (32") LED 500 cd/m² Full HD Black Touchscreen WebOS

Part number
1730377
MPN
32TNF5P-B
EAN
8806096059029

LG 32TNF5P-B, Interactive flat panel, 81.3 cm (32"), LED, 1920 x 1080 pixels

Energy efficiency classKeine
Detail colourBlack
Bildschirmdiagonale in Zoll32 "
Resolution1920 x 1080 (Full HD)
InterfacesHDMI, IR IN, RJ-45 (LAN), RS-232, USB
Seitenverhältnis Bildschirm16:9
Display diagonal81.3 cm (32")
Display technologyLED
All 63 specifications

Description

LG 32TNF5P-B. Product design: Interactive flat panel. Display diagonal: 81.3 cm (32"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Operating system installed: WebOS. Product colour: Black

Documents

Specifications

Energy efficiency classKeine
Detail colourBlack
Bildschirmdiagonale in Zoll32 "
Resolution1920 x 1080 (Full HD)
InterfacesHDMI, IR IN, RJ-45 (LAN), RS-232, USB
Seitenverhältnis Bildschirm16:9

Display

Display diagonal81.3 cm (32")
Display technologyLED
Display brightness500 cd/m²
HD typeFull HD
TouchscreenYes
Panel typeIPS
LED backlightYes
Number of simultaneous touchpoints10
Response time9 ms
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.7 million colours
Panel life50000 h
Haze rate25%

Ports & interfaces

HDMI ports quantity2
USB portYes
USB ports quantity2
USB version2.0
USB 2.0 Type-B ports quantity1
Ethernet LAN (RJ-45) ports1
Audio (L/R) out1
RS-232CYes
Remote (IR) input1

Design

Product designInteractive flat panel
Placement supportedIndoor
VESA mountingYes
OrientationHorizontal/Vertical
Screen shapeFlat
Panel mounting interface200 x 200 mm
Bezel width (bottom)1.13 cm
Bezel width (side)1.13 cm
Bezel width (top)1.13 cm

Performance

HDCPYes
HDCP version1.4

Power

Power consumption (typical)48 W
Power consumption (standby)0.5 W
Power consumption (max)65 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Heat dissipation164 BTU/h

Computer system

Internal memory8 GB
Operating system installedWebOS
Operating system version6.0

Weight & dimensions

Display width723 mm
Display depth39.1 mm
Display height419.4 mm
Display weight5.8 kg

Packaging data

Package width812 mm
Package depth142 mm
Package height510 mm

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%

Network

Ethernet LANYes
Security algorithmsSNMP

Other features

Temperature indicatorYes
Playback modesRotation
Weight11.00 kg
