Zebra Technologies Barcode Scanner LS1203 Kit1/2
Zebra Technologies

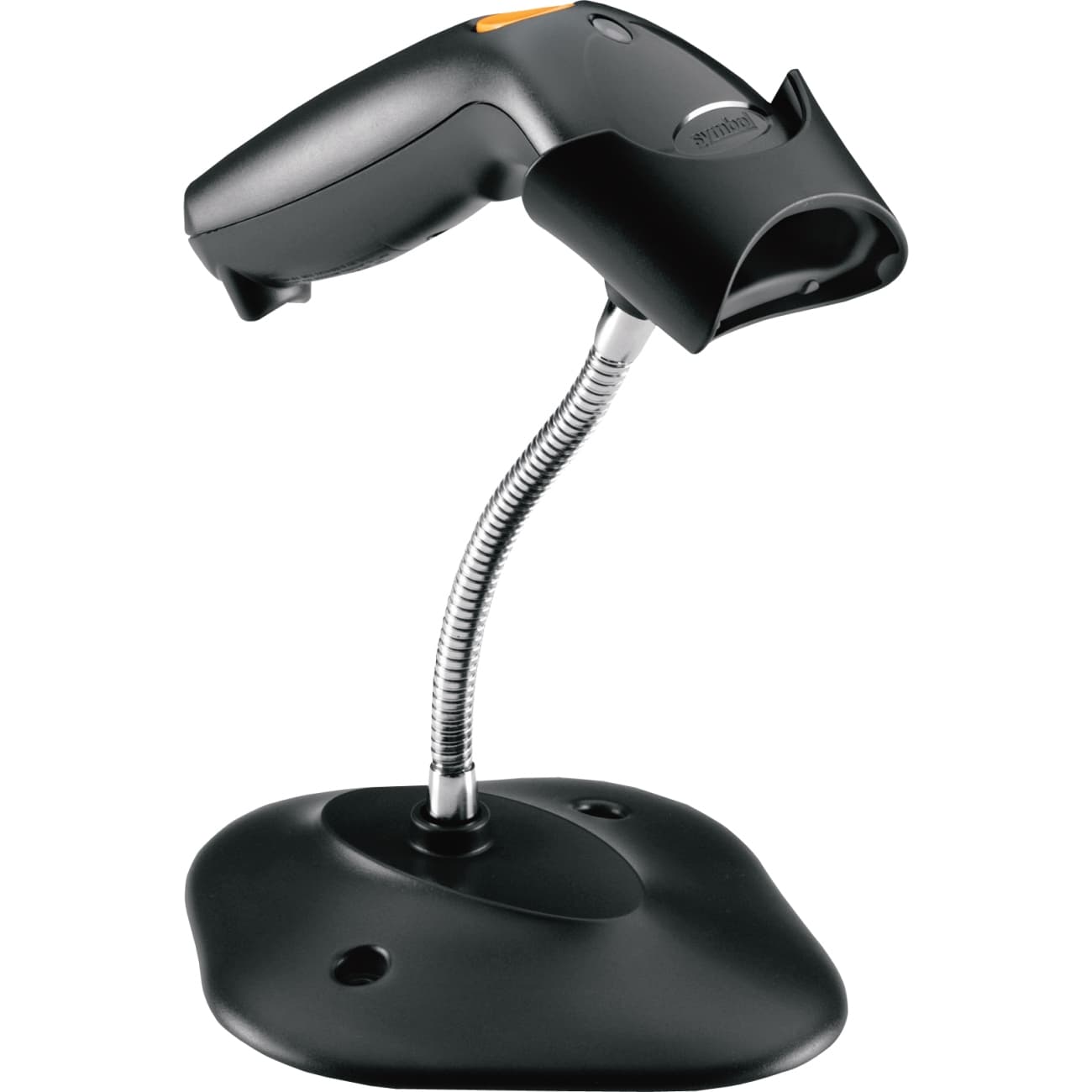

Motorola LS1203 Handheld bar code reader Laser Black

Part number
362450
MPN
LS1203-7AZU0100ER
EAN
MOT-190.0500

Motorola LS1203, Handheld bar code reader, Laser, Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), 100 reads/s, 650 nm, -30 - 30°

Scanner base station connectionnone
Scanner applicationPoint of Sale (PoS)
Protection classnone
Base station computer connectionnone
Connection of scanner computerUSB
Base station suppliedNo
TypeHandheld bar code reader
Sensor typeLaser
All 28 specifications

Description

Motorola LS1203. Type: Handheld bar code reader, Sensor type: Laser, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128). Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black. Power source type: DC, Input voltage: 5 V, Power consumption: 100 mA. Weight: 122 g, Width: 60.9 mm, Depth: 180.3 mm

Documents

Specifications

Scanner base station connectionnone
Scanner applicationPoint of Sale (PoS)
Protection classnone
Base station computer connectionnone
Connection of scanner computerUSB
Base station suppliedNo

Scanning

TypeHandheld bar code reader
Sensor typeLaser
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supportedNot supported
Read rate (max)100 reads/s
Wavelength650 nm
Tilt reading angle-30 - 30°

Ports & interfaces

Connectivity technologyWired
Standard interfacesUSB

Performance

Detail colourBlack

Power

Power source typeDC
Input voltage5 V
Power consumption100 mA

Weight & dimensions

Weight122 g
Width60.9 mm
Depth180.3 mm
Height60.9 mm

Packaging data

Cables includedUSB

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code84716070
Weight0.60 kg
