Multibrackets Tischhalterung Officeline Single I bis 8 kg – Weiss1/8
Multibrackets

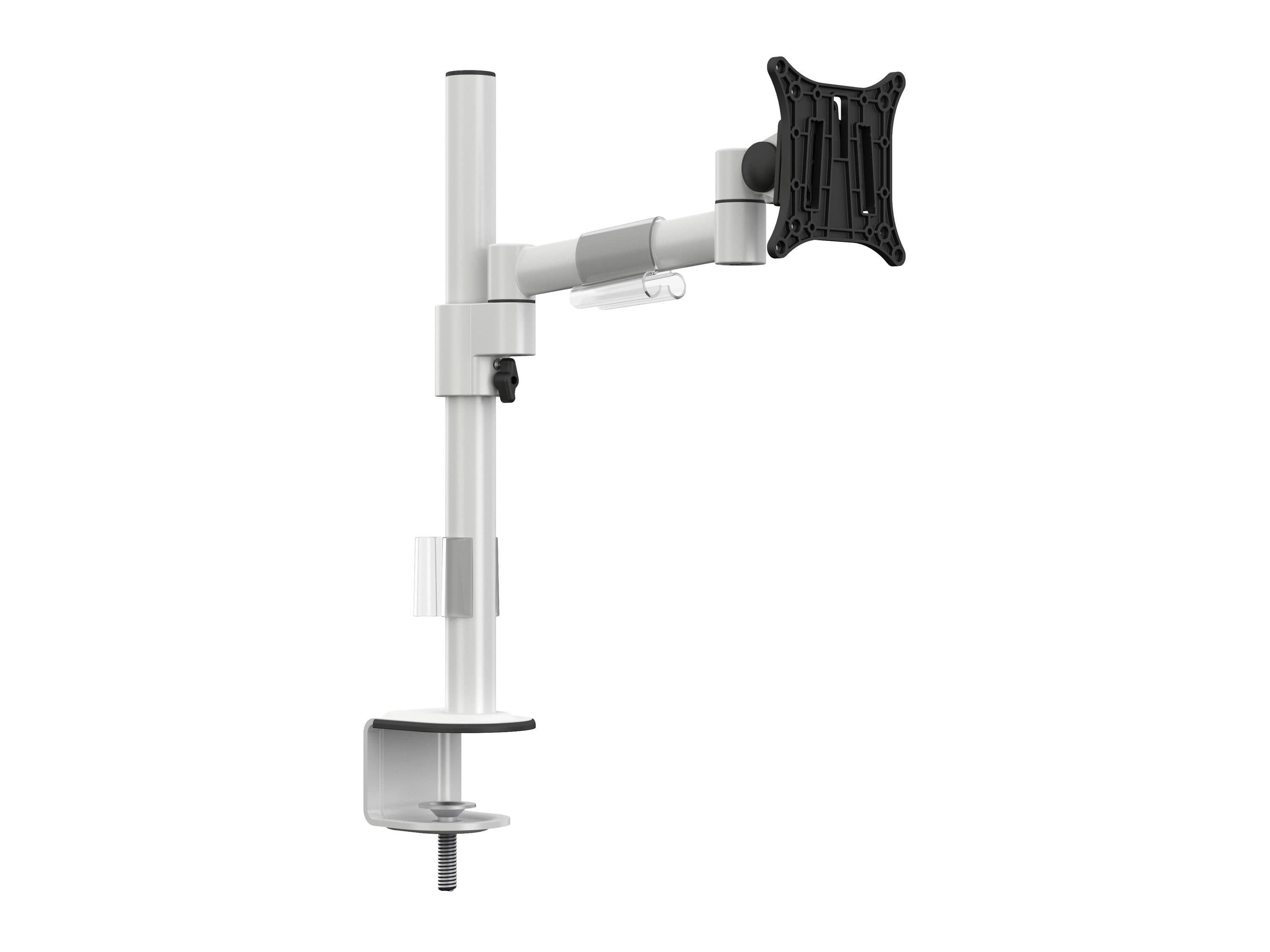

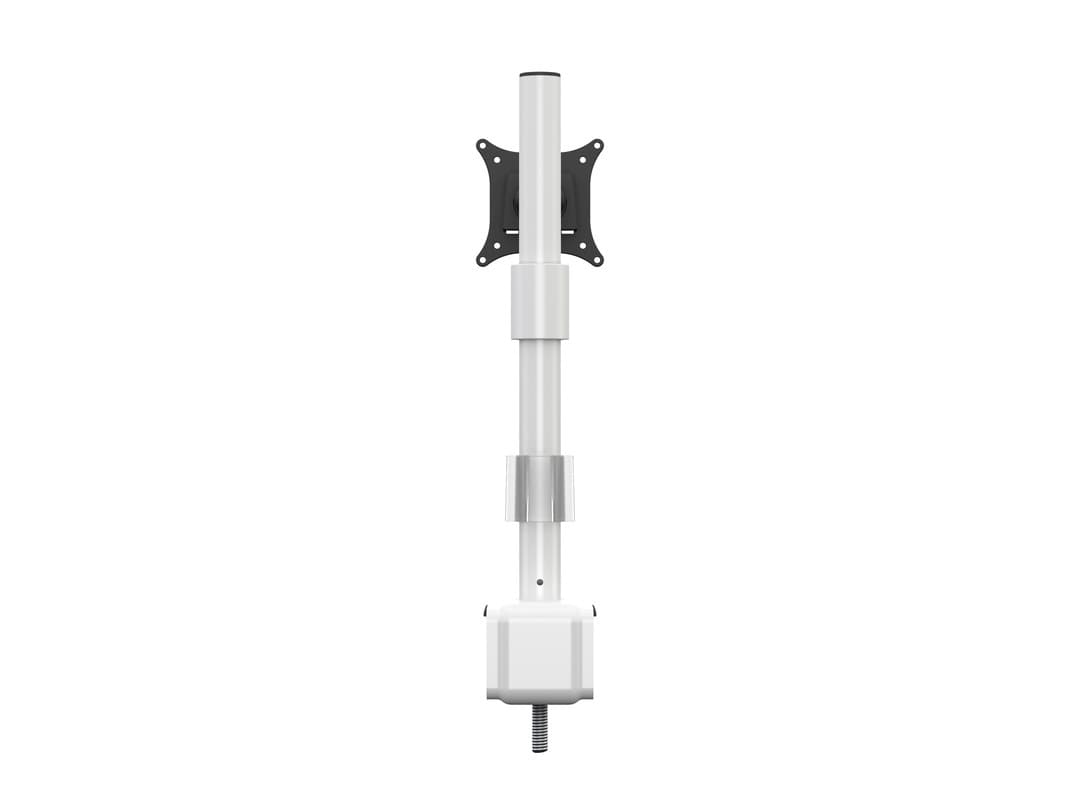

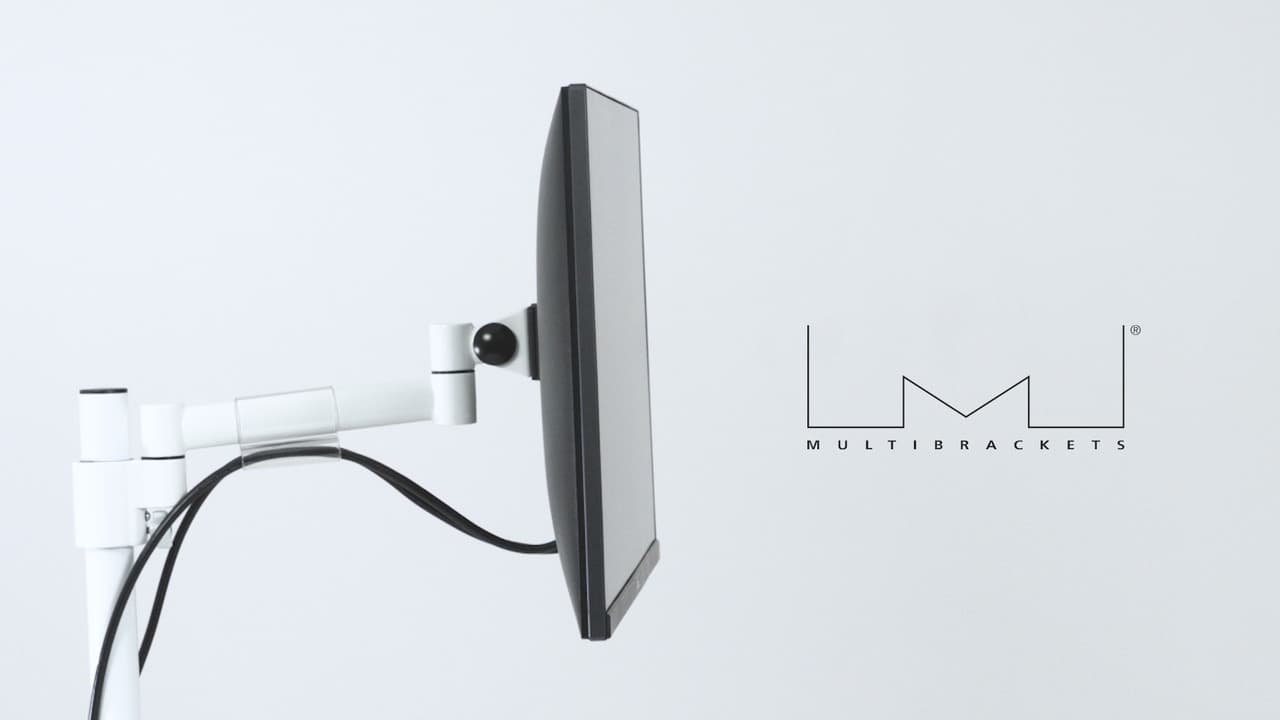

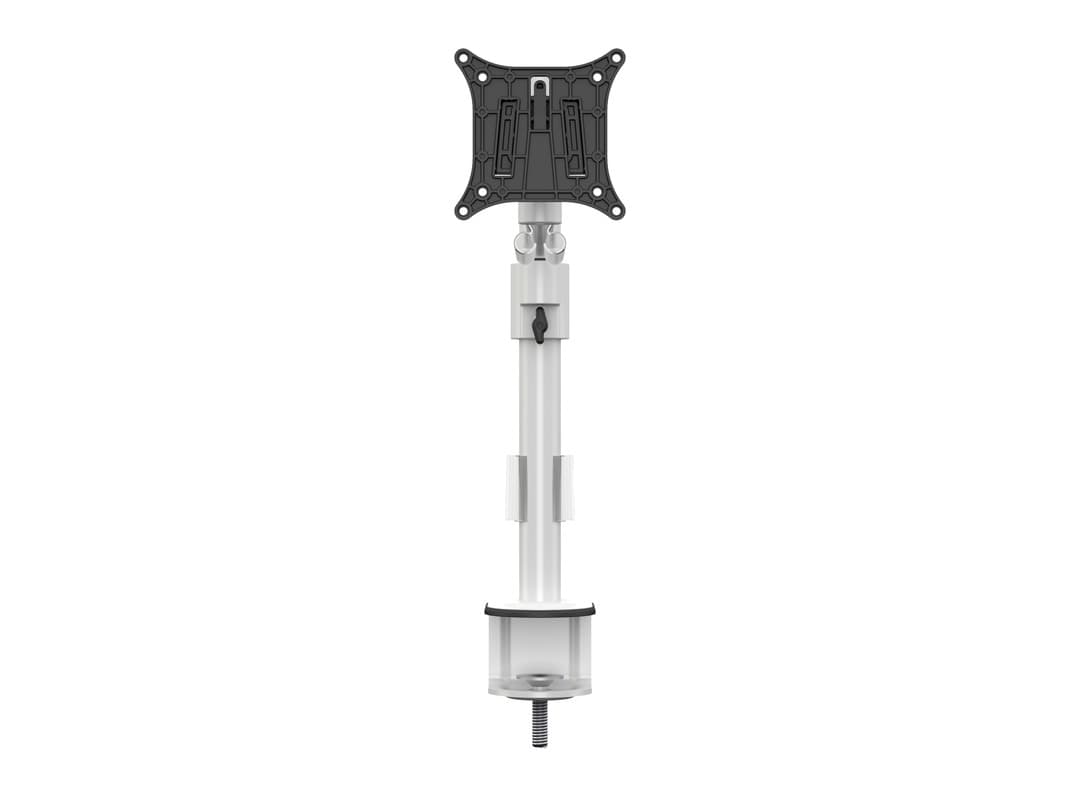

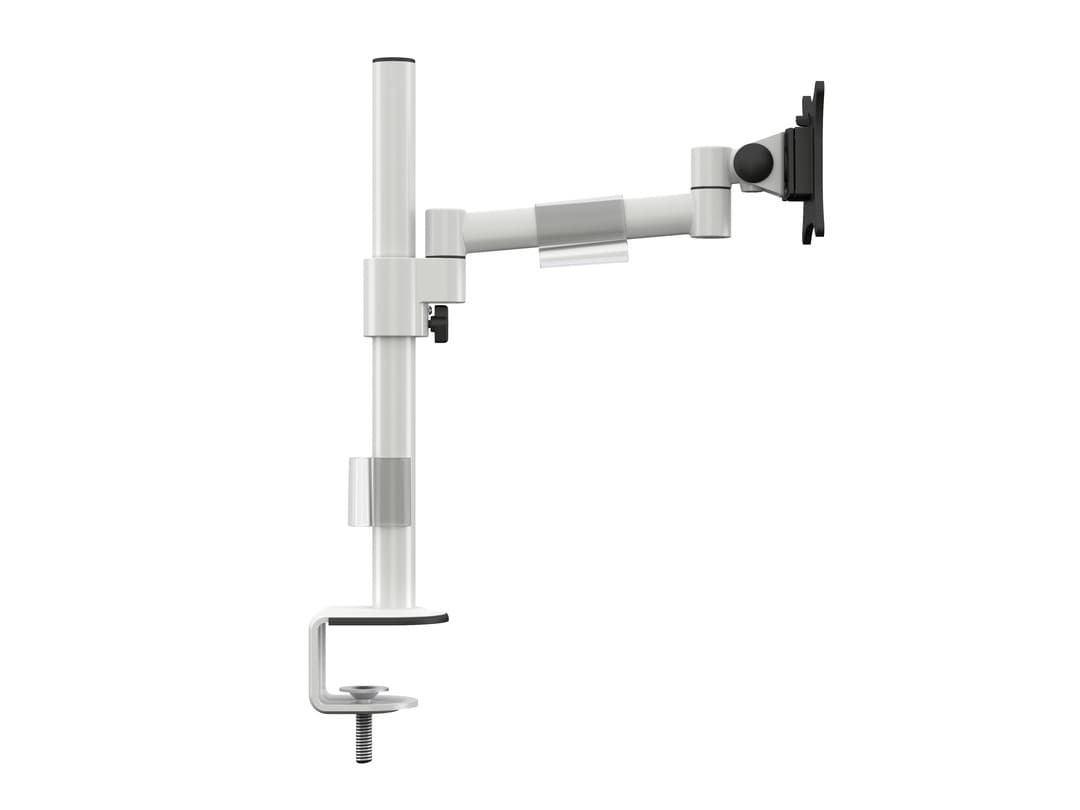

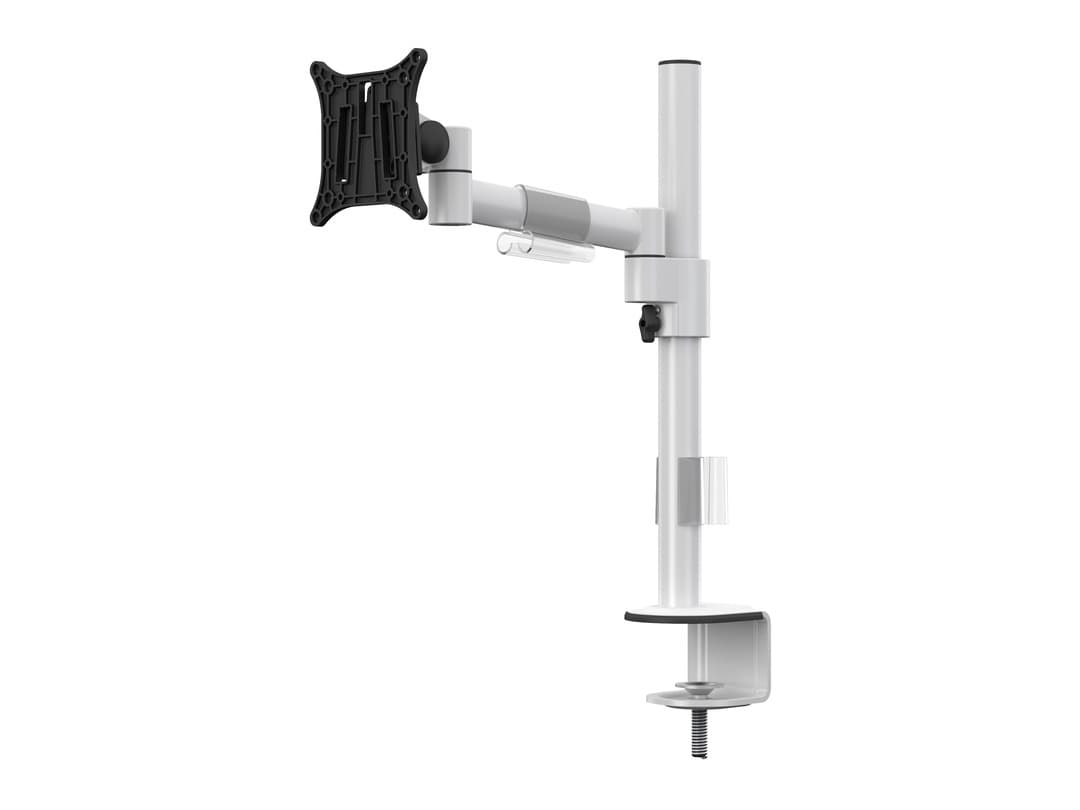

Multibrackets M VESA Deskmount Officeline Single I White

Part number
869485
MPN
5167
EAN
7350073735167

Multibrackets M VESA Deskmount Officeline Single I White, Clamp/Bolt-through, 8 kg, 38.1 cm (15"), 76.2 cm (30"), 100 x 100 mm, White

PropertiesDrehbar, Neigbar, Schwenkbar
Maximum screen size76.2 cm (30")
Detail colourWhite
Maximum load8 kg
Anzahl Bildschirme1
Number of displays supported1
Mounting typeDesk
Maximum weight capacity8 kg
All 38 specifications

Description

Multibrackets M VESA Deskmount Officeline Single I White. Mounting: Clamp/Bolt-through, Maximum weight capacity: 8 kg, Minimum screen size: 38.1 cm (15"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -60 - 85°. Product colour: White

Documents

Specifications

PropertiesDrehbar, Neigbar, Schwenkbar
Maximum screen size76.2 cm (30")
Detail colourWhite
Maximum load8 kg
Anzahl Bildschirme1

Mounting

Number of displays supported1
Mounting typeDesk
Maximum weight capacity8 kg
Minimum screen size38.1 cm (15")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
MountingClamp/Bolt-through
Panel mounting interface75 x 75,100 x 100 mm
Desk thickness (min)1 cm
Desk thickness (max)5 cm

Ergonomics

Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 480 mm
Tilt angle range-60 - 85°
Swivel angle360°
Pivot angle-90 - 90°
Cable managementYes

Design

Housing materialSteel
Easy to installYes

Weight & dimensions

Width32 mm
Depth311 mm
Height480 mm
Weight2.5 kg

Packaging data

Package width230 mm
Package depth545 mm
Package height250 mm
Package weight2.9 kg
Package typeBox

Logistics data

Shipping (inner) case width23 cm
Shipping (inner) case length54.5 cm
Shipping (inner) case height15 cm
Shipping (inner) case gross weight2.9 kg
Products per shipping (inner) case1 pc(s)
Weight2.57 kg
