Multibrackets Tischhalterung Officeline Single bis 8 kg – Weiss1/8
Multibrackets

Multibrackets M VESA Deskmount Officeline Single White

Part number
869484
MPN
5150
EAN
7350073735150

Multibrackets M VESA Deskmount Officeline Single White, Clamp/Bolt-through, 8 kg, 38.1 cm (15"), 76.2 cm (30"), 100 x 100 mm, White

PropertiesDrehbar, Neigbar, Schwenkbar
Maximum screen size76.2 cm (30")
Detail colourWhite
Maximum load8 kg
Anzahl Bildschirme1
Number of displays supported1
Mounting typeDesk
Maximum weight capacity8 kg
All 38 specifications

Description

Multibrackets M VESA Deskmount Officeline Single White. Mounting: Clamp/Bolt-through, Maximum weight capacity: 8 kg, Minimum screen size: 38.1 cm (15"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -60 - 85°. Product colour: White

Documents

Specifications

PropertiesDrehbar, Neigbar, Schwenkbar
Detail colourWhite
Maximum load8 kg
Anzahl Bildschirme1

Mounting

Maximum screen size76.2 cm (30")
Number of displays supported1
Mounting typeDesk
Maximum weight capacity8 kg
Minimum screen size38.1 cm (15")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
MountingClamp/Bolt-through
Panel mounting interface75 x 75,100 x 100 mm

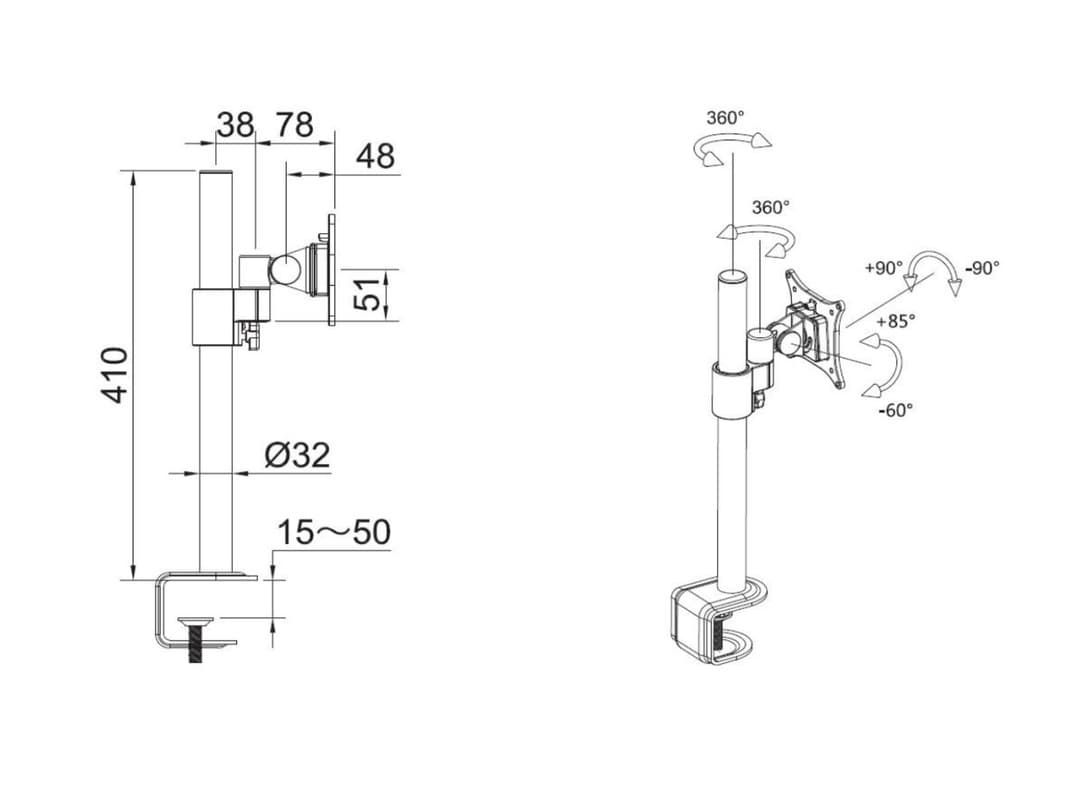

Desk thickness (min)1 cm
Desk thickness (max)5 cm

Ergonomics

Height adjustmentYes
Height adjustment typeManual
Height adjustment range0 - 410 mm
Tilt angle range-60 - 85°
Swivel angle360°
Pivot angle-90 - 90°
Cable managementYes

Design

Housing materialSteel
Easy to installYes

Weight & dimensions

Width32 mm
Depth116 mm
Height480 mm
Weight2.2 kg

Packaging data

Package width200 mm
Package depth535 mm
Package height155 mm
Package weight2.5 kg
Package typeBox

Logistics data

Shipping (inner) case width20 cm
Shipping (inner) case length53.5 cm
Shipping (inner) case height15.5 cm
Shipping (inner) case gross weight2.5 kg
Products per shipping (inner) case1 pc(s)
Weight2.00 kg
