Multibrackets Wandhalterung Pro MBW2U Schwarz1/10
Multibrackets

Multibrackets M Wallmount Pro MBW2U Tilt Black

Part number
607766
MPN
4061
EAN
7350073734061

Multibrackets M Wallmount Pro MBW2U Tilt Black, 60 kg, 101.6 cm (40"), 165.1 cm (65"), 100 x 100 mm, 600 x 400 mm, 0 - 15°

PropertiesNeigbar, Schwenkbar
VESA Norm100x100 mm, 600x400 mm
Detail colourBlack
Maximum load30 kg
Für Bildschirmdiagonale40", 42", 43", 44", 45", 46", 47", 48", 49", 50", 52", 55", 58", 60", 65"
Number of displays supported2
Maximum screen size165.1 cm (65")
Mounting typeWall
All 41 specifications

Description

Multibrackets M Wallmount Pro MBW2U Tilt Black. Maximum weight capacity: 60 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 15°, Swivel angle: 360°. Product colour: Black

Documents

Specifications

PropertiesNeigbar, Schwenkbar
VESA Norm100x100 mm, 600x400 mm
Detail colourBlack
Maximum load30 kg
Für Bildschirmdiagonale40", 42", 43", 44", 45", 46", 47", 48", 49", 50", 52", 55", 58", 60", 65"

Mounting

Number of displays supported2
Maximum screen size165.1 cm (65")
Mounting typeWall
Maximum weight capacity60 kg
Minimum VESA mount100 x 100 mm
Maximum VESA mount600 x 400 mm
Minimum screen size101.6 cm (40")
Panel mounting interface100 x 100,600 x 400 mm

Ergonomics

Tilt angle range0 - 15°
Swivel angle360°
Angle of rotation8°
Cable managementYes
RotatingYes
Tilt adjustmentYes

Design

Housing materialAluminium, Steel
CertificationCE

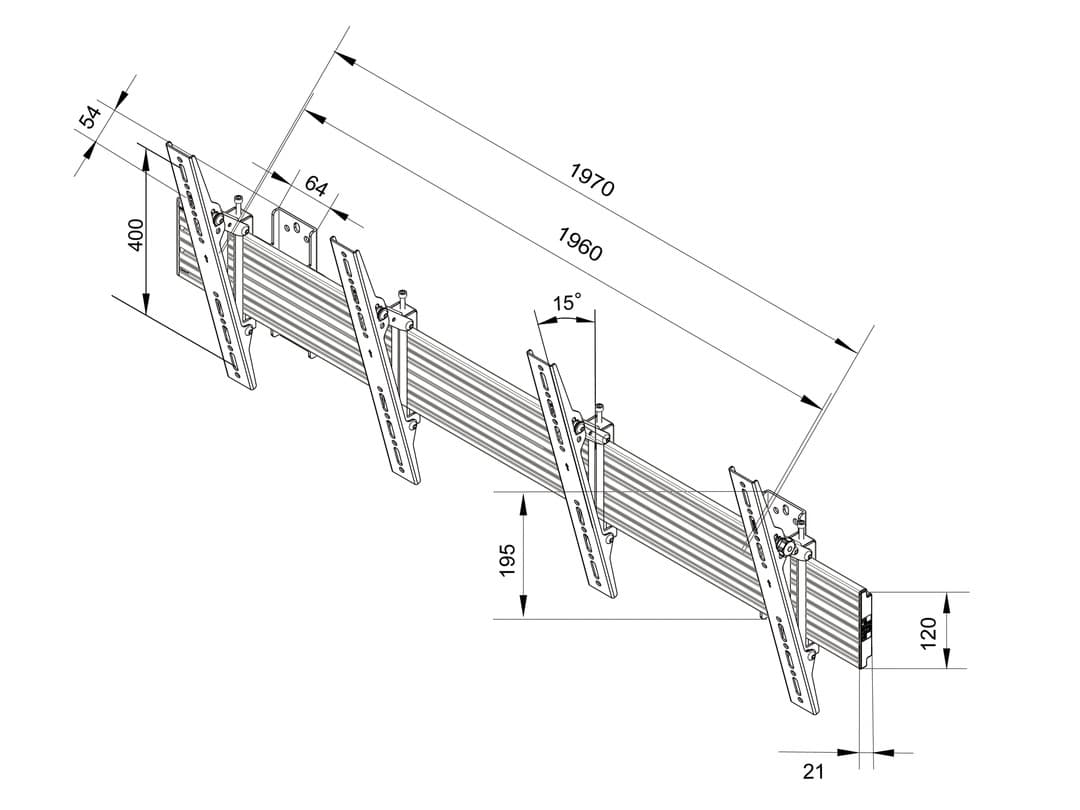

Weight & dimensions

Width1960 mm
Depth (max)8 cm
Height430 mm
Weight10.2 kg
Aluminium content weight4.2 kg
Steel content weight10.2 kg
Other metals content weight0 g

Packaging data

Package width150 mm
Package depth1090 mm
Package height120 mm
Package weight10.7 kg
Package typeBox

Technical details

Paper/cardboard packaging weight500 g
Metal packaging weight0 g
Plastic packaging weight10 g

Logistics data

Shipping (inner) case width15 cm
Shipping (inner) case length109 cm
Shipping (inner) case height12 cm
Shipping (inner) case gross weight25 kg
Products per shipping (inner) case1 pc(s)
Weight10.37 kg
