Netgear Switch GS524-300EUS 24 Port1/4
Netgear

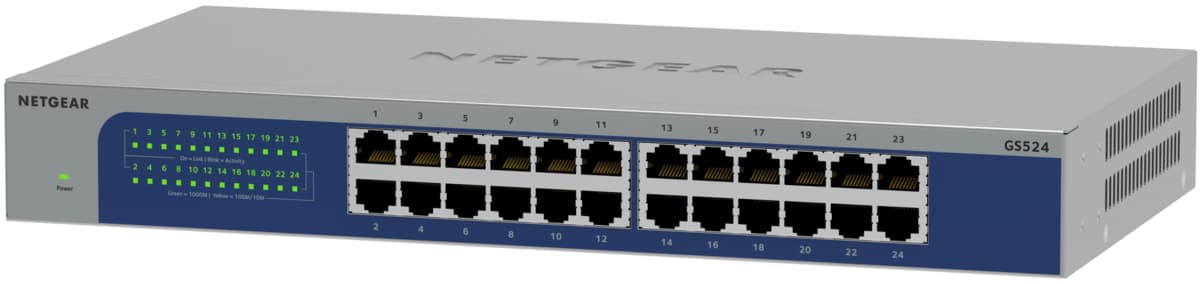

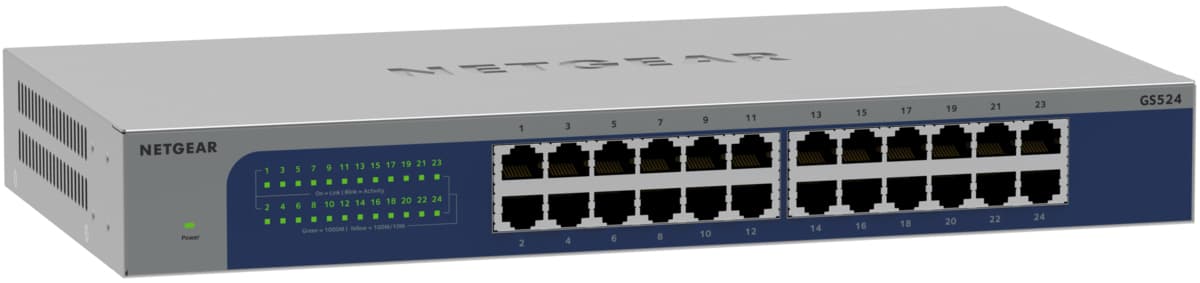

NETGEAR GS524-300EUS network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey

Part number
1739588
MPN
GS524-300EUS
EAN
606449164770

NETGEAR GS524-300EUS, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

SFP Anschlüsse0
Montage Switch19" Rack, Desktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity24
All 32 specifications

Description

NETGEAR GS524-300EUS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Documents

Specifications

SFP Anschlüsse0
Montage Switch19" Rack, Desktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplexYes

Data transmission

MAC address table8000 entries
Switching capacity48 Gbit/s
Latency (10-100 Mbps)35 µs
Latency (1 Gbps)15 µs

Protocols

Switching protocolsEthernet

Design

Product colourGrey

Performance

Mean time between failures (MTBF)1016877 h

Power

Power sourceAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)12 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width328 mm
Depth169 mm
Height43 mm
Weight1.47 kg

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), ISED, UKCA, VCCI
Weight2.61 kg
