Netgear RAXE300-100EUS Nighthawk AXE7800 Tri-Band WiFi 6E1/5
Netgear

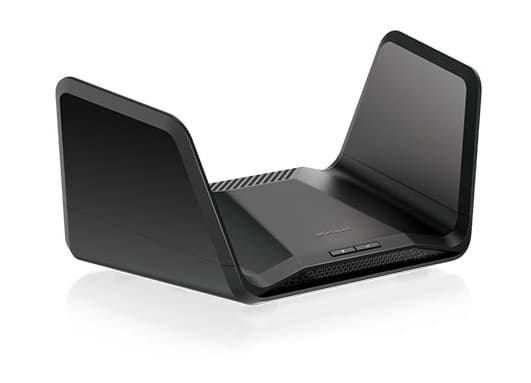

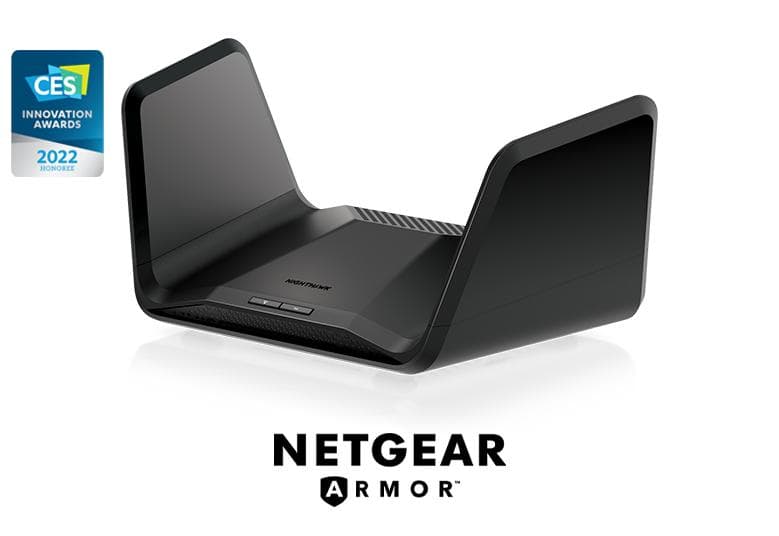

NETGEAR Nighthawk AXE7800 WiFi Router (RAXE300)

Part number
1397280
MPN
RAXE300-100EUS
EAN
606449158748

NETGEAR Nighthawk AXE7800 WiFi Router (RAXE300), Wi-Fi 6 (802.11ax), Tri-band (2.4 GHz / 5 GHz / 5 GHz), Ethernet LAN, Black, Portable router

Application areaConsumer, Gaming, Home
RJ-45 Anschlüsse6
RJ-45 Geschwindigkeit1/2.5 Gbit/s, 10/100/1000 Mbit/s
Anzahl PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W
Ethernet WANNo
SIM card slotNo
All 60 specifications

Description

NETGEAR Nighthawk AXE7800 WiFi Router (RAXE300). WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 6600 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n. Security algorithms: 128-bit AES. Product type: Portable router, Product colour: Black, Housing material: Plastic

Documents

Specifications

Application areaConsumer, Gaming, Home
RJ-45 Anschlüsse6
RJ-45 Geschwindigkeit1/2.5 Gbit/s, 10/100/1000 Mbit/s
Anzahl PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W

WAN connection

Ethernet WANNo
SIM card slotNo
3G/4G USB modem compatibilityNo
WAN connection typeRJ-45

Wireless LAN features

Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN data transfer rate (max)6600 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)1200 Mbit/s
WLAN data transfer rate (second band)4800 Mbit/s
WLAN data transfer rate (third band)600 Mbit/s
Modulation256-QAM, 1024-QAM

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
USB sharingYes

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
DC-in jackYes

Management features

Quality of Service (QoS) supportYes
Reset buttonYes
MU-MIMO technologyYes
MIMOYes

Security

Security algorithms128-bit AES
Guest accessYes
Parental controlYes
FilteringYes

Design

Product typePortable router
Product colourBlack
Housing materialPlastic
Indication lightYes
LED indicatorsPower
On/off switchYes

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes
ManualYes
Quick start guideYes

Antenna

Antenna designInternal
Antennas quantity6

Features

Built-in processorYes
Processor frequency1500 MHz
Processor cores4
Internal memory512 MB
Flash memory256 MB

Power

Power source typeDC

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Weight & dimensions

Width298 mm
Depth221.2 mm
Height78 mm
Weight1.45 kg
Weight2.15 kg
