Patchbox patchbox.one / 8RU / Cat 6A, UTP, 0.8 m, Rot1/7
Patchbox

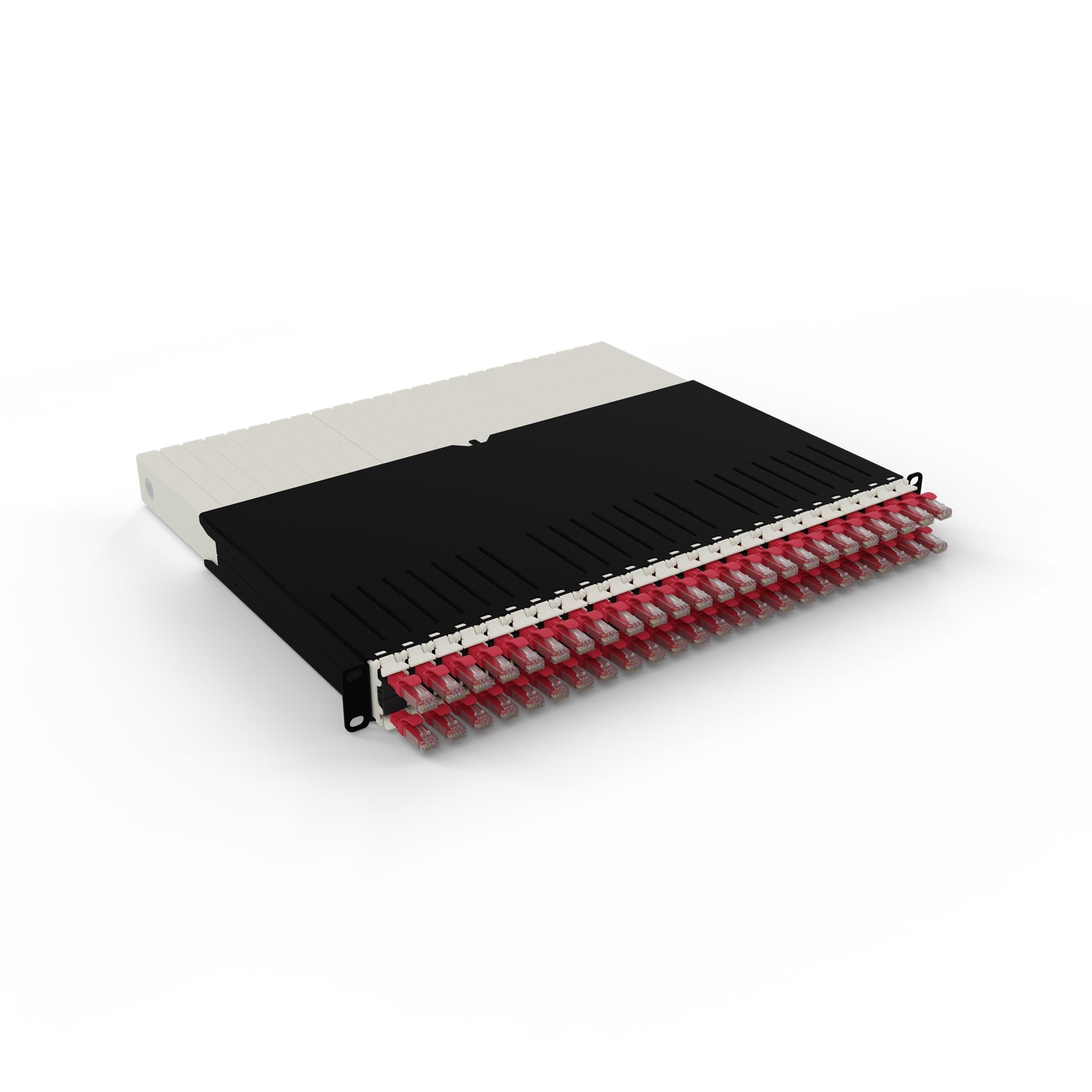

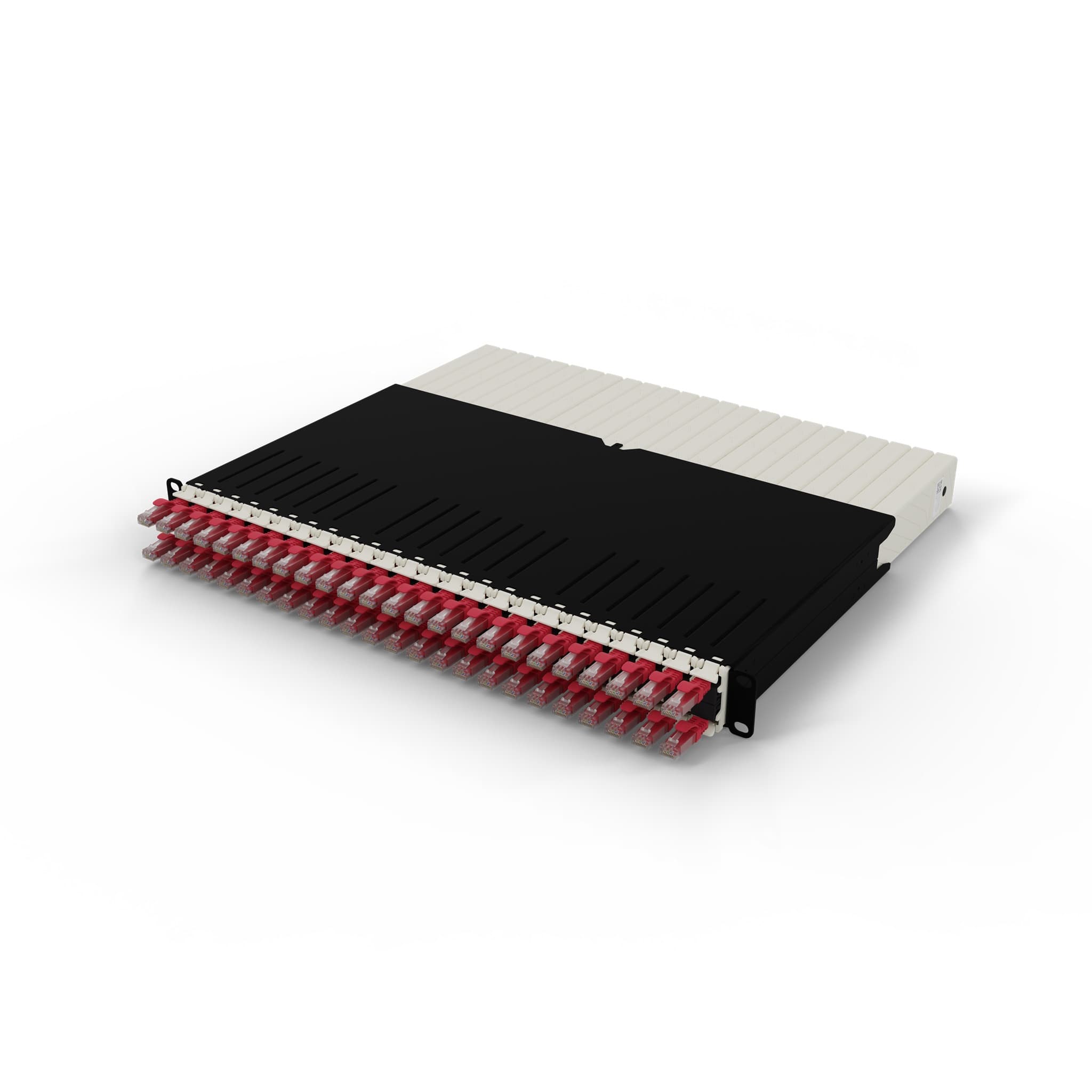

PATCHBOX .one / 8RU / UTP / Red

Part number
1644620
MPN
PONEX8UTPRD
EAN
4262427630697

PATCHBOX .one / 8RU / UTP / Red, 0.8 m, Cat6a, U/UTP (UTP), RJ-45, RJ-45, Red

Detail colourRed
ShapeFlach
Additional functionsAufrollbar, Chassis
Performance category Cat.Cat 6A
LAN port 1RJ-45
LAN port 2RJ-45
Cable length0.8 m
Cable standardCat6a
All 38 specifications

Description

PATCHBOX .one / 8RU / UTP / Red. Cable length: 0.8 m, Cable standard: Cat6a, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Red

Documents

Specifications

Detail colourRed
ShapeFlach
Additional functionsAufrollbar, Chassis
Performance category Cat.Cat 6A
LAN port 1RJ-45
LAN port 2RJ-45

Features

Cable length0.8 m
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Cable shapeFlat
Connector contacts platingGold
Jacket materialPolyvinyl chloride (PVC)
Conductor materialCopper
Networking standardsIEEE 802.3bt
AWG wire size30
Data transfer rate10000 Mbit/s
Bend radius (min)1.2 cm
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE++ (4PPoE)
Country of originHungary

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%

Certificates

CertificationISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel

Weight & dimensions

Width482 mm
Depth365 mm
Height44 mm
Weight5.76 kg

Packaging content

Quantity per pack1 pc(s)

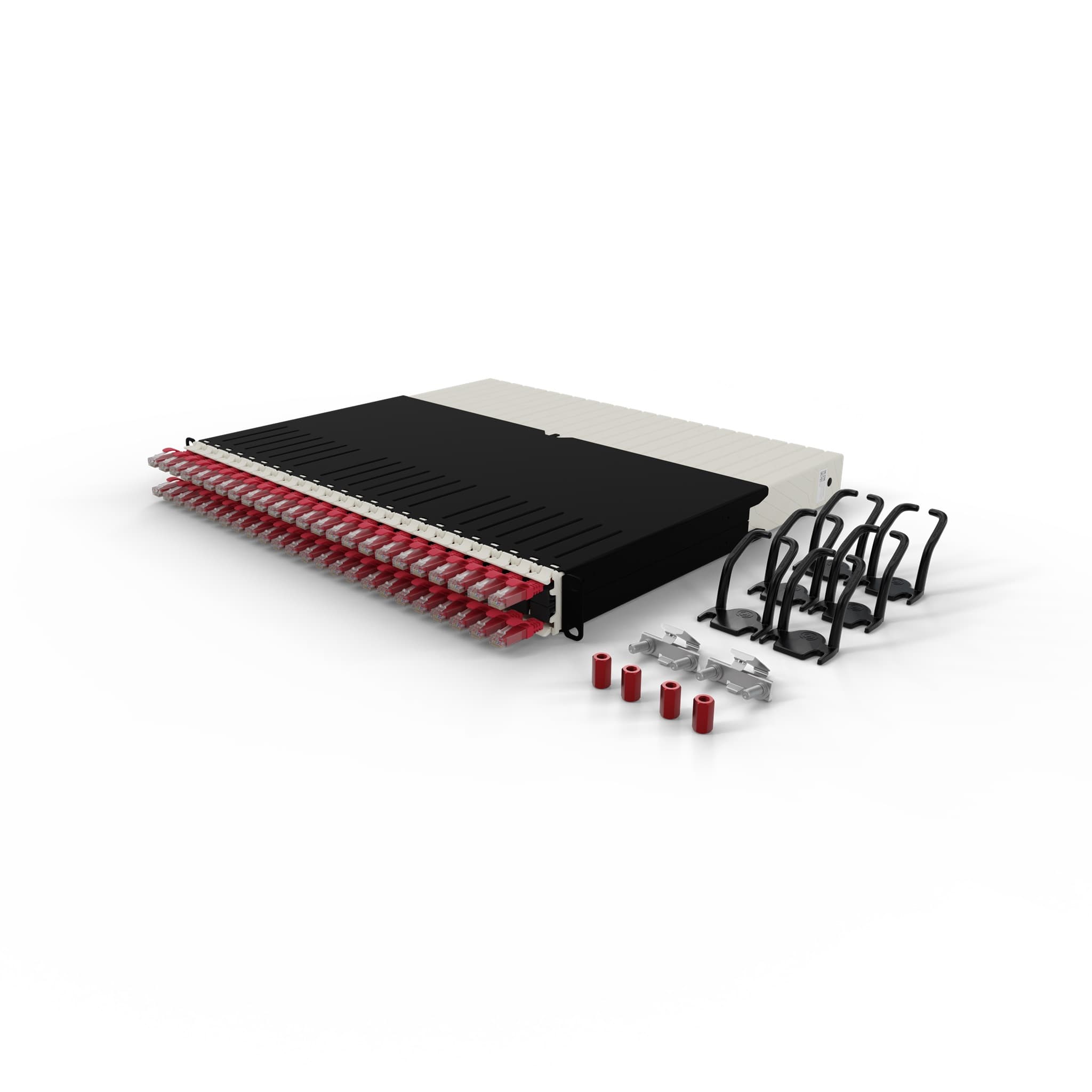

Packaging content24 x patchbox.one / Cassette / 8RU / UTP / Red 1 x patchbox.one / Frame 6 x Patchcatch 2 x /dev/mount

Packaging data

Package width587 mm
Package depth557 mm
Package height55 mm
Package weight6.7 kg

Other features

Cables includedLAN (RJ-45)
Weight6.60 kg
