Philips Touch Display 32BDL3751T/00 31.5 "

Hover to zoom1/3

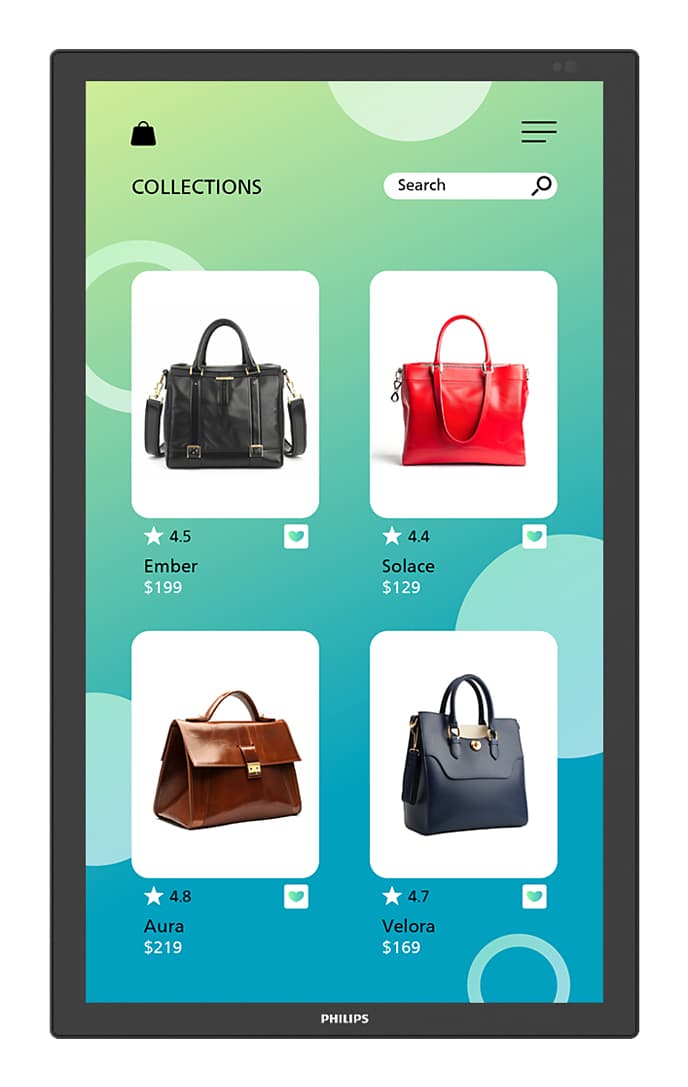

Philips 3000 series 32BDL3751T/00 Signage Display Interactive flat panel 80 cm (31.5") LCD Wi-Fi 350 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

Part number: 1835863
MPN: 32BDL3751T/00
EAN: 8721038100099

Philips 3000 series 32BDL3751T/00, Interactive flat panel, 80 cm (31.5"), LCD, 1920 x 1080 pixels, Wi-Fi, 24/7

Energy efficiency class	G
Detail colour	Black
Bildschirmdiagonale in Zoll	31.5 "
Resolution	1920 x 1080 (Full HD)
Seitenverhältnis Bildschirm	16:9
Interfaces	2x HDMI, Audio Line-Out, Bluetooth, DisplayPort, IR IN, IR OUT, Micro-USB 2.0, RJ-45 (1000Mbps), RS-232, Type-A USB 3.0 (3.1 / 3.2 Gen. 1), Type-B USB, USB Typ C, WLAN
Display diagonal	80 cm (31.5")
Display technology	LCD

Description

Philips 3000 series 32BDL3751T/00. Product design: Interactive flat panel. Display diagonal: 80 cm (31.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 350 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

Documents

Specifications

Energy efficiency class	G
Detail colour	Black
Bildschirmdiagonale in Zoll	31.5 "
Resolution	1920 x 1080 (Full HD)
Seitenverhältnis Bildschirm	16:9
Interfaces	2x HDMI, Audio Line-Out, Bluetooth, DisplayPort, IR IN, IR OUT, Micro-USB 2.0, RJ-45 (1000Mbps), RS-232, Type-A USB 3.0 (3.1 / 3.2 Gen. 1), Type-B USB, USB Typ C, WLAN

Display

Display diagonal	80 cm (31.5")
Display technology	LCD
Display brightness	350 cd/m²
HD type	Full HD
Touchscreen	Yes
Panel type	IPS
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.364 x 0.364 mm
Display diagonal (metric)	80 cm
Frame width	74.9 cm
Number of displays	1
Native refresh rate	60 Hz

Ports & interfaces

HDMI ports quantity	2
DisplayPorts quantity	1
USB port	Yes
HDMI version	2.0
HDMI input ports quantity	2
DisplayPorts in	1
DisplayPort version	1.3
USB ports quantity	5
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type	Micro-USB, USB Type-A, USB Type-B, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
Ethernet LAN (RJ-45) ports	1
Audio (L/R) in	1
Audio (L/R) out	1
RS-232 interface	Yes
Infrared data port	Yes

Audio

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W

Design

Product design	Interactive flat panel
VESA mounting	Yes
Orientation	Horizontal/Vertical
Screen shape	Flat
Panel mounting interface	100 x 100,200 x 200 mm
Bezel width (bottom)	2.44 cm
Bezel width (side)	2.44 cm
Bezel width (top)	2.44 cm
Anti-glare screen	Yes
Fingerprint resistant	Yes
Mounting type	Wall

Performance

Purpose	Commercial
On Screen Display (OSD)	Yes
Number of OSD languages	18
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days)	24/7
HID support	Yes

Power

Power consumption (typical)	35 W
Power consumption (standby)	0.5 W
Power consumption (max)	87 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	35 kWh
AC input voltage	100 - 240 V
AC input frequency	50.60 Hz
Energy efficiency scale	A to G

Computer system

Computer system	Yes
Built-in processor	Yes
Computer system type	System on Chip (SoC)
Processor manufacturer	ARM
Processor family	ARM Cortex
Processor model	A55
Processor architecture	ARM Cortex-A55
Processor cores	4
Internal memory	4 GB
On-board graphics card model	ARM Mali-G52
Internal storage capacity	32 GB
Operating system installed	Android
Operating system version	13
Video formats supported	H.263, H.264, H.265, MPEG1, MPEG2, VP8, VP9
Audio formats supported	AAC, HE-AAC, MPEG-1, MPEG-2
Image formats supported	BMP, JPEG, PNG, WEBP

Weight & dimensions

Width (with stand)	749.1 mm
Depth (with stand)	69.5 mm
Height (with stand)	443.6 mm
Weight (with stand)	8.31 kg

Packaging data

Package weight	10.8 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC, RS-232, USB Type-A to USB Type-B

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%

Network

Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	1000 Mbit/s

Features

Base colour	Black
Wall mountable	Yes

Technical details

Warranty period	3 year(s)
Compliance certificates	BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RoHS
Weight	20.00 kg
