QNAP

QNAP TS-h1655XeU-RP-8G

Part number: 2001379
MPN: TS-h1655XeU-RP-8G
EAN: 4711103089675

QNAP TS-h1655XeU-RP-8G, Storage server, Rack (3U), Intel Atom®, C5125, 8 GB, DDR4

Anzahl Laufwerkschächte	16
Internal memory	8 GB
Interfaces	M.2 Key-M, PCI-Express, RJ-45 (10GBase-T), RJ-45 (2.5GBase-T), Type-A USB 3.0 (3.1 / 3.2 Gen. 1)
Anzahl Festplatten vorverbaut	0
RJ-45 Anschlüsse	3
RJ-45 Geschwindigkeit	1 Gbit/s, 10 Gbit/s, 2.5 Gbit/s
Storage drives installed	No
Total installed storage capacity	0 TB

Description

QNAP TS-h1655XeU-RP-8G. Type: Storage server. Chassis type: Rack (3U). Device class: Small & Medium Business. Processor family: Intel Atom®, Processor model: C5125, Processor frequency: 2.8 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QuTS hero

Documents

Specifications

Anzahl Laufwerkschächte	16
Internal memory	8 GB
Interfaces	M.2 Key-M, PCI-Express, RJ-45 (10GBase-T), RJ-45 (2.5GBase-T), Type-A USB 3.0 (3.1 / 3.2 Gen. 1)
Anzahl Festplatten vorverbaut	0
RJ-45 Anschlüsse	3
RJ-45 Geschwindigkeit	1 Gbit/s, 10 Gbit/s, 2.5 Gbit/s

Storage

Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	16
Installed storage drive type	No
Supported storage drive types	HDD & SSD
RAID support	Yes
Supported storage drive interfaces	M.2, Serial ATA III
Storage drive sizes supported	2.5,3.5,E1.S,M.2
RAID levels	0, 1, 1+0, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan	Yes
Disk roaming	Yes

Processor

Processor family	Intel Atom®
Processor manufacturer	Intel
Processor model	C5125
Processor frequency	2.8 GHz
Processor cores	8
Processor threads	8
Processor cache	9 MB
Number of processors supported	1

Memory

Internal memory type	DDR4
Maximum RAM supported	64 GB
Memory slots	2
Memory form factor	SO-DIMM
Flash memory	4096 MB

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
DHCP server	Yes
iSCSI support	Yes
Link aggregation	Yes
Dynamic DNS (DDNS)	Yes

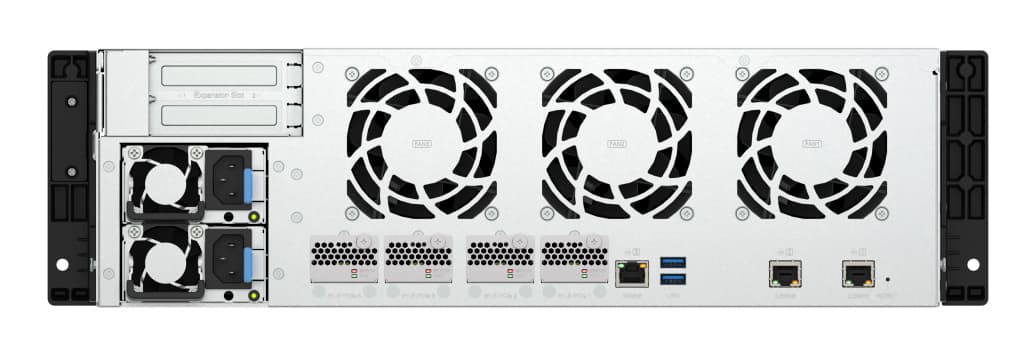

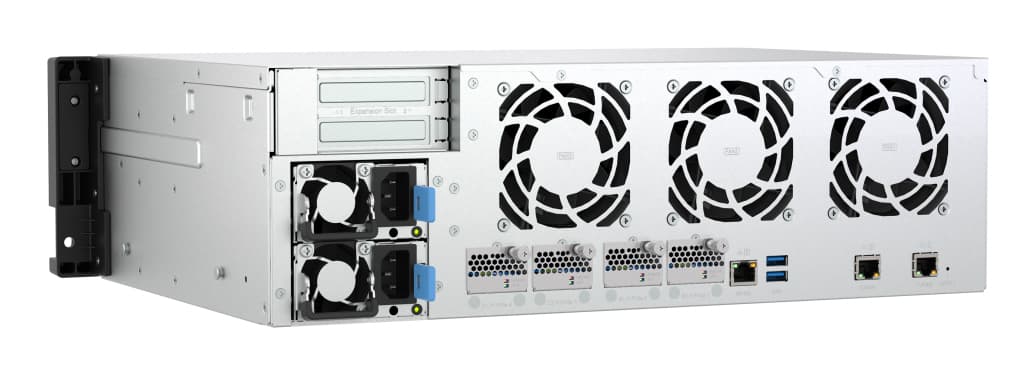

Ports & interfaces

Ethernet LAN (RJ-45) ports	3
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x4 (Gen 3.x) slots	2

Design

Chassis type	Rack (3U)
Cooling type	Active
Product colour	Black, Grey
Number of fans	3 fan(s)
Fan diameter	8 cm
LED indicators	Yes

Performance

Type	Storage server
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Web-based management	Yes
On/off switch	Yes
System log	Yes
Password authentication	Yes
Disk scan	Yes
S.M.A.R.T. support	Yes
Universal Plug and Play (UPnP)	Yes

Software

Operating system installed	QuTS hero
Operating system version	h5.2.6
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Power

Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	121.7 W
Power consumption (HDD standby)	112.42 W
AC input voltage	100 - 240 V

Weight & dimensions

Width	432 mm
Depth	296 mm
Height	133 mm
Package width	581 mm
Package depth	293 mm
Package height	595 mm
Package weight	16 kg

Packaging content

Cables included	AC, LAN (RJ-45)
Number of screws	84
Package type	Box

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C

Other features

Warranty period	3 year(s)
Weight	9.51 kg
