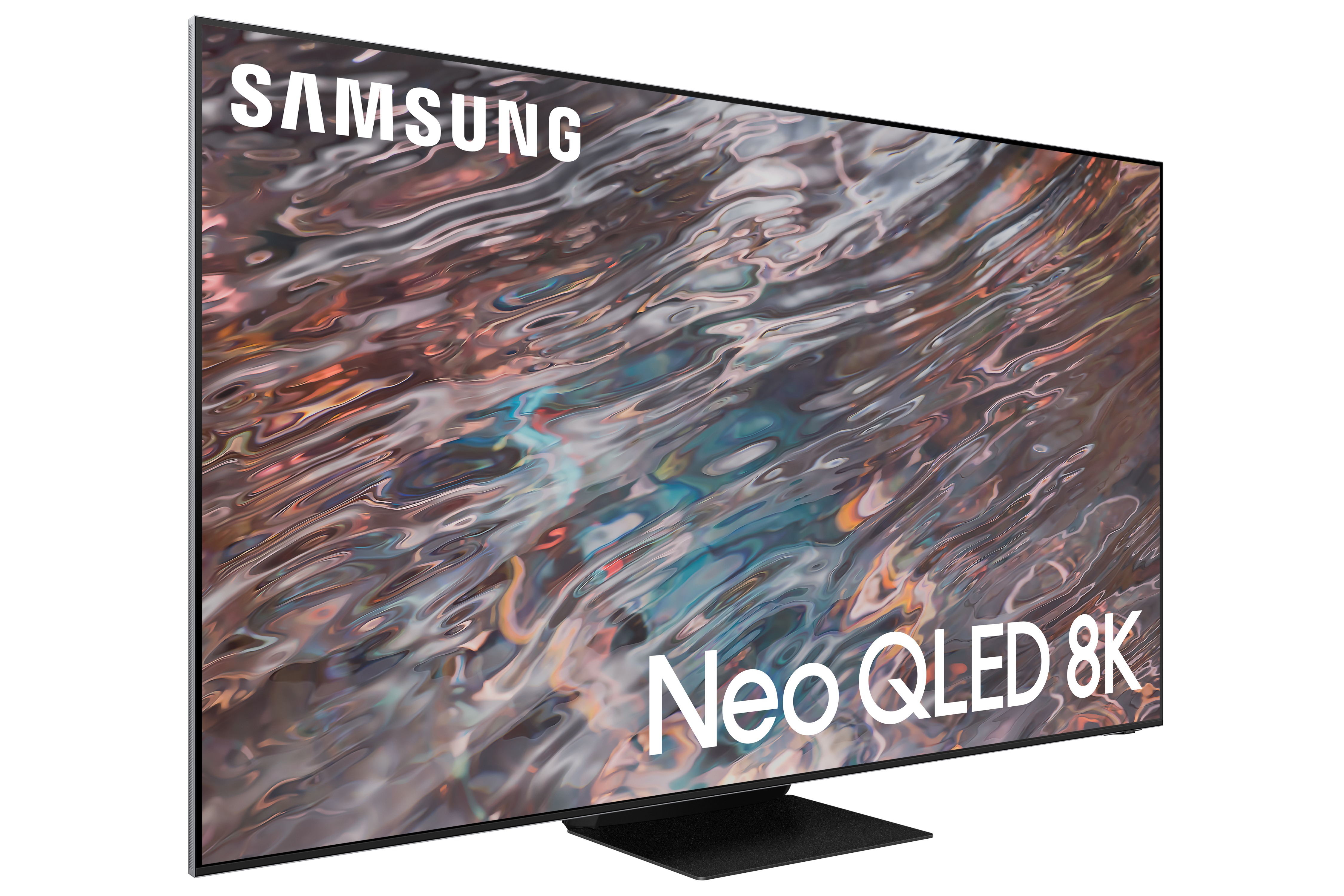

Samsung Public Display QP85A-8K 85 "1/20
Samsung

Samsung QP85A-8K Digital signage flat panel 2.16 m (85") LCD Wi-Fi 500 cd/m² 8K Ultra HD Stainless steel Built-in processor Tizen 6.0 16/7

Part number
1251031
MPN
LH85QPA8BGCXEN
EAN
8806092202382

Samsung QP85A-8K, Digital signage flat panel, 2.16 m (85"), LCD, 7680 x 4320 pixels, Wi-Fi, 16/7

Resolution7680 x 4320 (8K UHD)
Bildschirmhelligkeit500 cd/m²
Seitenverhältnis Bildschirm16:9
Betriebsdauer im Dauerbetrieb16/7
InterfacesBluetooth, HDMI, RJ-45 (LAN), RS-232, Toslink, USB, WLAN
Display diagonal2.16 m (85")
Display technologyLCD
Display brightness500 cd/m²
All 74 specifications

Description

Samsung QP85A-8K. Product design: Digital signage flat panel. Display diagonal: 2.16 m (85"), Display technology: LCD, Display resolution: 7680 x 4320 pixels, Display brightness: 500 cd/m², HD type: 8K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 6.0. Product colour: Stainless steel

Documents

Specifications

Resolution7680 x 4320 (8K UHD)
Bildschirmhelligkeit500 cd/m²
Seitenverhältnis Bildschirm16:9
Betriebsdauer im Dauerbetrieb16/7
InterfacesBluetooth, HDMI, RJ-45 (LAN), RS-232, Toslink, USB, WLAN

Display

Display diagonal2.16 m (85")
Display technologyLCD
Display brightness500 cd/m²
HD type8K Ultra HD
TouchscreenNo
Panel typeVA
Response time6 ms
Contrast ratio (typical)1500:1
Dynamic contrast ratio marketing nameMega Contrast
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.24375 x 0.24375 mm
Horizontal scan range15.625 - 270 kHz
Vertical scan range24 - 120 Hz
High Dynamic Range (HDR) supportedYes
Haze rate2%
Pixel frequency (max)2376 MHz
RGB colour spaceDCI-P3
Colour gamut93%

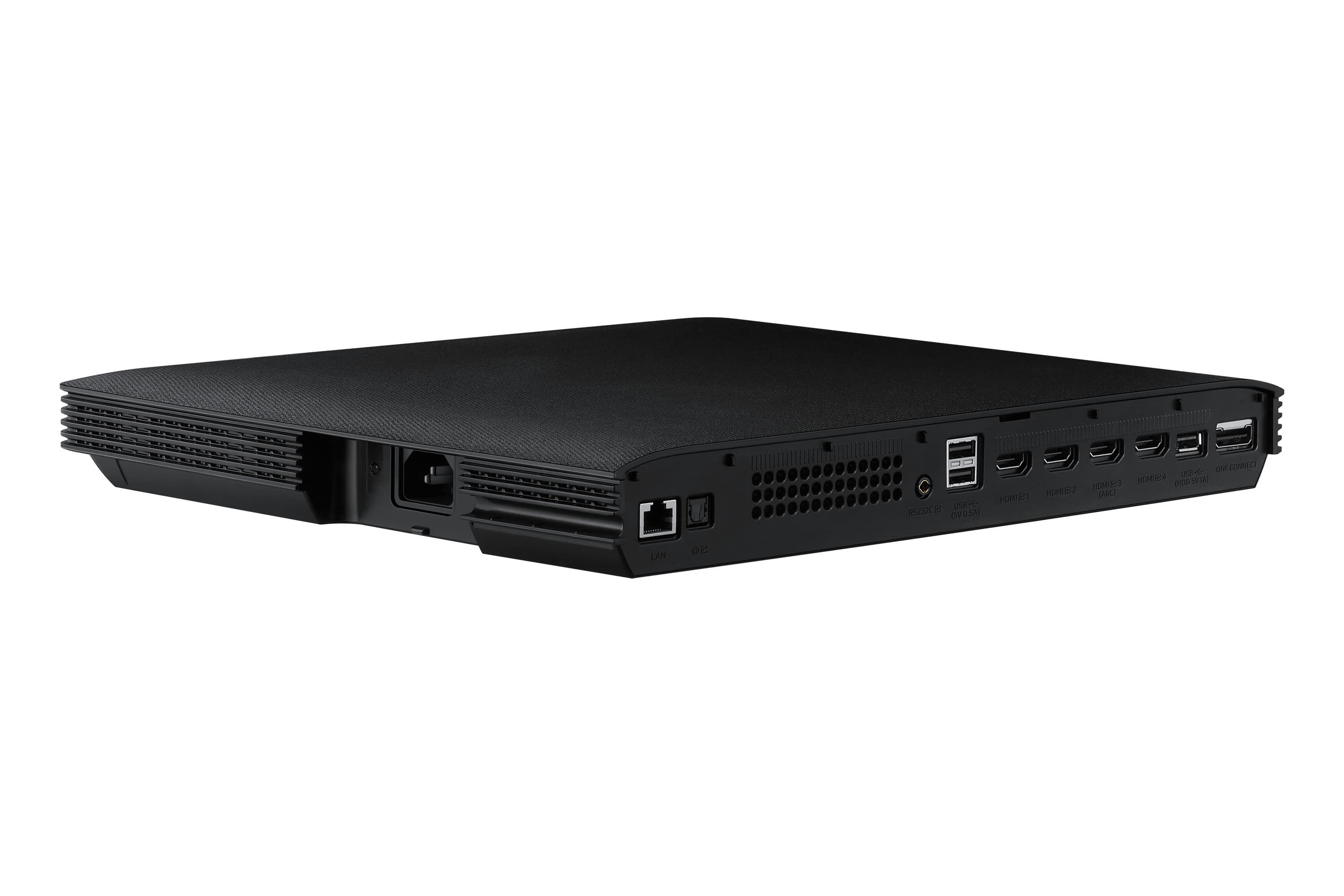

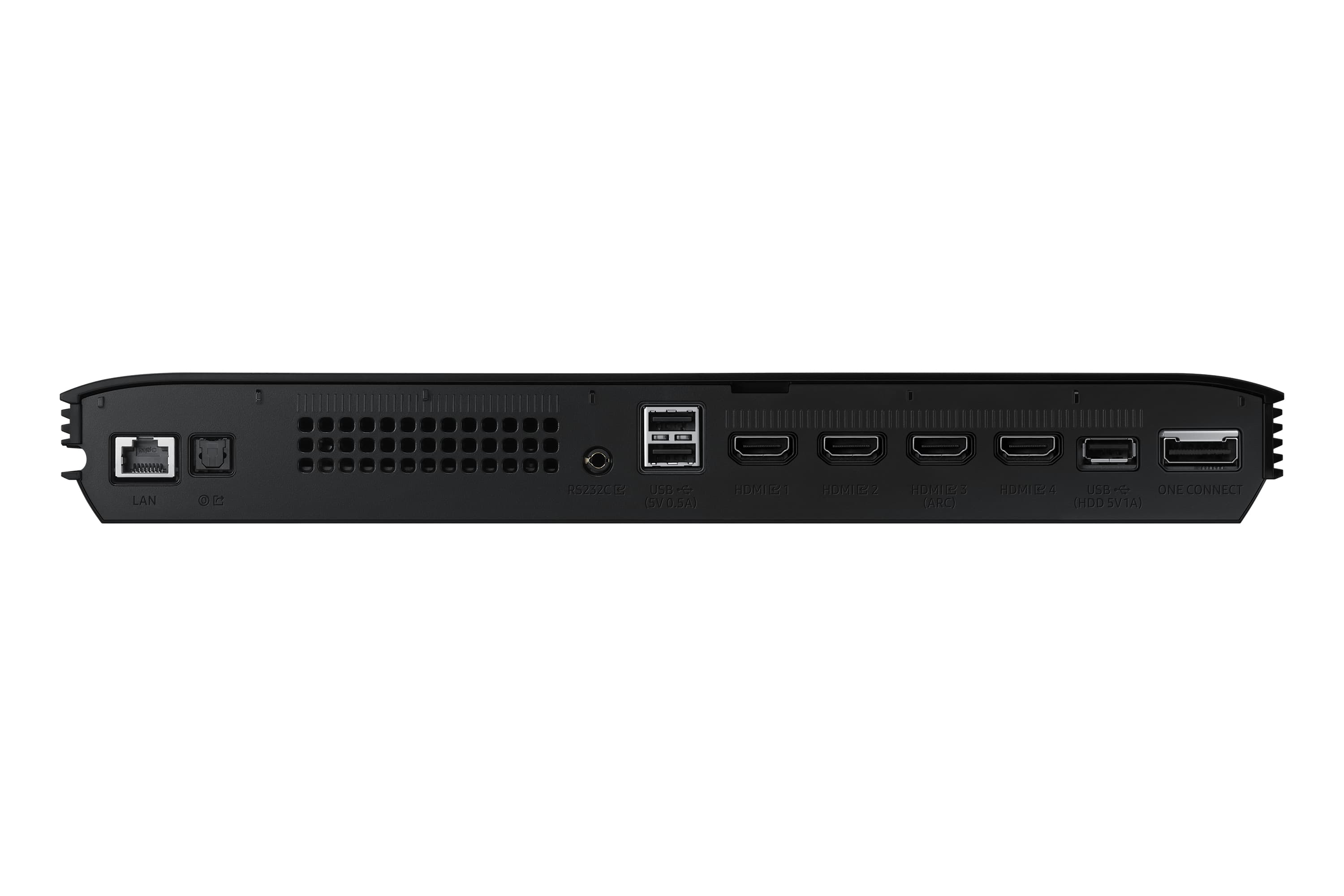

Ports & interfaces

HDMI ports quantity4
DVI portNo
DisplayPorts quantity0
USB portYes
HDMI version2.0/2.1
HDMI input ports quantity4
USB ports quantity3
Ethernet LAN (RJ-45) ports1
RS-232 interfaceYes
Digital audio optical out1

Design

Product designDigital signage flat panel
Product colourStainless steel
Placement supportedIndoor
VESA mountingYes
Screen shapeFlat
Panel mounting interface600 x 400 mm
Bezel type4 Bezel-less
Bezel width (bottom)9.8 mm
Bezel width (side)0.8 mm
Bezel width (top)0.8 mm
Bezel colourStainless Steel

Performance

PurposeUniversal
Operating hours (hours/days)16/7
HDCPYes
HDCP version2.2

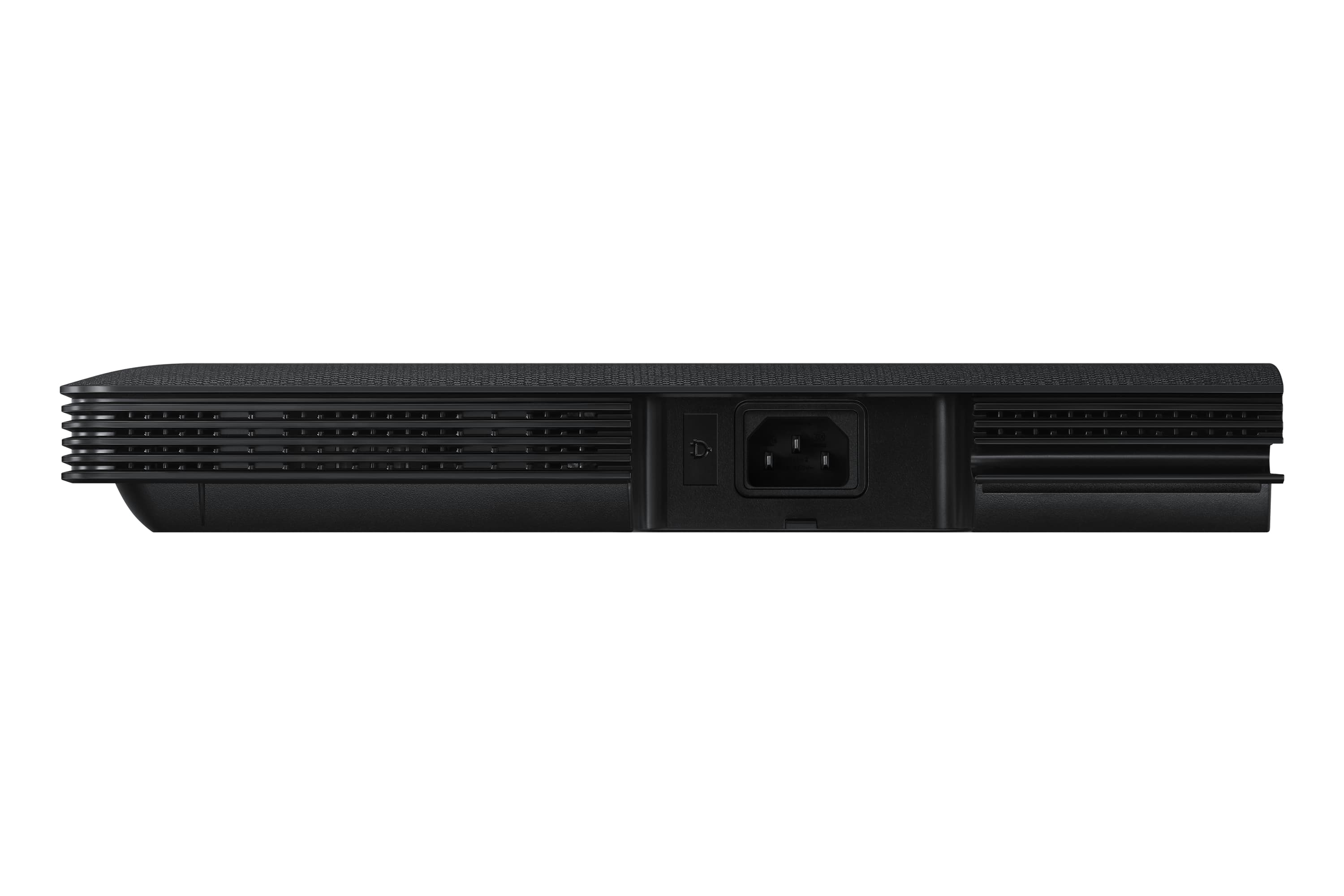

Power

Power consumption (typical)489.5 W
Power consumption (sleep)0.5 W
AC input voltage100 - 240 V
AC input frequency50 / 60 Hz

Computer system

Computer systemYes
Built-in processorYes
Computer system typeSystem on Chip (SoC)
Operating system installedTizen 6.0

Weight & dimensions

Display width1893.4 mm
Display depth17.4 mm
Display height1083 mm
Display weight43.3 kg

Packaging data

Package width2114 mm
Package depth220 mm
Package height1260 mm
Package weight71.7 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Certificates

CertificationClass B 60065, 62368-1

Logistics data

Harmonized System (HS) code85285210

Network

Ethernet LANYes
Wi-FiYes
Wi-Fi standardsWi-Fi 6 (802.11ax)

Other features

BluetoothYes
Flash memory16000 MB
Weight71.00 kg
