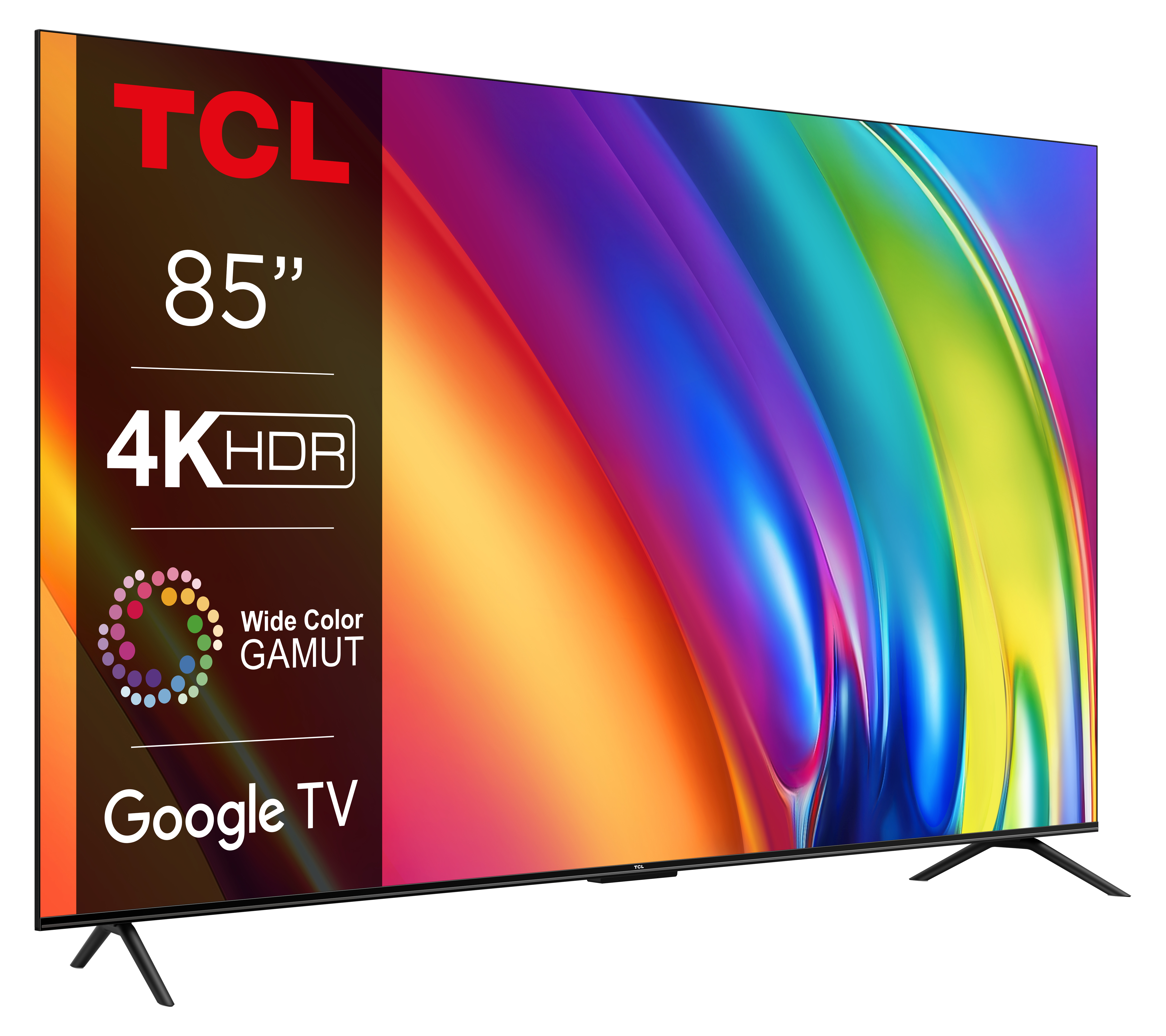

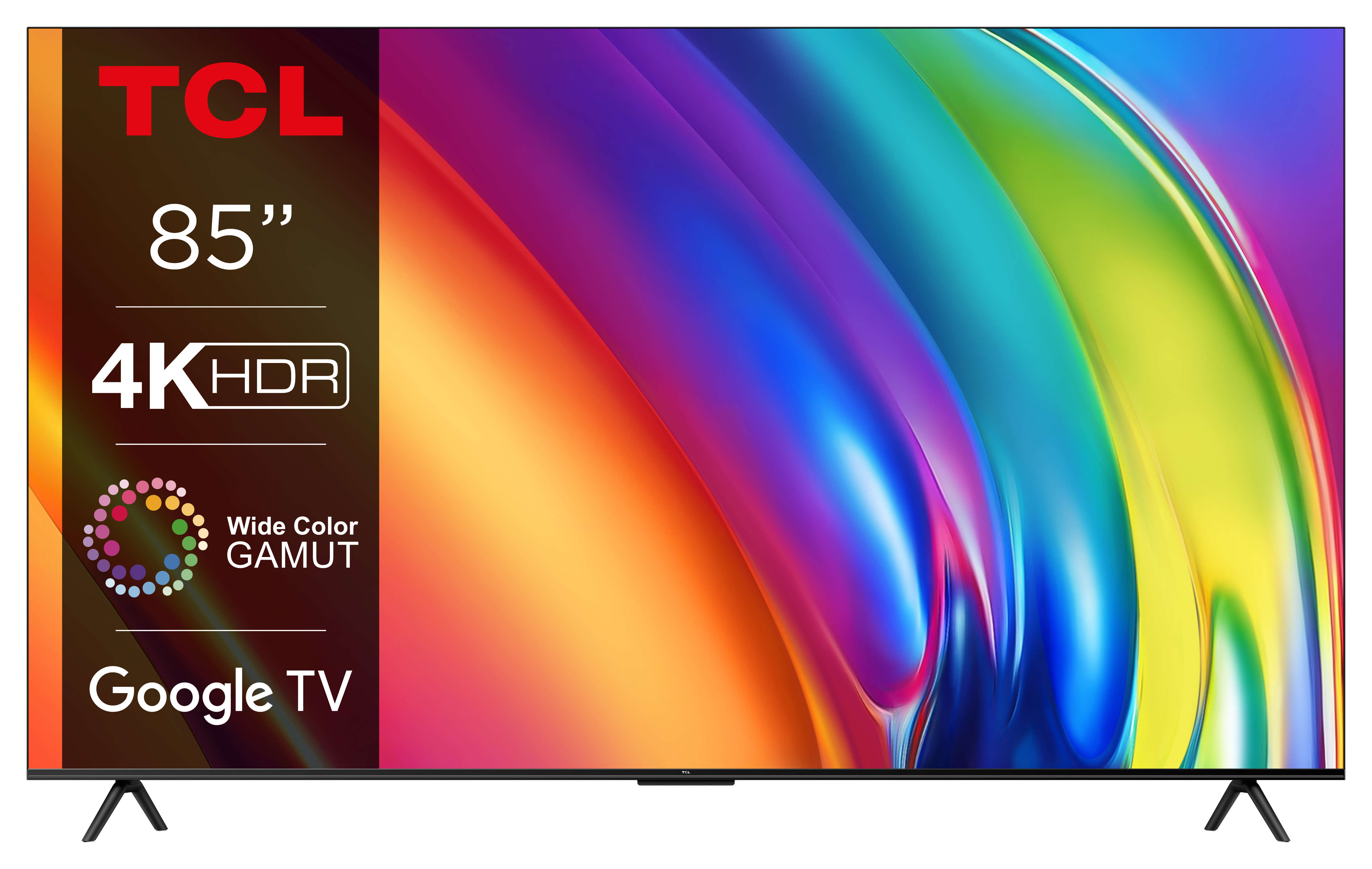

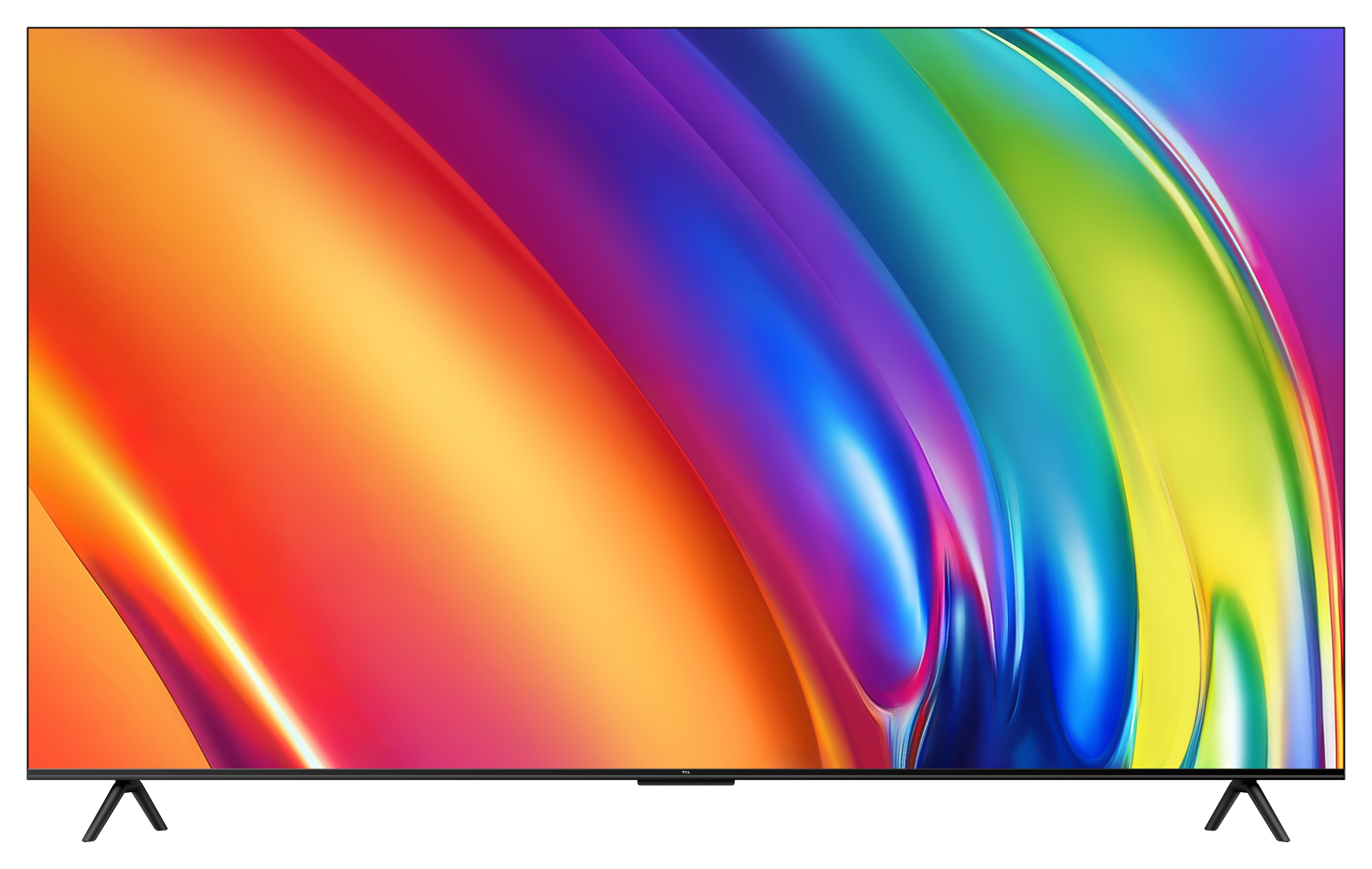

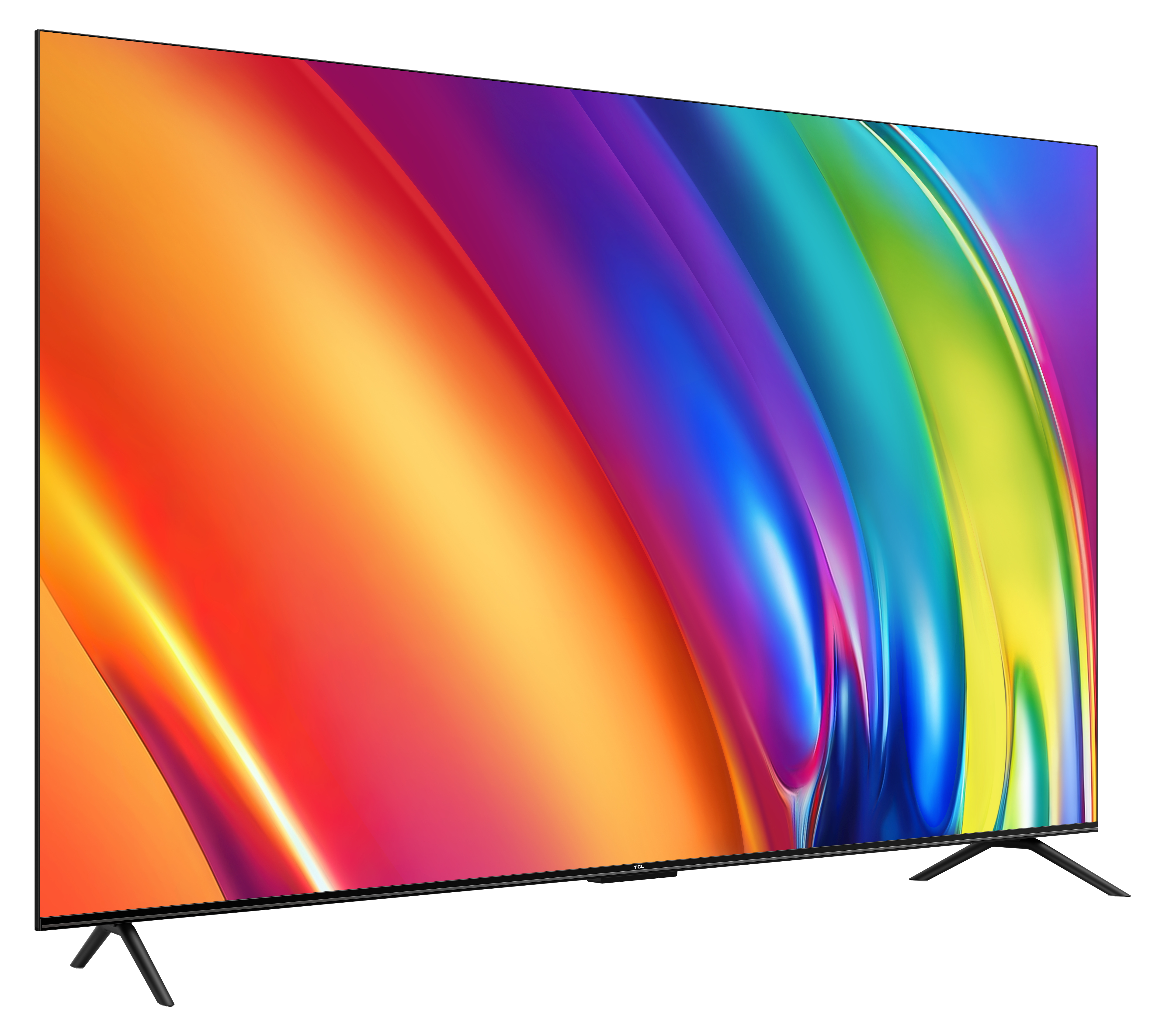

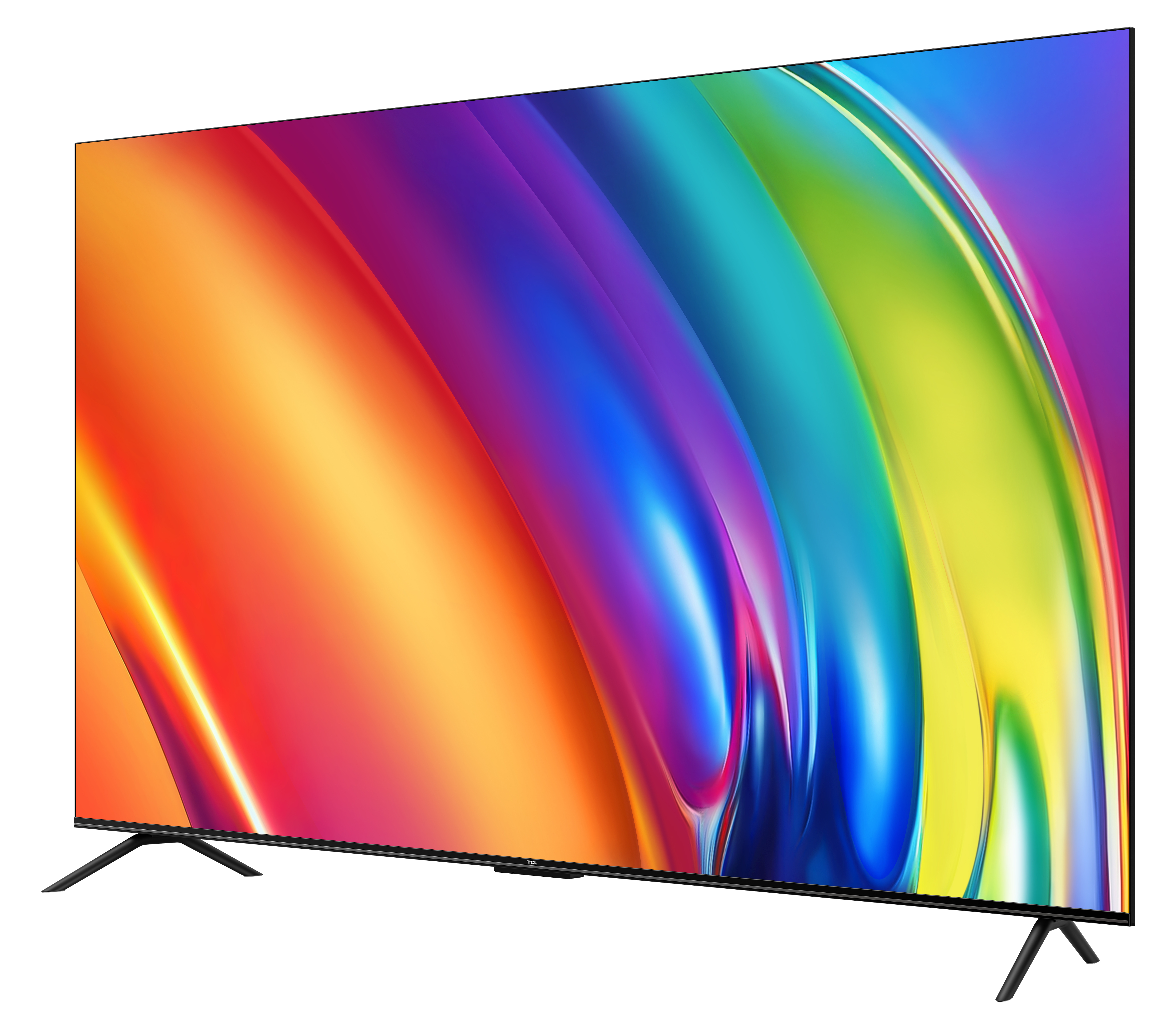

TCL TV 85P745 85", 3840 x 2160 (Ultra HD 4K), LED-LCD

Hover to zoom1/17

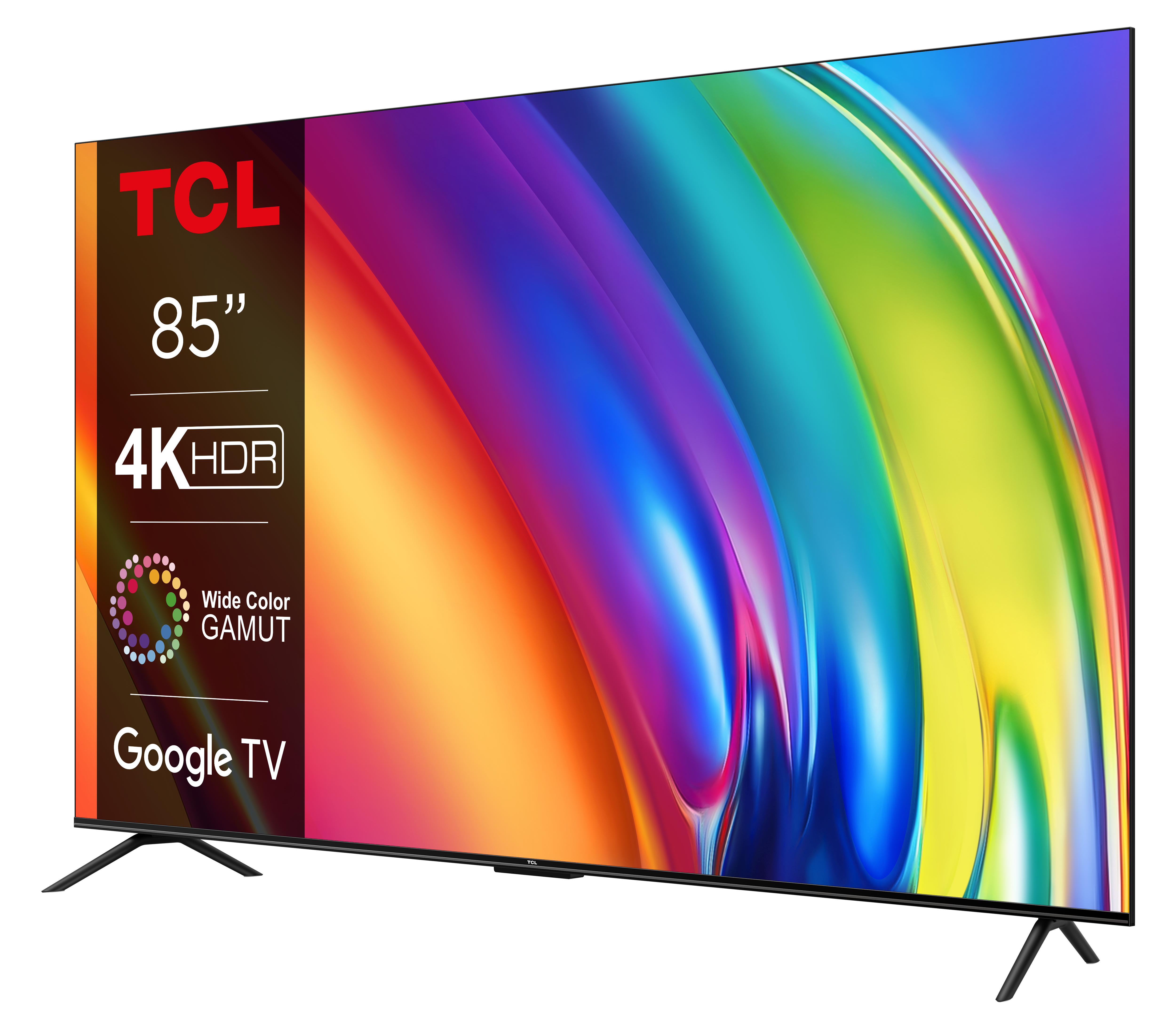

TCL P745 85P745 4K LED Google TV

Part number: 1672127
MPN: 85P745
EAN: 5901292520298

TCL P745 85P745 4K LED Google TV, 2.16 m (85"), 3840 x 2160 pixels, LED, Smart TV, Wi-Fi, Black

Resolution	3840 x 2160 (Ultra HD 4K)
Tuner-Signal	DVB-C (Kabel), DVB-S2 (Satellit), DVB-T2 (terrestrisch)
HDMI Anschlüsse	3
Interfaces	3.5-mm-Kopfhöreranschluss, CI+ Steckplatz, HDMI, RJ-45 (LAN), Toslink, USB, WLAN
Energy efficiency class	G
Display diagonal	2.16 m (85")
HD type	4K Ultra HD
Display technology	LED

All 220 specifications

Description

TCL P745 85P745 4K LED Google TV. Display diagonal: 2.16 m (85"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Screen shape: Flat, LED backlighting type: Direct-LED. Smart TV. Motion interpolation technology: PPI (Picture Perfomance Index) 2700, Display brightness: 350 cd/m², Response time: 14 ms, Native aspect ratio: 16:9. Digital signal format system: DVB-C, DVB-S2, DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Black

Documents

Specifications

Resolution	3840 x 2160 (Ultra HD 4K)
Tuner-Signal	DVB-C (Kabel), DVB-S2 (Satellit), DVB-T2 (terrestrisch)
HDMI Anschlüsse	3
Interfaces	3.5-mm-Kopfhöreranschluss, CI+ Steckplatz, HDMI, RJ-45 (LAN), Toslink, USB, WLAN
Energy efficiency class	G

Display

Display diagonal	2.16 m (85")
HD type	4K Ultra HD
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Display brightness	350 cd/m²
Motion interpolation technology	PPI (Picture Perfomance Index) 2700
LED backlight	Yes
LED backlighting type	Direct-LED
Response time	14 ms
Progressive scan	Yes
Native refresh rate	60 Hz
Dynamic contrast ratio marketing name	Mega Contrast
Colour depth	10 bit
Display diagonal (metric)	248.9 cm
Anti-glare screen	No
Colour gamut standard	Rec. 709
Peak luminance ratio	65%

TV tuner

Tuner type	Analog & digital
Analog signal format system	NTSC, PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Number of tuners	1 tuner(s)
Auto channel search	Yes

Smart TV

Smart TV	Yes
Internet TV	Yes
Operating system installed	Google TV
Operating system version	11.0
Timeshift	No
Screen mirroring	Yes
Video on Demand (VOD) support	Yes
Apple AirPlay 2 support	No
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.3
Smart modes	Dolby Vision, Dynamic, Game, Movie, Normal, Smart HDR, Sports, Standard
Far-field voice interaction	Yes
Universal guide	Yes
Built-in Chromecast	Yes
App distribution platform	Google Play
Video apps	Amazon Prime Video, Apple TV, Disney+, HBO, Netflix, Twitch, YouTube
Music apps	Spotify, Tidal, YouTube Music
Lifestyle apps	Google Apps

Audio

Number of speakers	2
RMS rated power	30 W
Audio output channels	2.0 channels
Built-in subwoofer	No
Audio decoders	DTS, Dolby Atmos, DTS Virtual:X, DTS-HD
Equalizer	Yes
Equalizer bands quantity	7
Auto volume leveller	Yes
Enhanced Audio Return Channel (eARC)	Yes

Network

Wi-Fi	Yes
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Wi-Fi Direct	Yes
Bluetooth profiles	A2DP, HID
Miracast	Yes
Browsing	Yes
Web browser	Yes
HID support	Yes

Design

Product colour	Black
VESA mounting	Yes
Panel mounting interface	600 x 300 mm
On/off switch	Yes
Rollable display	No
Ambient lighting	No
LED indicators	Yes
Frameless design	Yes
Introduction year	2023
Bezel type	3 Bezel-less
Stand type	Legs stand
Stand colour	Black
Heavy metals free	Cd (cadmium)

Performance

High Dynamic Range (HDR) supported	Yes
Noise reduction	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Game mode	Yes
Teletext function	Yes
Subtitles function	Yes
Video formats supported	AVI, H.264, H.265, MKV, MP4, MPG, TS, VP9, WEBM, WMV
Audio formats supported	MP3, WMA
Image formats supported	BMP, HEIF, JPG
Video compression formats	H.264, H.265, MPEG2
Ambient light sensor	No
Ambient mode	Intelligent Picture
AI Upscale	Yes
Backlight dimming technology	Local Dimming
Picture processing technology	TCL AiPQ 3.0 Engine
Processor cores	4
AMD FreeSync	No
NVIDIA G-SYNC	No
Game features	Auto Low Latency Mode (ALLM), Game Bar
Calman Ready	No
4K Ultra HD upscaling	Yes
Adaptive picture	Yes
Video upscaling	Yes
Multi View	Yes
Smartphone/tablet remote support	Yes
USB recording	No
DVD player	No

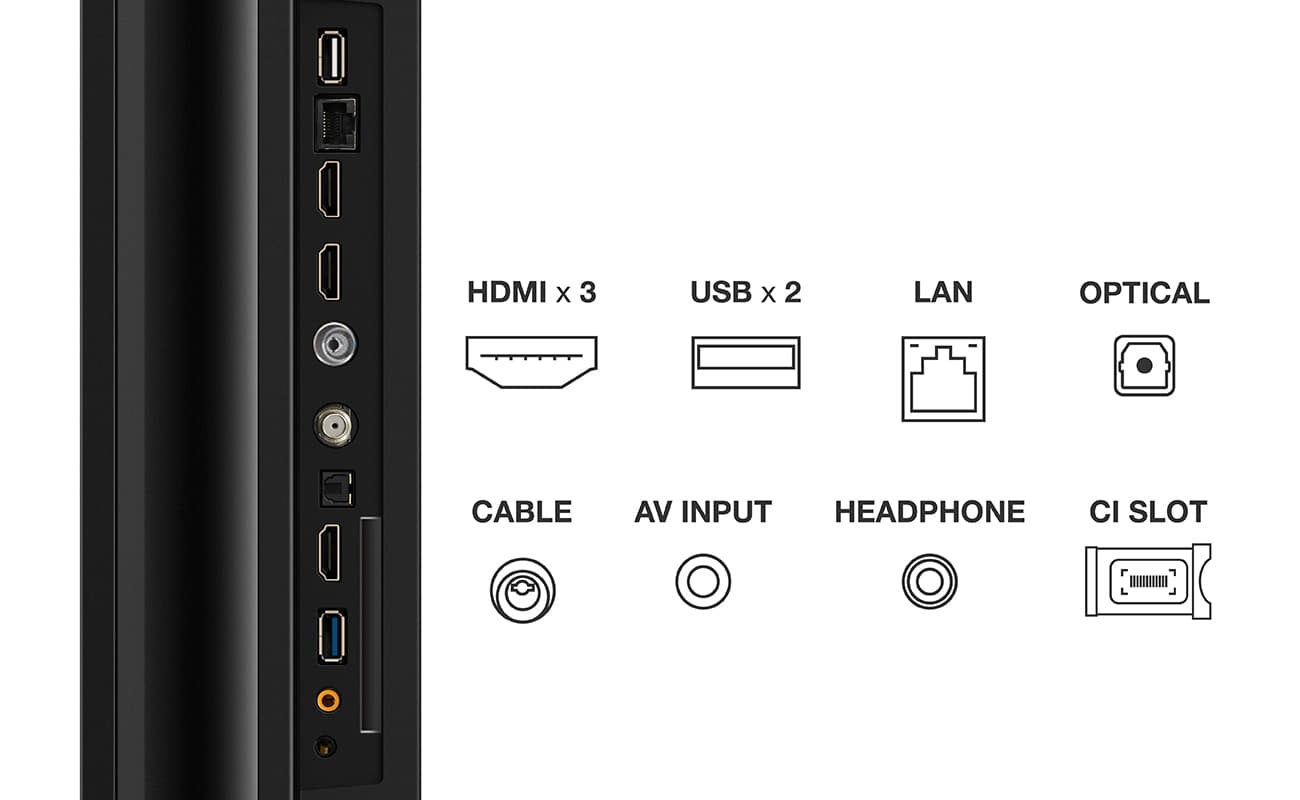

Ports & interfaces

HDMI ports quantity	3
PC in (D-Sub)	No
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
HDMI version	2.1
HDMI Quick Switch	Yes
Audio Return Channel (ARC)	Yes
HDCP	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
DVI-D ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Audio (L/R) out	1
Digital audio optical out	1
Digital audio coaxial out	0
Digital audio coaxial in	0
Headphone outputs	1
RF ports quantity	2
RF connector type	F, IEC
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	T-link
Intel® Wireless Display (Intel® WiDi)	Yes
AC (power) in	Yes
Component video (YPbPr/YCbCr) out	1

Management features

Control type	Buttons
Voice control	Yes
Electronic Programme Guide (EPG)	Yes
Programming period	8 day(s)
On Screen Display (OSD)	Yes
Number of OSD languages	29
On Screen Display (OSD) languages	ALB, Bulgarian, Croatian, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, LAT, Lithuanian, MAC, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Turkish, Ukrainian
Picture-in-Picture	Yes
Hotel mode	No
ECO mode	Yes
Auto power off	Yes
Sleep timer	Yes
On/Off timer	Yes
Firmware upgradeable	Yes
Firmware upgradeable via	Network, USB
Works with Amazon Alexa	Yes
Works with the Google Assistant	Yes
Works with Samsung Bixby	No
Works with Apple Siri	No

Power

Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	168 kWh
Energy consumption (HDR) per 1000 hours	310 kWh
AC input voltage	220-240 V
AC input frequency	50/60 Hz
Energy saving mode	Yes

Battery

Battery weight	15 g
Battery technology	Alkaline

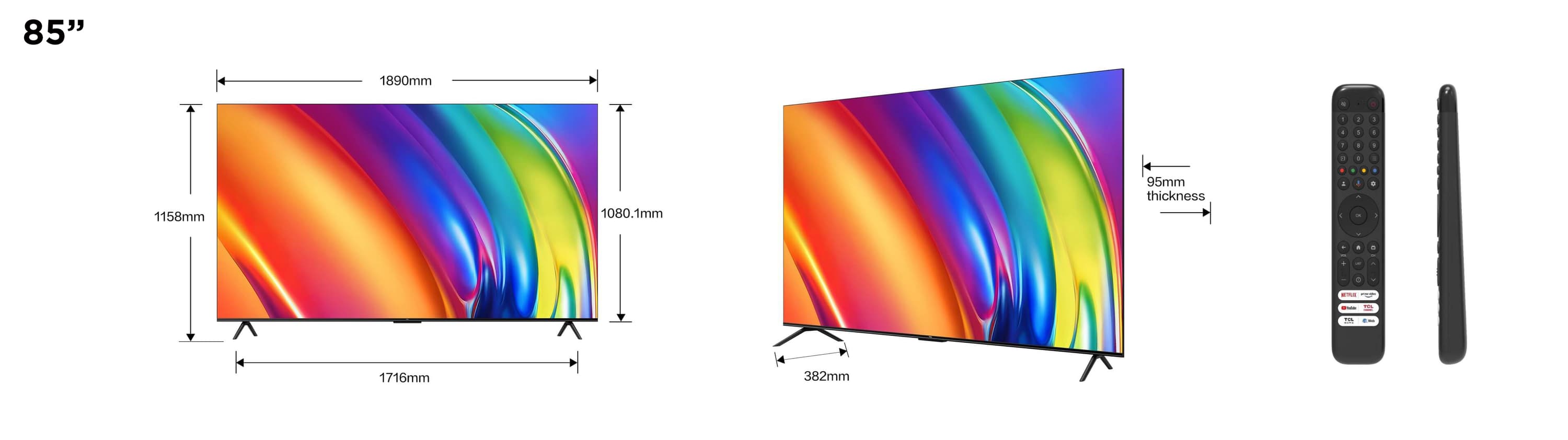

Weight & dimensions

Width (with stand)	1897 mm
Depth (with stand)	408 mm
Height (with stand)	1167 mm
Weight (with stand)	31.2 kg
Width (without stand)	1897 mm
Depth (without stand)	79 mm
Height (without stand)	1092 mm
Weight (without stand)	30.5 kg
Stand width	189.7 cm
Stand depth	40.8 cm

Packaging data

Package width	2055 mm
Package depth	207 mm
Package height	1205 mm
Package weight	43.2 kg

Packaging content

Desktop stand	Yes
Mounting kit	No
Cables included	AC
Remote control included	Yes
Remote control type	RC833
Smart Remote included	Yes
Soundbar included	No
E-manual	Yes

Logistics data

Maximum number of stacking cartons	1 pc(s)
Master (outer) case height	1275 mm
Master (outer) case width	2058 mm
Products per master (outer) case	1 pc(s)
Master (outer) case length	245 mm
Products per pallet layer	3 pc(s)
Master (outer) case gross weight	49.9 kg
Pallet net width	2.2 m
Pallet net length	80 cm
Pallet net height	141.5 cm
Pallet net weight	162.6 kg
Pallet gross width	2.2 m
Pallet gross length	80 cm
Pallet gross height	141.5 cm
Pallet gross weight	162.6 kg
Products per pallet	3 pc(s)
Layers per pallet	1 pc(s)
Quantity per truck	54 pc(s)
Number of pallets per truck	18 pc(s)

Other features

Channel list copy function	Yes
Cord length	1.5 m
Processor architecture	ARM Cortex-A55
Processor frequency	1.3 GHz
Built-in camera	No
Access time	15 ms
Country of origin	Poland
Quantity per box	1 pc(s)
Power plug type	Type E
Digital Living Network Alliance (DLNA) certified	Yes
Warranty period	2 year(s)
User memory	9.2 GB
Presence of lead	No

Technical details

Chemical tax (Sweden)	Yes
Chemical tax reduction (Sweden)	0
Weight	34.60 kg
