TP-Link Mesh-System Deco E4 Einzeladapter1/5
TP-Link

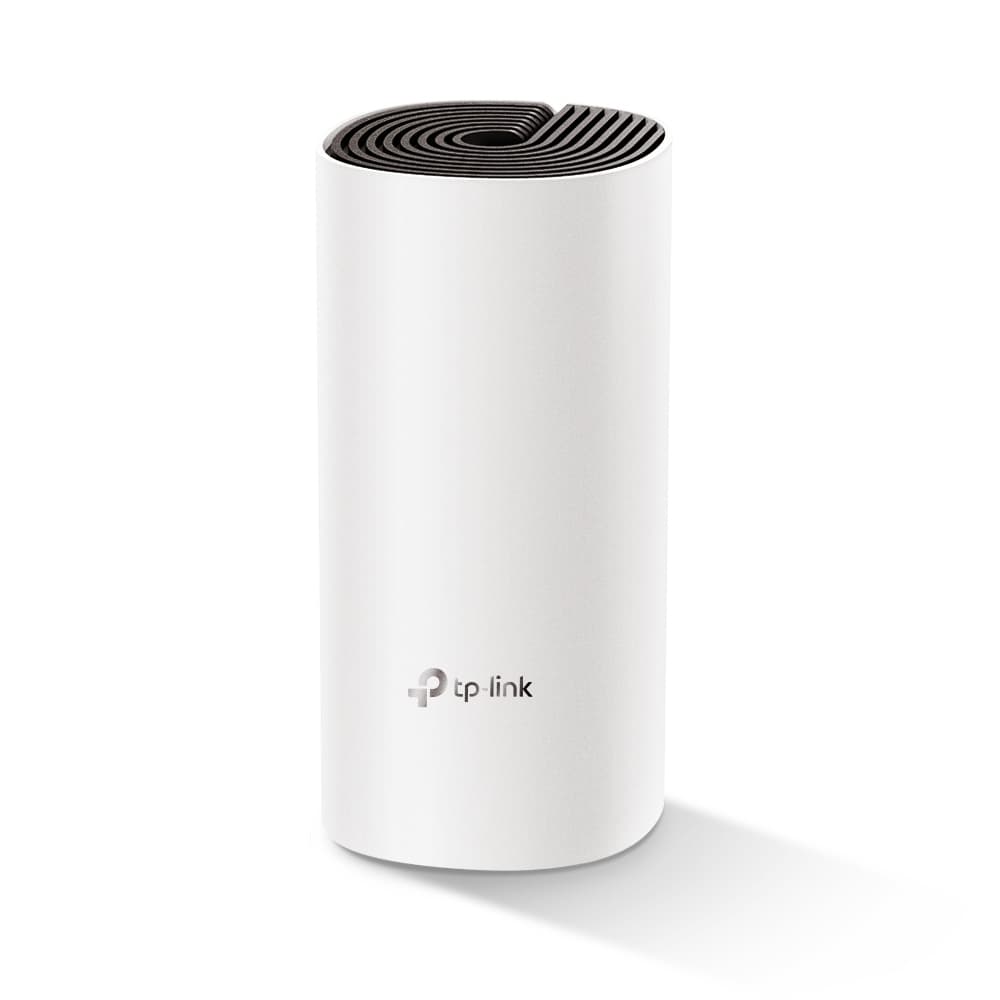

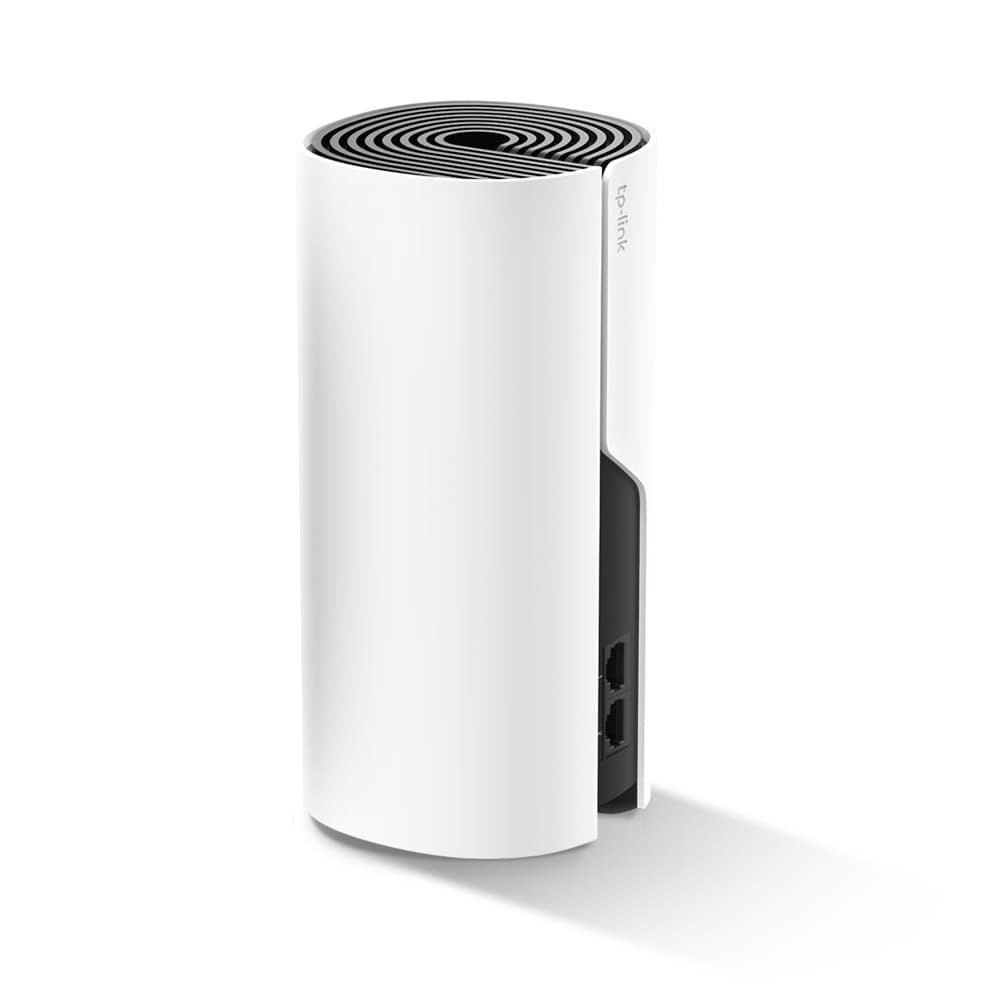

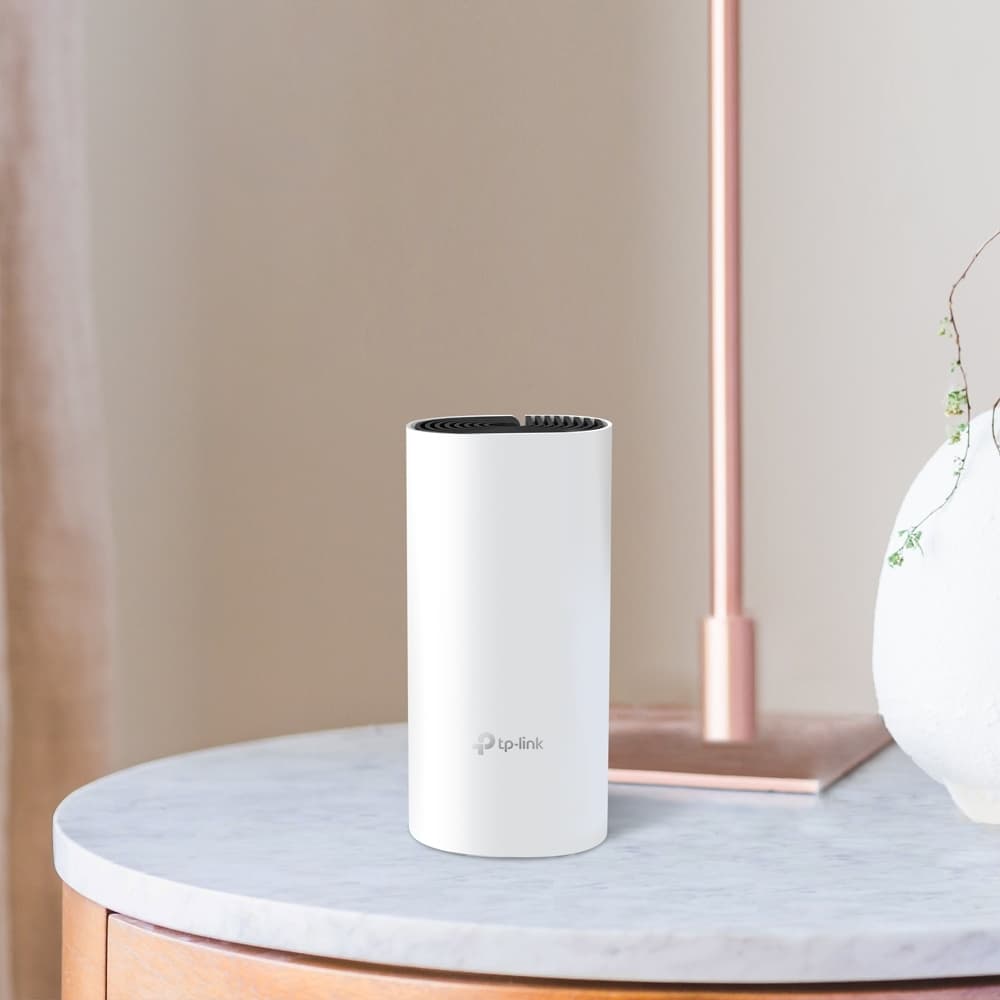

TP-Link AC1200 Whole Home Mesh Wi-Fi System

Part number
1171076
MPN
Deco E4(1-Pack)
EAN
1210002621687

TP-Link AC1200 Whole Home Mesh Wi-Fi System, White, Grey, Internal, Mesh router, LAN, WLAN, Dual-band (2.4 GHz / 5 GHz), Wi-Fi 5 (802.11ac)

Application areaConsumer, Home
RJ-45 Anschlüsse2
RJ-45 Geschwindigkeit10/100 Mbit/s
Anzahl PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W
Product colourWhite, Grey
Antenna typeInternal
All 59 specifications

Description

TP-Link AC1200 Whole Home Mesh Wi-Fi System. Product colour: White, Grey, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Firewall security: SPI Firewall. AC input voltage: 100 - 240 V, AC adapter input current: 0.3 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, CE, Certification: FCC, IC, NCC, BSMI, IDA,RCM, JPA, JRF, VCCI, KC

Documents

Specifications

Application areaConsumer, Home
RJ-45 Anschlüsse2
RJ-45 Geschwindigkeit10/100 Mbit/s
Anzahl PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W

Design

Product colourWhite, Grey
Antenna typeInternal
Product typeMesh router
LED indicatorsLAN, WLAN
Antennas quantity2
Reset buttonYes

Wireless LAN features

Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1167 Mbit/s
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Networking standardsIEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g
Security algorithmsWPA-PSK, WPA2-PSK
Number of guest networks (5 GHz)1
Number of guest networks (2.4 GHz)1
Dynamic IPYes
Static IPYes
Dynamic DNS (DDNS)Yes
Guest accessYes

Features

Quality of Service (QoS) supportYes
Port forwardingYes
Firewall securitySPI Firewall
BeamFormingYes
DHCP clientYes
DHCP serverYes
Parental controlYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Power

AC input voltage100 - 240 V
AC adapter input current0.3 A
AC input frequency50 - 60 Hz
AC adapter output voltage9 V
AC adapter output current0.85 A

Certificates

Compliance certificatesRoHS, CE
CertificationFCC, IC, NCC, BSMI, IDA,RCM, JPA, JRF, VCCI, KC

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width90.7 mm
Depth90.7 mm
Height190 mm

Packaging content

Number of products included1 pc(s)
AC adapter includedYes
Number of units included1 pc(s)
Ethernet cableYes

Packaging data

Package width225 mm
Package depth241 mm
Package height105 mm
Package weight1 kg

Logistics data

Harmonized System (HS) code85171800

Sustainability

Sustainability complianceYes
Weight1.00 kg
