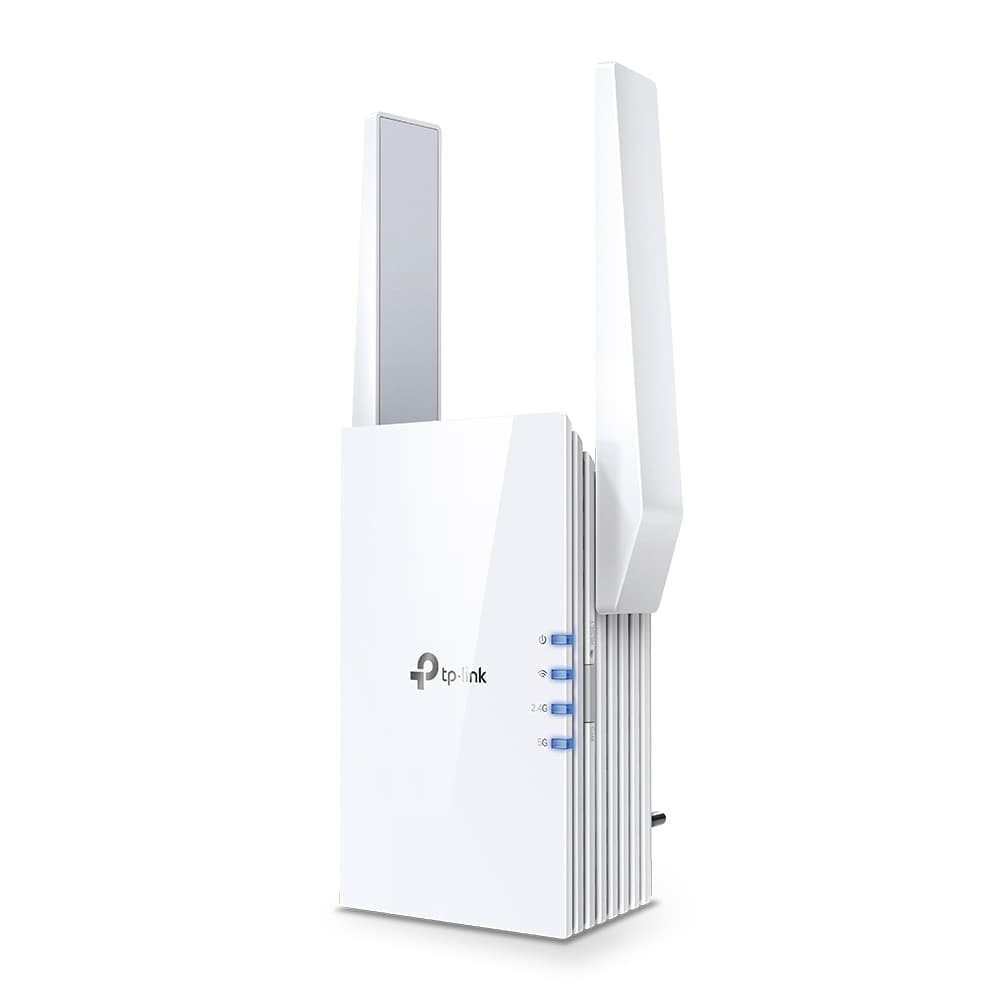

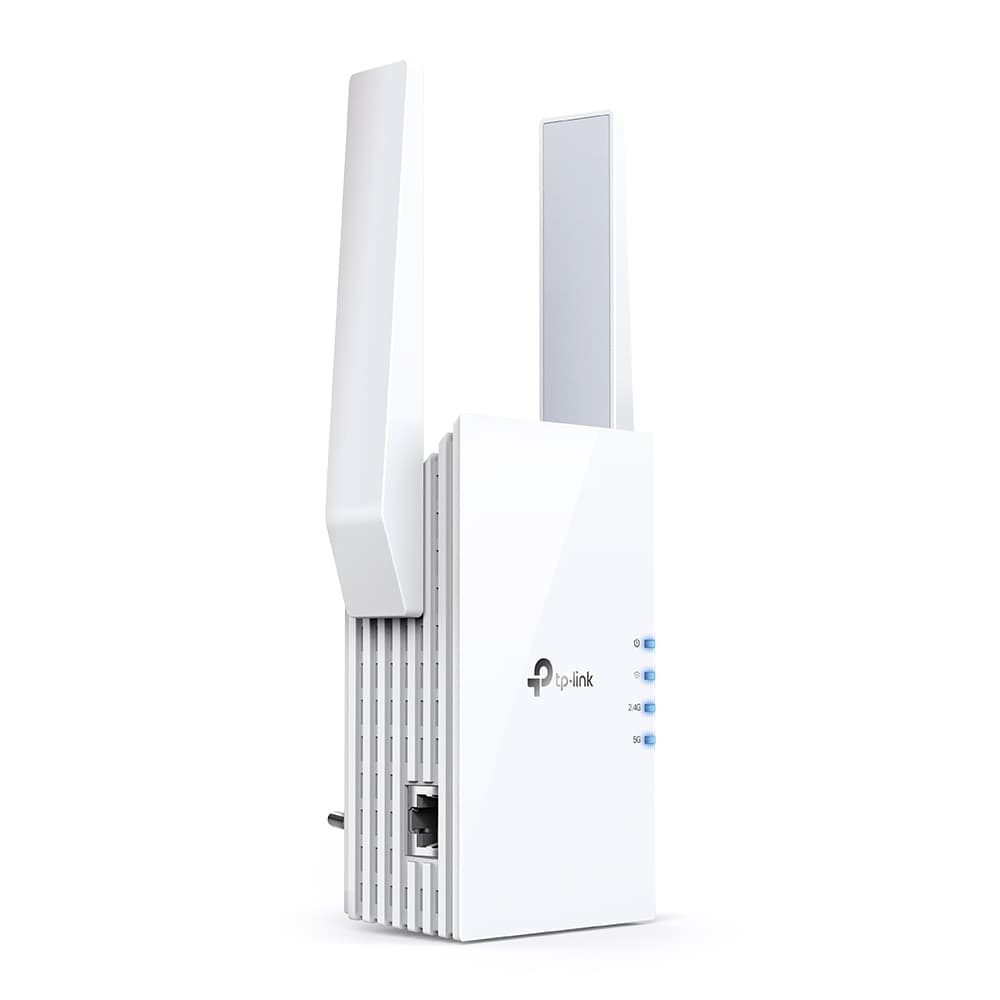

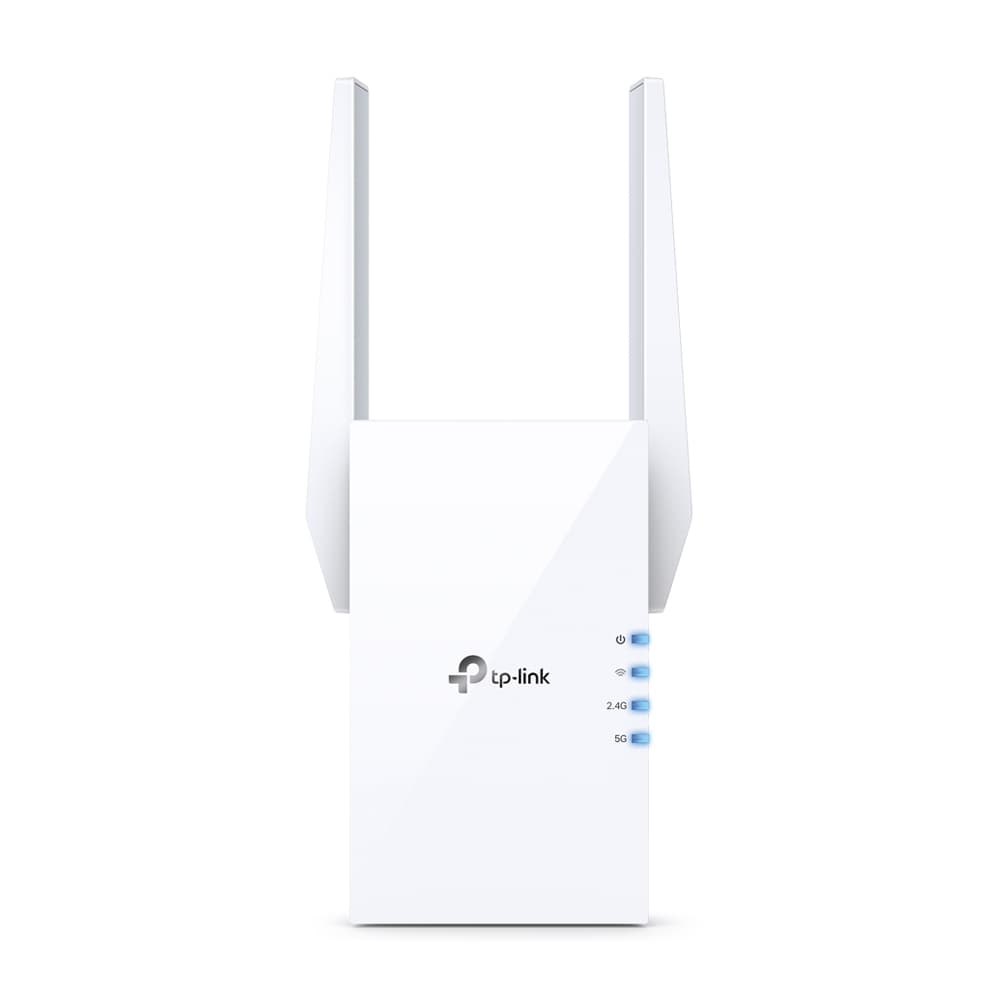

TP-Link AX1800 Wi-Fi Range Extender

Part number: 1154833
MPN: RE605X
EAN: 6935364030582

TP-Link AX1800 Wi-Fi Range Extender, Network repeater, 1201 Mbit/s, 10,100,1000 Mbit/s, Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows..., Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, External

RJ-45 Anschlüsse	1
RJ-45 Geschwindigkeit	1 Gbit/s
WLAN Standard	IEEE 802.11ac (Wi-Fi 5), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b (Wi-Fi 2), IEEE 802.11g (Wi-Fi 3), IEEE 802.11n (Wi-Fi 4)
Frequenzband	2.4 GHz, 5 GHz
WLAN Geschwindigkeit 2.4GHz	574 Mbit/s
WLAN Geschwindigkeit 5GHz	1201 Mbit/s
Type	Network repeater
Data transfer rate	1201 Mbit/s

Description

TP-Link AX1800 Wi-Fi Range Extender. Type: Network repeater, Data transfer rate: 1201 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤15dBm, 5 GHz ≤21dBm. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Product colour: White, Quantity per pack: 1 pc(s), Country of origin: China. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 10 W

Documents

Specifications

RJ-45 Anschlüsse	1
RJ-45 Geschwindigkeit	1 Gbit/s
WLAN Standard	IEEE 802.11ac (Wi-Fi 5), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b (Wi-Fi 2), IEEE 802.11g (Wi-Fi 3), IEEE 802.11n (Wi-Fi 4)
Frequenzband	2.4 GHz, 5 GHz
WLAN Geschwindigkeit 2.4GHz	574 Mbit/s
WLAN Geschwindigkeit 5GHz	1201 Mbit/s

Performance

Type	Network repeater
Data transfer rate	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
WPS push button	Yes
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Antenna

Antennas quantity	2
Antenna type	External
Transmitting power (CE)	2.4 GHz ≤15dBm, 5 GHz ≤21dBm

Network

Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	1200 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Design

Product colour	White
LED indicators	Yes
Quantity per pack	1 pc(s)
Country of origin	China
Reset button	Yes

Power

AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	10 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	74 mm
Depth	46 mm
Height	124.8 mm

Packaging content

Quick start guide	Yes

Packaging data

Package type	Box
Package width	202 mm
Package depth	125 mm
Package height	97 mm
Package weight	420 g

Certificates

Compliance certificates	CE, RoHS

Logistics data

Harmonized System (HS) code	85176990

Other features

Commodity Classification Automated Tracking System (CCATS)	85183095
Weight	0.43 kg
