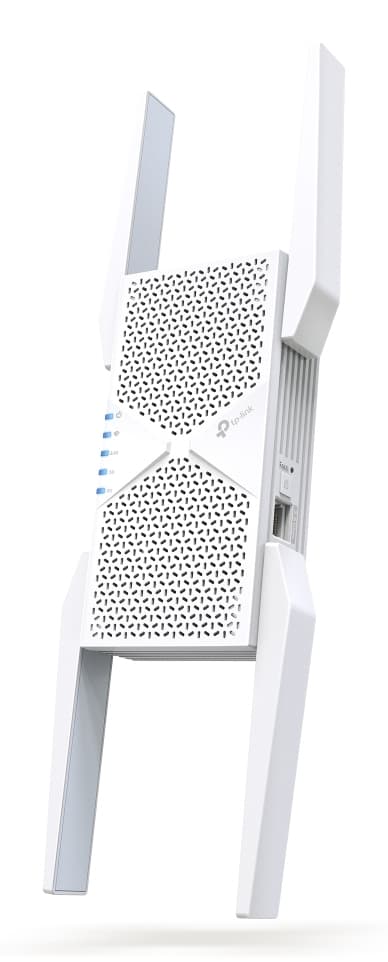

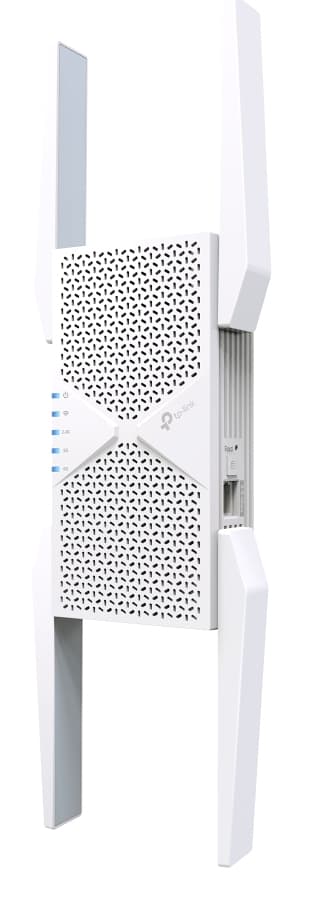

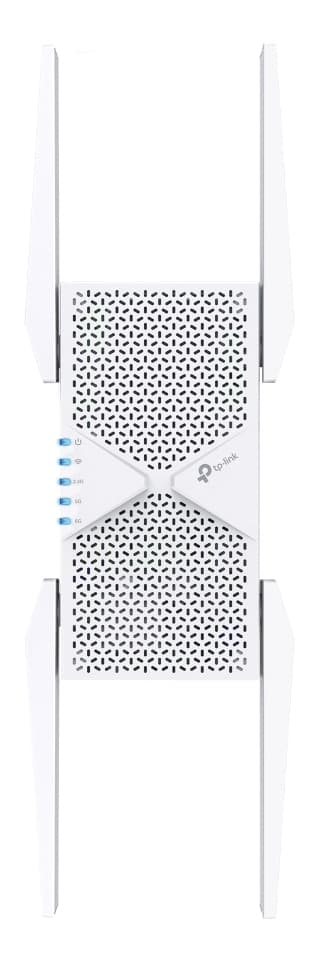

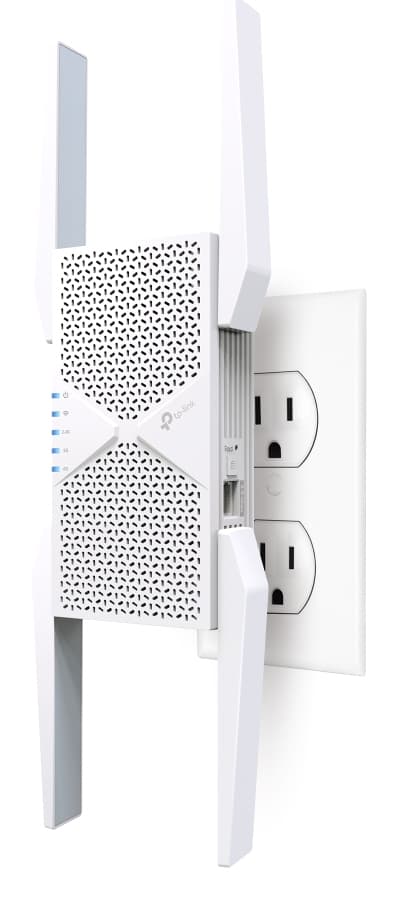

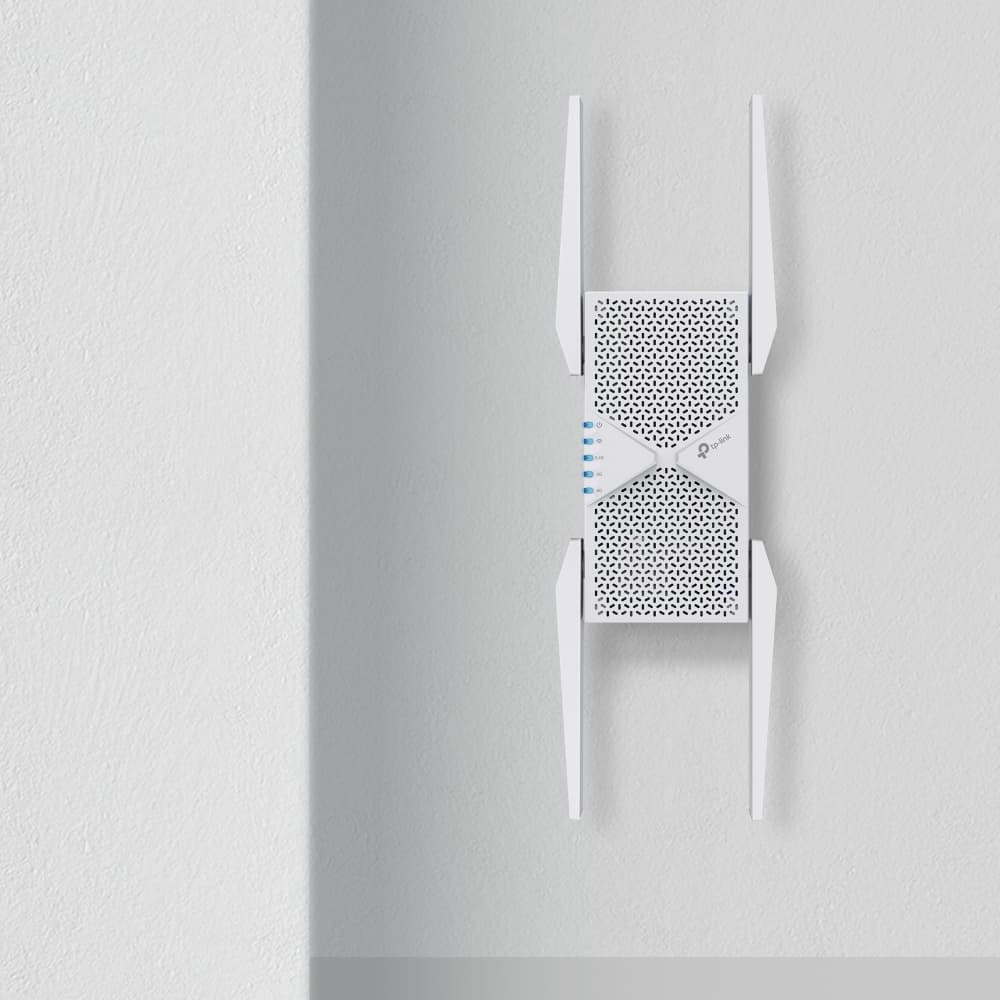

TP-Link WLAN-Mesh-Repeater RE655BE Tri-Band Wi-Fi 71/7
TP-Link

TP-Link BE11000 Network transmitter & receiver White 2500 Mbit/s

Part number
1886121
MPN
RE655BE
EAN
4895252507430

TP-Link BE11000, Network transmitter & receiver, 10800 Mbit/s, 2500 Mbit/s, Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows..., MacOS, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

RJ-45 Anschlüsse1
RJ-45 Geschwindigkeit2.5 Gbit/s
WLAN StandardIEEE 802.11ac (Wi-Fi 5), IEEE 802.11a (Wi-Fi 1), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), IEEE 802.11b (Wi-Fi 2), IEEE 802.11g (Wi-Fi 3), IEEE 802.11n (Wi-Fi 4)
Frequenzband2.4 GHz, 5 GHz, 6 GHz
WLAN Geschwindigkeit 2.4GHz688 Mbit/s
WLAN Geschwindigkeit 5GHz2882 Mbit/s
TypeNetwork transmitter & receiver
Data transfer rate10800 Mbit/s
All 42 specifications

Description

TP-Link BE11000. Type: Network transmitter & receiver, Data transfer rate: 10800 Mbit/s, Ethernet LAN data rates: 2500 Mbit/s. Antenna type: External, Transmitting power (FCC): 30 dBm. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7..., Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Bandwidth: 0.32 GHz. Product colour: White, Quantity per pack: 1 pc(s). AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 0.5 A

Documents

Specifications

RJ-45 Anschlüsse1
RJ-45 Geschwindigkeit2.5 Gbit/s
WLAN StandardIEEE 802.11ac (Wi-Fi 5), IEEE 802.11a (Wi-Fi 1), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), IEEE 802.11b (Wi-Fi 2), IEEE 802.11g (Wi-Fi 3), IEEE 802.11n (Wi-Fi 4)
Frequenzband2.4 GHz, 5 GHz, 6 GHz
WLAN Geschwindigkeit 2.4GHz688 Mbit/s
WLAN Geschwindigkeit 5GHz2882 Mbit/s

Performance

TypeNetwork transmitter & receiver
Data transfer rate10800 Mbit/s
Ethernet LAN data rates2500 Mbit/s
WPS push buttonYes
Windows operating systems supportedWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supportedMacOS
Linux operating systems supportedYes
Browser supportedInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Antenna

Antennas quantity4
Antenna typeExternal
Transmitting power (FCC)30 dBm

Network

Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 6 GHz)
Bandwidth0.32 GHz
Security algorithmsWPA, WPA2-PSK, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Design

Product colourWhite
Quantity per pack1 pc(s)
Reset buttonYes

Power

AC input voltage100-240 V
AC input frequency50/60 Hz
Input current0.5 A
Power consumption (typical)23.5 W
Power plug typeType B

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width107.2 mm
Depth39 mm
Height161 mm

Packaging content

Quick start guideYes

Packaging data

Package typeBox

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA

Features

Networking featuresMulti-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs
Weight0.69 kg
