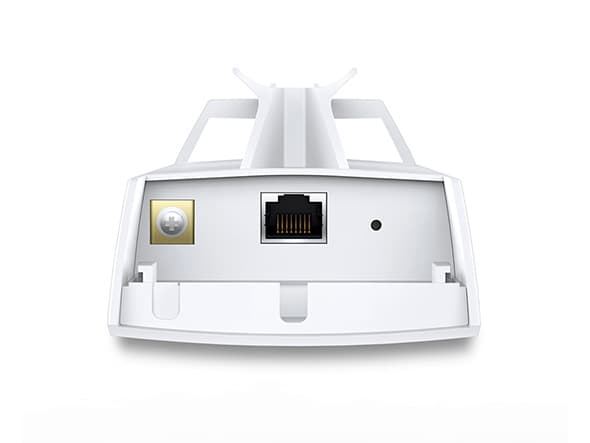

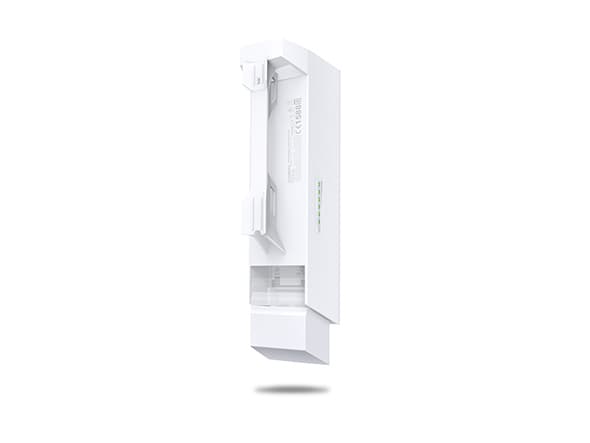

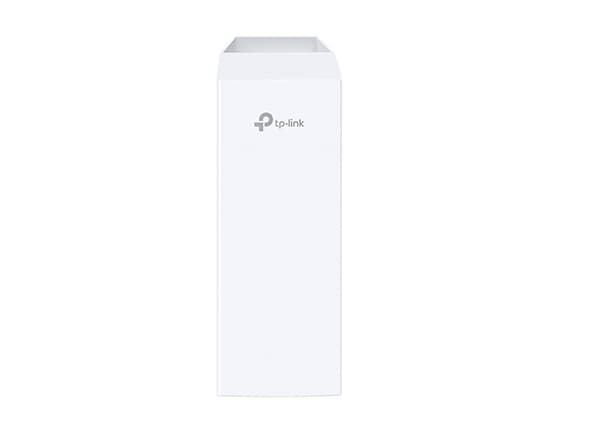

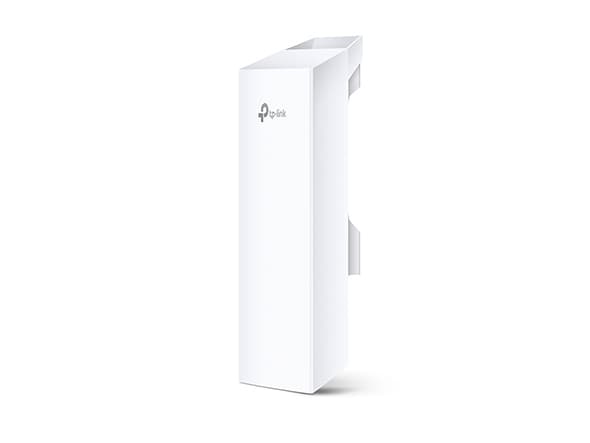

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Part number: 332851
MPN: CPE510
EAN: 1210002611466

TP-Link CPE510, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s

Access Point Features	Bridge, Multiple SSID, RADIUS, VLAN, WDS, WLAN-Controller
Depth	75 mm
Width	224 mm
Outdoor use	Ja
Antennenanschluss	Kein externer Anschluss
Height	60 mm
Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s

Description

TP-Link CPE510. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White

Documents

Data sheetPDF · DE

Specifications

Access Point Features	Bridge, Multiple SSID, RADIUS, VLAN, WDS, WLAN-Controller
Outdoor use	Ja
Antennenanschluss	Kein externer Anschluss

Weight & dimensions

Depth	75 mm
Width	224 mm
Height	60 mm

Features

Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Security

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes

Protocols

Management protocols	TDMA

Management features

Web-based management	Yes
Management platform	Pharos Control

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)

Power

Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (typical)	13 W

Design

Product colour	White
Reset button	Yes
LED indicators	Yes
Internal	No

Antenna

Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi

Performance

Built-in processor	Yes
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS

Packaging content

Cables included	AC

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Harmonized System (HS) code	85176990
Weight	0.67 kg
