TP-Link Medienkonverter TL-FC311A-201/5
TP-Link

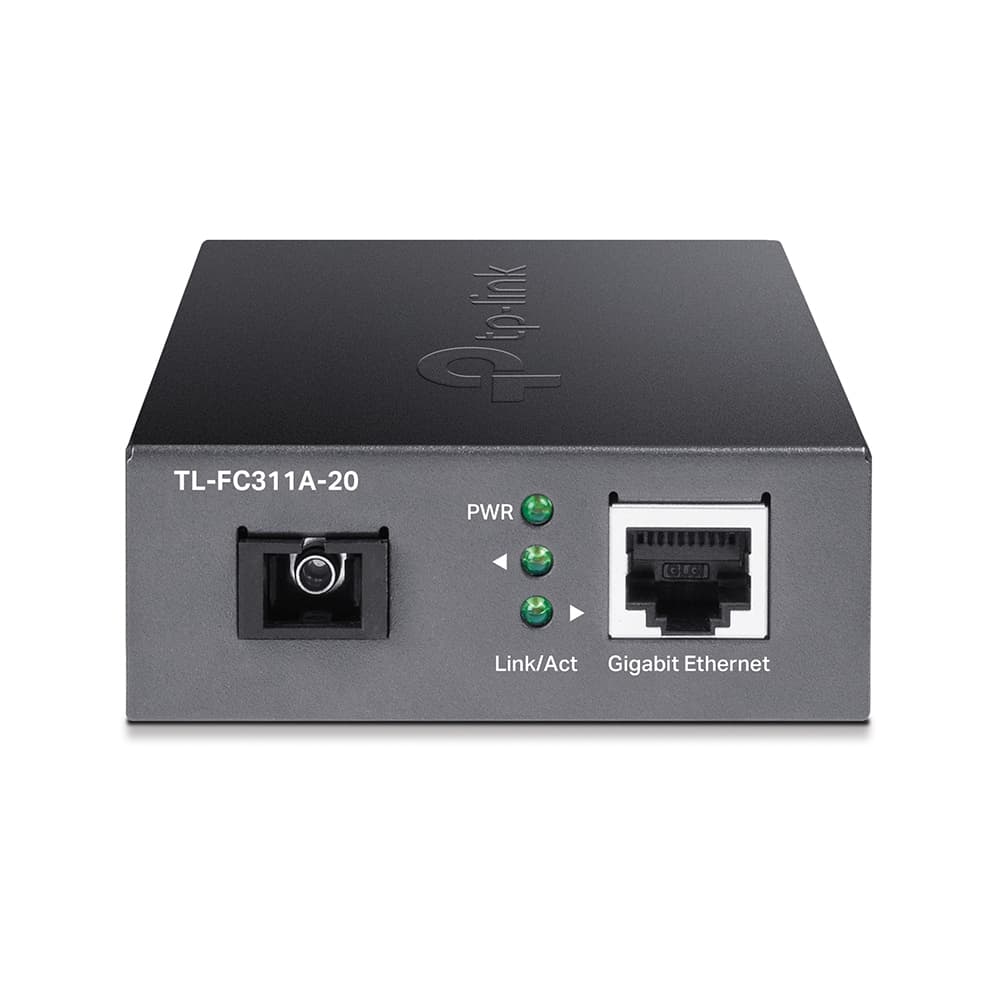

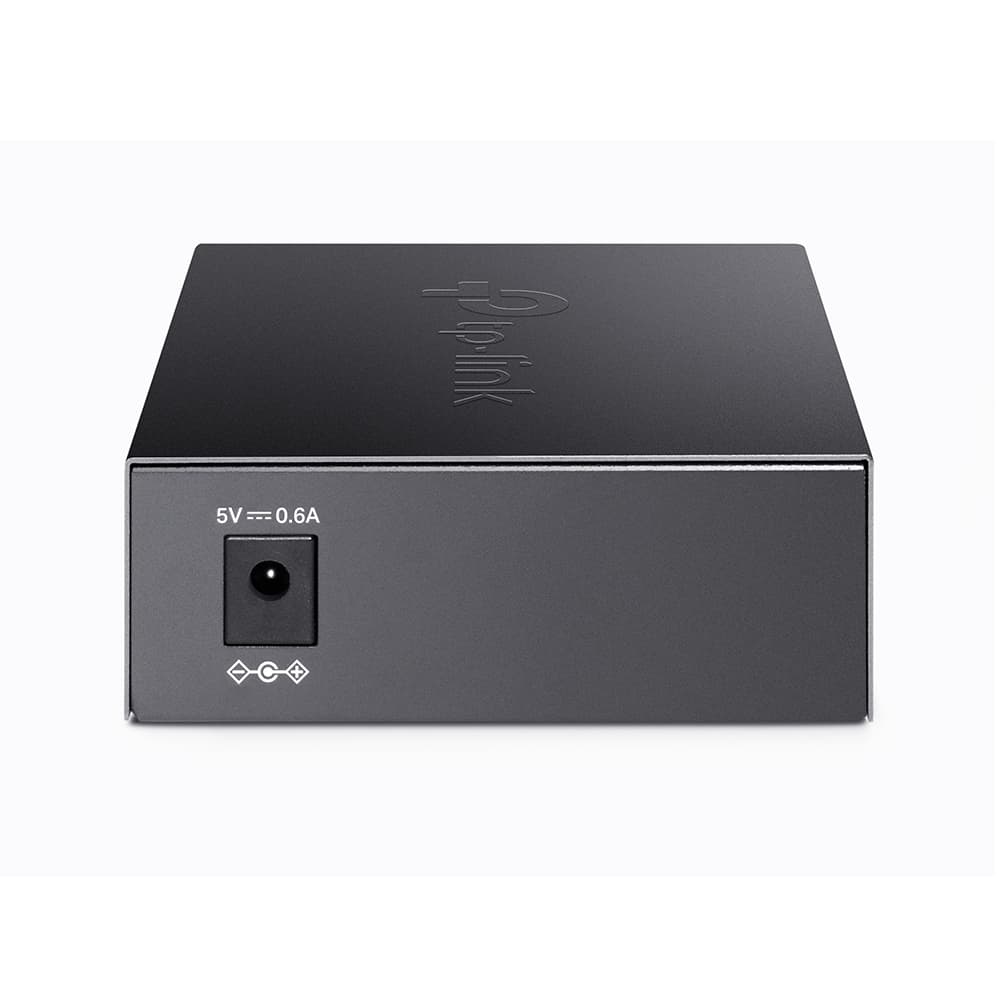

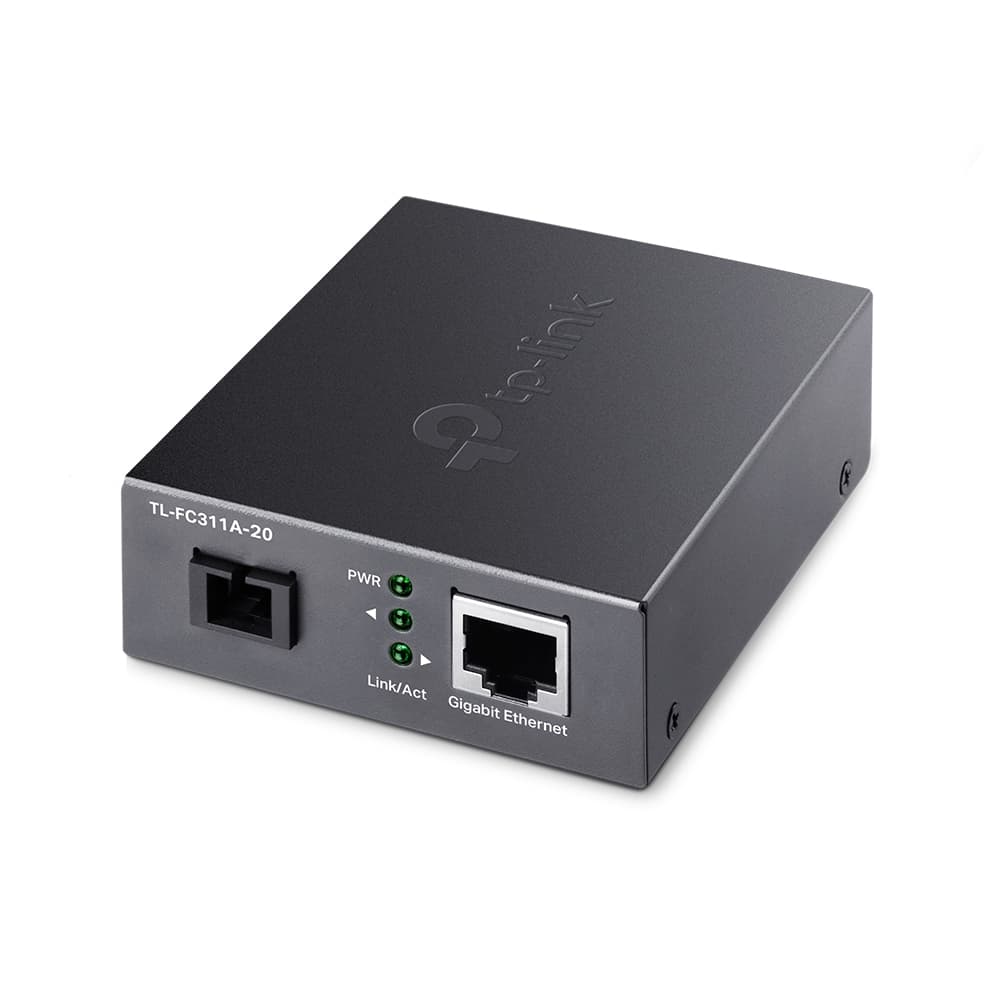

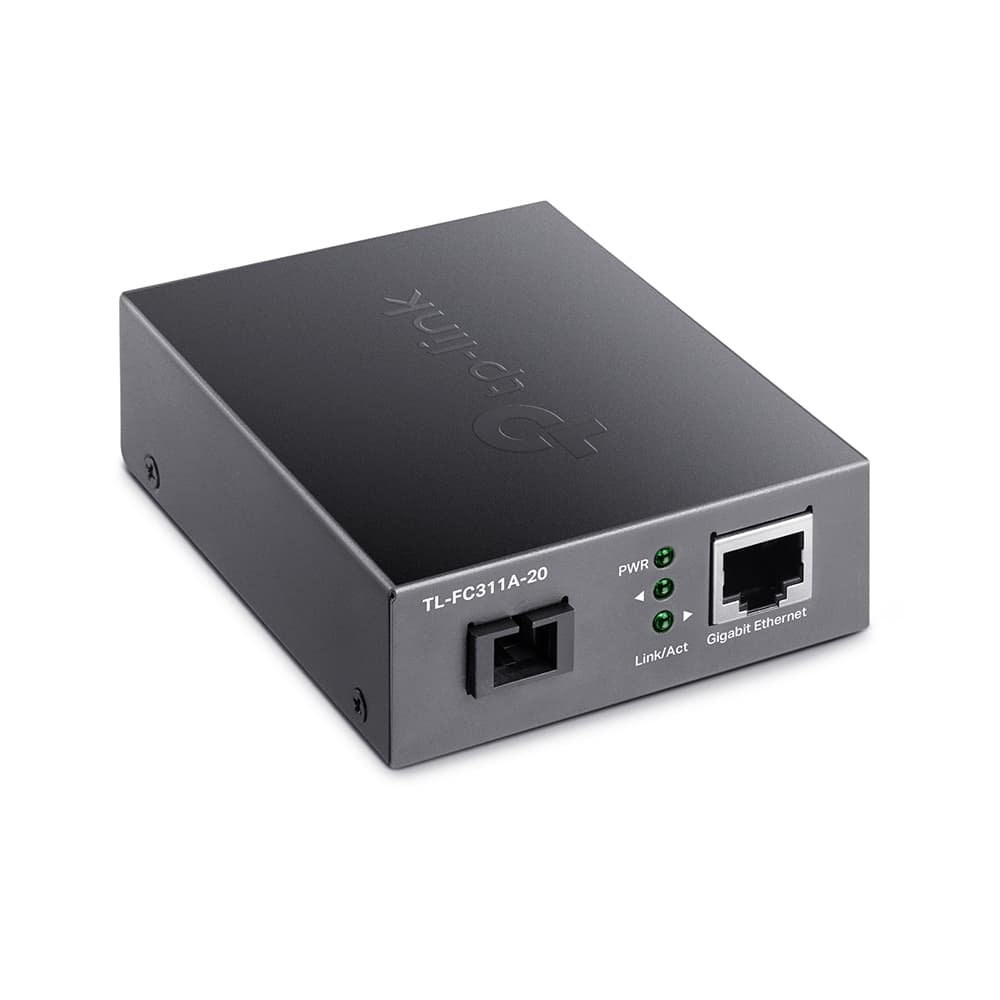

TP-Link Gigabit WDM Media Converter

Part number
1963743
MPN
FC311A-20
EAN
6935364072919

TP-Link Gigabit WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s, 20000 m

Connectivity technologyWired
TransmissionDuplex
Application areaSmall/Medium Business
Power supply5 V DC
InterfacesRJ-45 (1000Mbps), SFP
Datendurchsatz1000 Mbit/s
Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
All 38 specifications

Description

TP-Link Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A

Documents

Specifications

Connectivity technologyWired
TransmissionDuplex
Application areaSmall/Medium Business
Power supply5 V DC
InterfacesRJ-45 (1000Mbps), SFP
Datendurchsatz1000 Mbit/s

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Data transfer rate1000 Mbit/s

Performance

Maximum transfer distance20000 m
Wavelength-division multiplexing (WDM)Yes
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)9/125 µm

Features

InternalNo
LED indicatorsActivity, Link, Power
Product colourBlack

Ports & interfaces

Fiber optic connectorSC
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
DC-in jackYes

Power

Output voltage5 V
Output current0.6 A

Weight & dimensions

Width94.5 mm
Depth73 mm
Height27 mm

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Packaging content

AC adapter includedYes
Quick installation guideYes

Packaging data

Package width165 mm
Package depth204 mm
Package height65 mm
Package weight560 g

Logistics data

Harmonized System (HS) code85176990
Weight0.36 kg
